UPD6122G-002 Datasheet

  • UPD6122G-002

  • REMOTE CONTROL TRANSMISSION CMOS IC

  • 168.77KB

  • 28頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA
SHEET
DATA
SHEET
碌

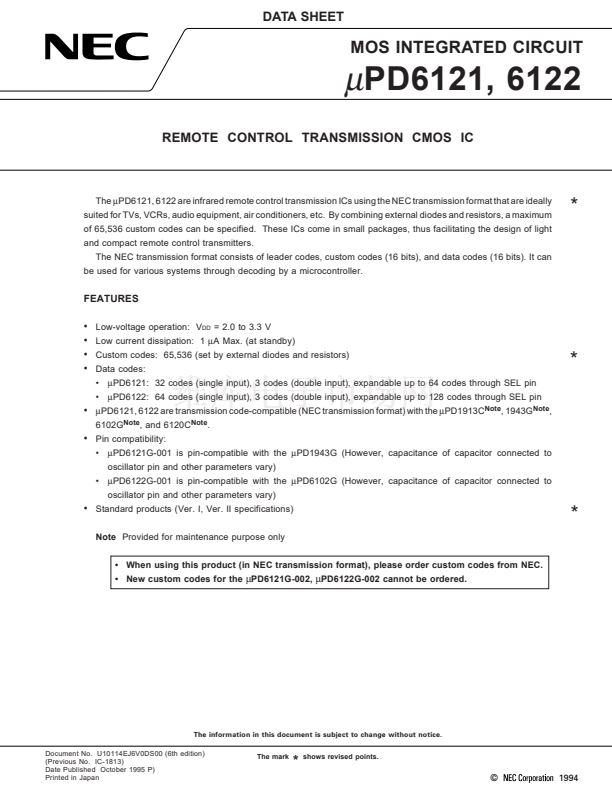

PD6121, 6122
REMOTE CONTROL TRANSMISSION CMOS IC
MOS INTEGRATED CIRCUIT
The
碌PD6121,
6122 are infrared remote control transmission ICs using the NEC transmission format that are ideally
suited for TVs, VCRs, audio equipment, air conditioners, etc. By combining external diodes and resistors, a maximum
of 65,536 custom codes can be specified. These ICs come in small packages, thus facilitating the design of light
and compact remote control transmitters.
The NEC transmission format consists of leader codes, custom codes (16 bits), and data codes (16 bits). It can
be used for various systems through decoding by a microcontroller.
*
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low-voltage operation: V
DD
= 2.0 to 3.3 V
Low current dissipation: 1
碌A(chǔ)
Max. (at standby)
Custom codes: 65,536 (set by external diodes and resistors)
Data codes:
鈥?/div>
碌PD6121:
32 codes (single input), 3 codes (double input), expandable up to 64 codes through SEL pin
鈥?/div>
碌PD6122:
64 codes (single input), 3 codes (double input), expandable up to 128 codes through SEL pin
*
鈥?/div>
碌PD6121,
6122 are transmission code-compatible (NEC transmission format) with the
碌PD1913C
Note
, 1943G
Note
,
6102G
Note
, and 6120C
Note
.
鈥?/div>
Pin compatibility:
鈥?/div>
碌PD6121G-001
is pin-compatible with the
碌PD1943G
(However, capacitance of capacitor connected to
oscillator pin and other parameters vary)
鈥?/div>
碌PD6122G-001
is pin-compatible with the
碌PD6102G
(However, capacitance of capacitor connected to
oscillator pin and other parameters vary)
鈥?/div>
Standard products (Ver. I, Ver. II specifications)
Note
Provided for maintenance purpose only
鈥?When using this product (in NEC transmission format), please order custom codes from NEC.
鈥?New custom codes for the
碌
PD6121G-002,
碌
PD6122G-002 cannot be ordered.
*
The information in this document is subject to change without notice.
Document No. U10114EJ6V0DS00 (6th edition)
(Previous No. IC-1813)
Date Published October 1995 P)
Printed in Japan
The mark
*
shows revised points.
漏
1994
1994
