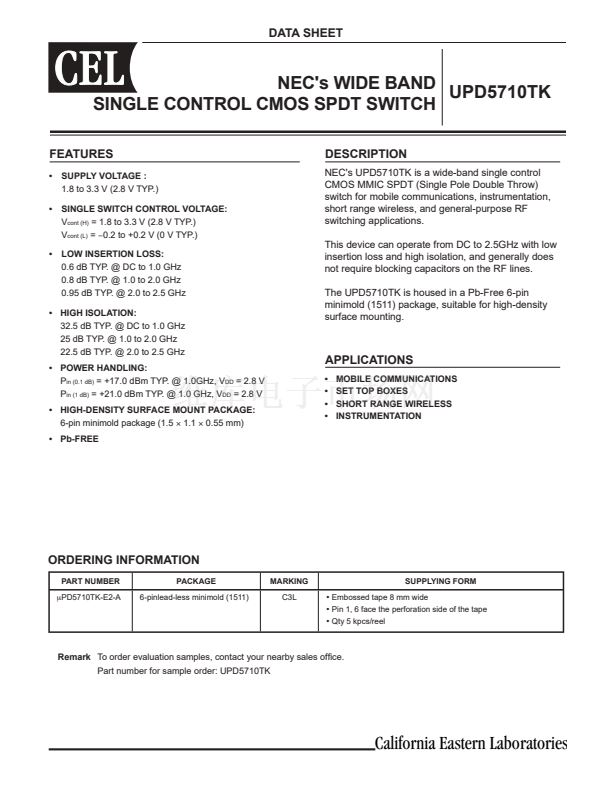

DATA SHEET
NEC's WIDE BAND
UPD5710TK
SINGLE CONTROL CMOS SPDT SWITCH
FEATURES
鈥?/div>
SUPPLY VOLTAGE :
1.8 to 3.3 V (2.8 V TYP.)
SINGLE SWITCH CONTROL VOLTAGE:
V
cont (H)
= 1.8 to 3.3 V (2.8 V TYP.)
V
cont (L)
=
鈭?.2
to +0.2 V (0 V TYP.)

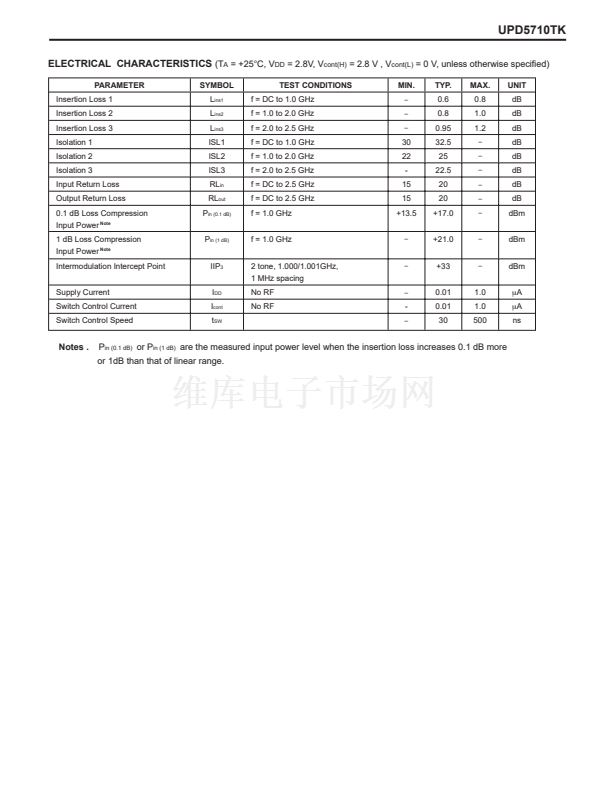

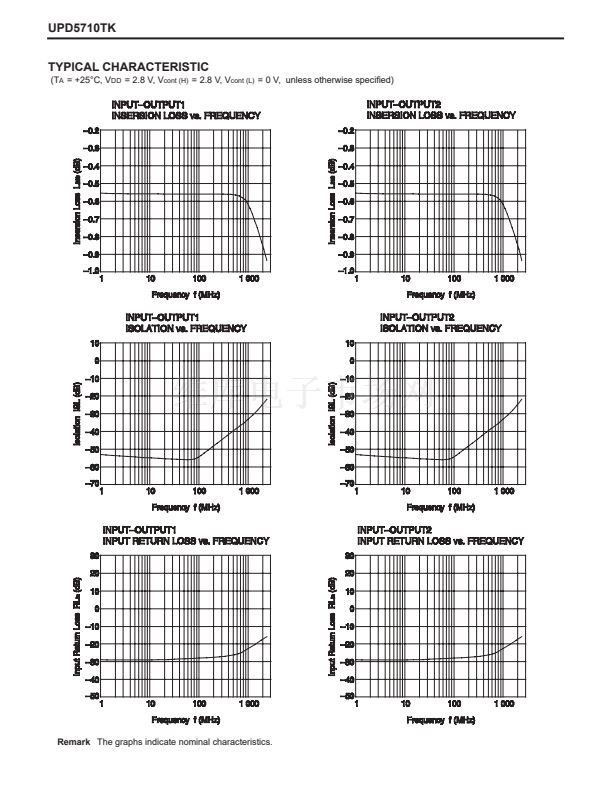

LOW INSERTION LOSS:
0.6 dB TYP. @ DC to 1.0 GHz
0.8 dB TYP. @ 1.0 to 2.0 GHz
0.95 dB TYP. @ 2.0 to 2.5 GHz
DESCRIPTION
NEC's UPD5710TK is a wide-band single control
CMOS MMIC SPDT (Single Pole Double Throw)
switch for mobile communications, instrumentation,
short range wireless, and general-purpose RF
switching applications.
This device can operate from DC to 2.5GHz with low
insertion loss and high isolation, and generally does
not require blocking capacitors on the RF lines.
The UPD5710TK is housed in a Pb-Free 6-pin
minimold (1511) package, suitable for high-density
surface mounting.
鈥?/div>
鈥?/div>
鈥?HIGH ISOLATION:
32.5 dB TYP. @ DC to 1.0 GHz
25 dB TYP. @ 1.0 to 2.0 GHz
22.5 dB TYP. @ 2.0 to 2.5 GHz

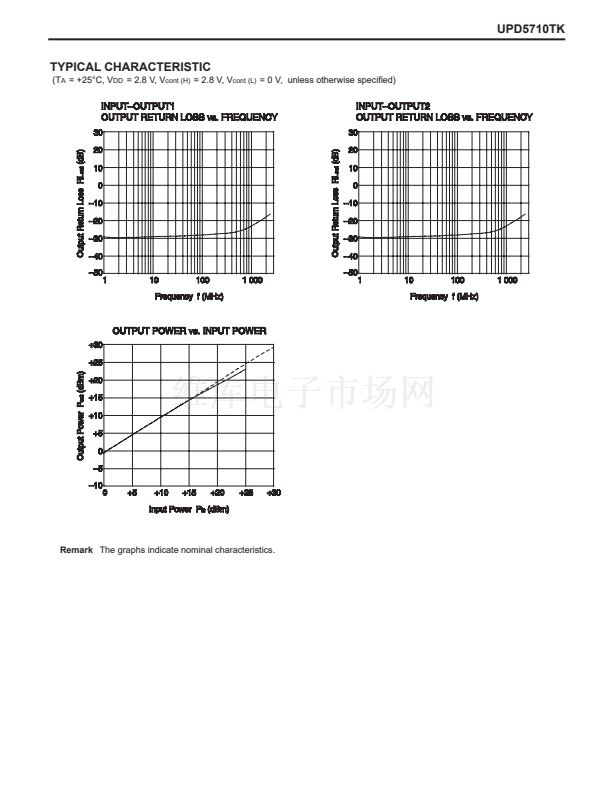

鈥?POWER HANDLING:
P
in (0.1 dB)
= +17.0 dBm TYP. @ 1.0GHz, V
DD
= 2.8 V
P
in (1 dB)
= +21.0 dBm TYP. @ 1.0 GHz, V
DD
= 2.8 V

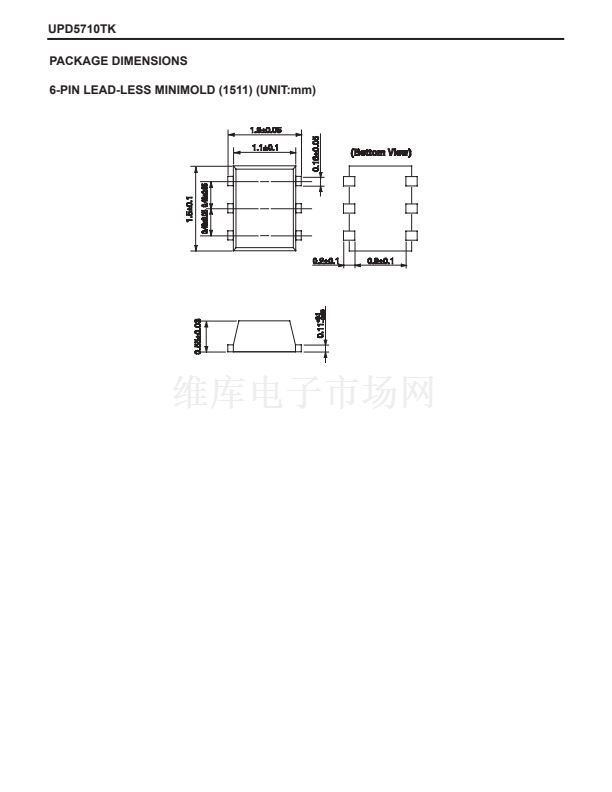

鈥?HIGH-DENSITY SURFACE MOUNT PACKAGE:
6-pin minimold package (1.5
脳
1.1
脳
0.55 mm)
鈥?Pb-FREE
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
MOBILE COMMUNICATIONS
SET TOP BOXES
SHORT RANGE WIRELESS
INSTRUMENTATION
ORDERING INFORMATION
PART NUMBER
渭PD5710TK-E2-A
PACKAGE
6-pinlead-less minimold (1511)
MARKING
C3L
SUPPLYING FORM
鈥?/div>
Embossed tape 8 mm wide
鈥?/div>
Pin 1, 6 face the perforation side of the tape
鈥?/div>
Qty 5 kpcs/reel

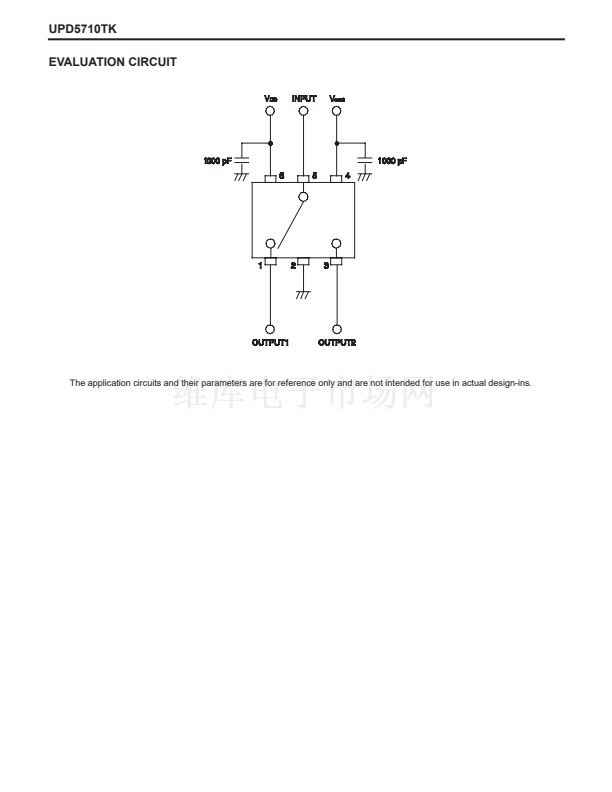

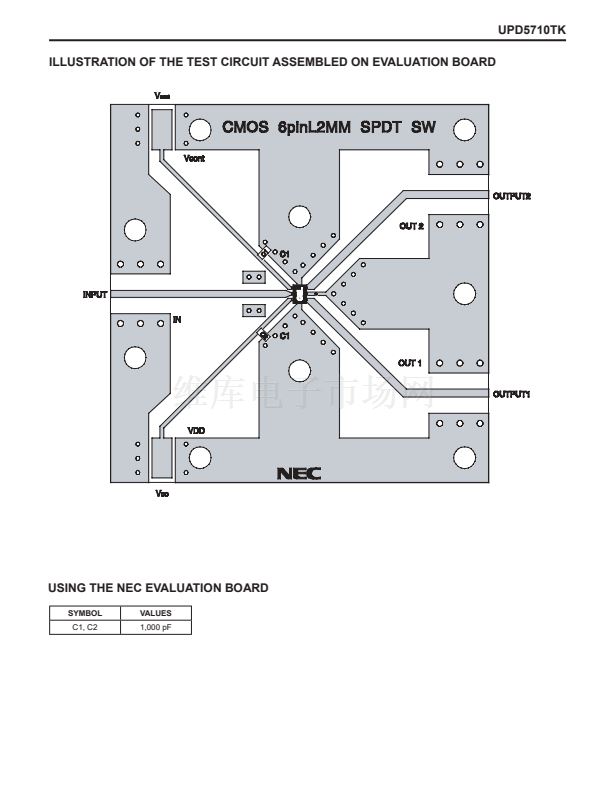

Remark
To order evaluation samples, contact your nearby sales of鏗乧e.
Part number for sample order: UPD5710TK

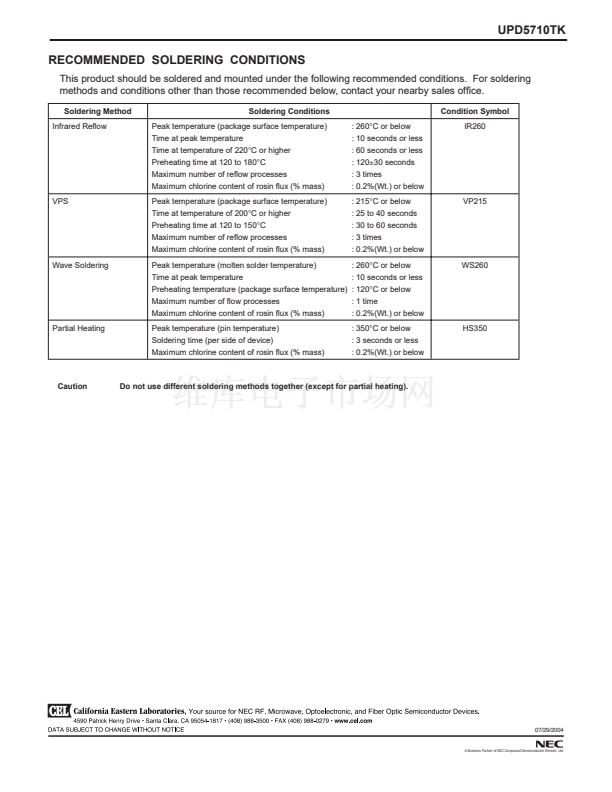

California Eastern Laboratories

UPD5710TK-E2-A 產品屬性

  • CEL

  • RF 開關 IC

  • SMD/SMT

  • S06

  • Reel

  • 5000

  • 1 uA
