UPD44325082F5-E40-EQ2 Datasheet

  • UPD44325082F5-E40-EQ2

  • 36M-BIT QDRII SRAM 2-WORD BURST OPERATION

  • 32頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

PRELIMINARY DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD44325082, 44325092, 44325182, 44325362
36M-BIT QDR
TM
II SRAM
2-WORD BURST OPERATION
Description
The
碌
PD44325082 is a 4,194,304-word by 8-bit, the
碌
PD44325092 is a 4,194,304-word by 9-bit, the
碌
PD44325182 is a
2,097,152-word by 18-bit and the
碌
PD44325362 is a 1,048,576-word by 36-bit synchronous quad data rate static RAM
fabricated with advanced CMOS technology using full CMOS six-transistor memory cell.
The
碌
PD44325082,
碌
PD44325092,
碌
PD44325182 and
碌
PD44325362 integrate unique synchronous peripheral
circuitry and a burst counter. All input registers controlled by an input clock pair (K and /K) are latched on the positive
edge of K and /K.
These products are suitable for application which require synchronous operation, high speed, low voltage, high density
and wide bit configuration.

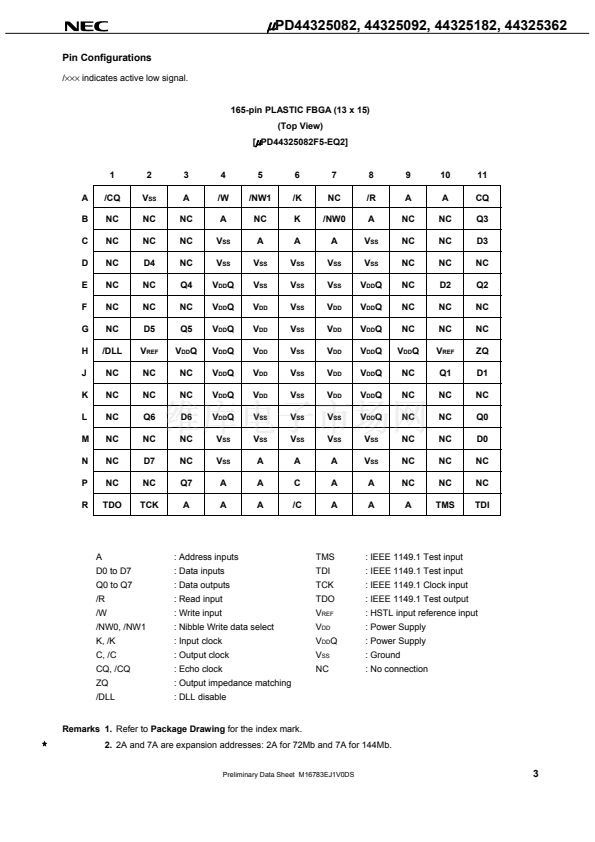

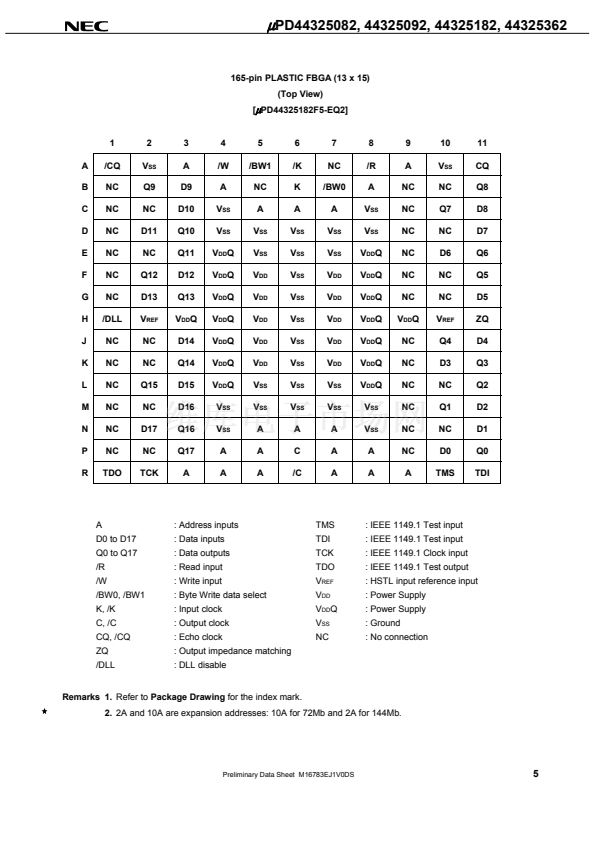

These products are packaged in 165-pin PLASTIC FBGA.
Features
鈥?/div>
1.8 鹵 0.1 V power supply and HSTL I/O
鈥?/div>
DLL circuitry for wide output data valid window and future frequency scaling
鈥?/div>
Separate independent read and write data ports with concurrent transactions
鈥?/div>
100% bus utilization DDR READ and WRITE operation
鈥?/div>
Two-tick burst for low DDR transaction size
鈥?/div>
Two input clocks (K and /K) for precise DDR timing at clock rising edges only
鈥?/div>
Two output clocks (C and /C) for precise flight time and clock skew matching-clock
and data delivered together to receiving device
鈥?/div>
Internally self-timed write control
鈥?/div>
Clock-stop capability with
碌
s restart
鈥?/div>
User programmable impedance output
鈥?/div>
Fast clock cycle time : 4.0 ns (250 MHz), 5.0 ns (200 MHz)
鈥?/div>
Simple control logic for easy depth expansion
鈥?/div>
JTAG boundary scan

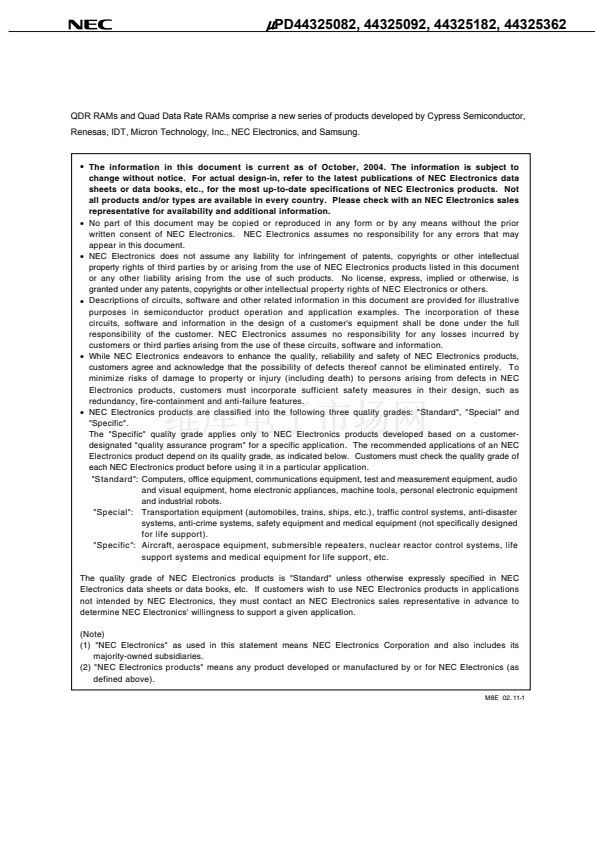

The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all products and/or types are available in every country. Please check with an NEC Electronics
sales representative for availability and additional information.
Document No. M16783EJ1V0DS00 (1st edition)
Date Published October 2004 NS CP(K)
Printed in Japan
The mark
shows major revised points.
2003
