DATA SHEET
MOS INTEGRATED CIRCUIT
碌
PD178096A,178098A
8-BIT SINGLE-CHIP MICROCONTROLLER
DESCRIPTION
The
碌
PD178096A and 178098A are 8-bit single-chip CMOS microcontrollers containing hardware for digital tuning
systems.
These microcontrollers employ a 78K/0 Series architecture CPU and allow easy access to internal memories at
high speed and easy control of peripheral hardware units. The high-speed 78K/0 Series instructions are ideal for
system control.

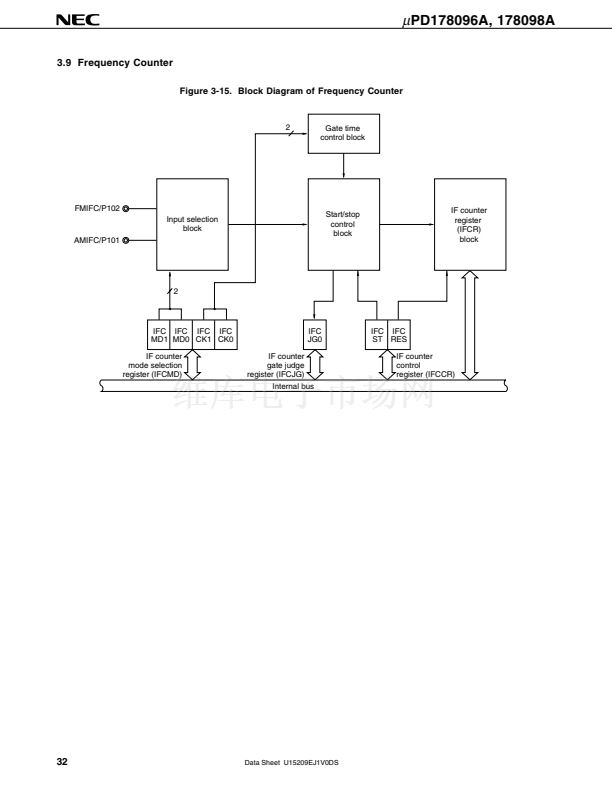

As peripheral hardware, a prescaler, PLL frequency synthesizer, and frequency counter for digital tuning systems
are provided, as well as many I/O ports, timers, A/D converter, serial interface, and a power-ON clear circuit. In
addition, the
碌
PD178096A and 178098A have an IEBus
TM
controller.
Moreover, a flash memory model, the
碌
PD178F098, that operates in the same supply voltage range as the mask
ROM models, and various development tools are also under development.
Detailed function descriptions are provided in the following user鈥檚 manuals. Be sure to read them before
designing.
碌
PD178078, 178098 Subseries User鈥檚 Manual: U12790E
78K/0 Series User鈥檚 Manual - Instructions:
U12326E
FEATURES
鈥?/div>
High-capacity ROM and RAM
Item Program Memory (ROM)
Part Number
Data Memory
Internal High-Speed RAM Internal Buffer RAM Internal Expansion RAM
48 KB
60 KB
1024 bytes
32 bytes
1024 bytes
2048 bytes
碌
PD178096A
碌
PD178098A
鈥?/div>
Instruction cycle: resonator of f
0.32
碌
s (with crystal
鈥?/div>
Many internal hardware units
X
= 6.3 MHz)
鈥?/div>
Hardware for PLL frequency synthesizer
phase comparator, charge pump
dual modulus prescaler, programmable divider,
General-purpose I/O ports, A/D converter, serial
interface, IEBus controller, timers, frequency coun-
ter, power-ON clear circuit
鈥?/div>
Vectored interrupt sources: 21
鈥?/div>
Supply voltage :
V
DD
= 4.5 to 5.5 V (during PLL and CPU operations)
V
DD
= 3.5 to 5.5 V (during CPU operation)
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
Document No. U15209EJ1V0DS00 (1st edition)
Date Published April 2001 N CP(K)
Printed in Japan
2001
