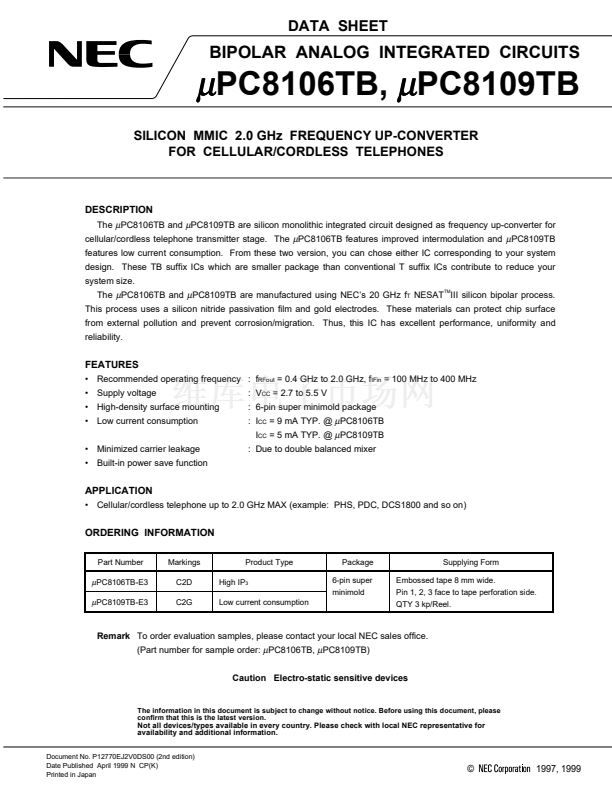

DATA SHEET
碌

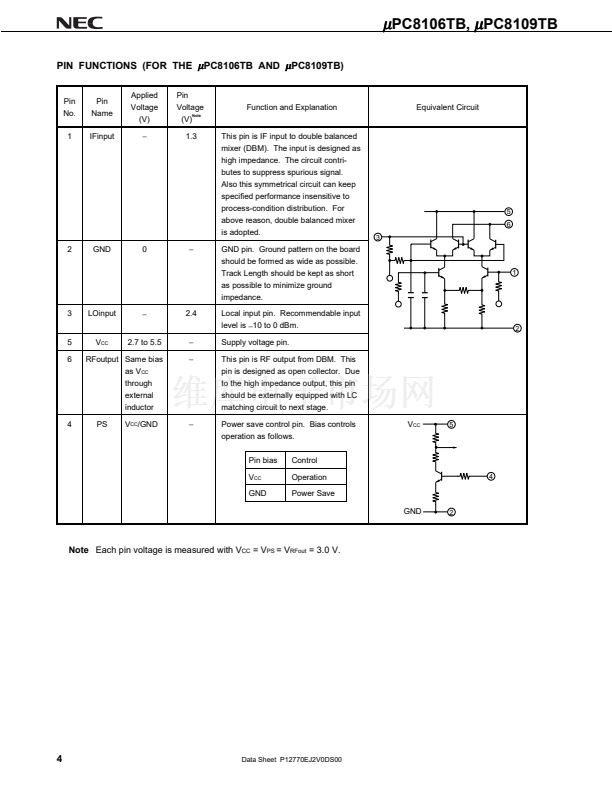

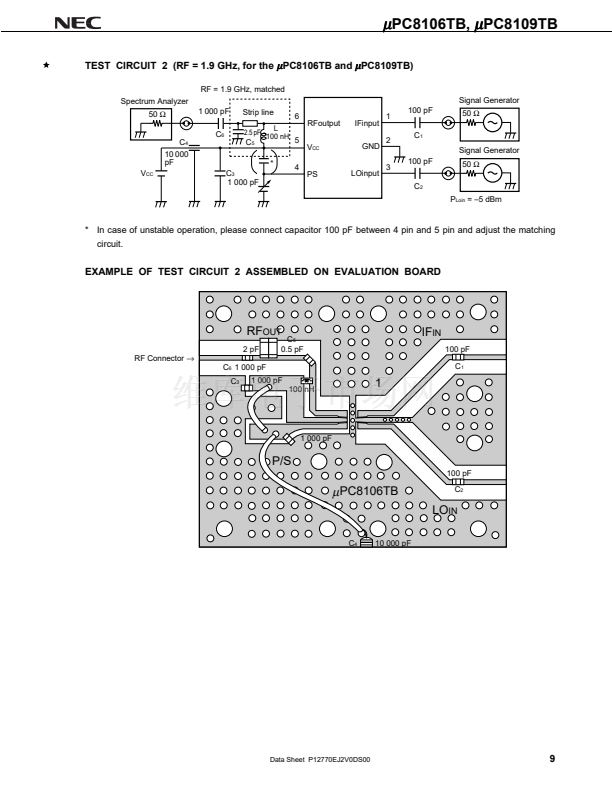

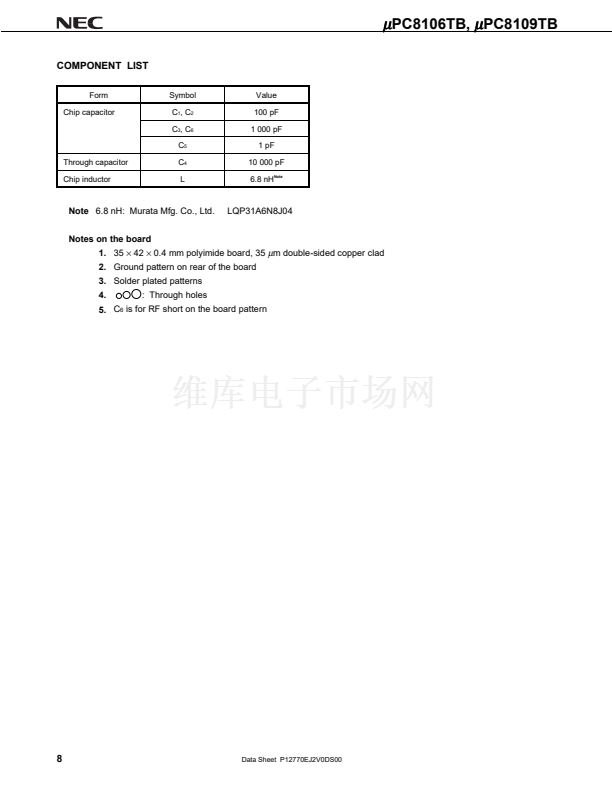

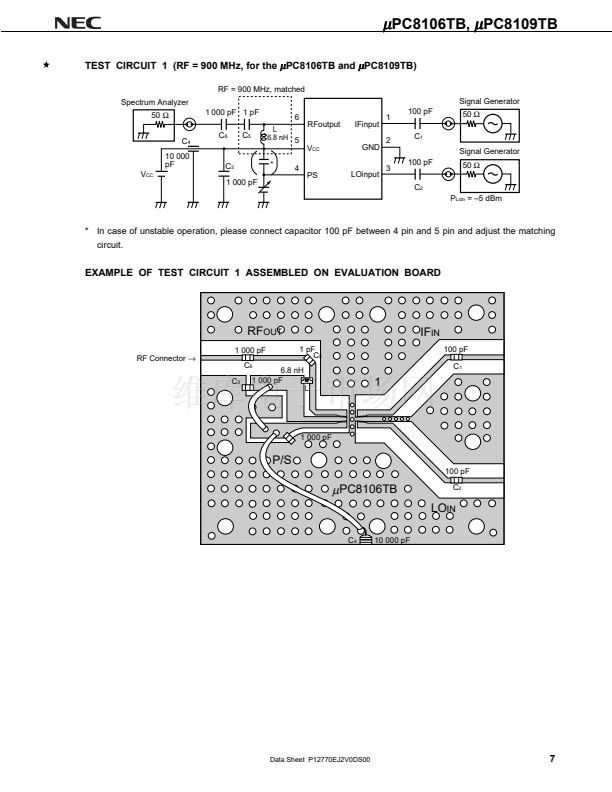

PC8106TB,
碌
PC8109TB
SILICON MMIC 2.0 GHz FREQUENCY UP-CONVERTER
FOR CELLULAR/CORDLESS TELEPHONES
BIPOLAR ANALOG INTEGRATED CIRCUITS
DESCRIPTION
The
碌
PC8106TB and
碌
PC8109TB are silicon monolithic integrated circuit designed as frequency up-converter for
cellular/cordless telephone transmitter stage. The
碌
PC8106TB features improved intermodulation and
碌
PC8109TB
features low current consumption. From these two version, you can chose either IC corresponding to your system
design. These TB suffix ICs which are smaller package than conventional T suffix ICs contribute to reduce your
system size.
The
碌
PC8106TB and
碌
PC8109TB are manufactured using NEC鈥檚 20 GHz f
T
NESAT
TM
III silicon bipolar process.
This process uses a silicon nitride passivation film and gold electrodes. These materials can protect chip surface
from external pollution and prevent corrosion/migration. Thus, this IC has excellent performance, uniformity and
reliability.

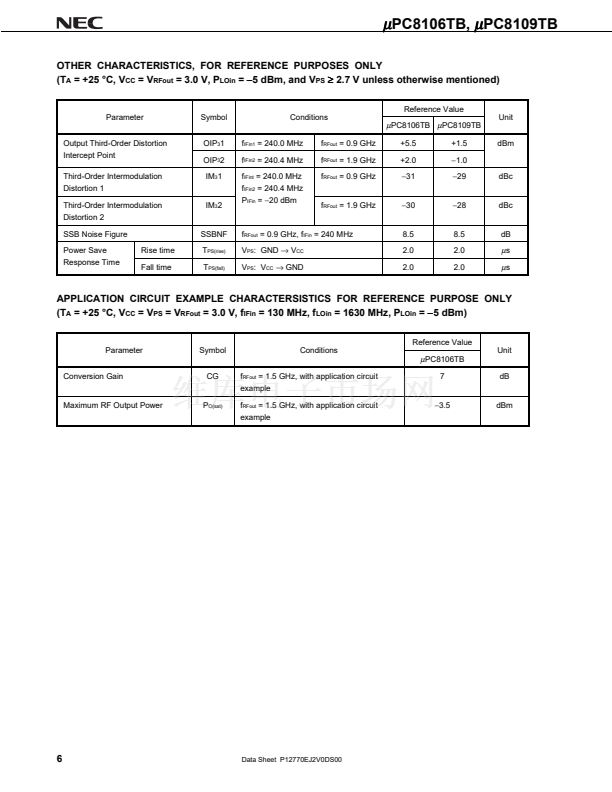

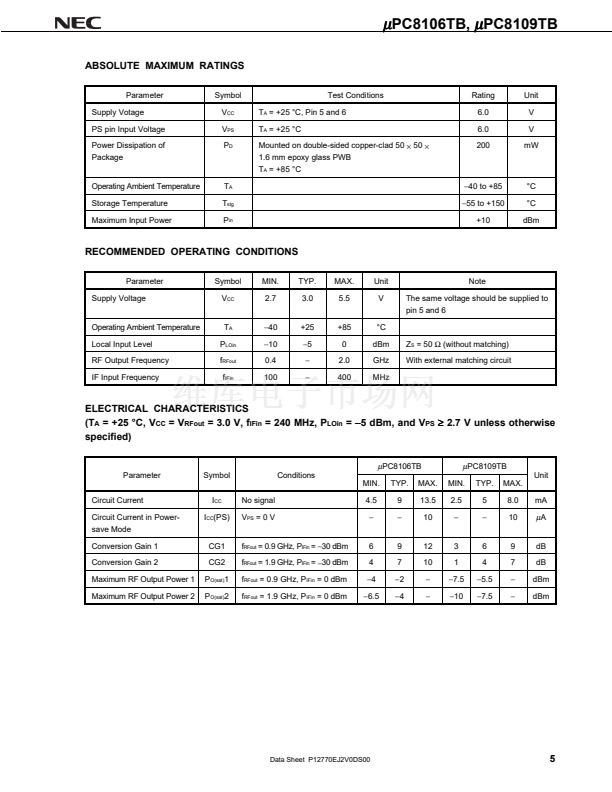

FEATURES
鈥?Recommended operating frequency : f
RFout
= 0.4 GHz to 2.0 GHz, f
IFin
= 100 MHz to 400 MHz
鈥?Supply voltage
鈥?High-density surface mounting
鈥?Low current consumption
鈥?Minimized carrier leakage
鈥?Built-in power save function
: V
CC
= 2.7 to 5.5 V
: 6-pin super minimold package
: I
CC
= 9 mA TYP. @
碌
PC8106TB
I
CC
= 5 mA TYP. @
碌
PC8109TB
: Due to double balanced mixer

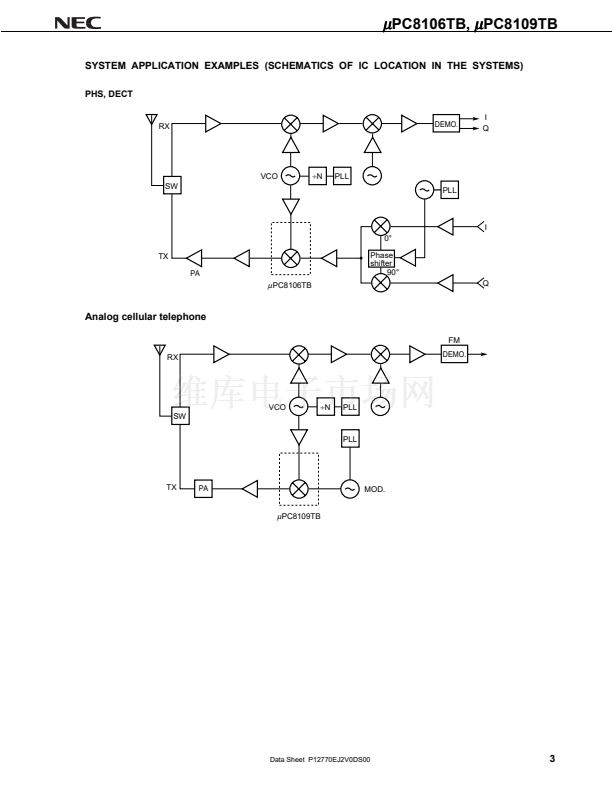

APPLICATION
鈥?Cellular/cordless telephone up to 2.0 GHz MAX (example: PHS, PDC, DCS1800 and so on)
ORDERING INFORMATION
Part Number
Markings
C2D
C2G
Product Type
High IP
3
Low current consumption
Package
6-pin super
minimold
Supplying Form
Embossed tape 8 mm wide.
Pin 1, 2, 3 face to tape perforation side.
QTY 3 kp/Reel.
碌
PC8106TB-E3
碌
PC8109TB-E3
Remark
To order evaluation samples, please contact your local NEC sales office.
(Part number for sample order:
碌
PC8106TB,
碌
PC8109TB)
Caution Electro-static sensitive devices
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. P12770EJ2V0DS00 (2nd edition)
Date Published April 1999 N CP(K)
Printed in Japan
漏
1997, 1999
