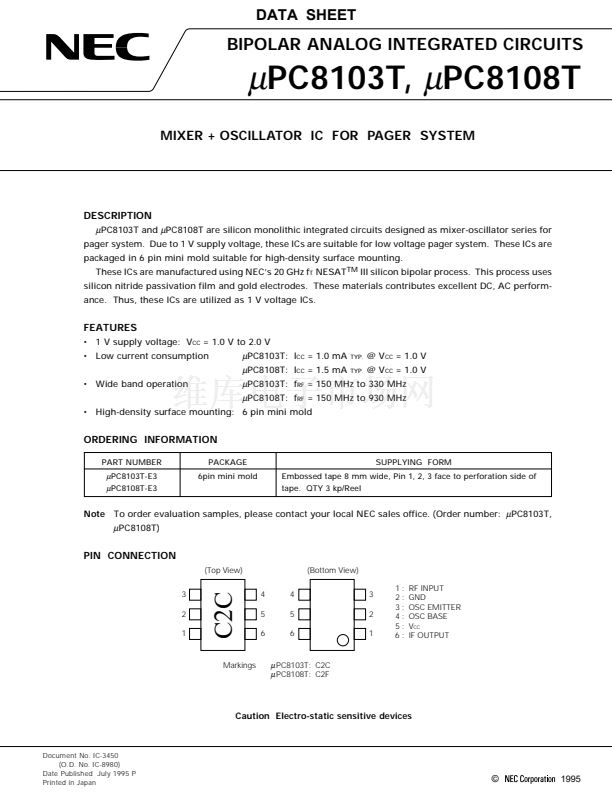

DATA SHEET

BIPOLAR ANALOG INTEGRATED CIRCUITS

碌

PC8103T,

碌

PC8108T

MIXER + OSCILLATOR IC FOR PAGER SYSTEM

DESCRIPTION

碌

PC8103T and

碌

PC8108T are silicon monolithic integrated circuits designed as mixer-oscillator series for

pager system. Due to 1 V supply voltage, these ICs are suitable for low voltage pager system. These ICs are

packaged in 6 pin mini mold suitable for high-density surface mounting.

These ICs are manufactured using NEC鈥檚 20 GHz f

T

NESAT

TM

III silicon bipolar process. This process uses

silicon nitride passivation film and gold electrodes. These materials contributes excellent DC, AC perform-

ance. Thus, these ICs are utilized as 1 V voltage ICs.

FEATURES

鈥?1 V supply voltage: V

CC

= 1.0 V to 2.0 V

鈥?Low current consumption

鈥?Wide band operation

碌

PC8103T: l

CC

= 1.0 mA

碌

PC8108T: l

CC

= 1.5 mA

TYP.

TYP.

@ V

CC

= 1.0 V

@ V

CC

= 1.0 V

碌

PC8103T: f

RF

= 150 MHz to 330 MHz

碌

PC8108T: f

RF

= 150 MHz to 930 MHz

鈥?High-density surface mounting: 6 pin mini mold

ORDERING INFORMATION

PART NUMBER

PACKAGE

6pin mini mold

tape. QTY 3 kp/Reel

SUPPLYING FORM

Embossed tape 8 mm wide, Pin 1, 2, 3 face to perforation side of

碌

PC8103T-E3

碌

PC8108T-E3

Note

To order evaluation samples, please contact your local NEC sales office. (Order number:

碌

PC8103T,

碌

PC8108T)

PIN CONNECTION

(Top View)

(Bottom View)

4

5

6

4

5

6

3

2

1

1:

2:

3:

4:

5:

6:

RF INPUT

GND

OSC EMITTER

OSC BASE

V

CC

IF OUTPUT

2

1

C2C

Markings

3

碌

PC8103T: C2C

碌

PC8108T: C2F

Caution Electro-static sensitive devices

Document No. IC-3450

(O.D. No. IC-8980)

Date Published July 1995 P

Printed in Japan

漏

1995

next
