DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
碌
PC2795GV
GENERAL PURPOSE L-BAND DOWN CONVERTER
DESCRIPTION
The
碌
PC2795GV is Silicon monolithic IC designed for L-band down converter.
The package is 8-pin SSOP suitable for high-density surface mount.
This IC consists of double
balanced mixer, local oscillator, local oscillation buffer amplifier, IF buffer amplifier, and voltage regulator.
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Wide band operation
Supply voltage
Low distortion
f
RF
= 0.95 to 2.15 GHz
5V
IM
3
= 55 dBc
Packaged in 8-pin SSOP suitable for high-density mounting
ORDERING INFORMATION
PART NUMBER
PACKAGE
8-pin plastic SSOP (175 mil)
PACKAGE STYLE
Embossed tape 8 mm wide. 1 k/REEL
Pin 1 indicates pull-out direction of tape
碌
PC2795GV-E1
For evaluation sample order, please contact your local NEC office. (Part number for sample order:
碌
PC2795GV)
INTERNAL BLOCK DIAGRAM
8
7
6
5
PIN CONFIGURATION (Top View)
1
OSC
Buffer
OSC
REG1
IF
Buffer
REG2
2
3
4
8
7
6
5

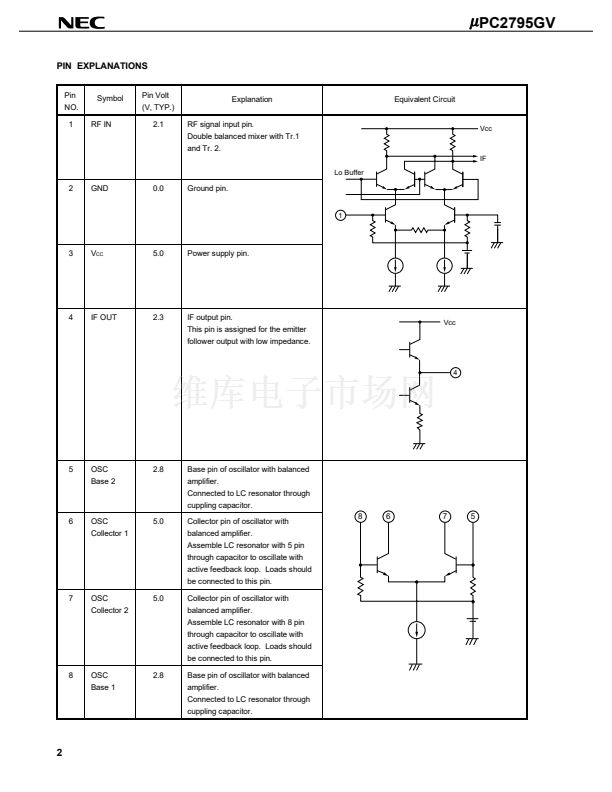

1. RF input
2. GND
3. Vcc
4. IF out
5. OSC Base 2
6. OSC Collector 1
7. OSC Collector 2
8. OSC Base 1
MIX
1
2
3
4
Caution: Electro-static sensitive devices
The information in this document is subject to change without notice.
Document No. P11734EJ2V0DS00 (2nd edition)
Date Published June 1998 N CP(K)
