UPC2775GR-E1 Datasheet

  • UPC2775GR-E1

  • FREQUENCY DOWN CONVERTER FOR VHF-UHF BAND TV/VCR TUNER

  • 16頁

  • NEC   NEC

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

DATA SHEET
BIPOLAR ANALOG INTEGRATED CIRCUIT
碌
PC2775GR/GS
FREQUENCY DOWN CONVERTER
FOR VHF-UHF BAND TV/VCR TUNER

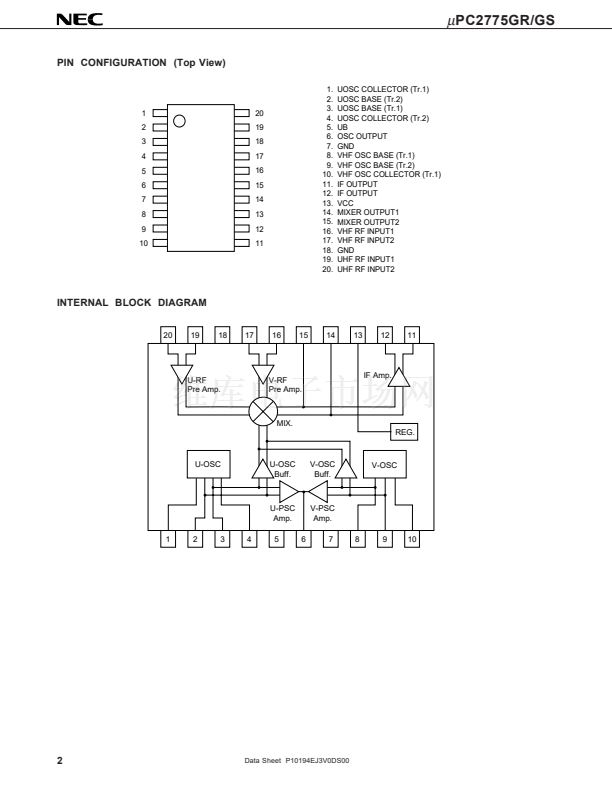

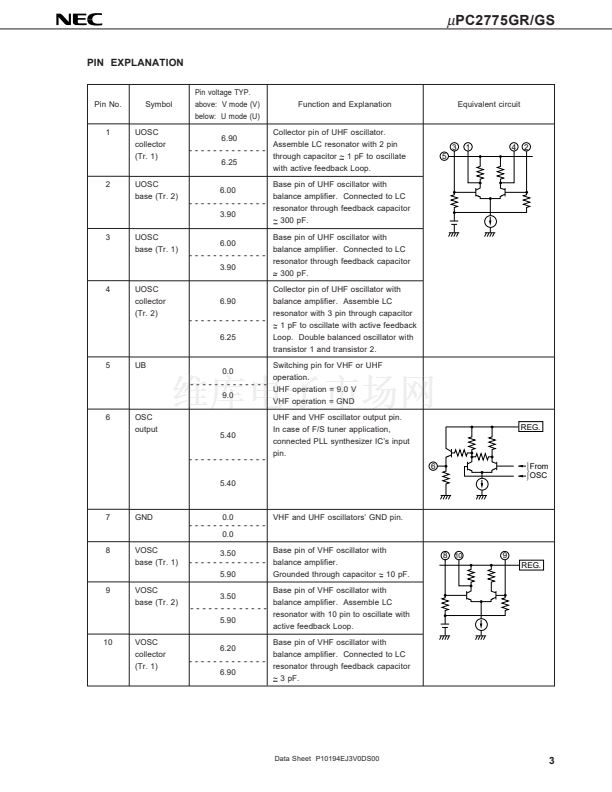

DESCRIPTION
The
碌
PC2775GR/GS are Silicon monolithic ICs designed for TV/VCR tuner applications. These ICs consist of
double balanced mixers (DBM), local oscillator, preamplifiers for prescaler operation, IF amplifier, regulator, UHF/
VHF switching circuit, and so on. These one chip ICs cover a wide frequency band from VHF to UHF bands. These
ICs are packaged in a 20 pins SSOP (shrink small outline package;
碌
PC2775GR) or 20 pins SOP (small outline
package;
碌
PC2775GS) suitable for surface mounting. So, these ICs enable to produce economical and physically
small or high-density VHF - UHF tuner and reduce the tuner development time.
FEATURES
鈥?VHF to UHF band operation.
鈥?Low oscillation frequency drift against supply voltage and temperature fluctuation due to balanced type UHF
oscillator.
鈥?These ICs can be used in single ended or differential IF outputs.
鈥?Supply voltage: 9 V
鈥?Packaged in 20 pins SSOP or 20 pins SOP suitable for surface mounting
ORDERING INFORMATION
PART NUMBER
PACKAGE
20 pin plastic SSOP (225 mil)
PACKAGE STYLE
Embossed tape 12 mm wide, 2.5 k/REEL
Pin 1 indicates pull-out direction of tape
Embossed tape 24 mm wide, 2.5 k/REEL
Pin 1 indicates pull-out direction of tape
碌
PC2775GR-E1
碌
PC2775GS-E1
20 pin plastic SOP (300 mil)
Caution electro-static sensitive device
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for availability
and additional information.
Document No. P10194EJ3V0DS00 (3rd edition)
Date Published October 1999 N CP(K)
Printed in Japan
The mark
shows major revised points.
漏
1995, 1999
