UCC3952PWTR-3 Datasheet

  • UCC3952PWTR-3

  • SINGLE-CELL LITHIUM-LON BATTERY PROTECTION IC

  • 121.32KB

  • 8頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

UCC3952-1, UCC3952-2, UCC3952-3, UCC3952-4
Single Cell Lithium Ion Battery Protection IC
SLUS400D 鈥?AUGUST 2000
D
Protects Sensitive Lithium-Ion Cells From
D
D
D
D
D
D
D
D
Overcharging and Over-Discharging
Dedicated for One-Cell Applications
Integrated Low-Impedance MOSFET Switch
and Sense Resistor
Precision Trimmed Overcharge and
Overdischarge Voltage Limits
Extremely Low Power Drain
3-A Current Capacity
Overcurrent and Short-Circuit Protection
Reverse Charger Protection
Thermal Protection
TCLK
NC
BNEG
BNEG
BNEG
BNEG
BNEG
BNEG
1
2
3
4
5
6
7
8
PW PACKAGE
(TOP VIEW)
16
15
14
13
12
11
10
9
PACK+
CBPS
NC
PACK鈥?/div>
PACK鈥?/div>
PACK鈥?/div>
PACK鈥?/div>
PACK鈥?/div>
description
The UCC3952 monolithic BiCMOS lithium鈥搃on
battery protection circuit increases the useful
operating life of a one-cell rechargeable battery
pack. Cell protection features include internally
trimmed charge and discharge voltage limits,
discharge current limit with a delayed shutdown,
and an ultra-low-current sleep mode state when
the cell is discharged. Additional features include
an on-chip MOSFET for reduced external compo-
nent count and a charge pump for reduced power
losses while charging or discharging a low-cell-
voltage battery pack. This protection circuit
requires one external capacitor and can operate
and safely shut down in a short circuit condition.
DP PACKAGE
(TOP VIEW)
TCLK
NC
NC
SUB
SUB
BNEG
BNEG
BNEG
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
PACK+
CBPS
NC
SUB
SUB
PACK鈥?/div>
PACK鈥?/div>
PACK鈥?/div>
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
2000, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

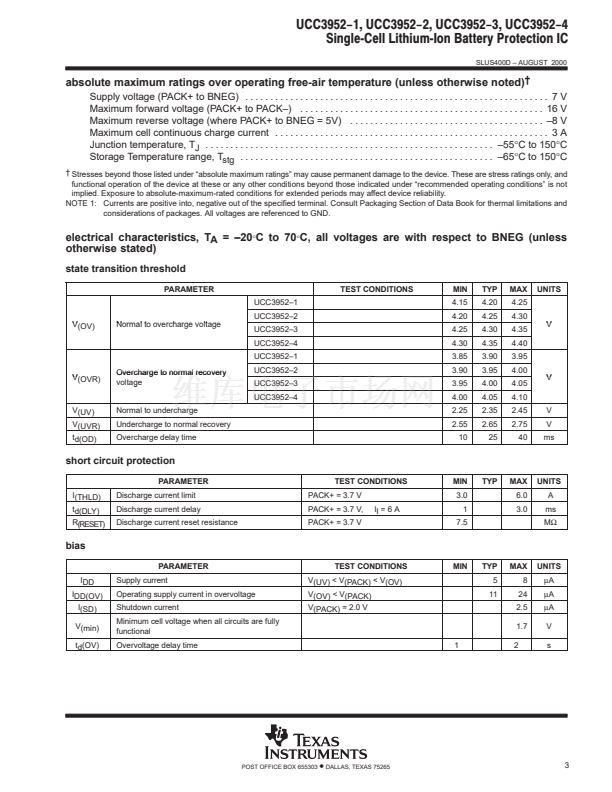

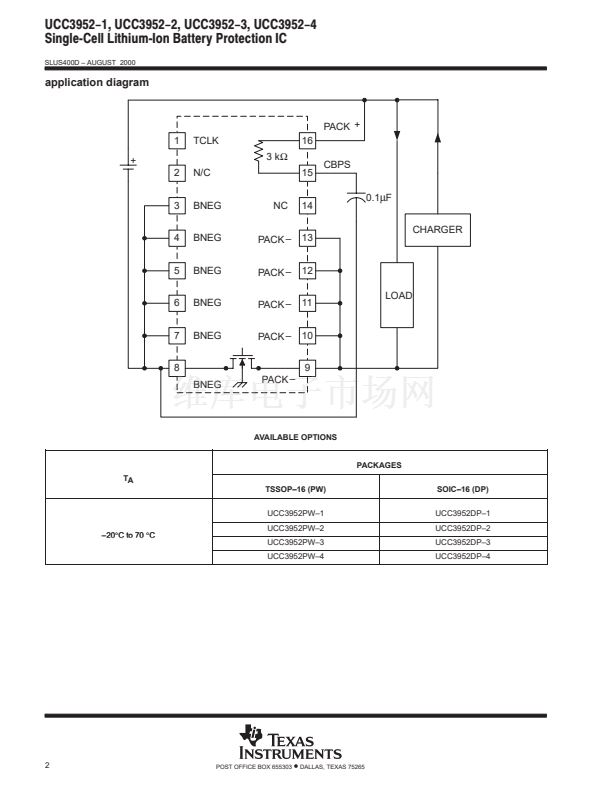

UCC3952PWTR-3 產品屬性

  • Texas Instruments

  • 電池管理

  • Li-Ion

  • 4.3 V

  • 3000 mA

  • + 70 C

  • - 20 C

  • TSSOP-16

  • Reel

  • SMD/SMT

  • 1
