UA79M05CKCS Datasheet

  • UA79M05CKCS

  • NEGATIVE-VOLTAGE REGULATORS

  • 9頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

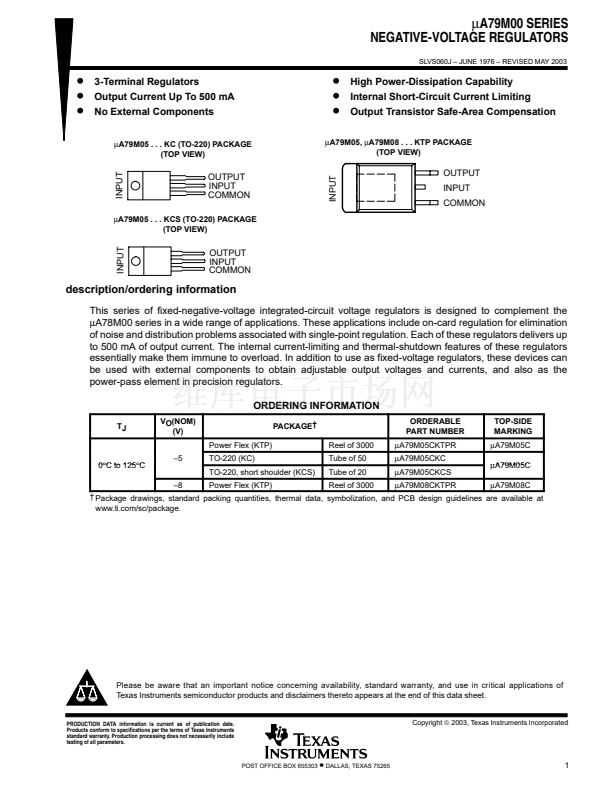

碌A(chǔ)79M00
SERIES
NEGATIVE-VOLTAGE REGULATORS
SLVS060J 鈥?JUNE 1976 鈥?REVISED MAY 2003
D
D
D
3-Terminal Regulators
Output Current Up To 500 mA
No External Components
碌A(chǔ)79M05
. . . KC (TO-220) PACKAGE
(TOP VIEW)
D
D
D
High Power-Dissipation Capability
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation
碌A(chǔ)79M05, 碌A(chǔ)79M08
. . . KTP PACKAGE
(TOP VIEW)
INPUT
INPUT
OUTPUT
INPUT
COMMON
OUTPUT
INPUT
COMMON
碌A(chǔ)79M05
. . . KCS (TO-220) PACKAGE
(TOP VIEW)
INPUT
OUTPUT
INPUT
COMMON
description/ordering information
This series of fixed-negative-voltage integrated-circuit voltage regulators is designed to complement the
碌A(chǔ)78M00
series in a wide range of applications. These applications include on-card regulation for elimination
of noise and distribution problems associated with single-point regulation. Each of these regulators delivers up
to 500 mA of output current. The internal current-limiting and thermal-shutdown features of these regulators
essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can
be used with external components to obtain adjustable output voltages and currents, and also as the
power-pass element in precision regulators.
ORDERING INFORMATION
TJ
VO(NOM)
(V)
Power Flex (KTP)
0擄C to 125擄C
鈥?
鈥?
TO-220 (KC)
TO-220, short shoulder (KCS)
Power Flex (KTP)
PACKAGE鈥?/div>
Reel of 3000
Tube of 50
Tube of 20
Reel of 3000
ORDERABLE
PART NUMBER
碌A(chǔ)79M05CKTPR
碌A(chǔ)79M05CKC
碌A(chǔ)79M05CKCS
碌A(chǔ)79M08CKTPR
TOP-SIDE
MARKING
碌A(chǔ)79M05C
碌A(chǔ)79M05C
碌A(chǔ)79M08C
鈥?Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at
www.ti.com/sc/package.

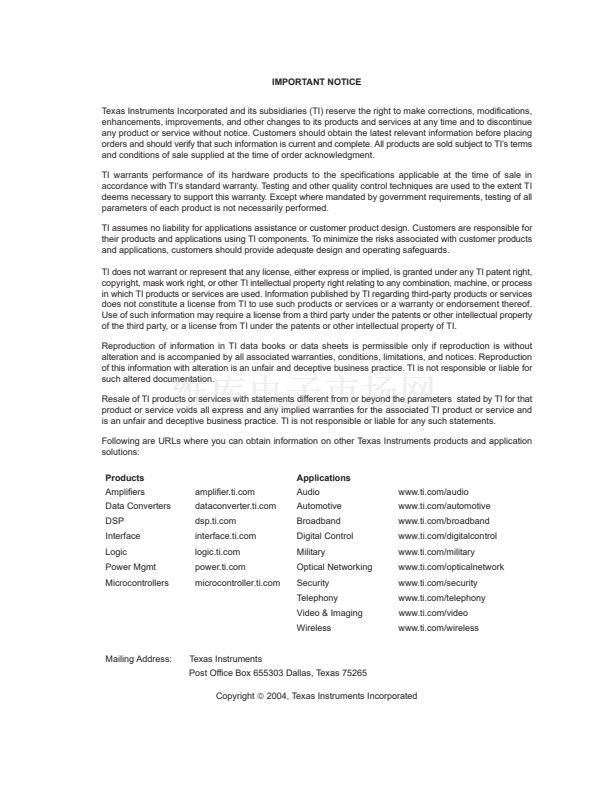

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright
錚?/div>
2003, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

UA79M05CKCS 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 負，固定式

  • -5V

  • -7 V ~ -25 V

  • 1.1V @ 350mA

  • 1

  • 500mA（最小值）

  • 0°C ~ 125°C

  • 通孔

  • TO-220-3

  • TO-220-3

  • 管件

  • 296-14001-5
