UA78M08CKC Datasheet

  • UA78M08CKC

  • POSITIVE-VOLTAGE REGULATORS

  • 13頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

The
碌A(chǔ)78M10
and
碌A(chǔ)78M15
are
obsolete and are no longer supplied
碌A(chǔ)78M00
SERIES
POSITIVE-VOLTAGE REGULATORS
SLVS059K 鈥?JUNE 1976 鈥?REVISED FEBRUARY 2003
D
D
D
D
3-Terminal Regulators
Output Current Up To 500 mA
No External Components
Internal Thermal-Overload Protection

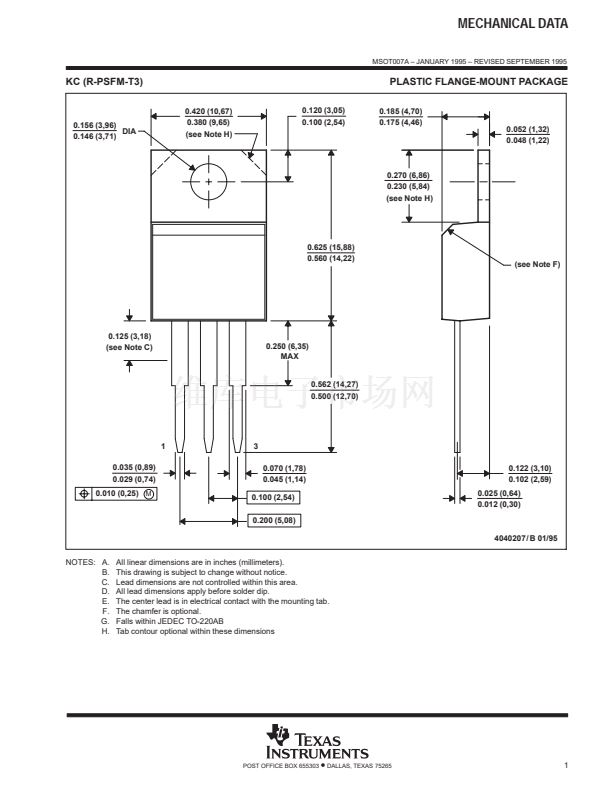

KC (TO-220) PACKAGE
(TOP VIEW)
D
D
D
High Power-Dissipation Capability
Internal Short-Circuit Current Limiting
Output Transistor Safe-Area Compensation

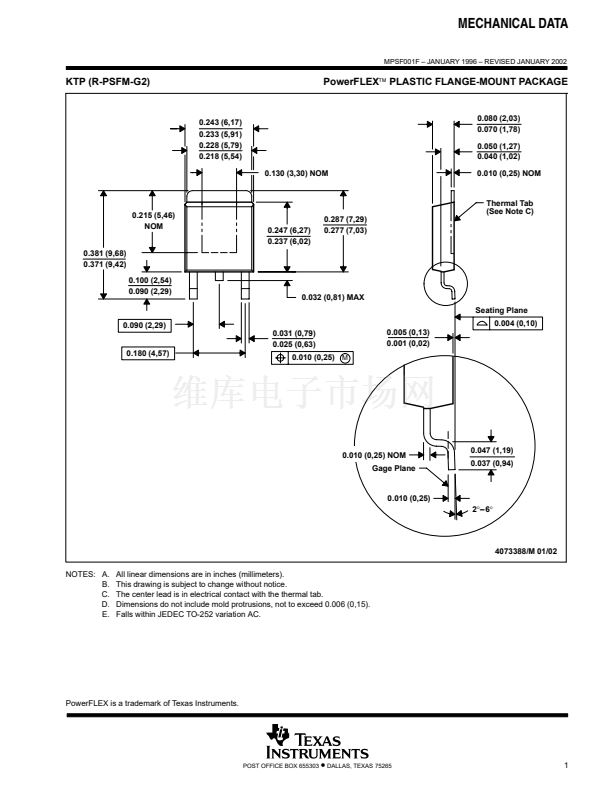

KTP PACKAGE
(TOP VIEW)
COMMON
COMMON
OUTPUT
COMMON
INPUT
OUTPUT
COMMON
INPUT

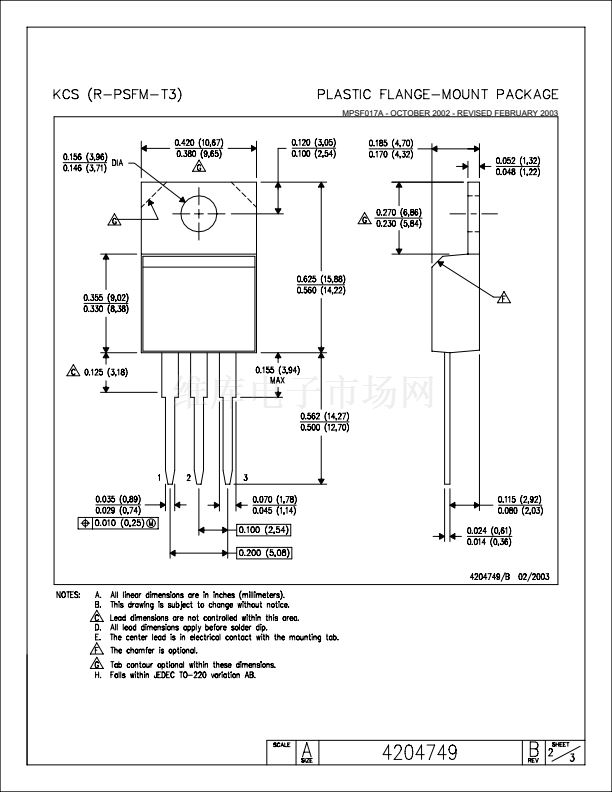

KCS (TO-220) PACKAGE
(TOP VIEW)
DCY (SOT-223) PACKAGE
(TOP VIEW)
COMMON
COMMON
OUTPUT
COMMON
INPUT
OUTPUT
COMMON
INPUT

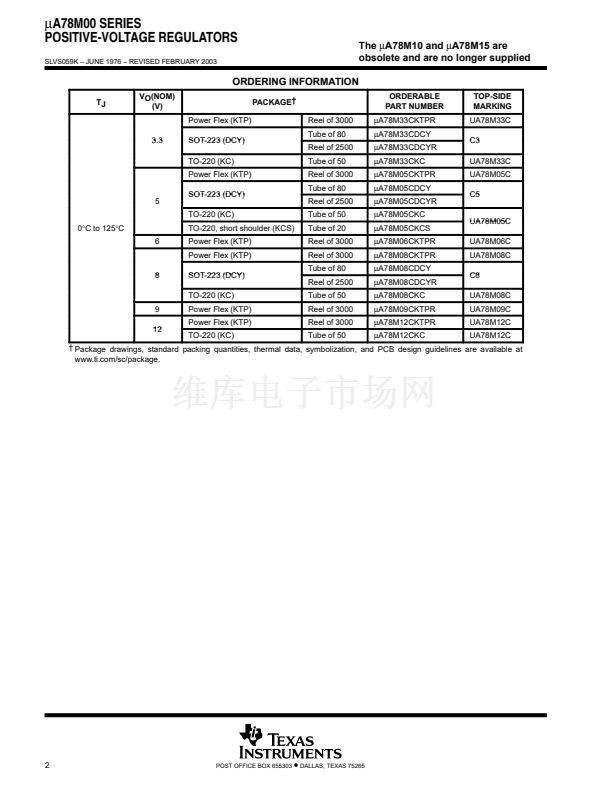

description/ordering information
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications.
These applications include on-card regulation for elimination of noise and distribution problems associated with
single-point regulation. Each of these regulators can deliver up to 500 mA of output current. The internal
current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload.
In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain
adjustable output voltages and currents, and also as the power-pass element in precision regulators.

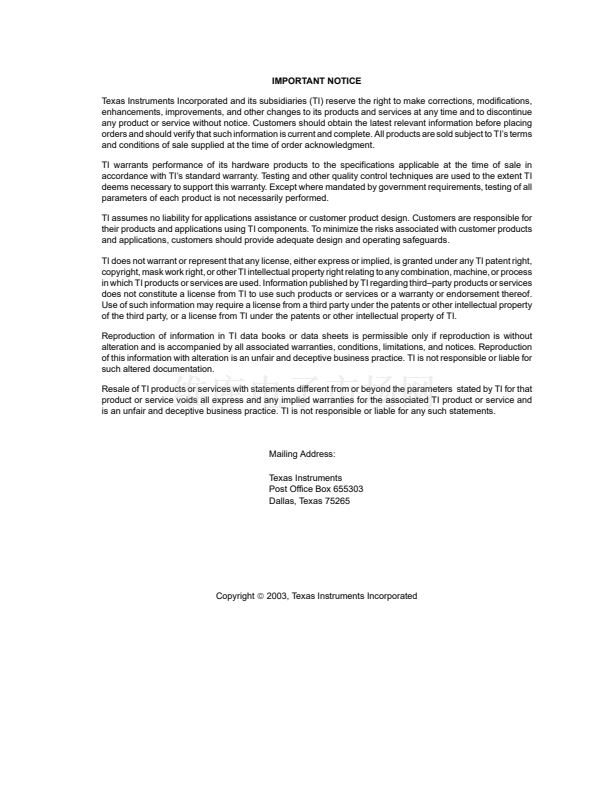

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright
錚?/div>
2003, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

UA78M08CKC 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 正，固定式

  • 8V

  • 10.5 V ~ 25 V

  • 2V @ 350mA

  • 1

  • 500mA（最小值）

  • 0°C ~ 125°C

  • 通孔

  • TO-220-3

  • TO-220-3

  • 管件

  • 296-11136-5
