TSM115

3.3V

+

5V

鹵

12V Housekeeping IC

PRELIMINARY DATA

s

s

s

s

s

s

s

s

s

Over voltage and under voltage protection

for 3.3V +5V and 鹵12V without external

components

Over current protection for 3.3V 5V and

12V with external components

Under voltage blanking fonction

Power good input/output

Externally adjustable PG delay

Fault output

Remote output

Externally adjustable remote delay

2kV ESD protection

N

DIP-20

(Plastic Package)

D

SO-20

(Plastic Micropackage)

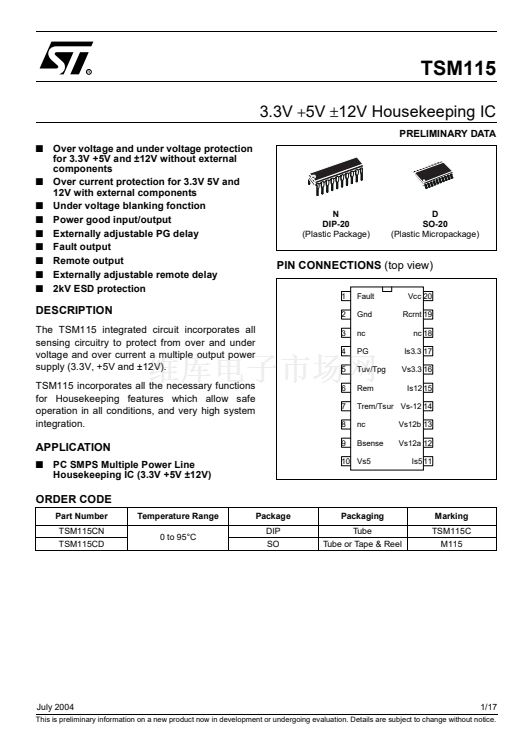

PIN CONNECTIONS

(top view)

1

2

3

4

5

6

7

8

9

Fault

Gnd

nc

PG

Tuv/Tpg

Rem

Vcc 20

Rcrnt 19

nc 18

Is3.3 17

Vs3.3 16

Is12 15

DESCRIPTION

The TSM115 integrated circuit incorporates all

sensing circuitry to protect from over and under

voltage and over current a multiple output power

supply (3.3V, +5V and 鹵12V).

TSM115 incorporates all the necessary functions

for Housekeeping features which allow safe

operation in all conditions, and very high system

integration.

Trem/Tsur Vs-12 14

nc

Bsense

Vs12b 13

Vs12a 12

Is5 11

APPLICATION

s

PC SMPS Multiple Power Line

Housekeeping IC (3.3V +5V 鹵12V)

10 Vs5

ORDER CODE

Part Number

TSM115CN

TSM115CD

Temperature Range

0 to 95擄C

Package

DIP

SO

Packaging

Tube

Tube or Tape & Reel

Marking

TSM115C

M115

July 2004

1/17

This is preliminary information on a new product now in development or undergoing evaluation. Details are subject to change without notice.
