TSM104AN Datasheet

  • TSM104AN

  • QUAD OPERATIONAL AMPLIFIER AND PROGRAMMABLE VOLTAGE REFERENC...

  • 106.13KB

  • 9頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

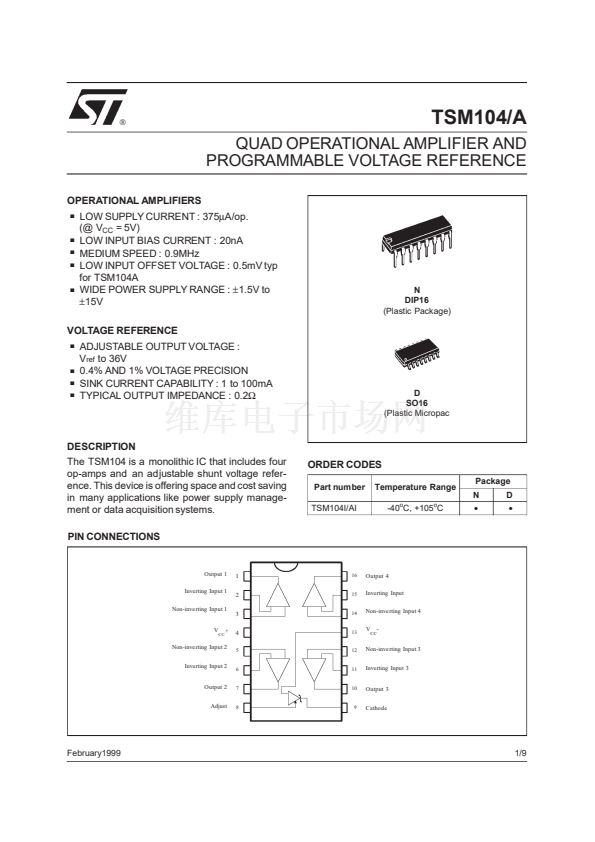

TSM104/A
QUAD OPERATIONAL AMPLIFIER AND
PROGRAMMABLE VOLTAGE REFERENCE
.
.
.
.
.
.
.
.
.
OPERATIONAL AMPLIFIERS
LOW SUPPLY CURRENT : 375碌A(chǔ)/op.
(@ V
CC
= 5V)
LOW INPUT BIAS CURRENT : 20nA
MEDIUM SPEED : 0.9MHz
LOW INPUT OFFSET VOLTAGE : 0.5mV typ
for TSM104A
WIDE POWER SUPPLY RANGE :
鹵1.5V
to
鹵15V
N
DIP16
(Plastic Package)
VOLTAGE REFERENCE
ADJUSTABLE OUTPUT VOLTAGE :
V
ref
to 36V
0.4% AND 1% VOLTAGE PRECISION
SINK CURRENT CAPABILITY : 1 to 100mA
TYPICAL OUTPUT IMPEDANCE : 0.2鈩?/div>
D
SO16
(Plastic Micropac
DESCRIPTION
The TSM104 is a monolithic IC that includes four
op-amps and an adjustable shunt voltage refer-
ence. This device is offering space and cost saving
in many applications like power supply manage-
ment or data acquisition systems.
PIN CONNECTIONS
ORDER CODES
Part number
TSM104I/AI
Temperature Range
-40
o
C, +105
o
C
Package
N
鈥?/div>
D
鈥?/div>
Output 1
Inverting Input 1
Non-inve rting Input 1
1
2
3
4
5
16
Output 4
Inverting Input
Non-inve rting Input 4
V
15
14
V
CC
+
13
CC
-
Non-inve rting Input 2
Inverting Input 2
12
Non-inve rting Input 3
Inverting Input 3
6
11
Output 2
Adjust
7
10
Output 3
Cathode
8
9
February1999
1/9
