TS834-5I Datasheet

  • TS834-5I

  • MICROPOWER VOLTAGE SUPERVISOR RESET ACTIVE LOW OR HIGH WITH ...

  • 78.57KB

  • 8頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

廬

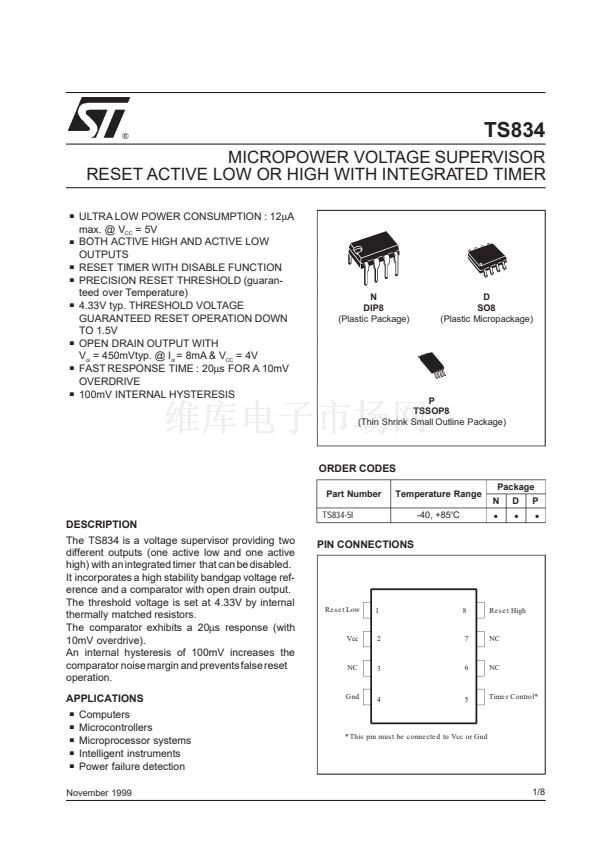

TS834
MICROPOWER VOLTAGE SUPERVISOR
RESET ACTIVE LOW OR HIGH WITH INTEGRATED TIMER
.
.
.
.
.
.
.
.
ULTRA LOW POWER CONSUMPTION : 12碌A(chǔ)
max. @ V
CC
= 5V
BOTH ACTIVE HIGH AND ACTIVE LOW
OUTPUTS
RESET TIMER WITH DISABLE FUNCTION
PRECISION RESET THRESHOLD (guaran-
teed over Temperature)
4.33V typ. THRESHOLD VOLTAGE
GUARANTEED RESET OPERATION DOWN
TO 1.5V
OPEN DRAIN OUTPUT WITH
V
ol
= 450mVtyp. @ I
ol
= 8mA & V
CC
= 4V
FAST RESPONSE TIME : 20碌s FOR A 10mV
OVERDRIVE
100mV INTERNAL HYSTERESIS
N
DIP8
(Plastic Package)
D
SO8
(Plastic Micropackage)
P
TSSOP8
(Thin Shrink Small Outline Package)
ORDER CODES
Part Number
TS834-5I
Temperature Range
-40, +85 C
o
Package
N
鈥?/div>
D
鈥?/div>
P
鈥?/div>
DESCRIPTION
The TS834 is a voltage supervisor providing two
different outputs (one active low and one active
high) with an integrated timer that can be disabled.
It incorporates a high stability bandgap voltage ref-
erence and a comparator with open drain output.
The threshold voltage is set at 4.33V by internal
thermally matched resistors.
The comparator exhibits a 20碌s response (with
10mV overdrive).
An internal hysteresis of 100mV increases the
comparator noise margin and prevents false reset
operation.
APPLICATIONS
Computers
Microcontrollers
Microprocessor systems
Intelligent instruments
Power failure detection
PIN CONNECTIONS
Rese t Low
1
8
Rese t High
Vcc
2
7
NC
NC
3
6
NC
.
.
.
.
.
Gnd
4
5
Time r Control*
* This pin must be connecte d to Vcc or Gnd
November 1999
1/8
