TS4855

LOUDSPEAKER & HEADSET DRIVER

WITH VOLUME CONTROL

OPERATING FROM V

= 3.0 V to 5.0 V

SPEAKER: Mono, THD+N @ 1 kHz is 1%

Max @ 1 W into 8

鈩?/div>

BTL

HEADSET: Stereo, THD+N @ 1 kHz is 0.5%

Max. @ 85 mW into 32

鈩?/div>

BTL

VOLUME CONTROL: 32-step digital

volume control

OUTPUT MODE: Eight different selections

Ultra low pop-and-click

Low Shutdown Current (0.1 碌A(chǔ), typ.)

Thermal Shutdown Protection

FLIP-CHIP Package 18 X 300 碌m Bumps

TS4855IJT - Flip Chip

PIN CONNECTIONS

(top view)

DESCRIPTION

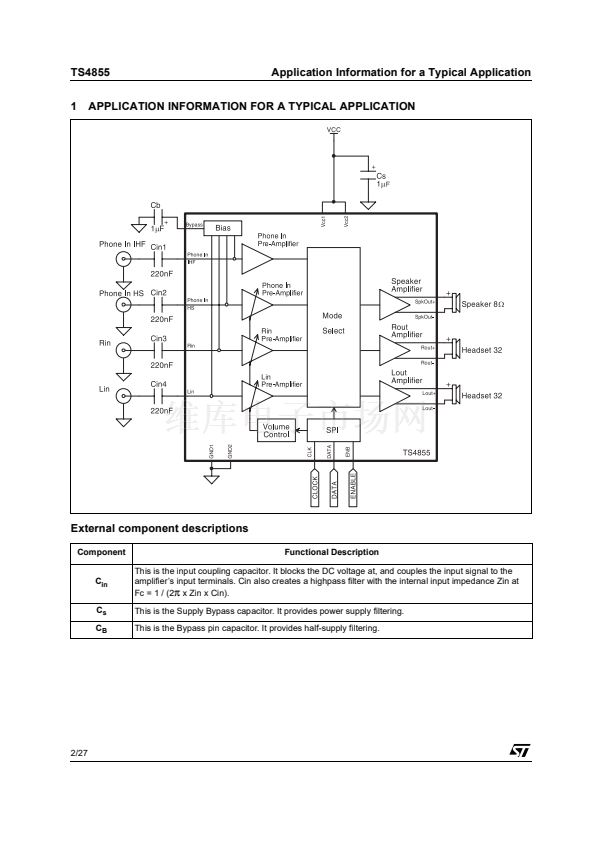

The TS4855 is a complete low power audio

amplifier solution targeted at mobile phones. It

integrates, into an extremely compact flip-chip

package, an audio amplifier, a speaker driver, and

a headset driver.

The Audio Power Amplifier can deliver 1.1 W

(typ.) of continuous RMS output power into an 8

鈩?/div>

speaker with a 1% THD+N value. To the headset

driver, the amplifier can deliver 85 mW (typ.) per

channel of continuous average power into stereo

鈩?/div>

bridged-tied load with 0.5% THD+N @ 5 V.

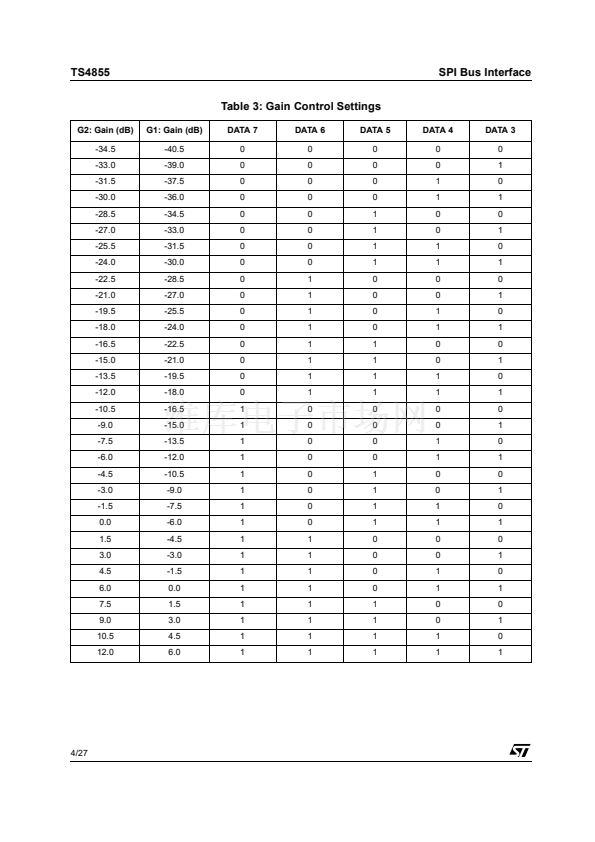

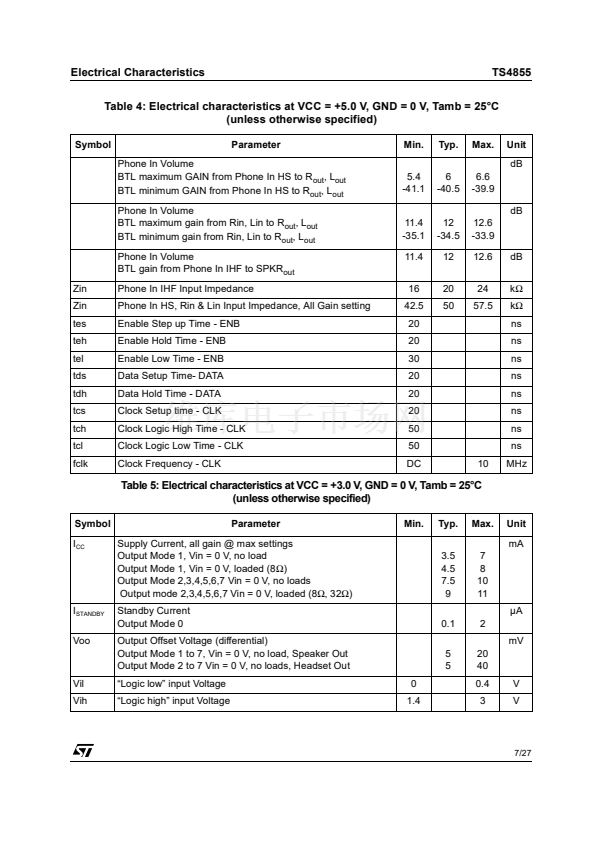

This device features a 32-step digital volume

control and 8 different output selections. The

digital volume and output modes are controlled

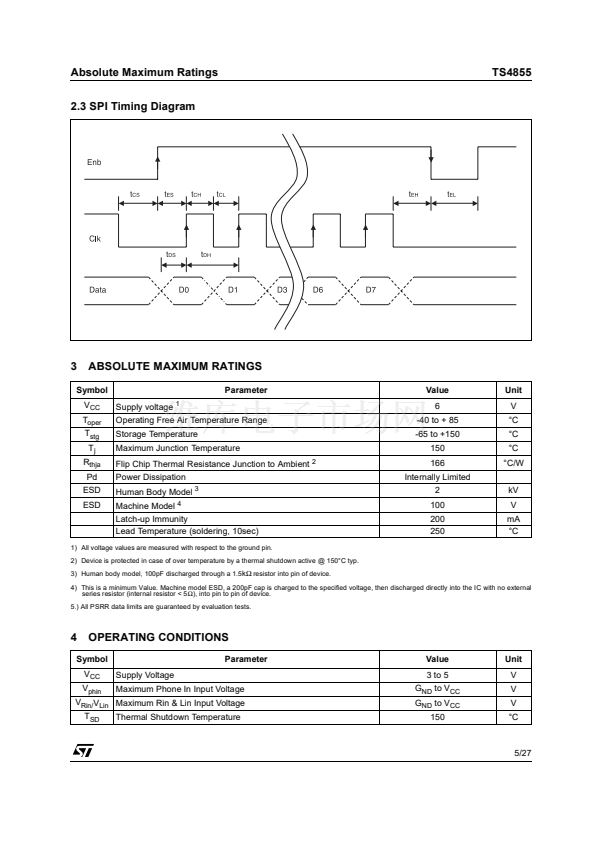

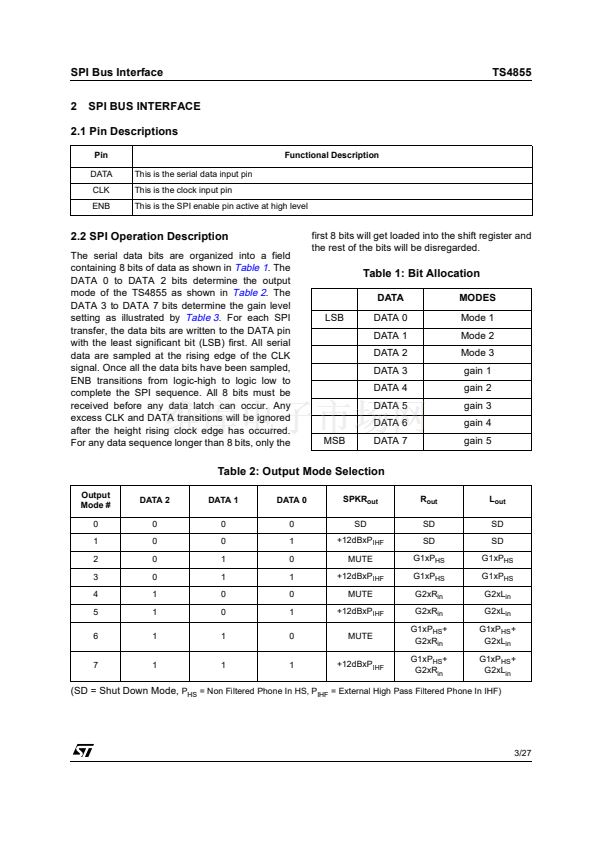

through a three-digit SPI interface bus.

Pin Out

(top view)

APPLICATIONS

鈥?/div>

Mobile Phones

ORDER CODE

Part Number

TS4855IJT

Temperature

Range

-40, +85擄C

Package

鈥?/div>

J =

Flip Chip Package - only available in Tape & Reel (JT))

April 2003

1/27

制造商
STMicroelectronics
產品種類
音頻放大器
產品
Class-AB
輸出功率
1.1 W
輸出類型
1-Channel Mono or 2-Channel Stereo
THD + 噪聲
0.5 %
工作電源電壓
3 V
電源電流
10 mA
最大工作溫度
+ 85 C
安裝風格
SMD/SMT
封裝 / 箱體
FlipChip-8
封裝
Reel
音頻負載電阻
32 Ohms
輸入信號類型
Single
最小工作溫度
- 40 C
輸出信號類型
Differential
工廠包裝數量
5000
電源類型
Single
Supply Voltage - Max
5 V
Supply Voltage - Min
3 V
