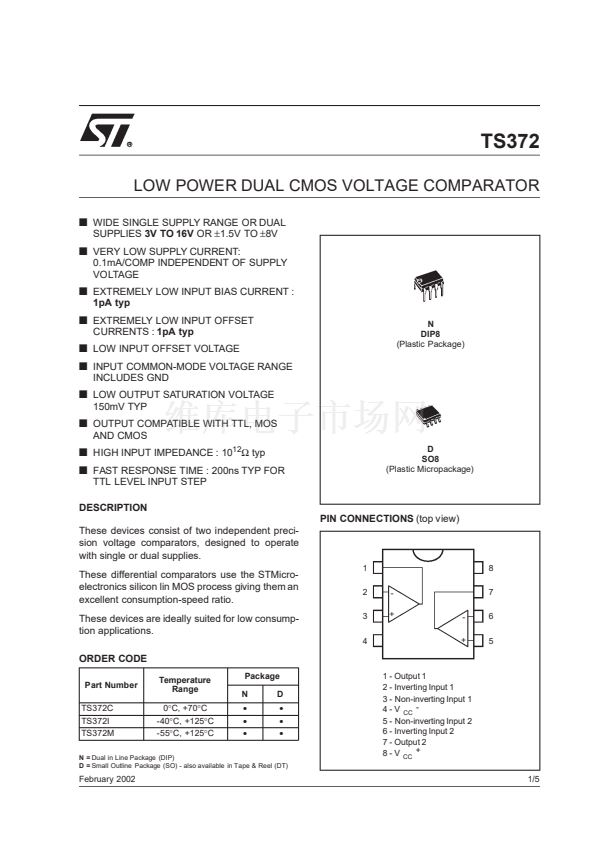

TS372
LOW POWER DUAL CMOS VOLTAGE COMPARATOR
s
WIDE SINGLE SUPPLY RANGE OR DUAL
SUPPLIES
3V TO 16V
OR
鹵1.5V
TO
鹵8V
s
VERY LOW SUPPLY CURRENT:
0.1mA/COMP INDEPENDENT OF SUPPLY
VOLTAGE
s
EXTREMELY LOW INPUT BIAS CURRENT :
1pA typ
s
EXTREMELY LOW INPUT OFFSET
CURRENTS :
1pA typ
s
LOW INPUT OFFSET VOLTAGE
s
INPUT COMMON-MODE VOLTAGE RANGE
INCLUDES GND
N
DIP8
(Plastic Package)
s
LOW OUTPUT SATURATION VOLTAGE
150mV TYP
s
OUTPUT COMPATIBLE WITH TTL, MOS
AND CMOS
s
HIGH INPUT IMPEDANCE : 10
12
鈩?/div>
typ
s
FAST RESPONSE TIME : 200ns TYP FOR
TTL LEVEL INPUT STEP
DESCRIPTION
D
SO8
(Plastic Micropackage)
PIN CONNECTIONS
(top view)
These devices consist of two independent preci-
sion voltage comparators, designed to operate
with single or dual supplies.
These differential comparators use the STMicro-
electronics silicon lin MOS process giving them an
excellent consumption-speed ratio.
These devices are ideally suited for low consump-
tion applications.
ORDER CODE
Part Number
TS372C
TS372I
TS372M
Temperature
Range
0擄C, +70擄C
-40擄C, +125擄C
-55擄C, +125擄C
Package
N
鈥?/div>
鈥?/div>
鈥?/div>
D
鈥?/div>
鈥?/div>
鈥?/div>
1 - Output 1
2 - Inverting Input 1
3 - Non-inverting Input 1
4 - V
CC
-
5 - Non-inverting Input 2
6 - Inverting Input 2
7 - Output 2
8 - V
CC
+
1
2
3
4
-
+
-
+
8
7
6
5
N =
Dual in Line Package (DIP)
D =
Small Outline Package (SO) - also available in Tape & Reel (DT)
February 2002
1/5
