TS190LPTR Datasheet

  • TS190LPTR

  • Multifunction Telecom Switch

  • 8頁

  • CLARE   CLARE

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

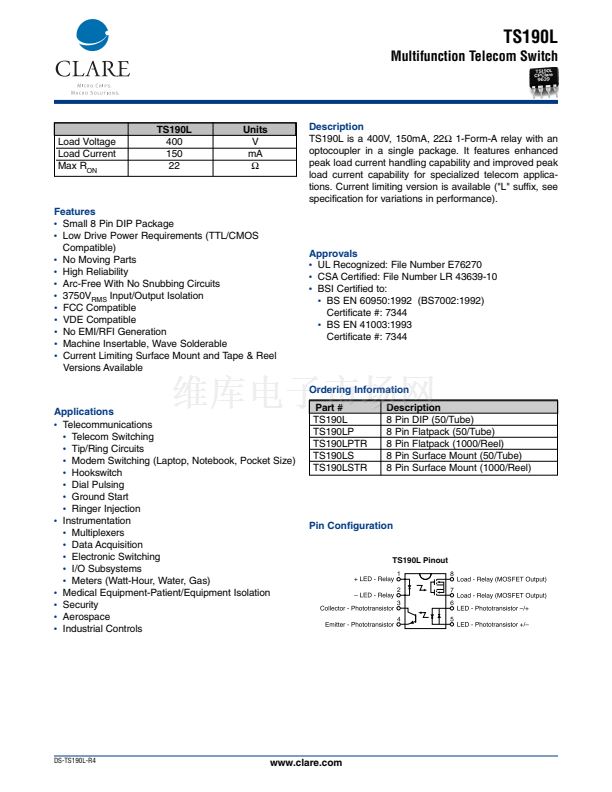

TS190L
Multifunction Telecom Switch
Load Voltage
Load Current
Max R
ON
TS190L
400
150
22
Units
V
mA
鈩?/div>
Description
TS190L is a 400V, 150mA, 22鈩?1-Form-A relay with an
optocoupler in a single package. It features enhanced
peak load current handling capability and improved peak
load current capability for specialized telecom applica-
tions. Current limiting version is available ("L" suffix, see
specification for variations in performance).
Features
鈥?/div>
Small 8 Pin DIP Package
鈥?/div>
Low Drive Power Requirements (TTL/CMOS
Compatible)
鈥?/div>
No Moving Parts
鈥?/div>
High Reliability
鈥?/div>
Arc-Free With No Snubbing Circuits
鈥?/div>
3750V
RMS
Input/Output Isolation
鈥?/div>
FCC Compatible
鈥?/div>
VDE Compatible
鈥?/div>
No EMI/RFI Generation
鈥?/div>
Machine Insertable, Wave Solderable
鈥?/div>
Current Limiting Surface Mount and Tape & Reel
Versions Available
Approvals
鈥?/div>
UL Recognized: File Number E76270
鈥?/div>
CSA Certified: File Number LR 43639-10
鈥?/div>
BSI Certified to:
鈥?/div>
BS EN 60950:1992 (BS7002:1992)
Certificate #: 7344
鈥?/div>
BS EN 41003:1993
Certificate #: 7344
Ordering Information
Applications
鈥?/div>
Telecommunications
鈥?/div>
Telecom Switching
鈥?/div>
Tip/Ring Circuits
鈥?/div>
Modem Switching (Laptop, Notebook, Pocket Size)
鈥?/div>
Hookswitch
鈥?/div>
Dial Pulsing
鈥?/div>
Ground Start
鈥?/div>
Ringer Injection
鈥?/div>
Instrumentation
鈥?/div>
Multiplexers
鈥?/div>
Data Acquisition
鈥?/div>
Electronic Switching
鈥?/div>
I/O Subsystems
鈥?/div>
Meters (Watt-Hour, Water, Gas)
鈥?/div>
Medical Equipment-Patient/Equipment Isolation
鈥?/div>
Security
鈥?/div>
Aerospace
鈥?/div>
Industrial Controls
Part #
TS190L
TS190LP
TS190LPTR
TS190LS
TS190LSTR
Description
8 Pin DIP (50/Tube)
8 Pin Flatpack (50/Tube)
8 Pin Flatpack (1000/Reel)
8 Pin Surface Mount (50/Tube)
8 Pin Surface Mount (1000/Reel)
Pin Configuration
TS190L Pinout
+ LED - Relay
1
8
Load - Relay (MOSFET Output)
脨 LED - Relay
Collector - Phototransistor
2
3
7
6
Load - Relay (MOSFET Output)
LED - Phototransistor 脨/+
Emitter - Phototransistor
4
5
LED - Phototransistor +/脨
DS-TS190L-R4
www.clare.com
1
