TPS9125PW Datasheet

  • TPS9125PW

  • 5 V/3 V SIM SUPPLY AND LEVEL SHIFTERS

  • 24頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

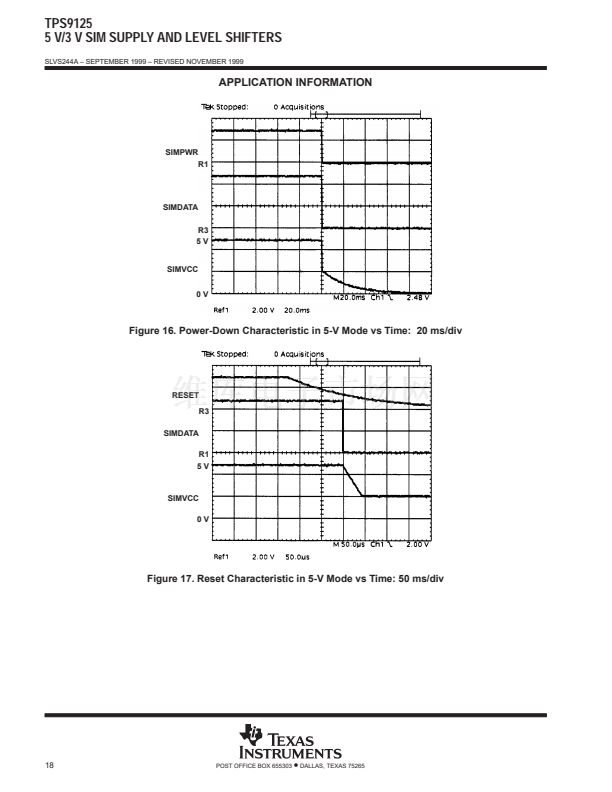

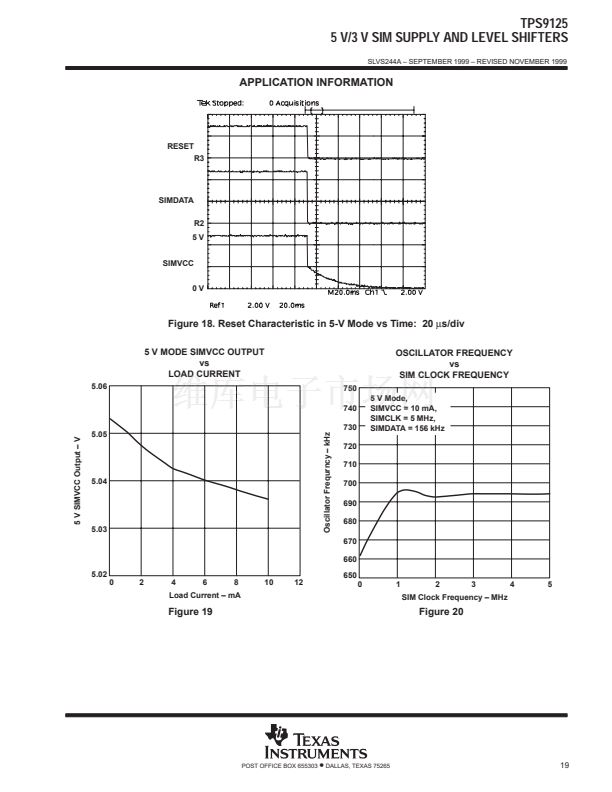

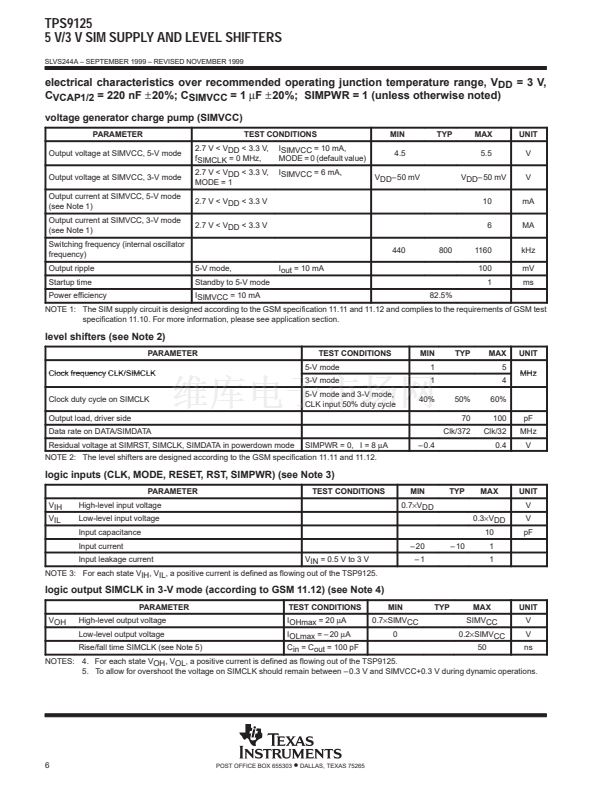

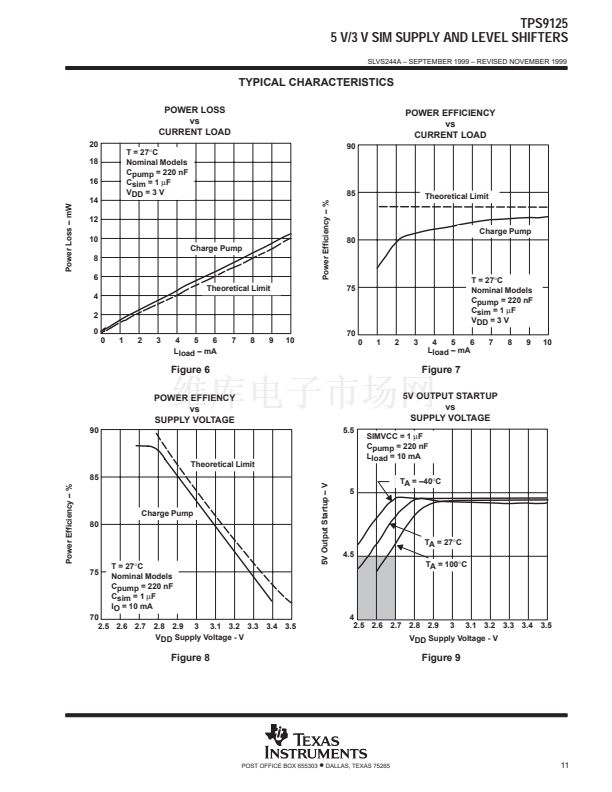

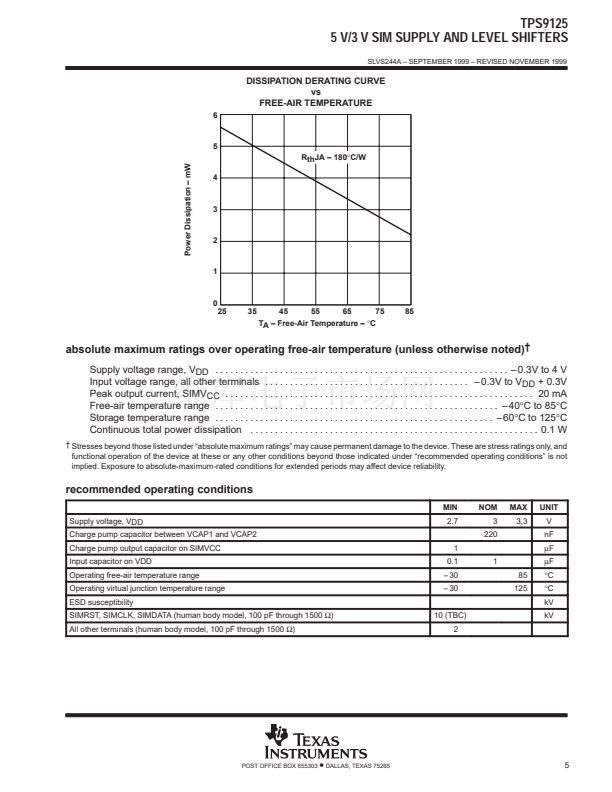

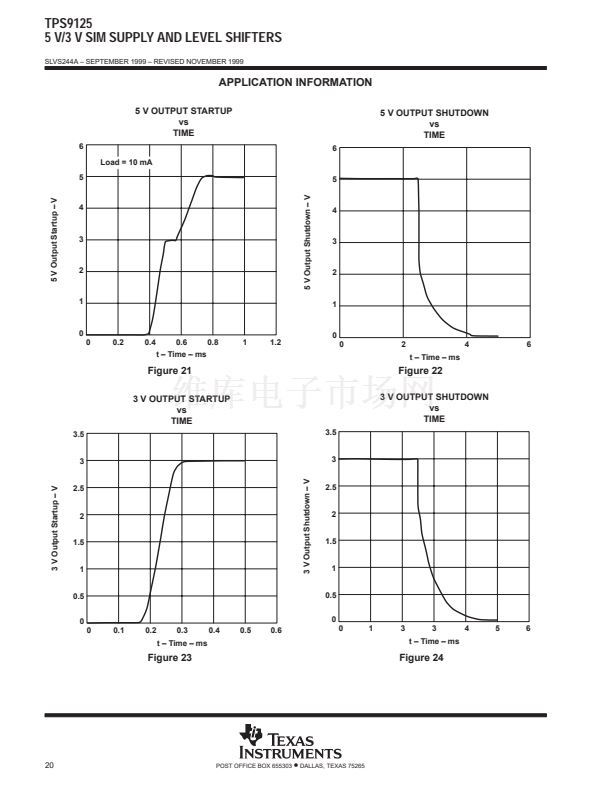

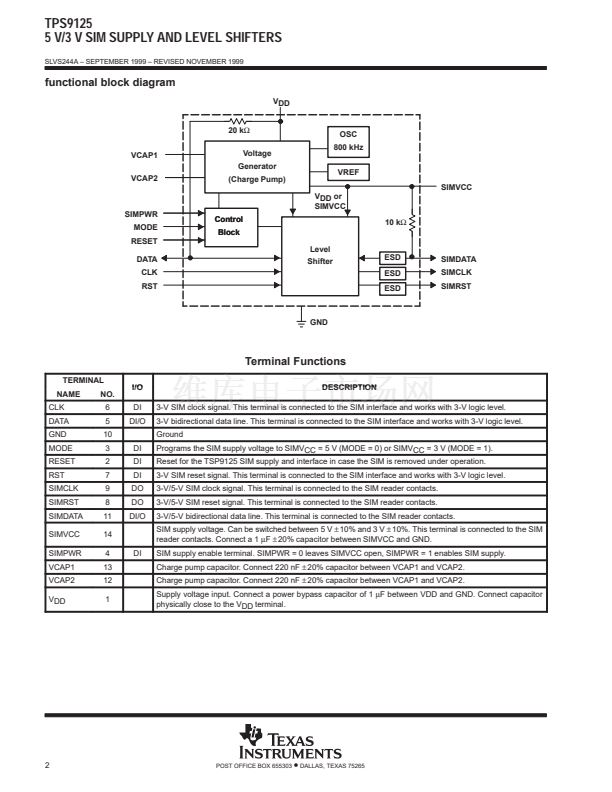

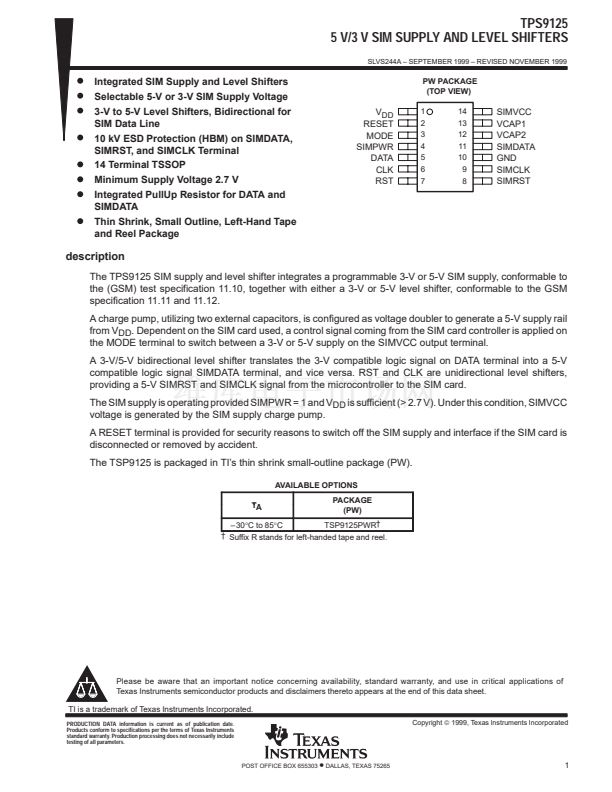

TPS9125
5 V/3 V SIM SUPPLY AND LEVEL SHIFTERS
SLVS244A 鈥?SEPTEMBER 1999 鈥?REVISED NOVEMBER 1999
D
D
D
D
D
D
D
D
Integrated SIM Supply and Level Shifters
Selectable 5-V or 3-V SIM Supply Voltage
3-V to 5-V Level Shifters, Bidirectional for
SIM Data Line
10 kV ESD Protection (HBM) on SIMDATA,
SIMRST, and SIMCLK Terminal
14 Terminal TSSOP
Minimum Supply Voltage 2.7 V
Integrated PullUp Resistor for DATA and
SIMDATA
Thin Shrink, Small Outline, Left-Hand Tape
and Reel Package
PW PACKAGE
(TOP VIEW)
V
DD
RESET
MODE
SIMPWR
DATA
CLK
RST
1
2
3
4
5
6
7
14
13
12
11
10
9
8
SIMVCC
VCAP1
VCAP2
SIMDATA
GND
SIMCLK
SIMRST
description
The TPS9125 SIM supply and level shifter integrates a programmable 3-V or 5-V SIM supply, conformable to
the (GSM) test specification 11.10, together with either a 3-V or 5-V level shifter, conformable to the GSM
specification 11.11 and 11.12.

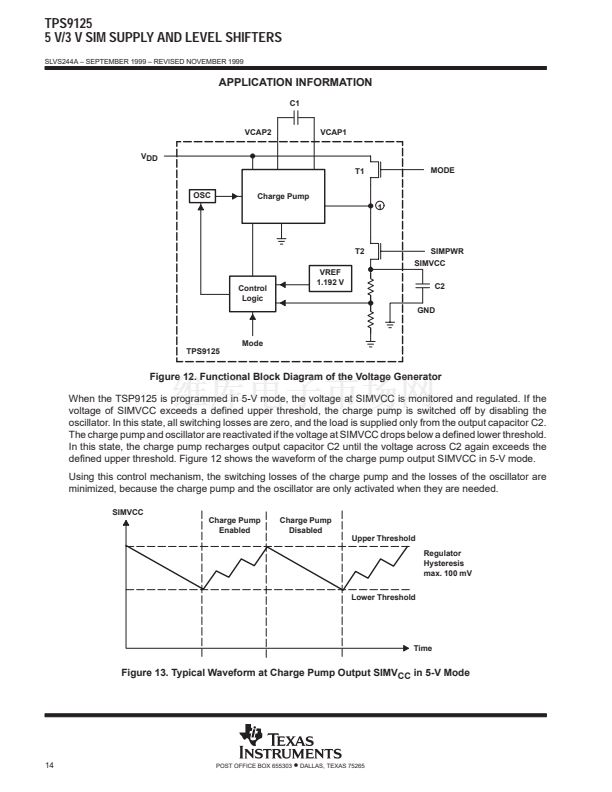

A charge pump, utilizing two external capacitors, is configured as voltage doubler to generate a 5-V supply rail
from V
DD
. Dependent on the SIM card used, a control signal coming from the SIM card controller is applied on
the MODE terminal to switch between a 3-V or 5-V supply on the SIMVCC output terminal.
A 3-V/5-V bidirectional level shifter translates the 3-V compatible logic signal on DATA terminal into a 5-V
compatible logic signal SIMDATA terminal, and vice versa. RST and CLK are unidirectional level shifters,
providing a 5-V SIMRST and SIMCLK signal from the microcontroller to the SIM card.
The SIM supply is operating provided SIMPWR = 1 and V
DD
is sufficient (> 2.7 V). Under this condition, SIMVCC
voltage is generated by the SIM supply charge pump.
A RESET terminal is provided for security reasons to switch off the SIM supply and interface if the SIM card is
disconnected or removed by accident.
The TSP9125 is packaged in TI鈥檚 thin shrink small-outline package (PW).
AVAILABLE OPTIONS
TA
鈥?30擄C to 85擄C
PACKAGE
(PW)
TSP9125PWR鈥?/div>
鈥?Suffix R stands for left-handed tape and reel.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
TI is a trademark of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
1999, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1
