TPS77250DGKRG4 Datasheet

  • TPS77250DGKRG4

  • 150-mA LDO REGULATORS WITH 8-PIN MSOP PACKAGING

  • 352.51KB

  • 25頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TPS77101/115/118/127/128/133/150 WITH RESET OUTPUT
TPS77201/215/218/227/228/233/250 WITH POWER GOOD OUTPUT
150-mA LDO REGULATORS WITH 8-PIN MSOP PACKAGING
SLVS225D 鈥?FEBRUARY 2000 鈥?REVISED OCTOBER 2000
D
Open Drain Power-On Reset With 220-ms
D
D
D
D
D
D
D
D
D
D
Delay (TPS771xx)
Open Drain Power-Good (PG) Status
Output (TPS772xx)
150-mA Low-Dropout Voltage Regulator
Available in 1.5-V, 1.8-V, 2.7-V, 2.8-V, 3.3-V,
5.0-V Fixed Output and Adjustable Versions
Dropout Voltage Typically 115 mV
at 150 mA (TPS77133, TPS77233)
Ultralow 92-碌A(chǔ) Quiescent Current (Typ)
8-Pin MSOP (DGK) Package
Low Noise (55
碌V
rms
) Without External
Filter (Bypass) Capacitor (TPS77118,
TPS77218)
2% Tolerance Over Specified Conditions
for Fixed-Output Versions
Fast Transient Response
Thermal Shutdown Protection
TPS771xx
DGK Package
(TOP VIEW)
FB/SENSE
RESET
EN
GND
1
2
3
4
8
7
6
5
OUT
OUT
IN
IN
TPS772xx
DGK Package
(TOP VIEW)
FB/SENSE
PG
EN
GND
1
2
3
4
8
7
6
5
TPS77x33
OUT
OUT
IN
IN
DROPOUT VOLTAGE
vs
JUNCTION TEMPERATURE
300
250
VDO 鈥?Dropout Voltage 鈥?mV
200
IO = 150 mA
150
100
IO = 10 mA
50
0
鈥?0
鈥?0
IO = 0 A

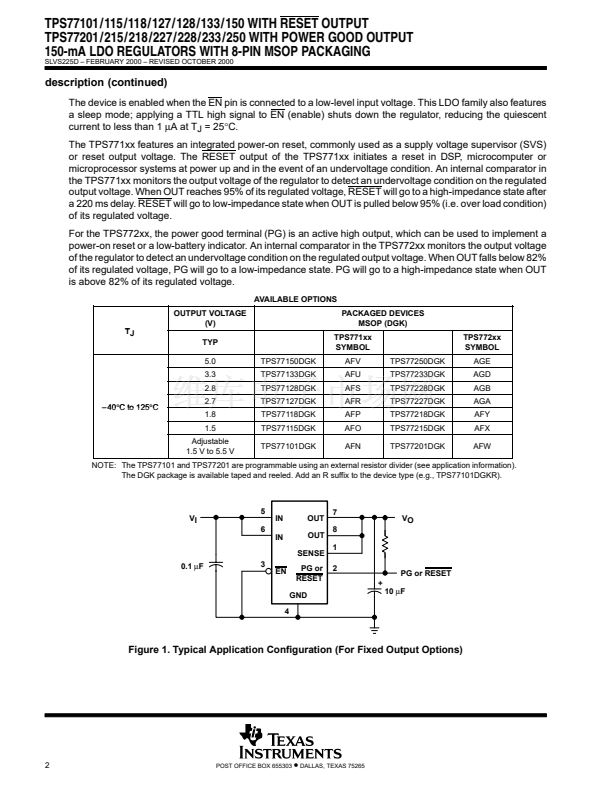

description
The TPS771xx and TPS772xx are low-dropout
regulators with integrated power-on reset and
power good (PG) function respectively. These
devices are capable of supplying 150 mA of output
current with a dropout of 115 mV (TPS77133,
TPS77233). Quiescent current is 92
碌A(chǔ)
at full load
dropping down to 1
碌A(chǔ)
when device is disabled.
These devices are optimized to be stable with a
wide range of output capacitors including low ESR
ceramic (10
碌F)
or low capacitance (1
碌F)
tantalum capacitors. These devices have ex-
tremely low noise output performance (55
碌V
rms
)
without using any added filter capacitors.
TPS771xx and TPS772xx are designed to have
fast transient response for larger load current
changes.
0
40
80
120
TJ 鈥?Junction Temperature 鈥?/div>
擄C
160
The TPS771xx or TPS772xx is offered in 1.5 V,
1.8-V, 2.7-V, 2.8-V, 3.3-V, and 5.0 V fixed-voltage versions and in an adjustable version (programmable over
the range of 1.5 V to 5.5 V). Output voltage tolerance is 2% over line, load, and temperature ranges. The
TPS771xx and TPS772xx families are available in 8-pin MSOP (DGK) packages.
Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (typically 115 mV
at an output current of 150 mA for 3.3 volt option) and is directly proportional to the output current. Additionally,
since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent
of output loading (typically 92
碌A(chǔ)
over the full range of output current, 0 mA to 150 mA). These two key
specifications yield a significant improvement in operating life for battery-powered systems.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright
錚?/div>
2000, Texas Instruments Incorporated
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

TPS77250DGKRG4 產品屬性

  • 2,500

  • 集成電路 (IC)

  • PMIC - 穩壓器 - 線性

  • -

  • 正，固定式

  • 5V

  • 最高 10V

  • 0.075V @ 150mA

  • 1

  • 150mA（最小值）

  • -40°C ~ 125°C

  • 表面貼裝

  • 8-TSSOP，8-MSOP（0.118"，3.00mm 寬）

  • 8-MSOP

  • 帶卷 (TR)
