TPS76330DBV Datasheet

  • TPS76330DBV

  • LOW-POWER 150-mA LOW-DROPOUT LINEAR REGULATORS

  • 20頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

www.ti.com

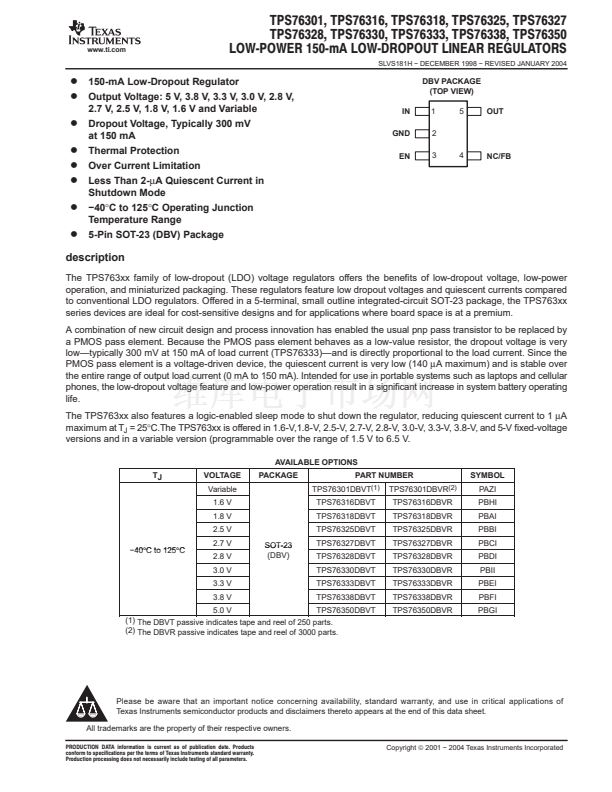

TPS76301, TPS76316, TPS76318, TPS76325, TPS76327
TPS76328, TPS76330, TPS76333, TPS76338, TPS76350
LOW POWER 150 mA LOW DROPOUT LINEAR REGULATORS

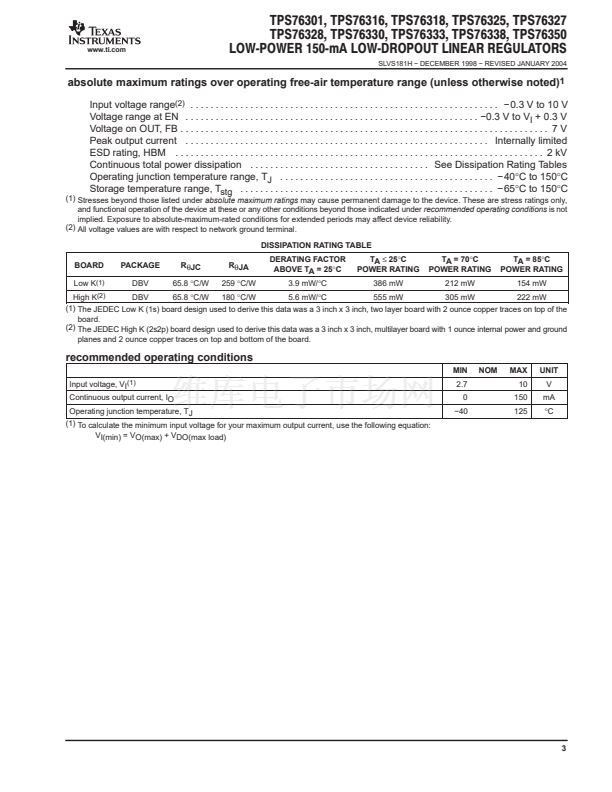

SLVS181H 鈭?DECEMBER 1998 鈭?REVISED JANUARY 2004
D
150-mA Low-Dropout Regulator
D

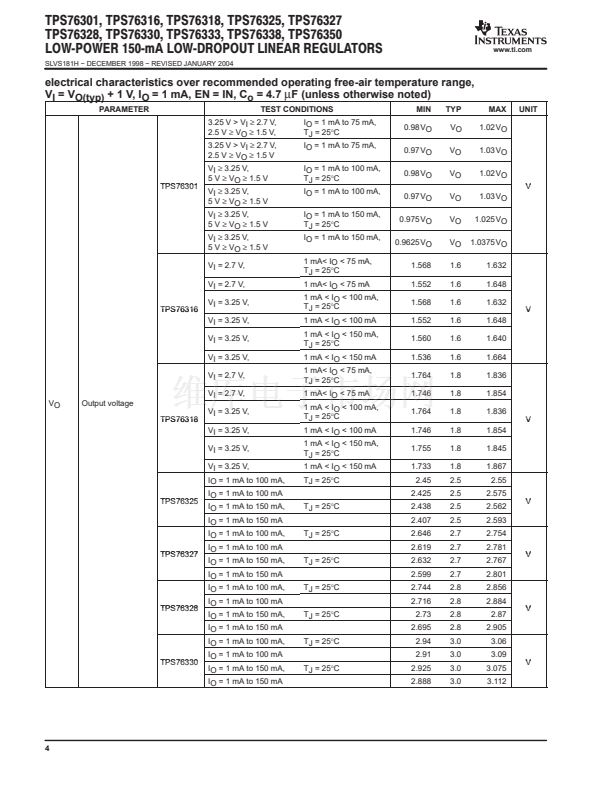

Output Voltage: 5 V, 3.8 V, 3.3 V, 3.0 V, 2.8 V,
D
D
D
D
D
D
2.7 V, 2.5 V, 1.8 V, 1.6 V and Variable

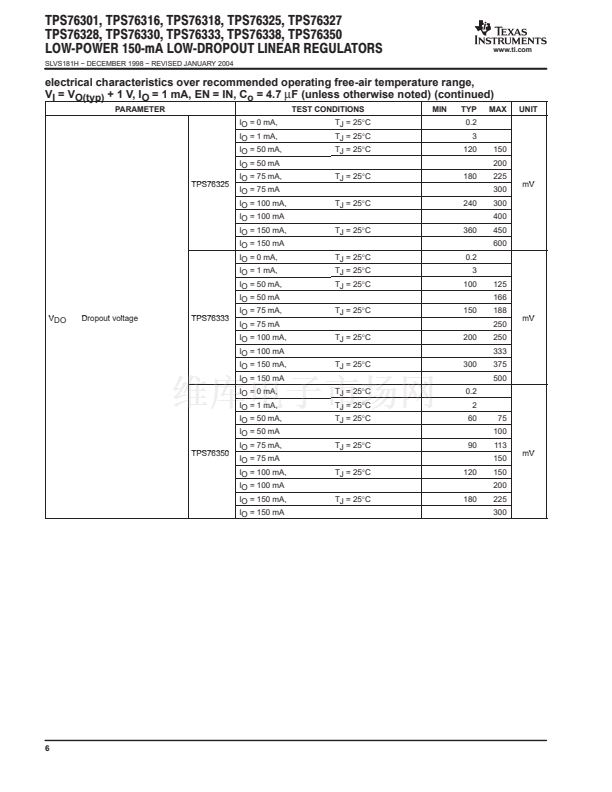

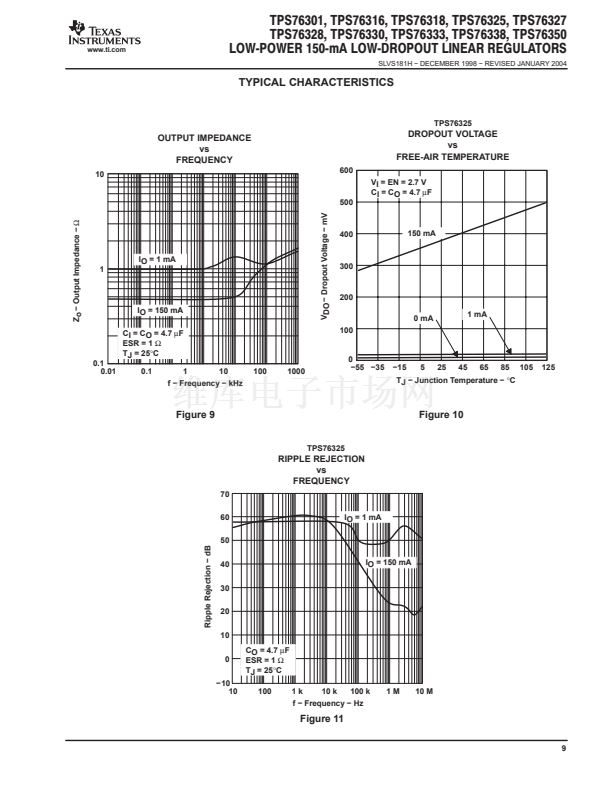

Dropout Voltage, Typically 300 mV
at 150 mA

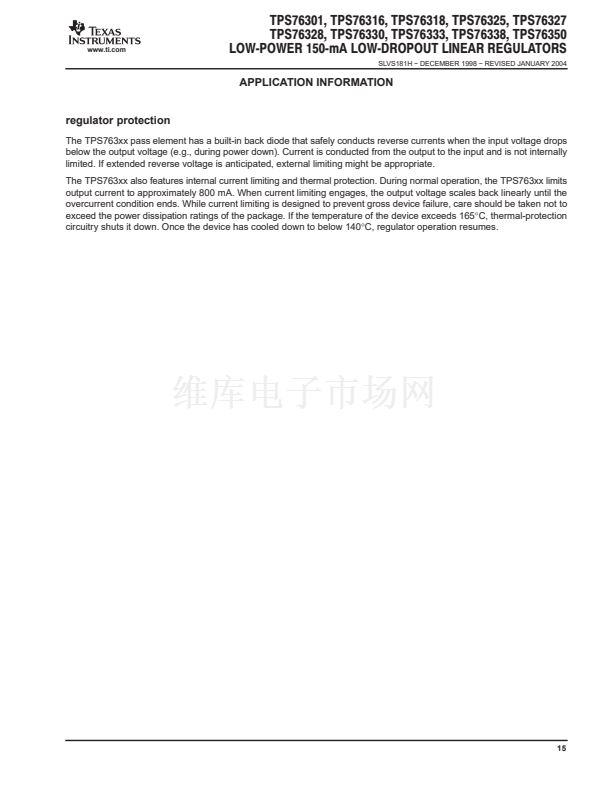

Thermal Protection
Over Current Limitation
Less Than 2-碌A Quiescent Current in
Shutdown Mode
鈭?0擄C to 125擄C Operating Junction
Temperature Range

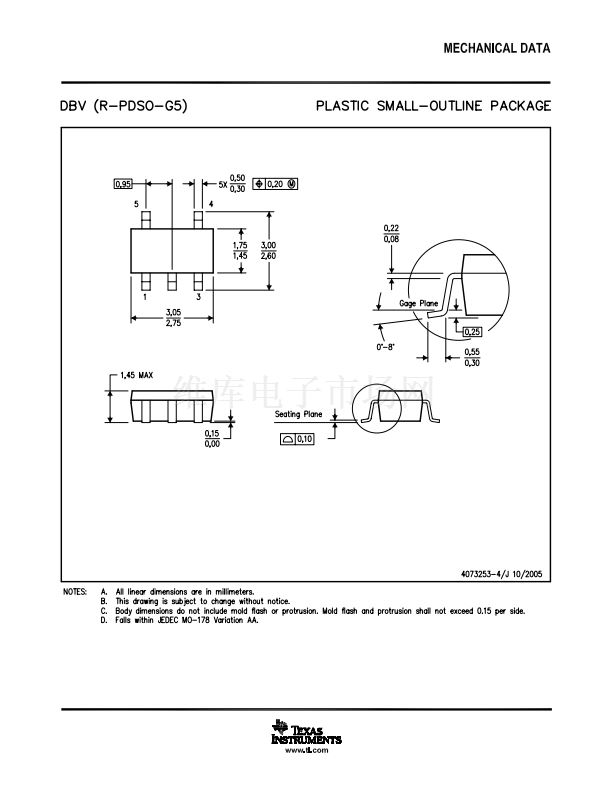

5-Pin SOT-23 (DBV) Package
IN
GND
EN
DBV PACKAGE
(TOP VIEW)
1
2
3
4
NC/FB
5
OUT

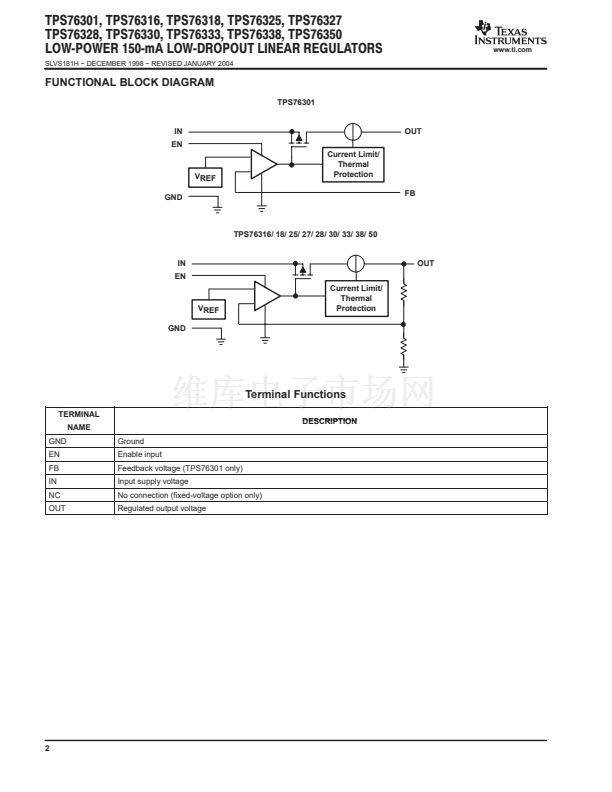

description
The TPS763xx family of low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage, low-power
operation, and miniaturized packaging. These regulators feature low dropout voltages and quiescent currents compared
to conventional LDO regulators. Offered in a 5-terminal, small outline integrated-circuit SOT-23 package, the TPS763xx
series devices are ideal for cost-sensitive designs and for applications where board space is at a premium.
A combination of new circuit design and process innovation has enabled the usual pnp pass transistor to be replaced by
a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very
low鈥攖ypically 300 mV at 150 mA of load current (TPS76333)鈥攁nd is directly proportional to the load current. Since the
PMOS pass element is a voltage-driven device, the quiescent current is very low (140
碌A
maximum) and is stable over
the entire range of output load current (0 mA to 150 mA). Intended for use in portable systems such as laptops and cellular
phones, the low-dropout voltage feature and low-power operation result in a significant increase in system battery operating
life.
The TPS763xx also features a logic-enabled sleep mode to shut down the regulator, reducing quiescent current to 1
碌A
maximum at T
J
= 25擄C.The TPS763xx is offered in 1.6-V,1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, 3.8-V, and 5-V fixed-voltage

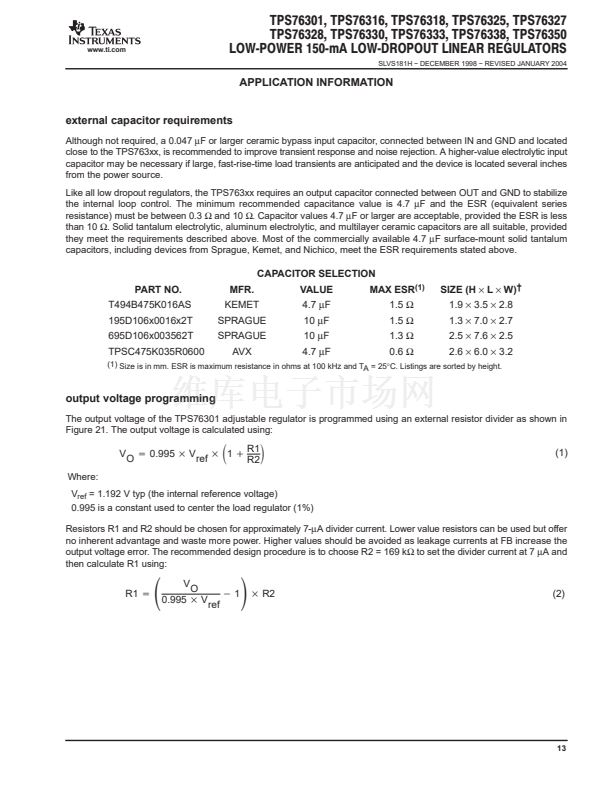

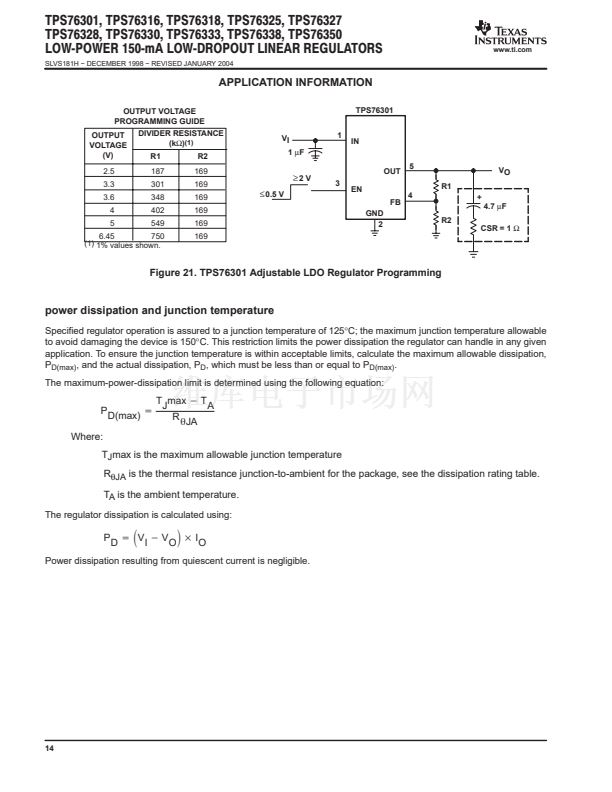

versions and in a variable version (programmable over the range of 1.5 V to 6.5 V.

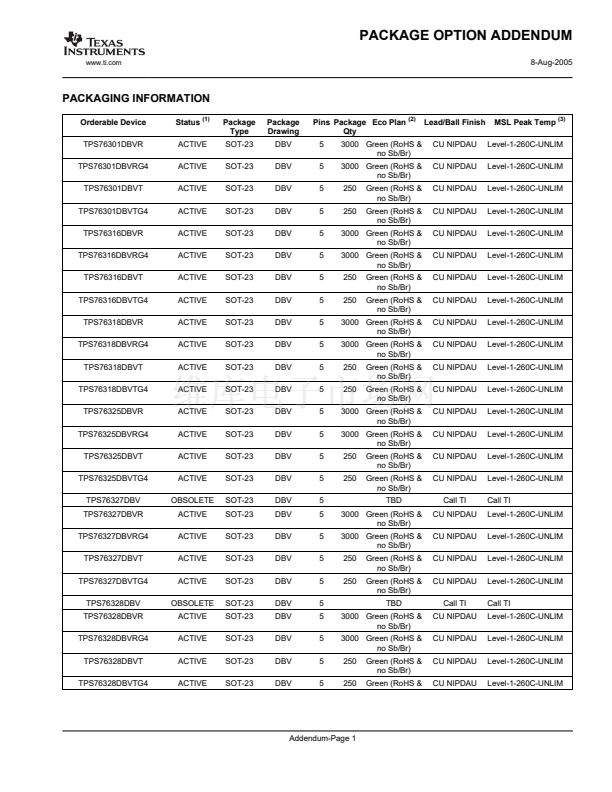

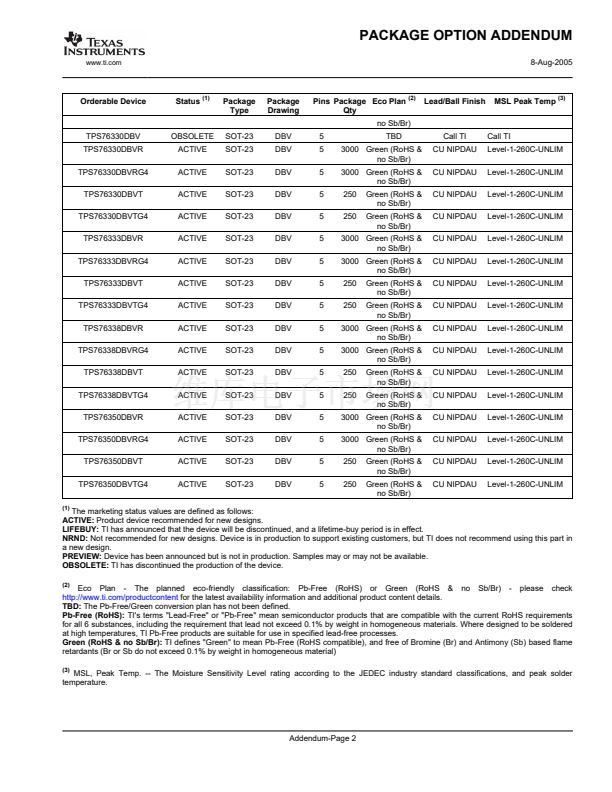

AVAILABLE OPTIONS
TJ
VOLTAGE
Variable
1.6 V
1.8 V
2.5 V
2.7 V
鈭?0擄C to 125擄C
2.8 V
3.0 V
3.3 V
3.8 V
5.0 V
SOT-23
(DBV)
PACKAGE
PART NUMBER
TPS76301DBVT
(1)
TPS76316DBVT
TPS76318DBVT
TPS76325DBVT
TPS76327DBVT
TPS76328DBVT
TPS76330DBVT
TPS76333DBVT
TPS76338DBVT
TPS76350DBVT
TPS76301DBVR
(2)
TPS76316DBVR
TPS76318DBVR
TPS76325DBVR
TPS76327DBVR
TPS76328DBVR
TPS76330DBVR
TPS76333DBVR
TPS76338DBVR
TPS76350DBVR
SYMBOL
PAZI
PBHI
PBAI
PBBI
PBCI
PBDI
PBII
PBEI
PBFI
PBGI
(1) The DBVT passive indicates tape and reel of 250 parts.
(2) The DBVR passive indicates tape and reel of 3000 parts.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
All trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date. Products
conform to specifications per the terms of Texas Instruments standard warranty.
Production processing does not necessarily include testing of all parameters.
Copyright
錚?/div>
2001 鈭?2004 Texas Instruments Incorporated
