TPS56300EVM-139 Datasheet

IC型號：
TPS56300EVM-139
PDF描述：
DUAL-OUTPUT LOW-INPUT-VOLTAGE DSP POWER SUPPLY CONTROLLER WI...
文件大?。?/label>
699.81KB
PDF頁數：
34頁
芯片廠家：
TI

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TPS56300

DUAL-OUTPUT LOW-INPUT-VOLTAGE

DSP POWER SUPPLY CONTROLLER WITH SEQUENCING

SLVS261A 鈥?DECEMBER 1999 鈥?JANUARY 2000

2.8 V 鈥?5.5 V Input Voltage Range

Programmable Dual Output Controller

Supports Popular DSP and Microcontroller

VID0

Core and I/O Voltages

VID1

鈥?Switching Regulator Controls Core

SLOWST

Voltage

VHYST

鈥?Low Dropout Controller Regulates I/O

VREFB

Voltage

VSEN鈥揜R

ANAGND

Programmable Slow-Start Ensures

BIAS

Simultaneous Powerup of Both Outputs

VLDODRV

Power Good Output Monitors Both Outputs

CPC1

Fast Ripple Regulator Reduces Bulk

Capacitance for Lower System Costs

CPC2

VDRV

鹵1.5%

Reference Voltage Tolerance

DRVGND

Efficiencies Greater than 90%

Overvoltage, Undervoltage, and Adjustable

Overcurrent Protection

Drives Low-Cost Logic Level N-Channel

MOSFETs Through Entire Input Voltage

Range

Evaluation Module TPS56300EVM鈥?39

Available

PWP PACKAGE

(TOP VIEW)

Thermal

Pad

DROOP

OCP

IOUT

PWRGD

VSEN鈥揕DO

NGATE鈥揕DO

INHIBIT

IOUTLO

HISENSE

LOSENSE/LOHIB

HIGHDR

BOOT

BOOTLO

LDWDR

PowerPAD鈩?Package

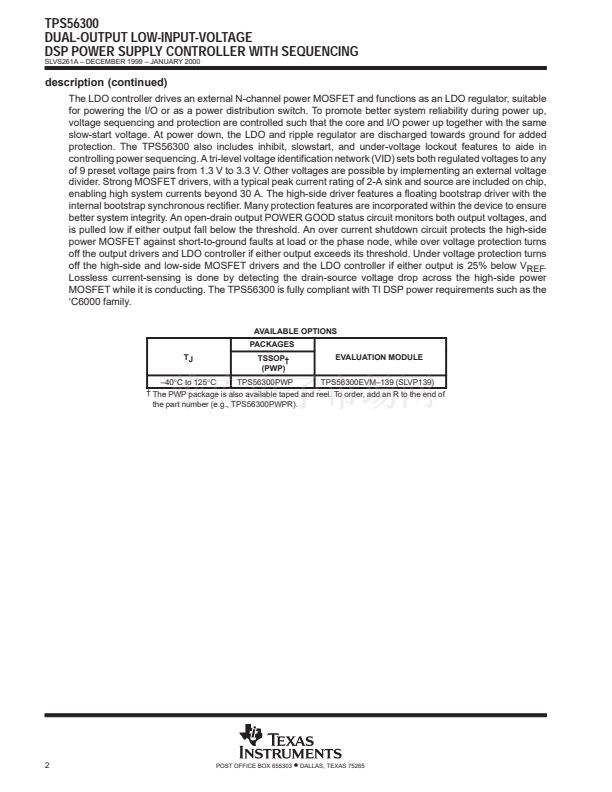

description

The high performance TPS56300 synchronous-buck regulator provides two supply voltages to power the core

and I/O of digital signal processors, such as the 鈥楥6000 family. The ripple regulator, using hysteretic control with

droop compensation, is configured for the core voltage and features fast transient response time reducing

output bulk capacitance (continued).

typical design

See Note A

NOTE A: See Table 1

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PowerPAD is a trademark of Texas Instruments Incorporated.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

漏

2000, Texas Instruments Incorporated

POST OFFICE BOX 655303

鈥?/div>

DALLAS, TEXAS 75265

標準包裝
1
類別
編程器，開發系統
家庭
評估板 - DC/DC 與 AC/DC（離線）SMPS
系列
-
主要目的
DC/DC，LDO 步降
輸出及類型
2，非隔離
功率 - 輸出
-
輸出電壓
1.8V，3.3V
電流 - 輸出
4A，500mA
輸入電壓
5V
穩壓器拓?fù)浣Y(jié)構
降壓
頻率 - 開關
300kHz
板類型
完全填充
已供物品
板
已用 IC / 零件
TPS56300
相關產品
TPS56300PWPRG4-ND - IC REG CTRLR BUCK PWM 28-HTSSOPTPS56300PWPR-ND - IC REG CTRLR BUCK PWM 28-HTSSOPTPS56300PWPG4-ND - IC REG CTRLR BUCK PWM 28-HTSSOP296-2476-5-ND - IC REG CTRLR BUCK PWM 28-HTSSOP
其它名稱
296-10941
