TPS40190DRCTG4 Datasheet

  • TPS40190DRCTG4

  • LOW PIN COUNT SYNCHRONOUS BUCK CONTROLLER

  • 22頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TPS40190
www.ti.com
SLUS658A 鈥?JULY 2005 鈥?REVISED AUGUST 2005
LOW PIN COUNT SYNCHRONOUS BUCK CONTROLLER
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Input Operating Voltage Range: 4.5 V to 15 V
Reference 0.591 V
鹵1%
Voltage Mode Control
Internal 5-V Regulator For Internal
Housekeeping, Driver Power and Light
External Loads
Selectable Short-Circuit Protection
Thresholds
Pre-Bias Ouput Safe
Fixed Switching Frequency of 300 kHz
Internal Soft-Start
Small 3 mm
脳
3 mm, 10-Pin SON Package
Bootstrapped Drivers for N-Channel MOSFET
Adaptive Anti-Cross Conduction
Internal Bootstrap Diode
1.2-A Drivers for Decreased Switching Loss
DESCRIPTION
The TPS40190 is a cost-optimized synchronous buck
controller that operates from 4.5 V to 15 V nominally,
and implements a fixed frequency voltage mode
power supply. The controller uses an adaptive
anti-cross conduction scheme to prevent both the
high-side and the rectifier MOSFET to be turned on at
the same time, preventing shoot through current in
the two MOSFETs.
The controller also provides a short circuit protection
threshold that is user selectable between one of three
values. The protection level is set with a single
external resistor connected from COMP to GND.
During start-up, the impedance connected to COMP
is sensed, and the information is decoded to select
one of the three thresholds. When the controller
senses an output short circuit, both MOSFETs are
turned off and a timeout period is observed before
attempting to restart. This provides limited power
dissipation in the event of a sustained fault.
The TPS40190 provides strong drivers to minimize
switching losses in the power stage, reducing heat
build up in the MOSFETs and allowing larger
MOSFETs to be used without undue switching time
penalty.
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Cable modem CPE
Digital Set Top Box
Graphics/Audio Cards
Entry-level and Mid-Range Servers
SIMPLIFIED APPLICATION DIAGRAM
VDD
TPS40190
1 ENABLE HDRV 10
SHUTDOWN
2 FB
3 COMP
4 VDD
5 GND
SW 9
BOOT 8
LDRV 7
BP5 6
V
OUT
UDG鈭?5059
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
Copyright 漏 2005, Texas Instruments Incorporated

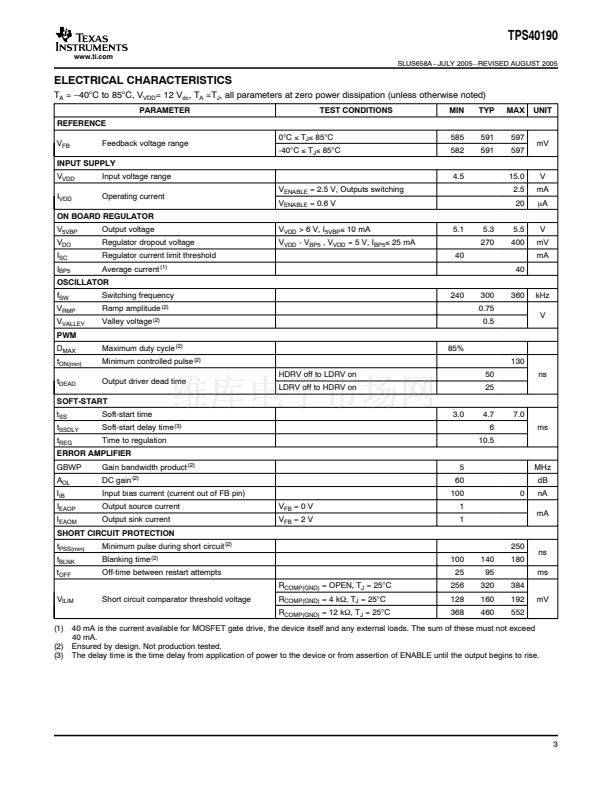

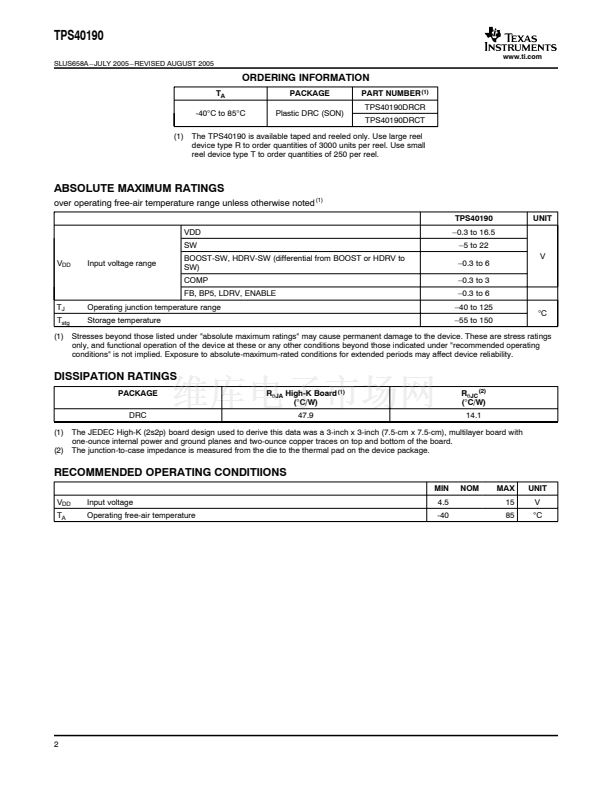

TPS40190DRCTG4 產品屬性

  • 250

  • 集成電路 (IC)

  • PMIC - 穩壓器 - DC DC 切換控制器

  • -

  • 電壓模式

  • 1

  • 360kHz

  • 85%

  • 4.5 V ~ 15 V

  • 是

  • 無

  • 無

  • 無

  • 無

  • 無

  • 無

  • 無

  • -40°C ~ 85°C

  • 10-VFDFN 裸露焊盤

  • 帶卷 (TR)

  • 296-19477-ND - MODULE EVAL FOR TPS40190-001
