TPS2034P Datasheet

  • TPS2034P

  • POWER-DISTRIBUTION SWITCHES

  • 25頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TPS2030, TPS2031, TPS2032, TPS2033, TPS2034
POWER DISTRIBUTION SWITCHES
SLVS190B 鈭?DECEMBER 1998 鈭?REVISED MARCH 2004
D
33-m鈩?(5-V Input) High-Side MOSFET
D
D
D
D
D
D
D
D
D
D
D
D
Switch
Short-Circuit and Thermal Protection
Overcurrent Logic Output
Operating Range . . . 2.7 V to 5.5 V
Logic-Level Enable Input
Typical Rise Time . . . 6.1 ms
Undervoltage Lockout
Maximum Standby Supply
Current . . . 10
碌A(chǔ)
No Drain-Source Back-Gate Diode
Available in 8-pin SOIC and PDIP Packages
Ambient Temperature Range, 鈭?40擄C to 85擄C
2-kV Human-Body-Model, 200-V
Machine-Model ESD Protection
UL Listed 鈭?File No. E169910
D OR P PACKAGE
(TOP VIEW)
GND
IN
IN
EN
1
2
3
4
8
7
6
5
OUT
OUT
OUT
OC
description
The TPS203x family of power distribution switches is intended for applications where heavy capacitive loads
and short circuits are likely to be encountered. These devices are 50-m鈩?N-channel MOSFET high-side power
switches. The switch is controlled by a logic enable compatible with 5-V logic and 3-V logic. Gate drive is
provided by an internal charge pump designed to control the power-switch rise times and fall times to minimize
current surges during switching. The charge pump requires no external components and allows operation from
supplies as low as 2.7 V.
When the output load exceeds the current-limit threshold or a short is present, the TPS203x limits the output
current to a safe level by switching into a constant-current mode, pulling the overcurrent (OC) logic output low.
When continuous heavy overloads and short circuits increase the power dissipation in the switch, causing the
junction temperature to rise, a thermal protection circuit shuts off the switch to prevent damage. Recovery from
a thermal shutdown is automatic once the device has cooled sufficiently. Internal circuitry ensures the switch
remains off until valid input voltage is present.
The TPS203x devices differ only in short-circuit current threshold. The TPS2030 limits at 0.3-A load, the
TPS2031 at 0.9-A load, the TPS2032 at 1.5-A load, the TPS2033 at 2.2-A load, and the TPS2034 at 3-A load

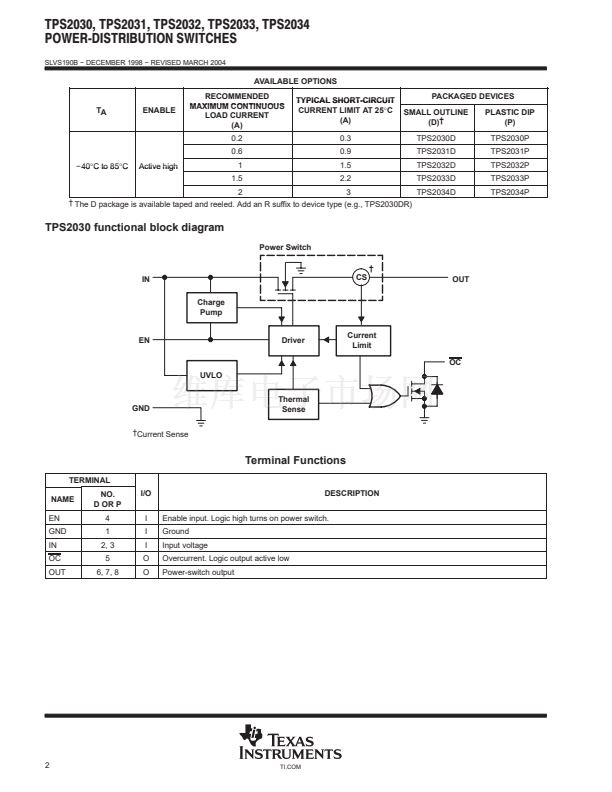

(see Available Options). The TPS203x is available in an 8-pin small-outline integrated-circuit (SOIC) package
and in an 8-pin dual-in-line (DIP) package and operates over a junction temperature range of 鈭?0擄C to 125擄C.
GENERAL SWITCH CATALOG
33 m鈩? single
TPS201xA 0.2 A 鈭?2 A
TPS202x
TPS203x
0.2 A 鈭?2 A
0.2 A 鈭?2 A
80 m鈩? dual
TPS2042
TPS2052
TPS2046
TPS2056
500 mA
500 mA
250 mA
250 mA
80 m鈩? triple
80 m鈩? quad
80 m鈩? single
TPS2014
TPS2015
TPS2041
TPS2051
TPS2045
TPS2055
600 mA
1A
500 mA
500 mA
250 mA
250 mA
260 m鈩?/div>
IN1
IN2
OUT
TPS2100/1
IN1 500 mA
IN2 10 mA
TPS2102/3/4/5
IN1
500 mA
IN2
100 mA
1.3
鈩?/div>
TPS2043
TPS2053
TPS2047
TPS2057
500 mA
500 mA
250 mA
250 mA
TPS2044
TPS2054
TPS2048
TPS2058
500 mA
500 mA
250 mA
250 mA
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
1999 鈭?2004 Texas Instruments Incorporated
TI.COM
1

TPS2034P 產品屬性

  • 50

  • 集成電路 (IC)

  • PMIC - 電源分配開關

  • -

  • 高端開關

  • 1

  • 36 毫歐

  • 是

  • 3A

  • 2.7 V ~ 5.5 V

  • -40°C ~ 85°C

  • 通孔

  • 8-DIP（0.300"，7.62mm）

  • 8-PDIP

  • 管件

  • TPS2034EVM-290-ND - TPS2034EVM-290

  • 296-12236-5
