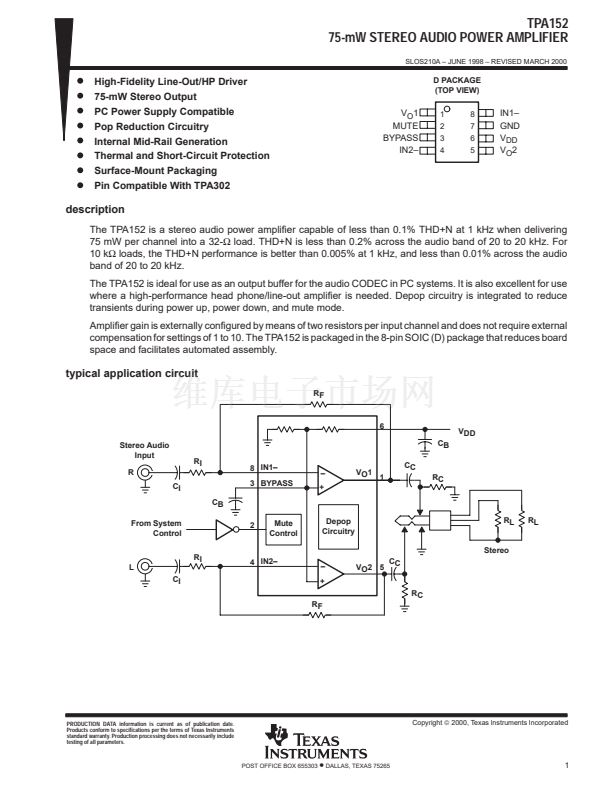

TPA152

75-mW STEREO AUDIO POWER AMPLIFIER

SLOS210A 鈥?JUNE 1998 鈥?REVISED MARCH 2000

D

High-Fidelity Line-Out/HP Driver

75-mW Stereo Output

PC Power Supply Compatible

Pop Reduction Circuitry

Internal Mid-Rail Generation

Thermal and Short-Circuit Protection

Surface-Mount Packaging

Pin Compatible With TPA302

D PACKAGE

(TOP VIEW)

V

O

1

MUTE

BYPASS

IN2鈥?/div>

1

2

3

4

8

7

6

5

IN1鈥?/div>

GND

V

DD

V

O

2

description

The TPA152 is a stereo audio power amplifier capable of less than 0.1% THD+N at 1 kHz when delivering

75 mW per channel into a 32-鈩?load. THD+N is less than 0.2% across the audio band of 20 to 20 kHz. For

10 k鈩?loads, the THD+N performance is better than 0.005% at 1 kHz, and less than 0.01% across the audio

band of 20 to 20 kHz.

The TPA152 is ideal for use as an output buffer for the audio CODEC in PC systems. It is also excellent for use

where a high-performance head phone/line-out amplifier is needed. Depop circuitry is integrated to reduce

transients during power up, power down, and mute mode.

Amplifier gain is externally configured by means of two resistors per input channel and does not require external

compensation for settings of 1 to 10. The TPA152 is packaged in the 8-pin SOIC (D) package that reduces board

space and facilitates automated assembly.

typical application circuit

RF

6

Stereo Audio

Input

R

CI

CB

From System

Control

RI

L

CI

2

Mute

Control

Depop

Circuitry

CB

RI

8 IN1鈥?/div>

3 BYPASS

VO1

1

CC

RC

VDD

鈥?/div>

+

RL

Stereo

4 IN2鈥?/div>

鈥?/div>

+

RC

RF

VO2 5

CC

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.

Copyright

漏

2000, Texas Instruments Incorporated

POST OFFICE BOX 655303

鈥?/div>

DALLAS, TEXAS 75265

1

標準包裝
75
類別
集成電路 (IC)
家庭
線性 - 音頻放大器
系列
-
類型
AB 類
輸出類型
耳機，2-通道（立體聲）
在某負載時最大輸出功率 x 通道數量
75mW x 2 @ 32 歐姆
電源電壓
4.5 V ~ 5.5 V
特點
消除爆音，靜音，短路和熱保護
安裝類型
表面貼裝
供應商設備封裝
8-SOIC
封裝/外殼
8-SOIC（0.154"，3.90mm 寬）
包裝
管件
配用
296-10827-ND - EVAL MOD AUDIO PWR AMP TPA152
其它名稱
296-1944296-1944-5
