TPA0222PWP Datasheet

  • TPA0222PWP

  • STEREO 2-W AUDIO POWER AMPLIFIER WITH FOUR SELECTABLE GAIN S...

  • 33頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

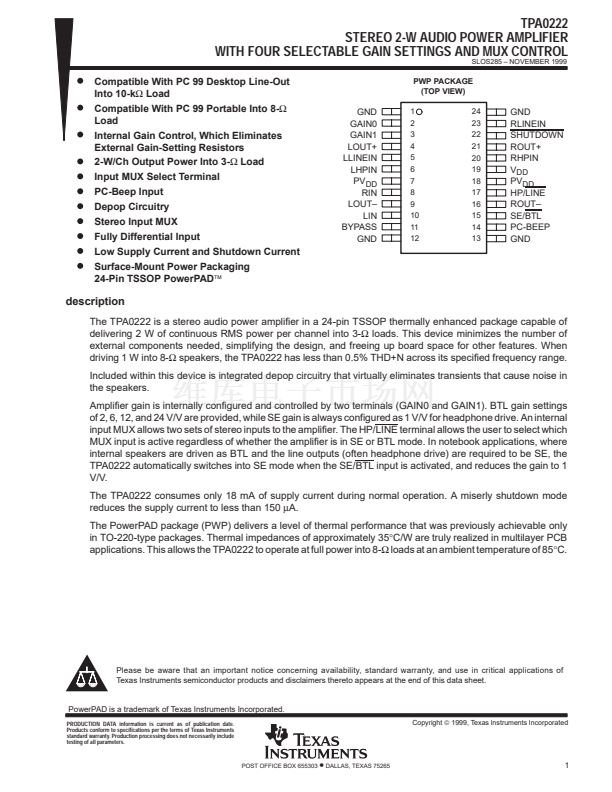

TPA0222
STEREO 2-W AUDIO POWER AMPLIFIER
WITH FOUR SELECTABLE GAIN SETTINGS AND MUX CONTROL
SLOS285 鈥?NOVEMBER 1999
D
D
D
D
D
D
D
D
D
D
D
Compatible With PC 99 Desktop Line-Out
Into 10-k鈩?Load
Compatible With PC 99 Portable Into 8-鈩?/div>
Load
Internal Gain Control, Which Eliminates
External Gain-Setting Resistors
2-W/Ch Output Power Into 3-鈩?Load
Input MUX Select Terminal
PC-Beep Input
Depop Circuitry
Stereo Input MUX
Fully Differential Input
Low Supply Current and Shutdown Current
Surface-Mount Power Packaging
24-Pin TSSOP PowerPAD鈩?/div>
PWP PACKAGE
(TOP VIEW)
GND
GAIN0
GAIN1
LOUT+
LLINEIN
LHPIN
PV
DD
RIN
LOUT鈥?/div>
LIN
BYPASS
GND
1
2
3
4
5
6
7
8
9
10
11
12
24
23
22
21
20
19
18
17
16
15
14
13
GND
RLINEIN
SHUTDOWN
ROUT+
RHPIN
V
DD
PV
DD
HP/LINE
ROUT鈥?/div>
SE/BTL
PC-BEEP
GND
description
The TPA0222 is a stereo audio power amplifier in a 24-pin TSSOP thermally enhanced package capable of
delivering 2 W of continuous RMS power per channel into 3-鈩?loads. This device minimizes the number of
external components needed, simplifying the design, and freeing up board space for other features. When
driving 1 W into 8-鈩?speakers, the TPA0222 has less than 0.5% THD+N across its specified frequency range.
Included within this device is integrated depop circuitry that virtually eliminates transients that cause noise in
the speakers.

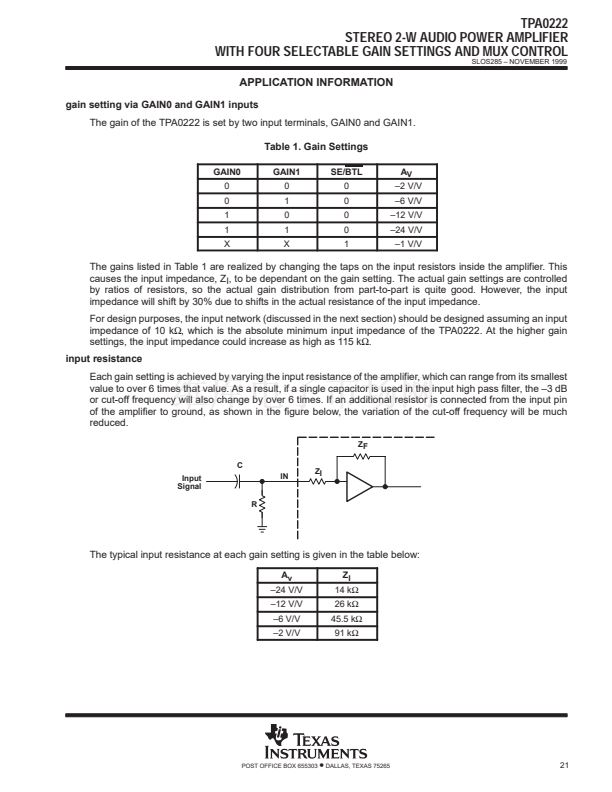

Amplifier gain is internally configured and controlled by two terminals (GAIN0 and GAIN1). BTL gain settings
of 2, 6, 12, and 24 V/V are provided, while SE gain is always configured as 1 V/V for headphone drive. An internal
input MUX allows two sets of stereo inputs to the amplifier. The HP/LINE terminal allows the user to select which
MUX input is active regardless of whether the amplifier is in SE or BTL mode. In notebook applications, where
internal speakers are driven as BTL and the line outputs (often headphone drive) are required to be SE, the
TPA0222 automatically switches into SE mode when the SE/BTL input is activated, and reduces the gain to 1
V/V.
The TPA0222 consumes only 18 mA of supply current during normal operation. A miserly shutdown mode
reduces the supply current to less than 150
碌A.

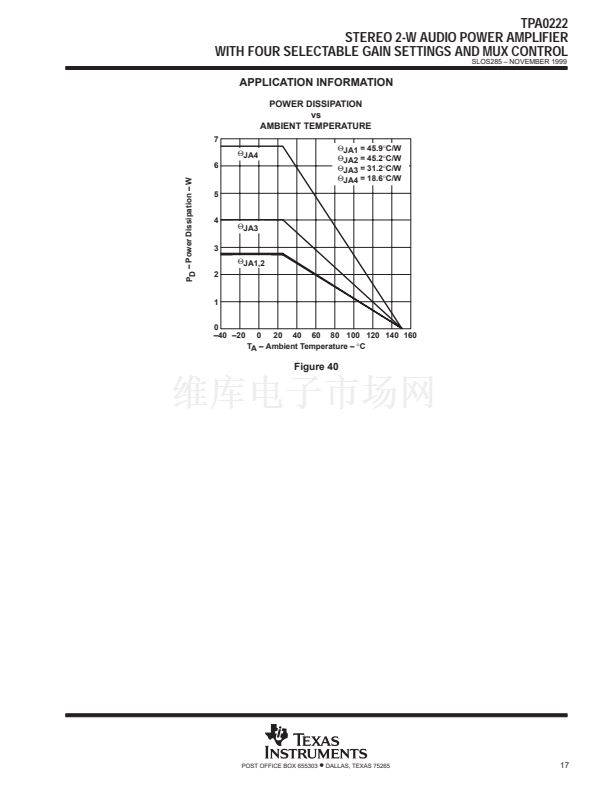

The PowerPAD package (PWP) delivers a level of thermal performance that was previously achievable only
in TO-220-type packages. Thermal impedances of approximately 35擄C/W are truly realized in multilayer PCB
applications. This allows the TPA0222 to operate at full power into 8-鈩?loads at an ambient temperature of 85擄C.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PowerPAD is a trademark of Texas Instruments Incorporated.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
1999, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

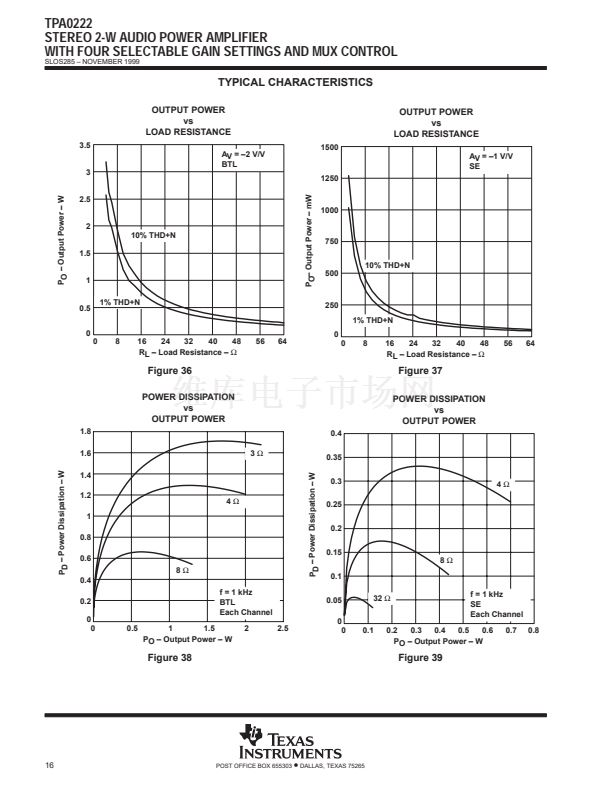

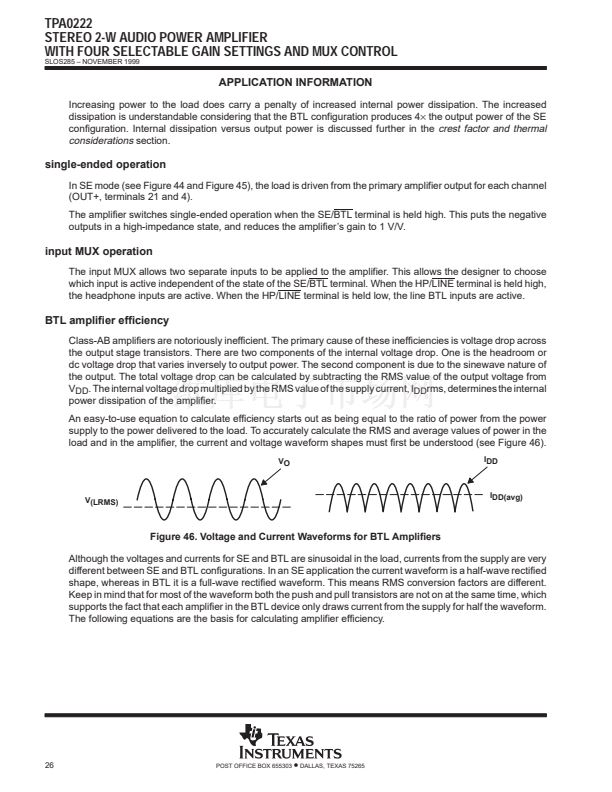

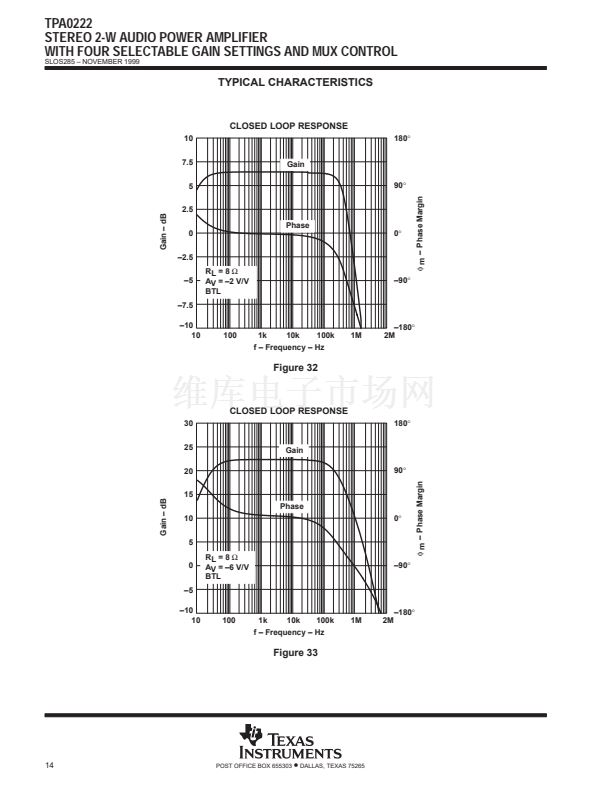

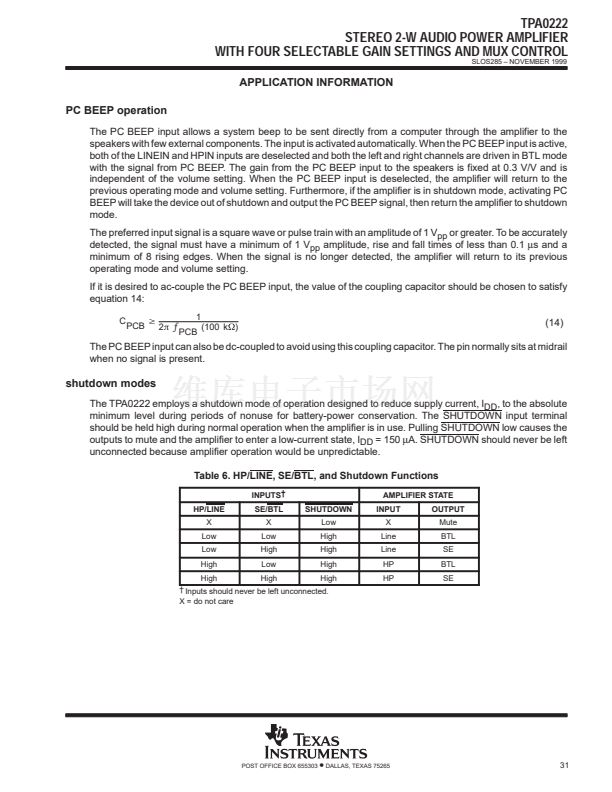

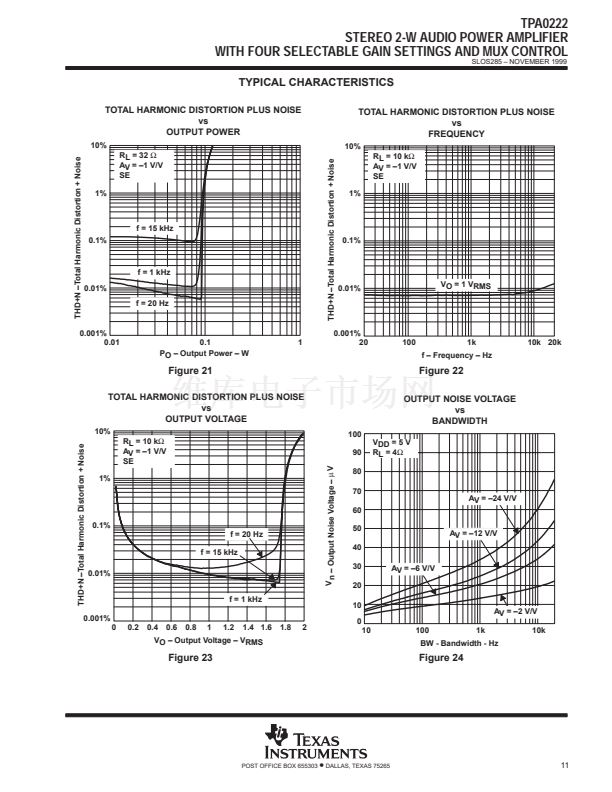

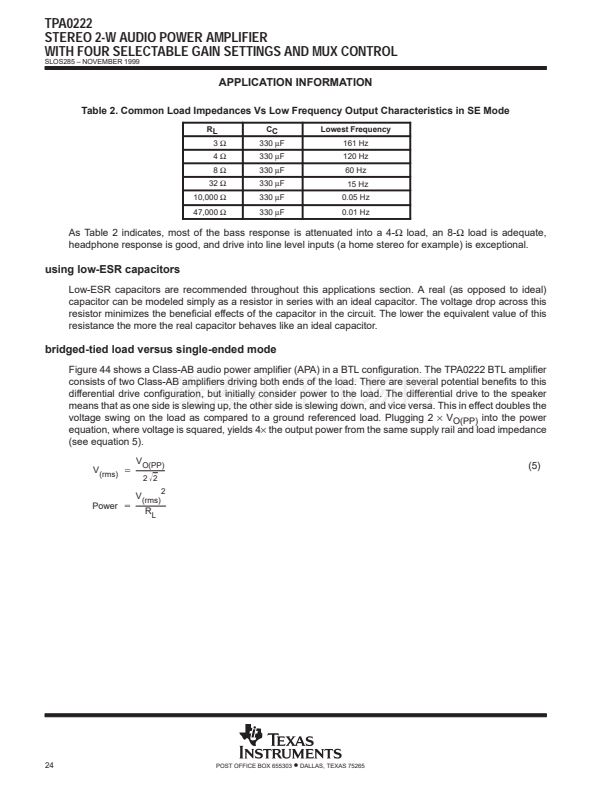

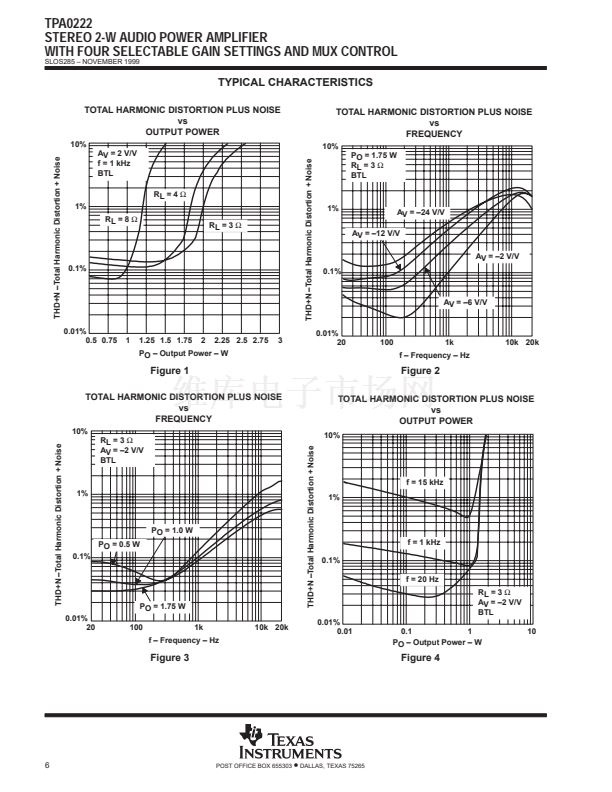

TPA0222PWP 產品屬性

  • 60

  • 集成電路 (IC)

  • 線性 - 音頻放大器

  • -

  • AB 類

  • 2-通道（立體聲）帶單聲道和立體聲耳機

  • 2.6W x 2 @ 3 歐姆

  • 4.5 V ~ 5.5 V

  • 消除爆音，差分輸入，輸入多路復用器，靜音，關機，熱保護，音量控制

  • 表面貼裝

  • 24-HTSSOP

  • 24-TSSOP（0.173"，4.40mm）裸露焊盤

  • 管件

  • 296-10810-ND - EVAL MOD PWR AMP FOR TPA0222296-10811-ND - EVAL MOD AUDIO PWR AMP TPA0223

  • 296-2458-5
