TP3054ADW Datasheet

  • TP3054ADW

  • MONOLITHIC SERIAL INTERFACE COMBINED PCM CODEC AND FILTER

  • 17頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TP3054A, TP3057A, TP13054A, TP13057A
MONOLITHIC SERIAL INTERFACE
COMBINED PCM CODEC AND FILTER
SCTS026C 鈥?SEPTEMBER 1992 鈥?REVISED JULY 1996
D
Complete PCM Codec and Filtering
Systems Include:
鈥?Transmit High-Pass and Low-Pass
Filtering
鈥?Receive Low-Pass Filter With (sin x)/x
Correction
鈥?Active RC Noise Filters
鈥?/div>
碌-Law
or A-Law Compatible Coder and
Decoder
鈥?Internal Precision Voltage Reference
鈥?Serial I/O Interface
鈥?Internal Autozero Circuitry
D
D
D
D
D
D
D
D
D
碌-Law
. . . TP3054A and TP13054A
A-Law . . . TP3057A and TP13057A
鹵
5-V Operation
Low Operating Power . . . 50 mW Typ
Power-Down Standby Mode . . . 3 mW Typ
Automatic Power Down
TTL- or CMOS-Compatible Digital Interface
Maximizes Line Interface Card Circuit
Density
Improved Versions of National
Semiconductor TP3054, TP3057, TP3054-X,
TP3057-X
description
The TP3054A, TP3057A, TP13054A, and
TP13057A are comprised of a single-chip PCM
codec (pulse code-modulated encoder and
decoder) and PCM line filter. These devices
provide all the functions required to interface a
full-duplex (2-wire) voice telephone circuit with a
TDM (time-division-multiplexed) system. These
devices are pin-for-pin compatible with the
National Semiconductor TP3054A and TP3057A,
respectively. Primary applications include:
DW OR N PACKAGE
(TOP VIEW)
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Line interface for digital transmission and
switching of T1 carrier, PABX, and central
office telephone systems
Subscriber line concentrators
Digital-encryption systems
Digital voice-band data-storage systems
Digital signal processing
V
BB
ANLG GND
VFRO
V
CC
FSR
DR
BCLKR/CLKSEL
MCLKR/PDN
1
2
3
4
5
6
7
8
16
15
14
13
12
11
10
9
VFXI +
VFXI 鈥?/div>
GSX
TSX
FSX
DX
BCLKX
MCLKX

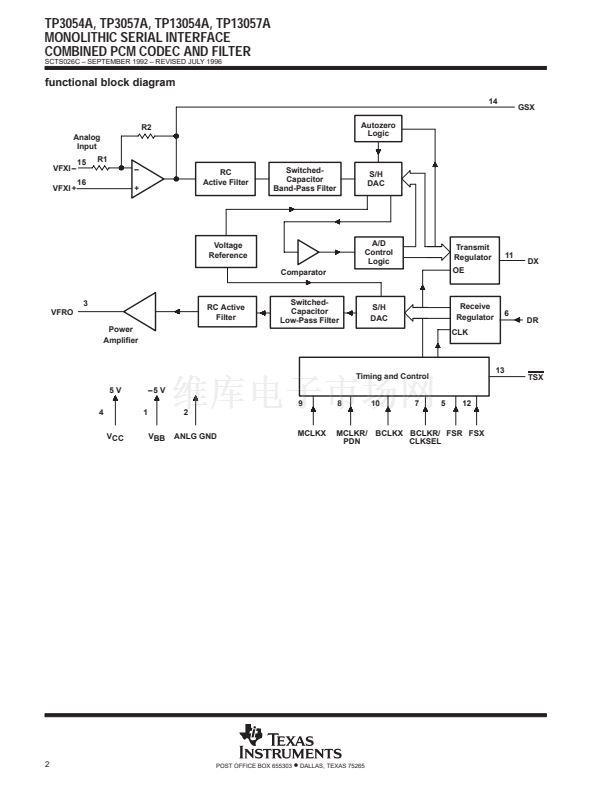

These devices are designed to perform the transmit encoding (A/D conversion) and receive decoding (D/A
conversion) as well as the transmit and receive filtering functions in a PCM system. They are intended to be
used at the analog termination of a PCM line or trunk. The devices require two transmit and receive master
clocks that may be asynchronous (1.536 MHz, 1.544 MHz, or 2.048 MHz), transmit and receive data clocks that
are synchronous with the master clock (but can vary from 64 kHz to 2.048 MHz), and transmit and receive
frame-sync pulses. The TP3054A, TP3057A, TP13054A, and TP13057A provide the band-pass filtering of the
analog signals prior to encoding and after decoding of voice and call progress tones. The TP3057A and
TP13057A contain patented circuitry to achieve low transmit channel idle noise and are not recommended for
applications in which the composite signals on the transmit side are below 鈥?55 dBm0.
The TP3054A and TP3057A are characterized for operation from 0擄C to 70擄C. The TP13054A and TP13057A
are characterized for operation from 鈥?40擄C to 85擄C.
These devices have limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam
during storage or handling to prevent electrostatic damage to the MOS gates.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
漏
1996, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265
1

TP3054ADW 產品屬性

  • 40

  • 集成電路 (IC)

  • 接口 - 編解碼器

  • -

  • PCM 編解碼器/濾波器

  • 串行

  • -

  • 1 / 1

  • 無

  • -

  • -

  • ±5V

  • ±5V

  • 0°C ~ 70°C

  • 表面貼裝

  • 16-SOIC（0.295"，7.50mm 寬）

  • 16-SOIC

  • 管件

  • 296-10782-5
