High temperature soldering guaranteed:
300擄C/10 seconds 0.375 (9.5mm) lead length,
5lbs (2.3 kg) tension
P
A
T
E
N
T
E
MECHANICAL DATA
Dimensions in inches and (millimeters)
*
Patent #鈥檚
4,980,315
5,166,769
5,278,094
Case:
Molded plastic over a passivated junction
Terminals:
Axial leads, solderable per MIL-STD-750,
Method 2026
Polarity:
Color band denotes positive end (cathode)
Mounting Position:
Any
Weight:
0.0064 ounce, 0.181 gram
Available in uni-directional only
MAXIMUM RATINGS AND CHARACTERISTICS
Ratings at 25擄C ambient temperature unless otherwise specified.
SYMBOL
VALUE
UNITS
Peak power dissipation with a 10/1000碌s
waveform

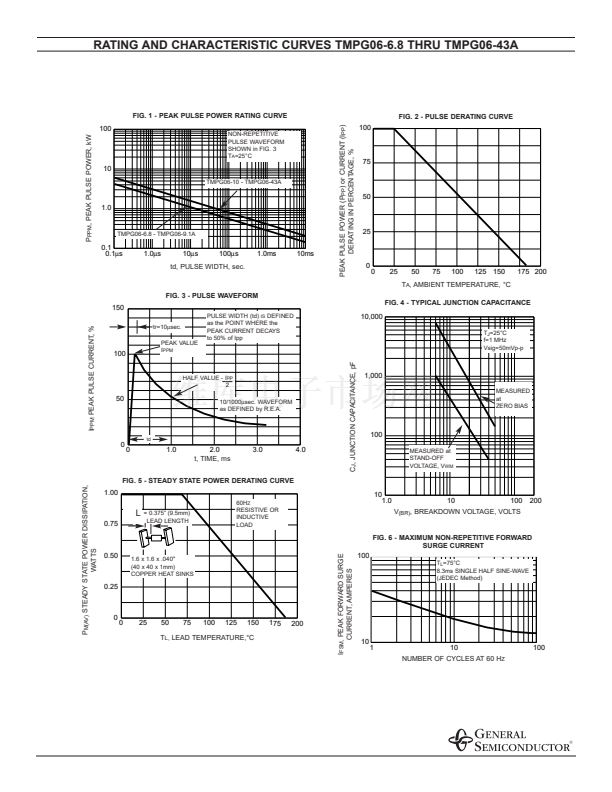

(NOTE 1, FIG. 1)
Peak pulse power current with a 10/1000碌s
waveform
(NOTE1,2, FIG. 3)
Steady state power dissipation at T
L
=75擄C
lead lengths 0.25鈥?(6.33mm)
(NOTE 2)
Peak forward surge current, 8.3ms single half
sine-wave superimposed on rated load
(JEDEC Method)
(NOTE 3)
Maximum instantaneous forward voltage at 25A
(NOTE 3)
Operating junction and storage temperature range
P
PPM
I
PPM
P
M(AV)
Minimum 400

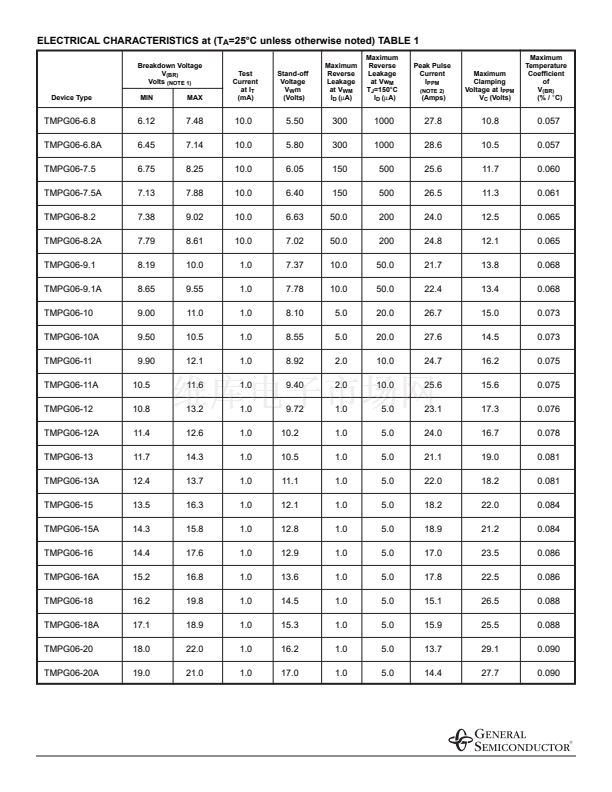

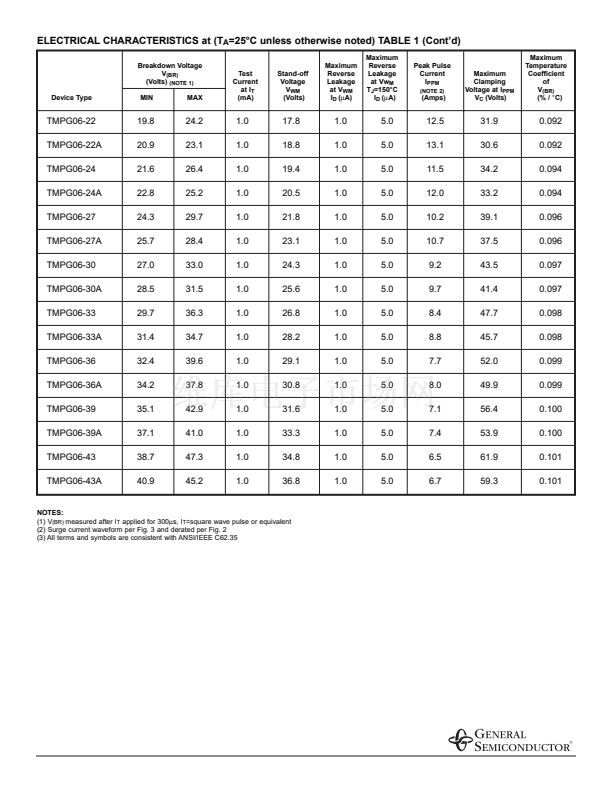

SEE TABLE 1
Watts
Amps
Watts
1.0
I
FSM
V
F
T
J
, T
STG
40.0
3.5
-65 to +185
Amps
Volts
擄C
NOTES:
(1) Non-repetitive current pulse, per Fig. 3 and derated above T
A
=25擄C per Fig. 2
(2) Mounted on copper pads area of 1.6 x 1.6鈥?(40 x 40mm)
(3) Measured on 8.3ms single half sine-wave or equivalent square wave, duty cycle=4 pulses per minute maximum
1/25/99
