TK15421MTL/421 Datasheet

  • TK15421MTL/421

  • 75 OHM VIDEO LINE DRIVER

  • 4頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TK15421
75
鈩?/div>
VIDEO LINE DRIVER

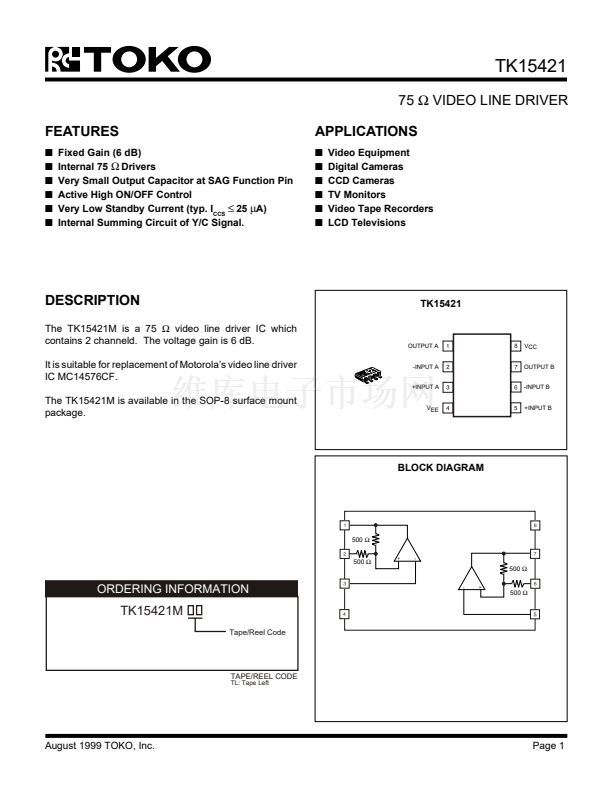

FEATURES
s
s
s
s
s
s
Fixed Gain (6 dB)
Internal 75
鈩?/div>
Drivers
Very Small Output Capacitor at SAG Function Pin
Active High ON/OFF Control
Very Low Standby Current (typ. I
CCS
鈮?/div>
25
碌
A)
Internal Summing Circuit of Y/C Signal.
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Televisions
DESCRIPTION
The TK15421M is a 75
鈩?/div>
video line driver IC which
contains 2 channeld. The voltage gain is 6 dB.
It is suitable for replacement of Motorola鈥檚 video line driver
IC MC14576CF.
The TK15421M is available in the SOP-8 surface mount
package.
TK15421
OUTPUT A
VCC
OUTPUT B
-INPUT B
-INPUT A
+INPUT A
VEE
+INPUT B
BLOCK DIAGRAM
500
鈩?/div>
+
500
鈩?/div>
-
500
鈩?/div>
+
-
ORDERING INFORMATION
500
鈩?/div>
TK15421M
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
August 1999 TOKO, Inc.
Page 1
