TK15413MTL/413 Datasheet

  • TK15413MTL/413

  • 75 OHM VIDEO LINE DRIVER

  • 8頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TK15413
75
鈩?/div>
VIDEO LINE DRIVER

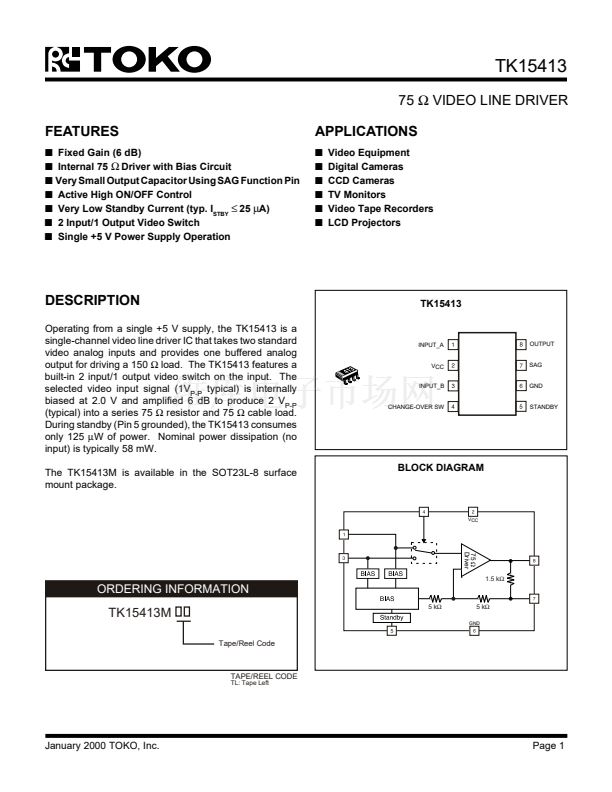

FEATURES
s
Fixed Gain (6 dB)
s
Internal 75
鈩?/div>
Driver with Bias Circuit
s
Very Small Output Capacitor Using SAG Function Pin
s
Active High ON/OFF Control
s
Very Low Standby Current (typ. I
STBY
鈮?/div>
25
碌
A)
s
2 Input/1 Output Video Switch
s
Single +5 V Power Supply Operation
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Projectors
DESCRIPTION
Operating from a single +5 V supply, the TK15413 is a
single-channel video line driver IC that takes two standard
video analog inputs and provides one buffered analog
output for driving a 150
鈩?/div>
load. The TK15413 features a
built-in 2 input/1 output video switch on the input. The
selected video input signal (1V
P-P
typical) is internally
biased at 2.0 V and amplified 6 dB to produce 2 V
P-P
(typical) into a series 75
鈩?/div>
resistor and 75
鈩?/div>
cable load.
During standby (Pin 5 grounded), the TK15413 consumes
only 125
碌W
of power. Nominal power dissipation (no
input) is typically 58 mW.
The TK15413M is available in the SOT23L-8 surface
mount package.
TK15413
INPUT_A
OUTPUT
01S
VCC
INPUT_B
SAG
GND
CHANGE-OVER SW
STANDBY
BLOCK DIAGRAM
VCC
75
鈩?/div>
Driver
1.5 k鈩?/div>
ORDERING INFORMATION
TK15413M
Tape/Reel Code
5 k鈩?/div>
5 k鈩?/div>
GND
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
Page 1
