TK15411MTL/411 Datasheet

  • TK15411MTL/411

  • 75 OHM VIDEO LINE DRIVER

  • 8頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

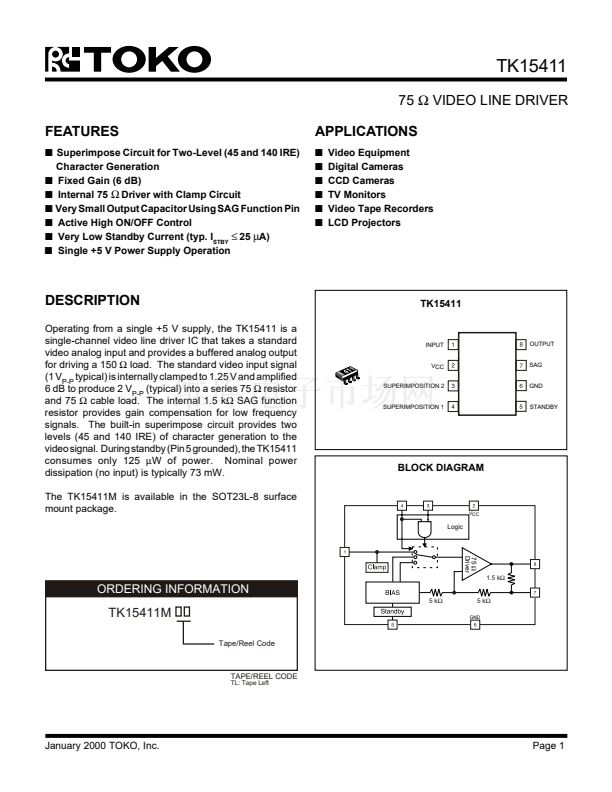

TK15411
75
鈩?/div>
VIDEO LINE DRIVER
FEATURES
s
Superimpose Circuit for Two-Level (45 and 140 IRE)
Character Generation
s
Fixed Gain (6 dB)
s
Internal 75
鈩?/div>
Driver with Clamp Circuit
s
Very Small Output Capacitor Using SAG Function Pin
s
Active High ON/OFF Control
s
Very Low Standby Current (typ. I
STBY
鈮?/div>
25
碌
A)
s
Single +5 V Power Supply Operation
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Projectors
DESCRIPTION
Operating from a single +5 V supply, the TK15411 is a
single-channel video line driver IC that takes a standard
video analog input and provides a buffered analog output
for driving a 150
鈩?/div>
load. The standard video input signal
(1 V
P-P
typical) is internally clamped to 1.25 V and amplified
6 dB to produce 2 V
P-P
(typical) into a series 75
鈩?/div>
resistor
and 75
鈩?/div>
cable load. The internal 1.5 k鈩?SAG function
resistor provides gain compensation for low frequency
signals. The built-in superimpose circuit provides two
levels (45 and 140 IRE) of character generation to the
video signal. During standby (Pin 5 grounded), the TK15411
consumes only 125
碌W
of power. Nominal power
dissipation (no input) is typically 73 mW.
The TK15411M is available in the SOT23L-8 surface
mount package.
TK15411
INPUT
OUTPUT
01S
VCC
SUPERIMPOSITION 2
SAG
GND
SUPERIMPOSITION 1
STANDBY
BLOCK DIAGRAM
VCC
Logic
75
鈩?/div>
Driver
1.5 k鈩?/div>
ORDERING INFORMATION
5 k鈩?/div>
5 k鈩?/div>
GND
TK15411M
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
Page 1
