TK15405MTL/405 Datasheet

  • TK15405MTL/405

  • OPERATIONAL AMPLIFIER WITH 75 OHM DRIVER

  • 8頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

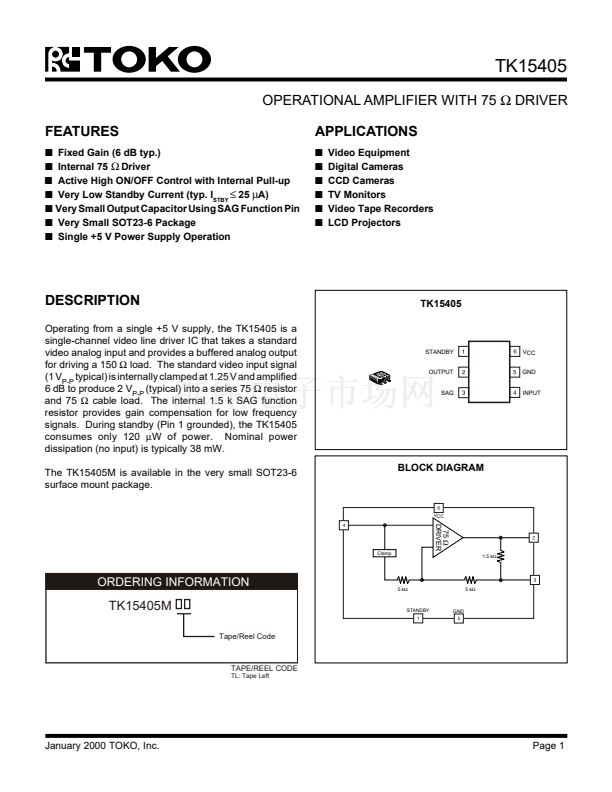

TK15405
OPERATIONAL AMPLIFIER WITH 75
鈩?/div>
DRIVER
FEATURES
s
Fixed Gain (6 dB typ.)
s
Internal 75
鈩?/div>
Driver
s
Active High ON/OFF Control with Internal Pull-up
s
Very Low Standby Current (typ. I
STBY
鈮?/div>
25
碌
A)
s
Very Small Output Capacitor Using SAG Function Pin
s
Very Small SOT23-6 Package
s
Single +5 V Power Supply Operation
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Projectors
DESCRIPTION
Operating from a single +5 V supply, the TK15405 is a
single-channel video line driver IC that takes a standard
video analog input and provides a buffered analog output
for driving a 150
鈩?/div>
load. The standard video input signal
(1 V
P-P
typical) is internally clamped at 1.25 V and amplified
6 dB to produce 2 V
P-P
(typical) into a series 75
鈩?/div>
resistor
and 75
鈩?/div>
cable load. The internal 1.5 k SAG function
resistor provides gain compensation for low frequency
signals. During standby (Pin 1 grounded), the TK15405
consumes only 120
碌W
of power. Nominal power
dissipation (no input) is typically 38 mW.
The TK15405M is available in the very small SOT23-6
surface mount package.
TK15405
STANDBY
OUTPUT
VCC
GND
INPUT
01 S
SAG
BLOCK DIAGRAM
VCC
75
鈩?/div>
DRIVER
Clamp
1.5 k鈩?/div>
ORDERING INFORMATION
5 k鈩?/div>
5 k鈩?/div>
TK15405M
Tape/Reel Code
STANDBY
GND
TAPE/REEL CODE
TL: Tape Left

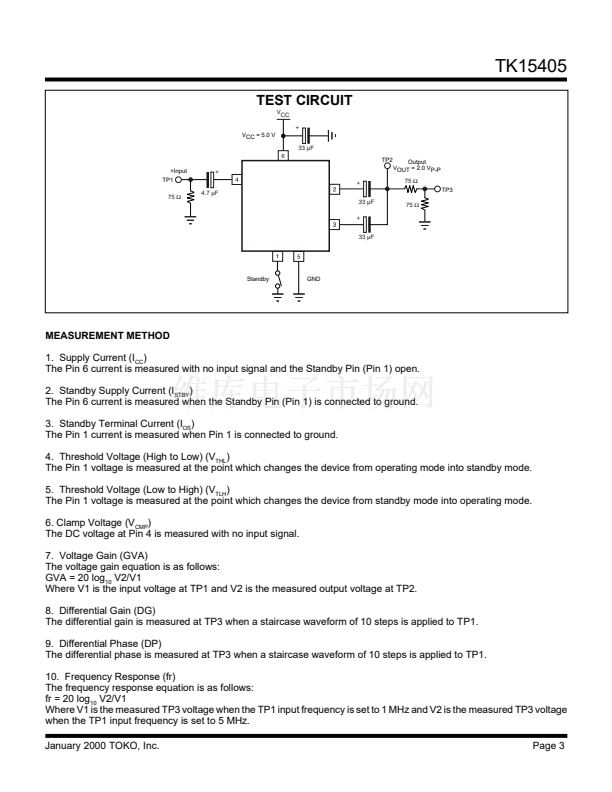

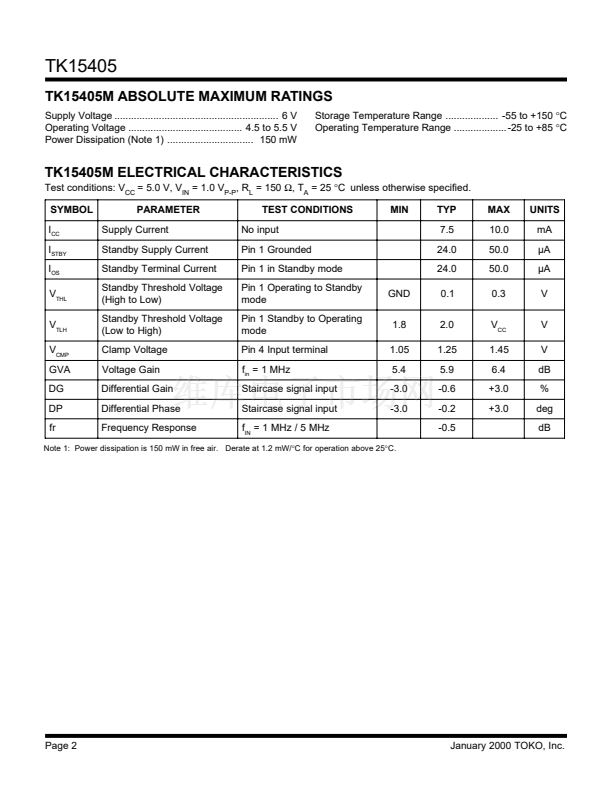

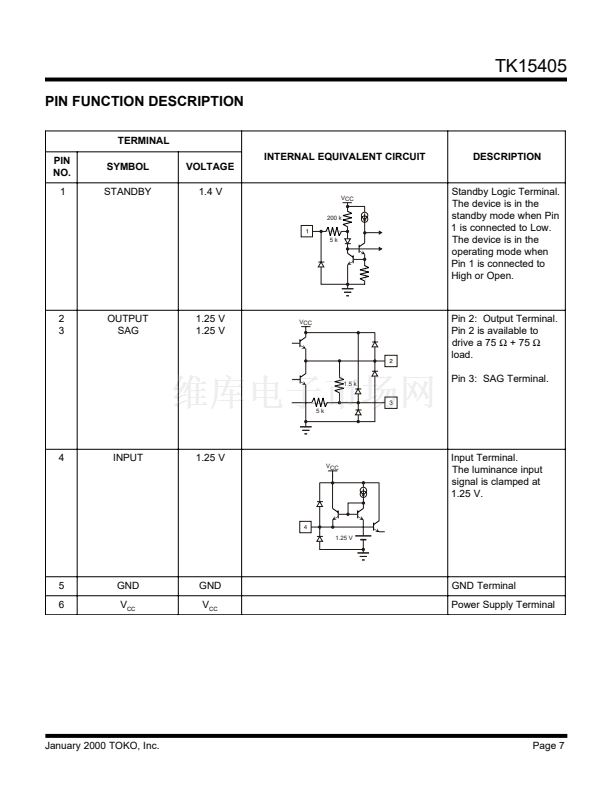

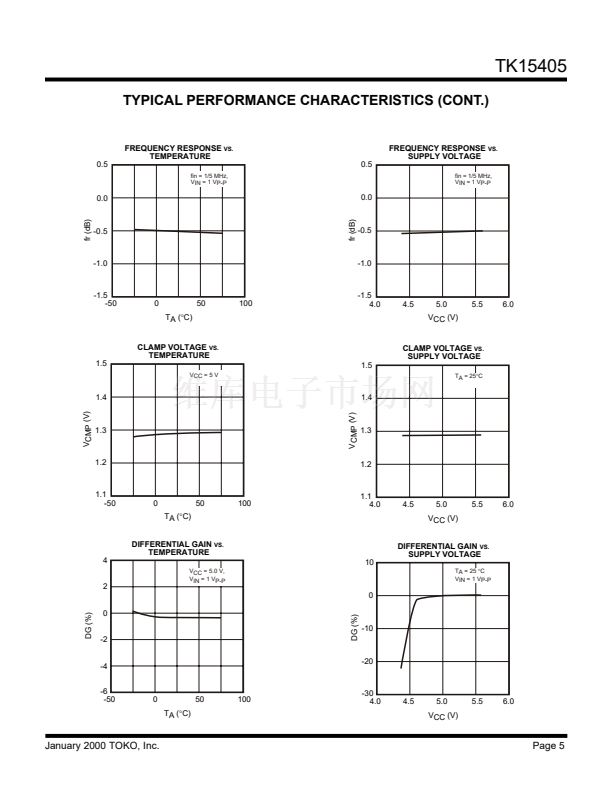

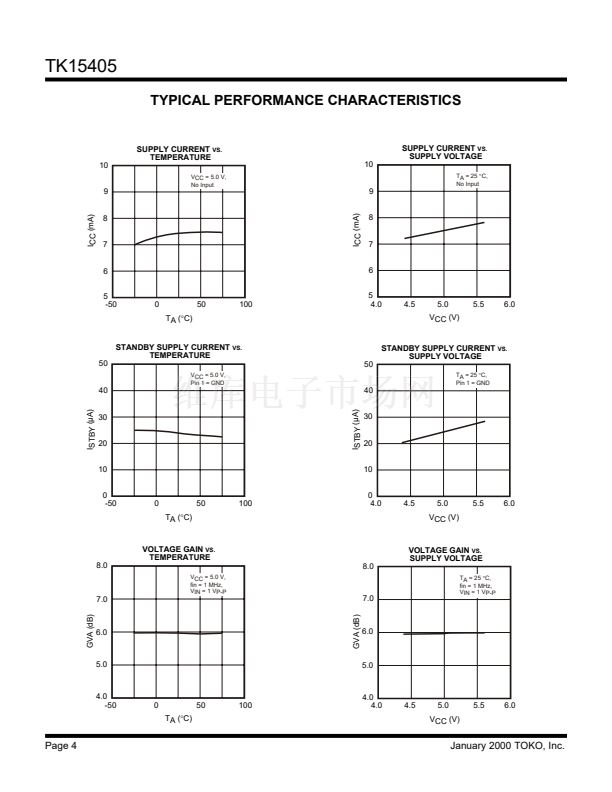

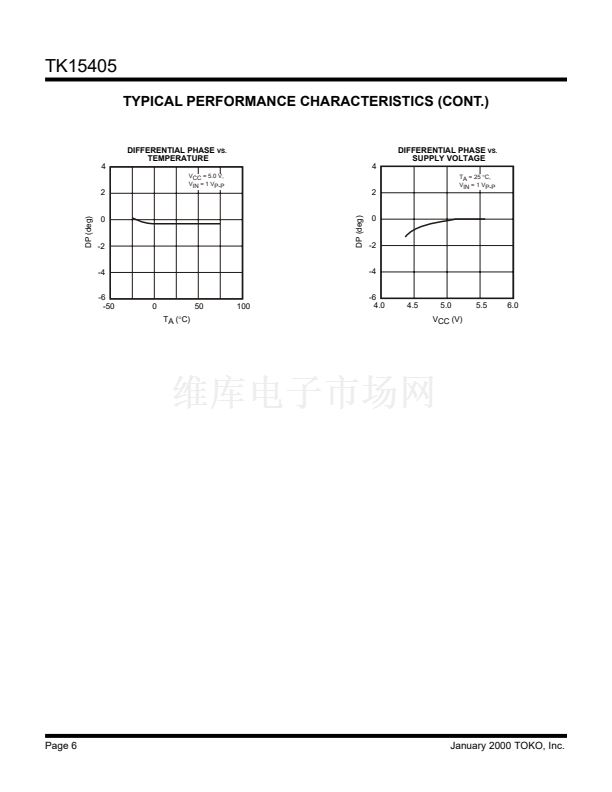

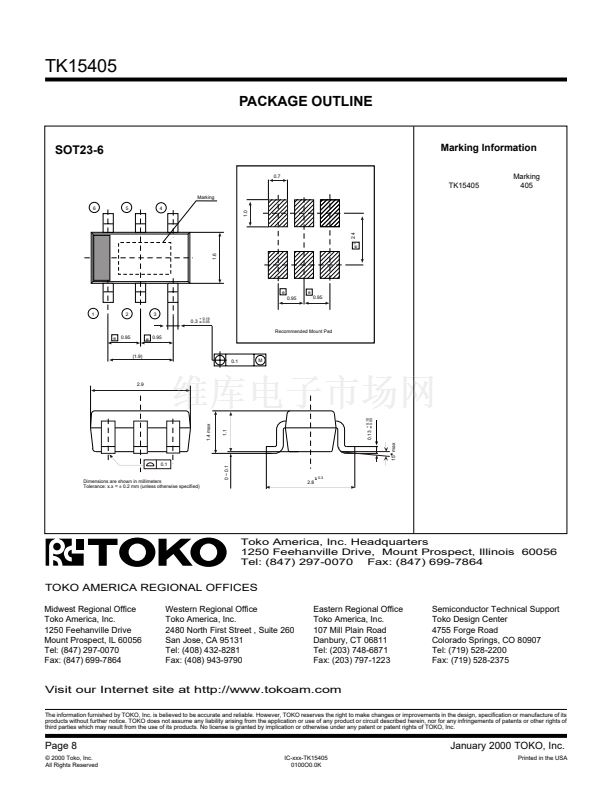

January 2000 TOKO, Inc.
Page 1
