TK15400MTL/400 Datasheet

  • TK15400MTL/400

  • 75 OHM VIDEO LINE DRIVER

  • 12頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

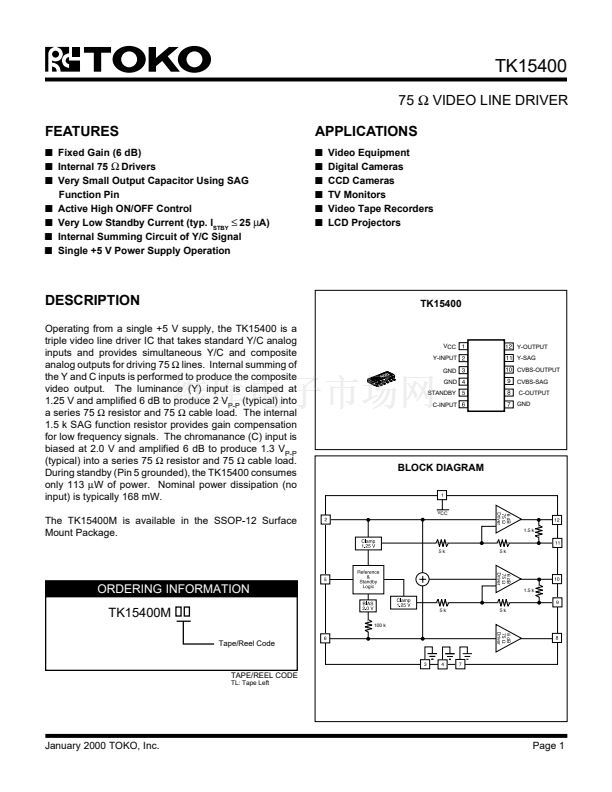

TK15400
75
鈩?/div>
VIDEO LINE DRIVER

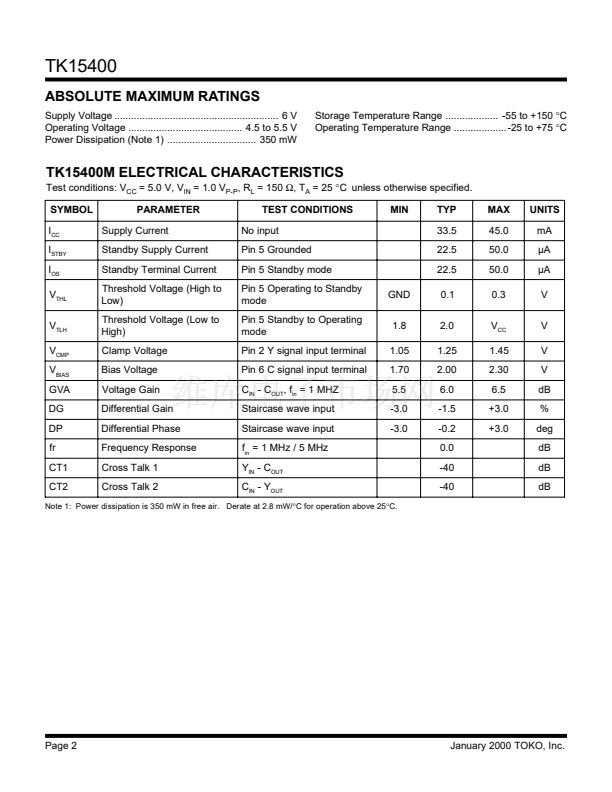

FEATURES
s
Fixed Gain (6 dB)
s
Internal 75
鈩?/div>
Drivers
s
Very Small Output Capacitor Using SAG
Function Pin
s
Active High ON/OFF Control
s
Very Low Standby Current (typ. I
STBY
鈮?/div>
25
碌
A)
s
Internal Summing Circuit of Y/C Signal
s
Single +5 V Power Supply Operation
APPLICATIONS
s
s
s
s
s
s
Video Equipment
Digital Cameras
CCD Cameras
TV Monitors
Video Tape Recorders
LCD Projectors

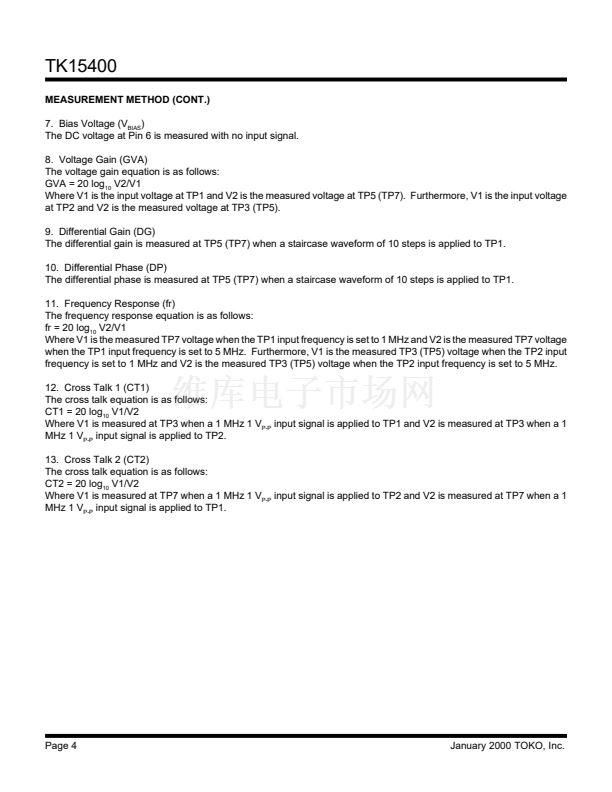

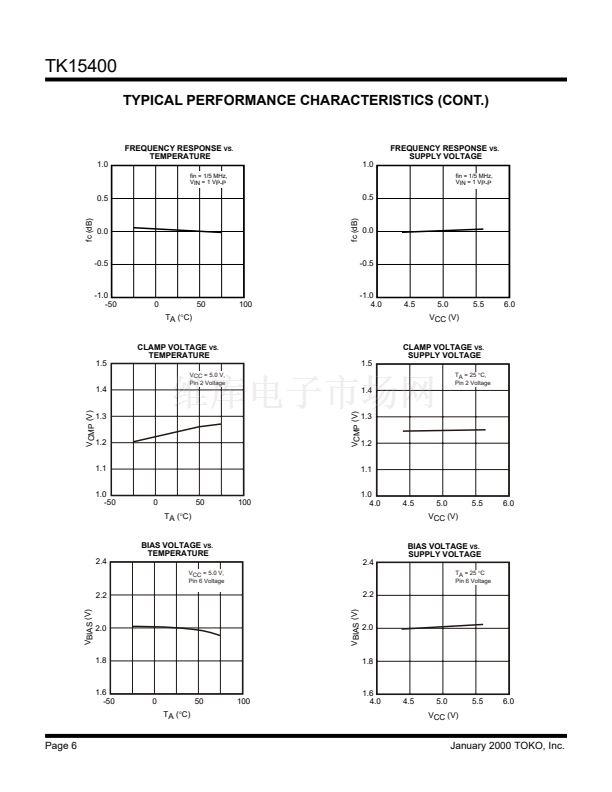

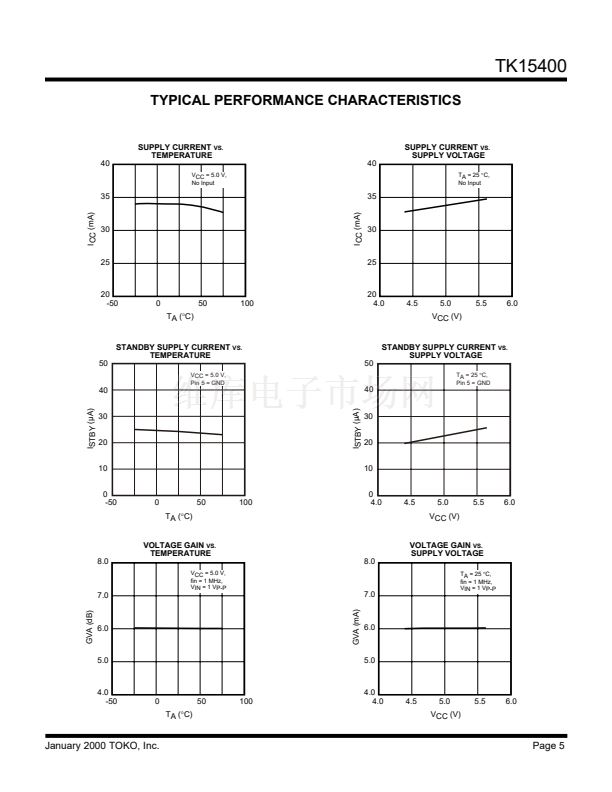

DESCRIPTION
Operating from a single +5 V supply, the TK15400 is a
triple video line driver IC that takes standard Y/C analog
inputs and provides simultaneous Y/C and composite
analog outputs for driving 75
鈩?/div>
lines. Internal summing of
the Y and C inputs is performed to produce the composite
video output. The luminance (Y) input is clamped at
1.25 V and amplified 6 dB to produce 2 V
P-P
(typical) into
a series 75
鈩?/div>
resistor and 75
鈩?/div>
cable load. The internal
1.5 k SAG function resistor provides gain compensation
for low frequency signals. The chromanance (C) input is
biased at 2.0 V and amplified 6 dB to produce 1.3 V
P-P
(typical) into a series 75
鈩?/div>
resistor and 75
鈩?/div>
cable load.
During standby (Pin 5 grounded), the TK15400 consumes
only 113
碌W
of power. Nominal power dissipation (no
input) is typically 168 mW.

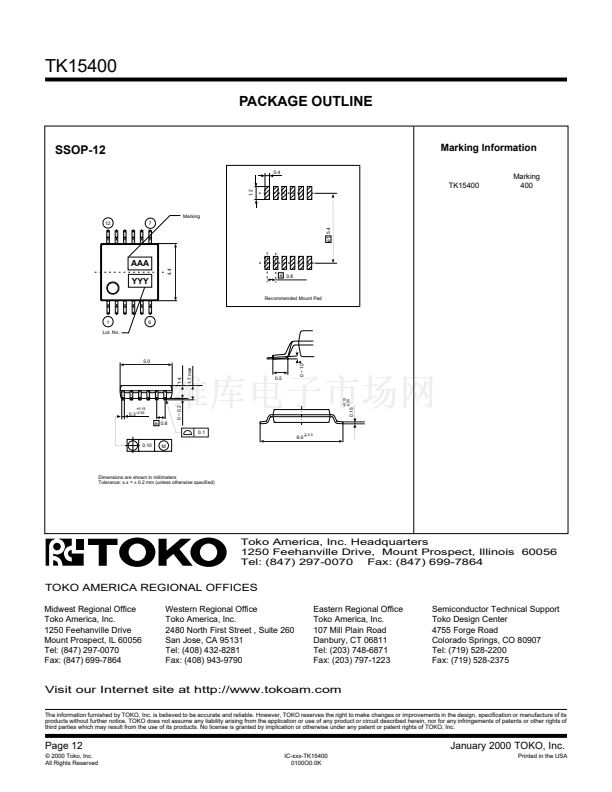

The TK15400M is available in the SSOP-12 Surface
Mount Package.

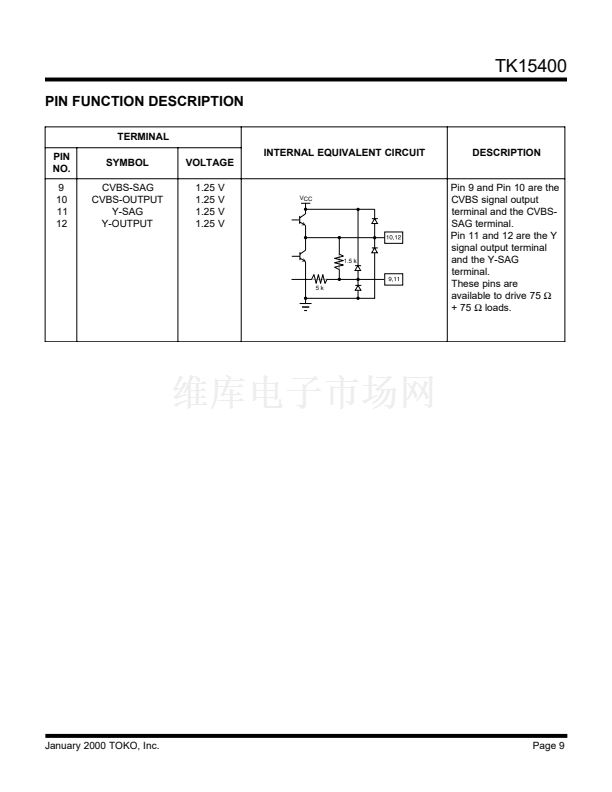

TK15400
VCC
Y-INPUT
GND
GND
STANDBY
C-INPUT
Y-OUTPUT
Y-SAG
CVBS-OUTPUT
CVBS-SAG
C-OUTPUT
GND

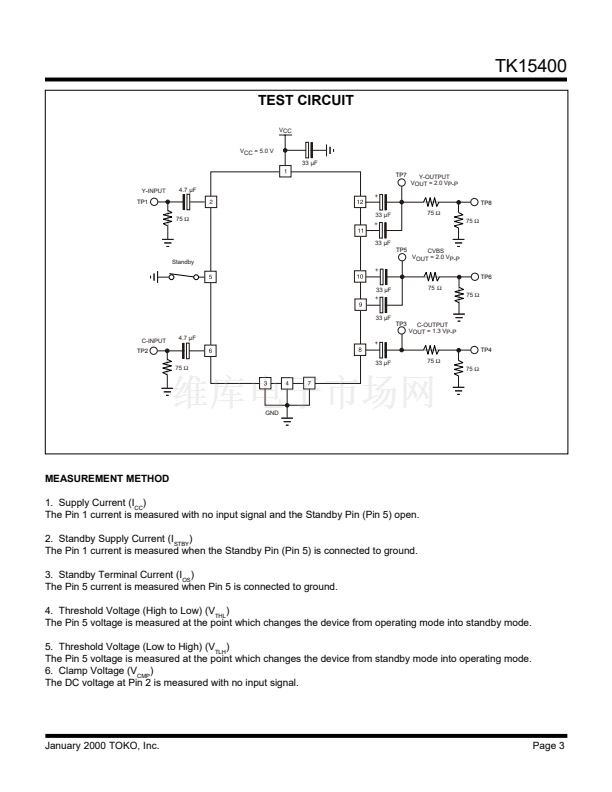

BLOCK DIAGRAM
VCC
1.5 k
5k
5k
ORDERING INFORMATION
1.5 k
TK15400M
100 k
5k
5k
Tape/Reel Code
TAPE/REEL CODE
TL: Tape Left
January 2000 TOKO, Inc.
Page 1
