TK15321MTL/321 Datasheet

  • TK15321MTL/321

  • Audio Analog Switch

  • 12頁

  • TOKO   TOKO

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

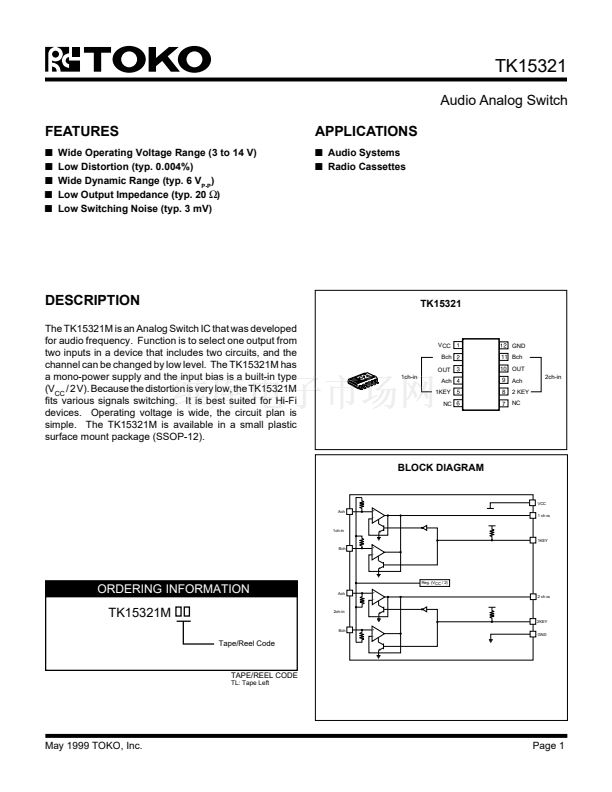

TK15321
Audio Analog Switch
FEATURES
s
s
s
s
s
Wide Operating Voltage Range (3 to 14 V)
Low Distortion (typ. 0.004%)
Wide Dynamic Range (typ. 6 V
P-P
)
Low Output Impedance (typ. 20
鈩?/div>
)
Low Switching Noise (typ. 3 mV)
APPLICATIONS
s
Audio Systems
s
Radio Cassettes
DESCRIPTION
The TK15321M is an Analog Switch IC that was developed
for audio frequency. Function is to select one output from
two inputs in a device that includes two circuits, and the
channel can be changed by low level. The TK15321M has
a mono-power supply and the input bias is a built-in type
(V
CC
/ 2 V). Because the distortion is very low, the TK15321M
fits various signals switching. It is best suited for Hi-Fi
devices. Operating voltage is wide, the circuit plan is
simple. The TK15321M is available in a small plastic
surface mount package (SSOP-12).
TK15321
VCC
Bch
OUT
1ch-in
Ach
1KEY
NC
GND
11 Bch
10 OUT
9
8
7
Ach
2 KEY
NC
2ch-in
BLOCK DIAGRAM
VCC
Ach
+
-
1 ch ou
1ch-in
1KEY
Bch
+
-
ORDERING INFORMATION
Reg. (VCC / 2)
Ach
+
-
2 ch ou
TK15321M
Tape/Reel Code
2ch-in
2KEY
Bch
+
-
GND
TAPE/REEL CODE
TL: Tape Left
May 1999 TOKO, Inc.
Page 1
