TFP513PAP Datasheet

  • TFP513PAP

  • TI PANELBUS DIGITAL TRANSMITTER

  • 29頁

  • TI

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

TFP513
TI
PanelBus錚?/div>
DIGITAL TRANSMITTER
SLLS611 鈭?AUGUST 2004
D
Digital Visual Interface (DVI) Compliant
1
D
Supports Resolutions From VGA to UXGA
D
(25-MHz through 165-MHz Pixel Rates)
Universal Graphics Controller Interface
鈭?12-Bit, Dual-Edge and 24-Bit,
Single-Edge Input Modes
鈭?Adjustable 1.1-V to 1.8-V and Standard
3.3-V CMOS Input Signal Levels
鈭?Fully Differential and Single-Ended Input
Clocking Modes
鈭?Standard Intel 12-Bit Digital Video Port
Compatible as on Intel錚?81x Chipsets
Enhanced PLL Noise Immunity
鈭?On-Chip Regulators and Bypass
Capacitors for Reducing Systems Costs
Enhanced Jitter Performance
鈭?No HSYNC Jitter Anomaly
鈭?Negligible Data-Dependent Jitter
D
Programmable Using I
2
C Serial Interface
D
Monitor Detection Through Hot-Plug and
D
D
D
D
D
D
Receiver Detection
Single 3.3-V Supply Operation
64-Pin TQFP Using TI鈥檚 PowerPAD錚?/div>
Package
TI鈥檚 Advanced 0.18
碌m
EPIC-5錚?CMOS
Process Technology
Pin Compatible With SiI164 and SiI168 DVI
Transmitters
High-Bandwidth Digital Content Protection
(HDCP) Specifications Compliant
2
Embedded Preprogrammed HDCP Keys
D
D
description
The TFP513 is a Texas Instruments
PanelBus
flat panel display product, part of a comprehensive family of
end-to-end DVI 1.0 compliant solutions, targeted at the PC and consumer electronics industry.
The TFP513 provides a universal interface to allow a glueless connection to most commonly available graphics
controllers. Some of the advantages of this universal interface include selectable bus widths, adjustable signal
levels, and differential and single-ended clocking. The adjustable 1.1-V to 1.8-V digital interface provides a
low-EMI, high-speed bus that connects seamlessly with a 12-bit or 24-bit interface. The DVI interface supports
flat panel display resolutions up to UXGA at 165 MHz in 24-bit true color pixel format.
The TFP513 combines
PanelBus
circuit innovation with TI鈥檚 advanced 0.18
碌m
EPIC-5 CMOS process
technology and TI鈥檚 ultralow ground inductance PowerPAD package. The result is a compact 64-pin TQFP
package providing a reliable, low-noise, high-speed, digital interface solution. The TFP513 comes with
embedded preprogrammed HDCP keys, thus eliminating the need for an external storage device to store the
HDCP keys and the need for the customer to purchase HDCP keys from the licensing authority. An encryption
scheme ensures that the embedded HDCP keys are encrypted thus providing the highest level of key security.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Footnotes:
1.
The digital visual interface (DVI) specification is an industry standard developed by the digital display working group (DDWG) for
high-speed digital connection to digital displays. The TFP513 is compliant to the digital visual interface
(DVI)
Revision 1.0
specification. The DVI 1.0 specification has been adopted by the industry leading PC and consumer electronics manufacturers.
The high-bandwidth digital content protection system (HDCP) is an industry standard for protecting DVI outputs from being copied.
HDCP was developed by Intel Corporation and is licensed by the Digital Content Protection, LLC. The TFP513 is compliant to the
HDCP Revision 1.0 specification.
2.
PanelBus, PowerPAD, and EPIC-5 are trademarks of Texas Instruments.
Intel is a trademark of Intel Corporation.
Other trademarks are the property of their respective owners.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Copyright
錚?/div>
2004, Texas Instruments Incorporated
POST OFFICE BOX 655303
鈥?/div>
DALLAS, TEXAS 75265

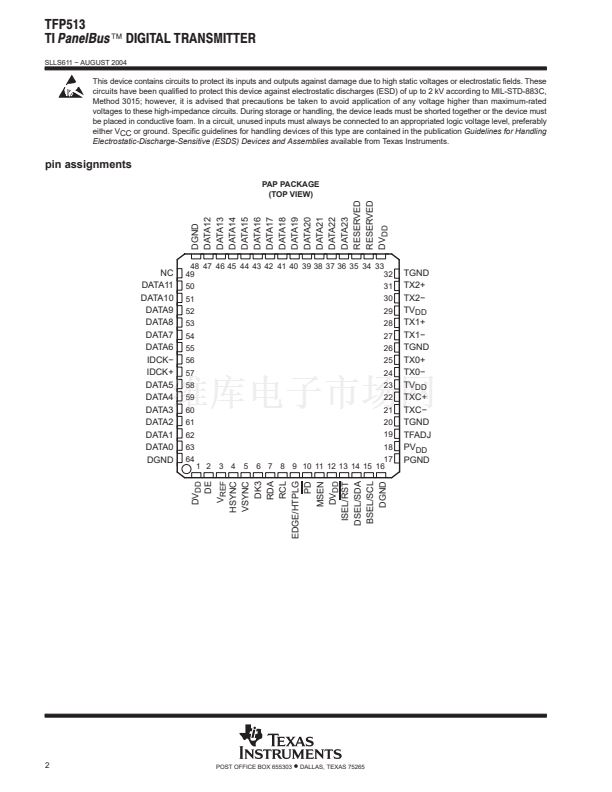

1
