TDA4605 Datasheet

  • TDA4605

  • CONTROL CIRCUIT FOR SWITCH MODE POWER SUPPLIES USING MOS TRA...

  • 6頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

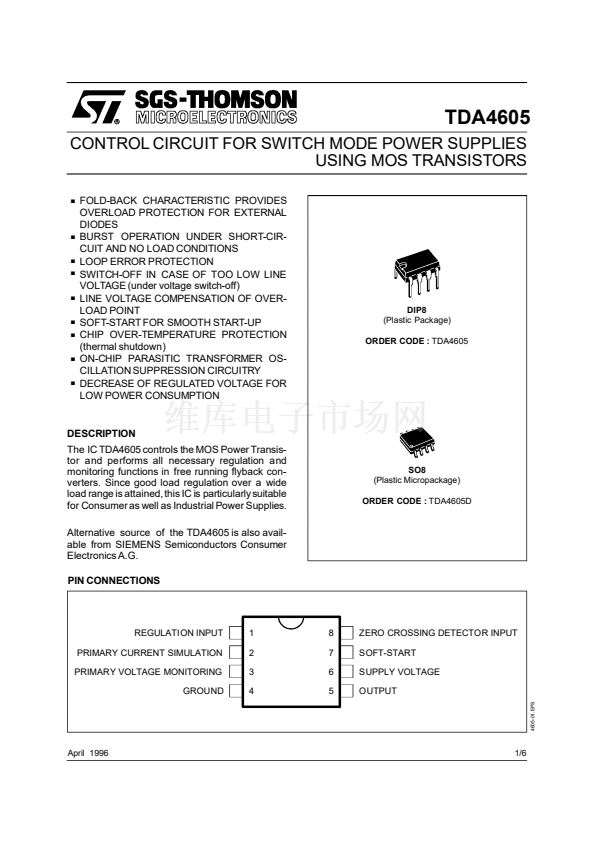

TDA4605
CONTROL CIRCUIT FOR SWITCH MODE POWER SUPPLIES
USING MOS TRANSISTORS
.
.
.
.
.
.
.
.
.
FOLD-BACK CHARACTERISTIC PROVIDES
OVERLOAD PROTECTION FOR EXTERNAL
DIODES
BURST OPERATION UNDER SHORT-CIR-
CUIT AND NO LOAD CONDITIONS
LOOP ERROR PROTECTION
SWITCH-OFF IN CASE OF TOO LOW LINE
VOLTAGE (under voltage switch-off)
LINE VOLTAGE COMPENSATION OF OVER-
LOAD POINT
SOFT-START FOR SMOOTH START-UP
CHIP OVER-TEMPERATURE PROTECTION
(thermal shutdown)
ON-CHIP PARASITIC TRANSFORMER OS-
CILLATION SUPPRESSION CIRCUITRY
DECREASE OF REGULATED VOLTAGE FOR
LOW POWER CONSUMPTION

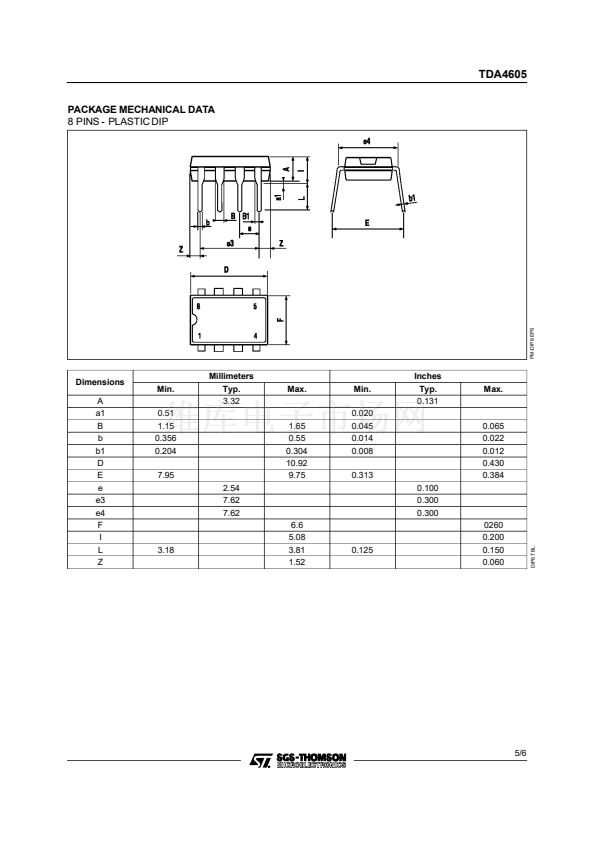

DIP8
(Plastic Package)
ORDER CODE :
TDA4605

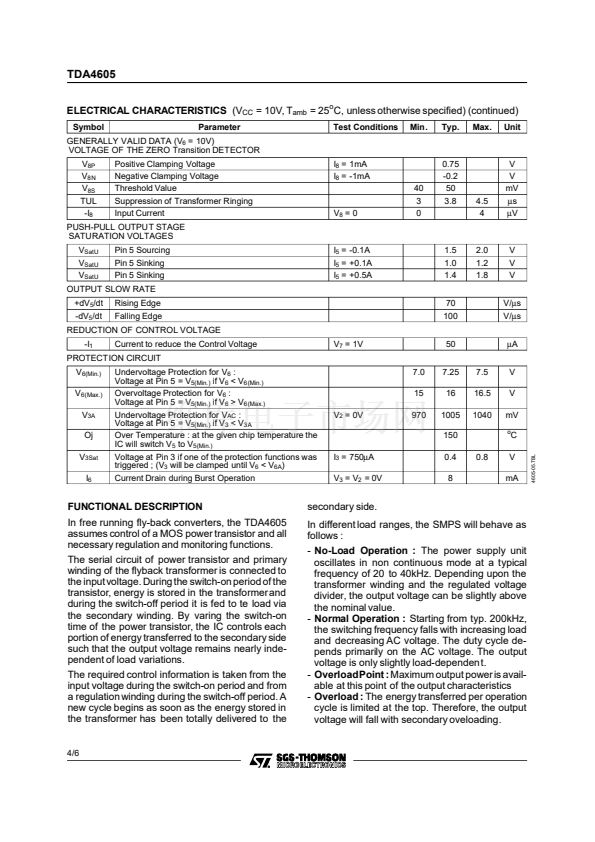

DESCRIPTION
The IC TDA4605 controls the MOS Power Transis-
tor and performs all necessary regulation and
monitoring functions in free running flyback con-
verters. Since good load regulation over a wide
load range is attained, this IC is particularly suitable
for Consumer as well as Industrial Power Supplies.
Alternative source of the TDA4605 is also avail-
able from SIEMENS Semiconductors Consumer
Electronics A.G.

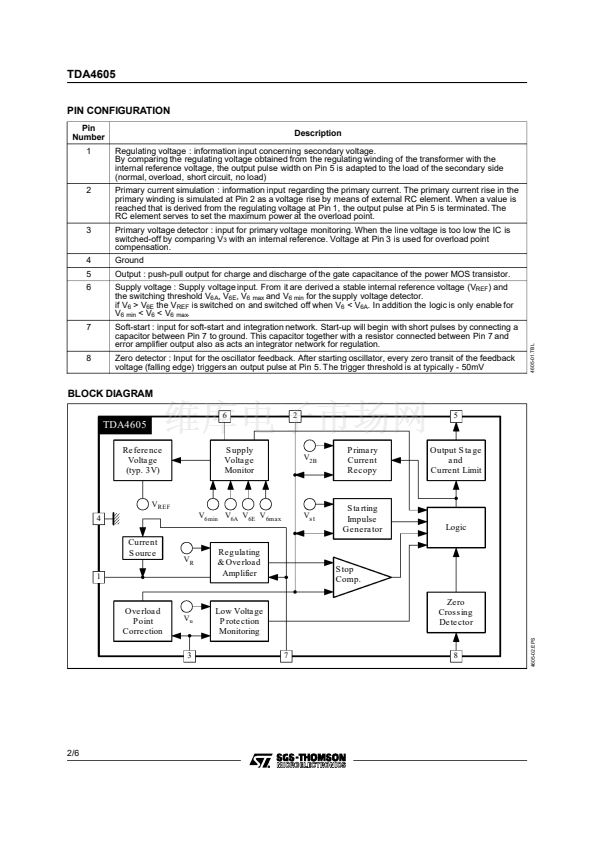

PIN CONNECTIONS
SO8
(Plastic Micropackage)
ORDER CODE :
TDA4605D
REGULATION INPUT
PRIMARY CURRENT SIMULATION
PRIMARY VOLTAGE MONITORING
GROUND
1
2
3
4
8
7
6
5
ZERO CROSSING DETECTOR INPUT
SOFT-START
SUPPLY VOLTAGE
OUTPUT
4605-01.EPS
April 1996
1/6

TDA4605 產品屬性

  • 2,000

  • 集成電路 (IC)

  • PMIC - 電源控制器，監視器

  • -

  • 電源控制器

  • -

  • -

  • -

  • -20°C ~ 85°C

  • 通孔

  • 8-DIP（0.300"，7.62mm）

  • 8-DIP

  • 管件

  • Q1660517
