TC7660HEOA Datasheet

IC型號：
TC7660HEOA
PDF描述：
HIGH FREQUENCY 7660 DC-TO-DC VOLTAGE CONVERTER
文件大?。?/label>
97.92KB
PDF頁數：
6頁
芯片廠家：
TELCOM

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

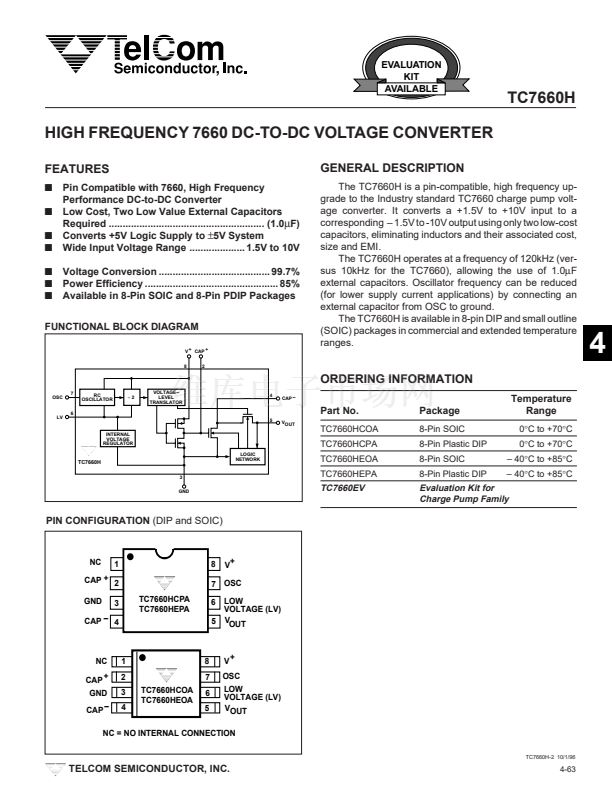

EVALUATION

KIT

AVAILABLE

TC7660H

HIGH FREQUENCY 7660 DC-TO-DC VOLTAGE CONVERTER

FEATURES

Pin Compatible with 7660, High Frequency

Performance DC-to-DC Converter

Low Cost, Two Low Value External Capacitors

Required ........................................................ (1.0

碌

Converts +5V Logic Supply to

鹵

5V System

Wide Input Voltage Range .................... 1.5V to 10V

Voltage Conversion ........................................ 99.7%

Power Efficiency ................................................ 85%

Available in 8-Pin SOIC and 8-Pin PDIP Packages

GENERAL DESCRIPTION

The TC7660H is a pin-compatible, high frequency up-

grade to the Industry standard TC7660 charge pump volt-

age converter. It converts a +1.5V to +10V input to a

corresponding 鈥?1.5V to -10V output using only two low-cost

capacitors, eliminating inductors and their associated cost,

size and EMI.

The TC7660H operates at a frequency of 120kHz (ver-

sus 10kHz for the TC7660), allowing the use of 1.0碌F

external capacitors. Oscillator frequency can be reduced

(for lower supply current applications) by connecting an

external capacitor from OSC to ground.

The TC7660H is available in 8-pin DIP and small outline

(SOIC) packages in commercial and extended temperature

ranges.

FUNCTIONAL BLOCK DIAGRAM

V + CAP +

ORDERING INFORMATION

OSC

OSCILLATOR

梅

VOLTAGE鈥?/div>

LEVEL

TRANSLATOR

CAP 鈥?/div>

INTERNAL

VOLTAGE

REGULATOR

LOGIC

NETWORK

VOUT

Part No.

TC7660HCOA

TC7660HCPA

TC7660HEOA

TC7660HEPA

Package

8-Pin SOIC

8-Pin Plastic DIP

8-Pin SOIC

8-Pin Plastic DIP

Temperature

Range

0擄C to +70擄C

鈥?40擄C to +85擄C

TC7660H

GND

TC7660EV

Evaluation Kit for

Charge Pump Family

PIN CONFIGURATION

(DIP and SOIC)

V+

CAP + 2

GND

TC7660HCPA

TC7660HEPA

7 OSC

LOW

VOLTAGE (LV)

5 VOUT

CAP 鈥?4

CAP +

GND

CAP 鈥?/div>

TC7660HCOA

TC7660HEOA

V+

OSC

LOW

VOLTAGE (LV)

VOUT

NC = NO INTERNAL CONNECTION

TC7660H-2 10/1/96

4-63

TELCOM SEMICONDUCTOR, INC.

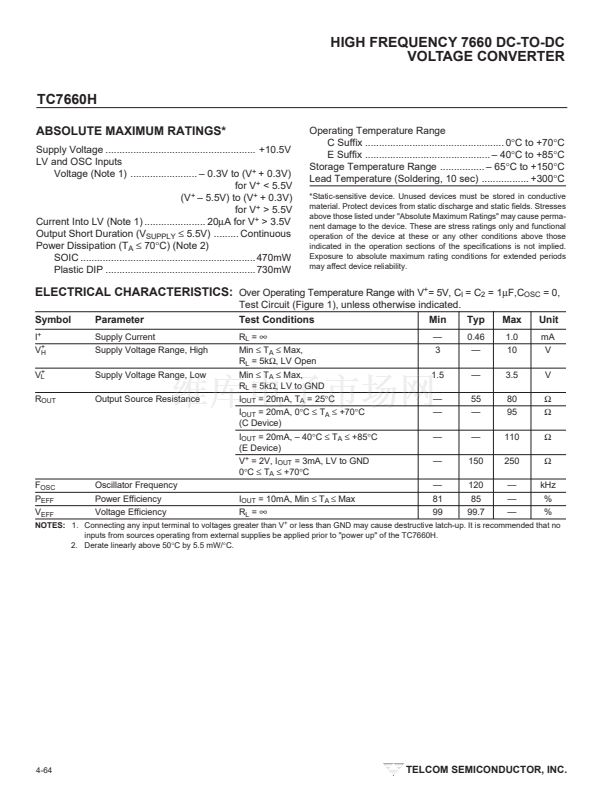

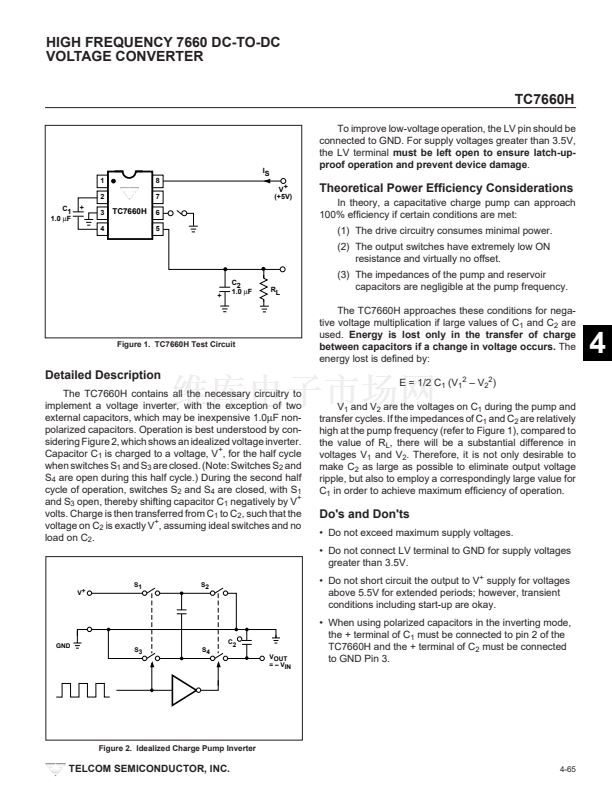

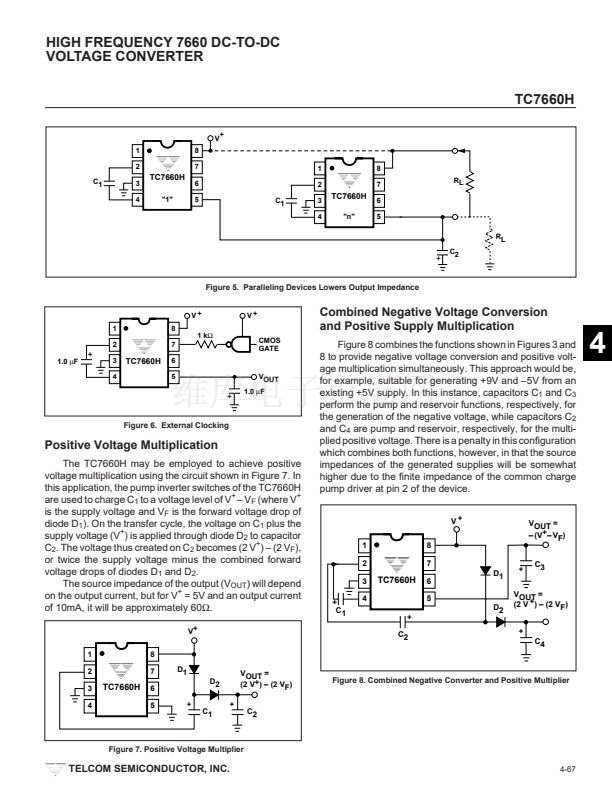

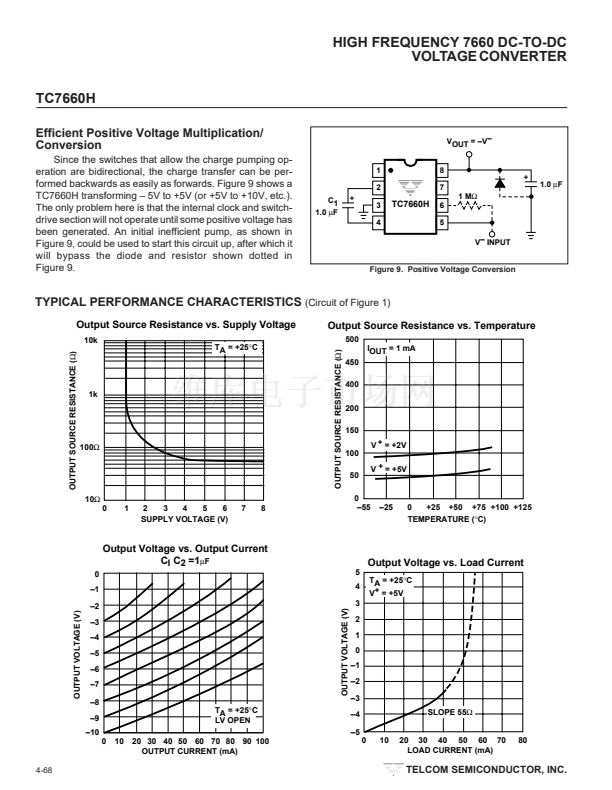

標準包裝
100
類別
集成電路 (IC)
家庭
PMIC - 穩壓器 - DC DC 開關穩壓器
系列
-
類型
切換式電容器（充電泵），反相
輸出類型
可調式
輸出數
1
輸出電壓
-1.5 V ~ -10 V
輸入電壓
1.5 V ~ 10 V
PWM 型
-
頻率 - 開關
120kHz
電流 - 輸出
20mA
同步整流器
無
工作溫度
-40°C ~ 85°C
安裝類型
表面貼裝
封裝/外殼
8-SOIC（0.154"，3.90mm 寬）
包裝
管件
供應商設備封裝
8-SOICN
