TC03A-200TC Datasheet

  • TC03A-200TC

  • Battery Tracking TransClamp For SLIC Linecard Protection

  • 8頁

  • SEMTECH   SEMTECH

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Battery Tracking TransClamp鈩?/div>
鈩?/div>
For SLIC Linecard Protection
PROTECTION PRODUCTS
Description
The battery tracking TransClamp series of transient
voltage suppressors (TVS) are designed to protect
subscriber line interface circuits (SLIC) from transient
voltages resulting from lightning strikes and AC power
line disturbances. The TC03A-200 integrates all the
components necessary to protect SLIC ICs from line to
ground for positive and negative transients.
For negative transient events, the TVS thyristor will
crowbar or 鈥渇ire鈥?when the line voltage exceeds the
gate reference voltage. The gate voltage is referenced
to the battery voltage ( -V
BAT
) plus the V
F
of the series
rectifier. The device firing voltage range is -5V to
-100V. External diodes are used to shunt positive
transients to ground.
These devices are designed to meet industry standard
transient immunity requirements such as Bellcore TR-
NWT-001089, FCC Part 68, ITU K17-K20, and IEC
61000-4-5. The high surge capability is advantageous
in harsh environments, and offers better reliability than
"low surge" rated devices. The integrated design saves
board space and increases equipment reliability by
replacing multiple discrete components. The device
may be used to protect any SLIC and is particularly
suited for those with integrated ring generators.
TC03A-200
PRELIMINARY
Features
!
Transient protection for telecommunications lines to
!
!
!
!
!
!
!
Bellcore 1089 (long haul), VDE 0433, ITU K20
IEC 61000-4-5 (Lightning), and FCC Part 68
High surge current rating (100A, tp = 10/1000碌s)
Protects up to two Tip & Ring line pairs
Gate firing voltage is referenced to the system
battery voltage
Wide firing voltage range: -5V to -100V
High holding current: 200mA
Replaces discrete components
Solid-state TVS process technology
Mechanical Characteristics
!

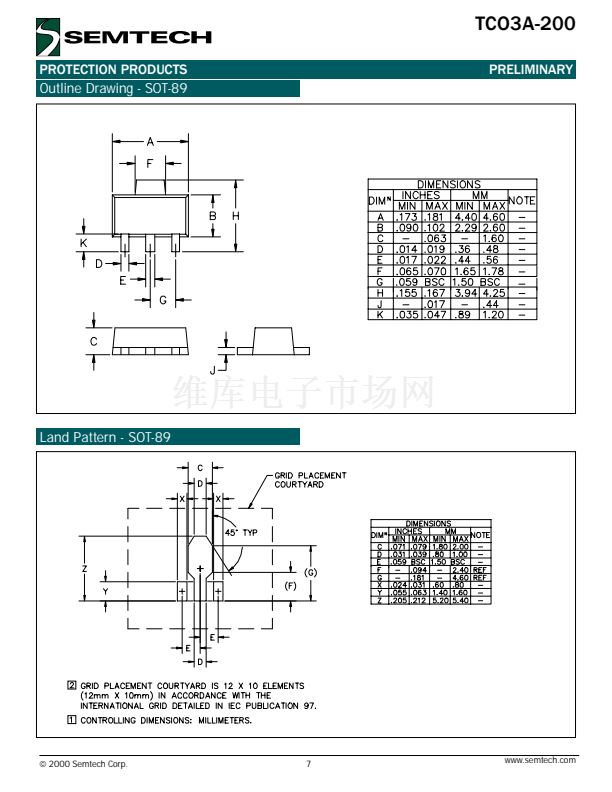

JEDEC SOT-89 package
!
Molding compound flammability rating:
UL 94V-0
!
Marking : Part number, date code, logo
!
Packaging : Tape and Reel per EIA 481
Applications
!
!
!
!
!
!
Subscriber Line Interface Circuit (SLIC) Protection
Central Office Equipment
ISDN Terminal Adaptors
Cable Telephony
Small Office Home Office (SOHO) Applications
Wireless Local Loop (WLL)
Circuit Diagram
Schematic & PIN Configuration
Line
-VBat
1
3
2
GND
1
LINE
2
GND
3
GATE
SOT-89 (Top View)
Revision 9/2000
1
www.semtech.com
