T81L0006A/B
8-bit A/D Type MCU
3. General Description

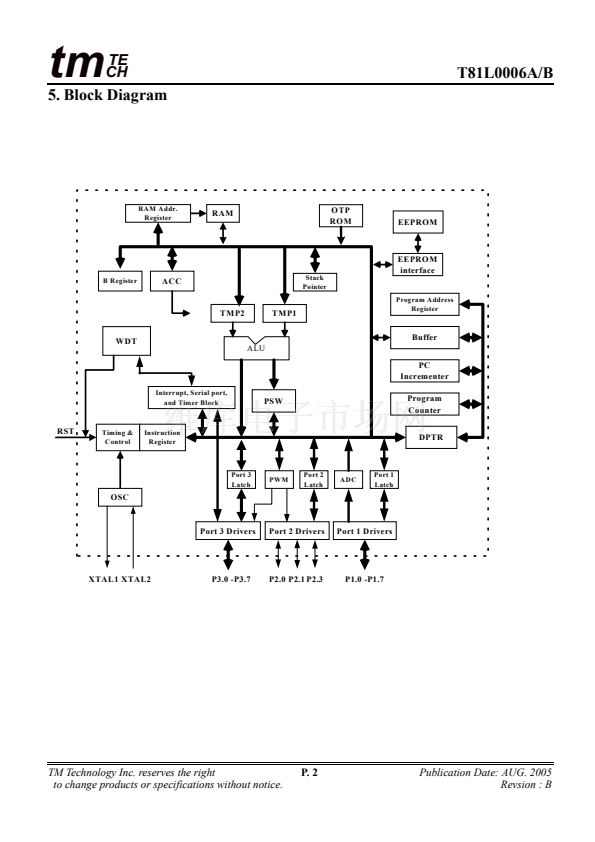

The T81L0006A/B is 8-bit microcontroller designed and
developed with low power and high speed CMOS
technology. It contains a 8K bytes OTP ROM, a 128 脳 8
RAM, an 8-channels 8-bit A/D converter, 15/19 I/O lines, a
watchdog timer, two 16-bit counter/timers, a seven source,
two-priority level nested interrupt structure, two channel
pulsed-width modulator (PWM), a full duplex UART, and
an on-chip oscillator and clock circuits.
In addition, the T81L0006A/B has two selectable modes
of power reduction-idle mode and power-down mode. The
idle mode freezes the CPU while allowing the RAM, timers,
serial port, and interrupt system to continue functioning.
The power-down mode saves the RAM contents but freezes
the oscillator, causing all other chip functions to be
inoperative.
1. Features
Compatible with MCS-51
Embedded 8K Bytes OTP ROM
128 x 8-bit Internal RAM
15/19 Programmable I/O Lines for 20/24-pin Package
Two 16-bit Timer/Counter & One 16-bit Timer
Two External Interrupt Input (Only One Input for
20-pin Package)
Two Channel PWM (Only One Channel PWM for
20-pin Package) Driving Capability up to 40 mA
Embedded 1k bits EEPROM (for T81L0006B only)
Programmable Serial UART Interface
Low Power Idle & Power-down Modes
Watch-dog Timer
On-chip Crystal & RC Oscillator (Selected by
Bonding Option)
Internal Power-on Reset and External Reset
Supported
8-Channel 8-bit A/D Converter
SOP20/DIP20 & SOP24/DIP24 Package
3.3V Operating Voltage
EEPORM Interface
Low Voltage Reset
4. Order information
Part number
T81L0006A-AK
T81L0006A-BK
T81L0006A-CK
T81L0006A-DK
T81L0006A-AD
T81L0006A-BD
T81L0006A-CD
T81L0006A-DD
T81L0006B-AK
T81L0006B-BK
T81L0006B-AD
T81L0006B-BD
Oscillator
type
RC
Crystal
RC
Crystal
RC
Crystal
RC
Crystal
RC
Crystal
RC
Crystal
EEPROM
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
Embedded
Embedded
Embedded
Embedded
Package
24-pin DIP
24-pin DIP
20-pin DIP
20-pin DIP
24-pin SOP
24-pin SOP
20-pin SOP
20-pin SOP
24-pin DIP
24-pin DIP
24-pin SOP
24-pin SOP
!
2.
Applications
鈥eter
鈥ousehold
Appliances Controller
鈥andwriting
Board
鈥harger
鈥port
Devices
鈥ther
Controller (Automotive, Toy鈥?
TM Technology Inc. reserves the right
to change products or specifications without notice.
P. 1
Publication Date: AUG. 2005
Revsion : B
