T7024-PGQ Datasheet

  • T7024-PGQ

  • Bluetooth⑩/ISM 2.4-GHz Front- End IC

  • 18頁

  • ATMEL   ATMEL

掃碼查看芯片數據手冊

上傳產品規(guī)格書

PDF預覽

Features
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Single 3-V Supply Voltage
High Power-added Efficient Power Amplifier (P
out
Typically 23 dBm)
Ramp-controlled Output Power
Low-noise Preamplifier (NF Typically 2.1 dB)
Biasing for External PIN Diode T/R Switch
Current-saving Standby Mode
Few External Components
Packages:
鈥?PSSO20
鈥?QFN20 with Extended Performance
Bluetooth
鈩?/div>
/ISM
2.4-GHz Front-
End IC
T7024
Electrostatic sensitive device.
Observe precautions for handling.
Description
The T7024 is a monolithic SiGe transmit/receive front-end IC with power amplifier,
low-noise amplifier and T/R switch driver. It is especially designed for operation in
TDMA systems like Bluetooth
鈩?/div>
and WDCT.
Due to the ramp-control feature and a very low quiescent current, an external switch
transistor for V
S
is not required.

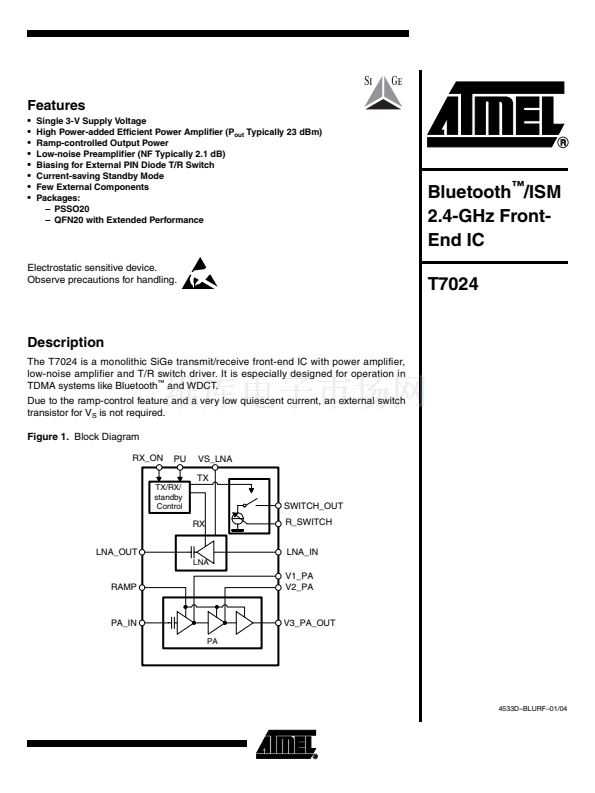

Figure 1.
Block Diagram
RX_ON
PU
VS_LNA
TX
TX/RX/
standby
Control
SWITCH_OUT
RX
R_SWITCH
LNA_IN
LNA
LNA_OUT
RAMP
V1_PA
V2_PA
PA_IN
PA
V3_PA_OUT
4533D鈥揃LURF鈥?1/04
