SY89306V Datasheet

  • SY89306V

  • 3.3V / 5V 2.5 GHZ PECL/ECL DIFFERENTIAL RECEIVER/BUFFER

  • 6頁

  • MICREL   MICREL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

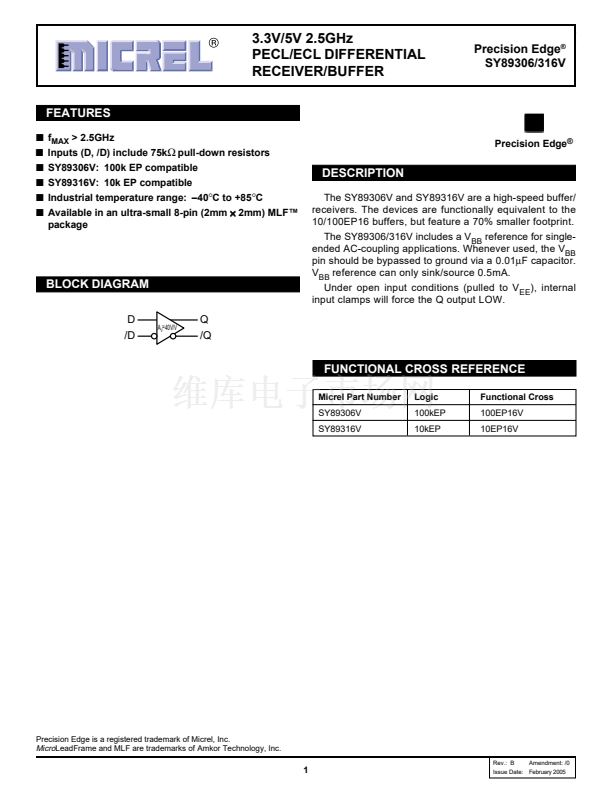

Micrel, Inc.
3.3V/5V 2.5GHz
PECL/ECL DIFFERENTIAL
RECEIVER/BUFFER
Precision Edge
SY89306/316V
Precision Edge
廬
SY89306/316V
廬
FEATURES
s
f
MAX
> 2.5GHz
s
Inputs (D, /D) include 75k
鈩?/div>
pull-down resistors
s
SY89306V: 100k EP compatible
s
SY89316V: 10k EP compatible
s
Industrial temperature range: 鈥?0
擄
C to +85
擄
C
s
Available in an ultra-small 8-pin (2mm
脳
2mm) MLF鈩?/div>
package
Precision Edge
廬
DESCRIPTION
The SY89306V and SY89316V are a high-speed buffer/
receivers. The devices are functionally equivalent to the
10/100EP16 buffers, but feature a 70% smaller footprint.
The SY89306/316V includes a V
BB
reference for single-
ended AC-coupling applications. Whenever used, the V
BB
pin should be bypassed to ground via a 0.01碌F capacitor.
V
BB
reference can only sink/source 0.5mA.
Under open input conditions (pulled to V
EE
), internal
input clamps will force the Q output LOW.
BLOCK DIAGRAM
D
/D
Q
/Q
A
V
40
V/V
FUNCTIONAL CROSS REFERENCE
Micrel Part Number
SY89306V
SY89316V
Logic
100kEP
10kEP
Functional Cross
100EP16V
10EP16V
Precision Edge is a registered trademark of Micrel, Inc.
MicroLeadFrame
and MLF are trademarks of Amkor Technology, Inc.
Rev.: B
Amendment: /0
1
Issue Date: February 2005
