SY88927VZCTR Datasheet

IC型號：
SY88927VZCTR
PDF描述：
5V/3.3V 2.5Gbps HIGH-SPEED DIFFERENTIAL RECEIVER
文件大小：
83.88KB
PDF頁數：
5頁
芯片廠家：
MICREL

閱覽下載糾錯 0

掃碼查看芯片數據手冊

上傳產品規格書

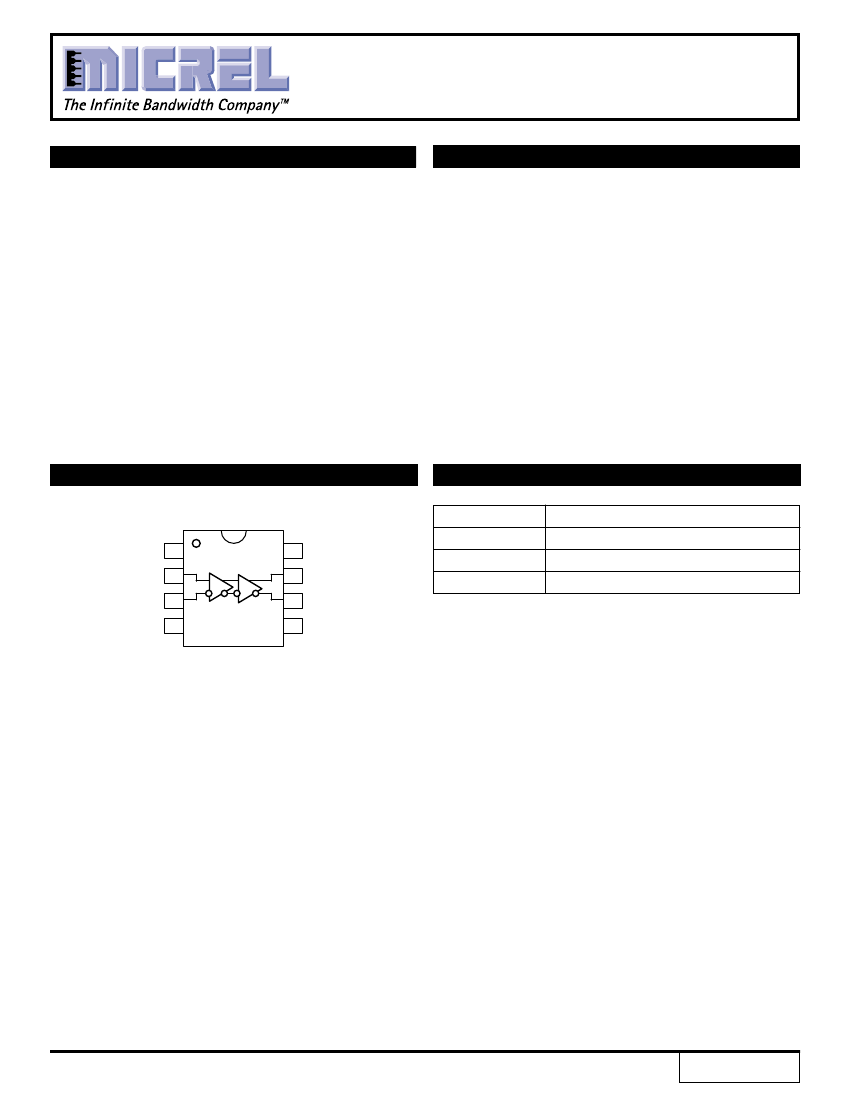

PDF預覽

5V/3.3V 2.5Gbps

HIGH-SPEED

DIFFERENTIAL RECEIVER

FEATURES

3.3V and 5V power supply options

Maximum frequency > 3.0GHz

Internal 75K

鈩?/div>

input pull-down resistors

Faster version of SY100EL16V

100K ECL compatible I/O

Improved output waveform characteristics

Available in 8-pin (3mm) MSOP and SOIC package

SY88927V

DESCRIPTION

The SY88927V is a 2.5Gbps high-speed differential

receiver. The device is functionally equivalent to the

EL16V devices, with higher performance capabilities. With

output transition times significantly faster than the EL16V,

the SY88927V is ideally suited for interfacing with high-

frequency sources.

The SY88927V provides a V

output for either single-

ended use or as a DC bias for AC coupling to the device.

The V

pin should be used only as a bias for the

SY88927V as its current sink/source capability is limited.

Whenever used, the V

pin should be bypassed to

ground via a 0.01碌F capacitor.

Under open input conditions (pulled to V

), internal

input clamps will force the Q output LOW.

PIN CONFIGURATION/BLOCK DIAGRAM

PIN NAMES

Data Inputs

Data Outputs

Reference Voltage Output

Function

NC 1

D 2

/D 3

8 V

7 Q

6 /Q

5 V

(Available in MSOP or SOIC packages)

Rev.: C

Amendment: /0

Issue Date: July 2000
