SY100EPT22VZCTR Datasheet

  • SY100EPT22VZCTR

  • 3.3V/5V DUAL LVTTL/LVCMOS-to- DIFFERENTIAL LVPECL TRANSLATOR

  • 90.88KB

  • 8頁

  • MICREL   MICREL

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

3.3V/5V DUAL LVTTL/LVCMOS-to-
DIFFERENTIAL LVPECL
TRANSLATOR
FEATURES
s
3.3V and 5V power supply option
s
300ps typical propagation delay
s
Differential LVPECL outputs
s
I
CC
Max 25mA
s
PNP LVTTL inputs for minimal loading
s
Flow-through pinouts
s
Q outputs will default HIGH with inputs open
s
Max. frequency range 800MHz
s
Available in 8-pin MSOP and SOIC package
SY100EPT22V
DESCRIPTION
The SY100EPT22V is a dual TTL/CMOS to differential
PECL translator. Capable of running from a 3.3 or 5V
supply, the part can be used in either LVTTL/LVCMOS/
LVPECL or TTL/CMOS/PECL systems.
The device only requires a single positive supply of
3.3V or 5V - no negative supply is required.
The tiny 8-pin MSOP package and the low skew, dual
gate design of the EPT22V makes it ideal for those
applications where space, performance, and low power
are at a premium.
PIN CONFIGURATION/BLOCK DIAGRAM
PIN NAMES
Pin
Function
Differential LVPECL Outputs
LVTTL Inputs
Positive Supply
Ground
Q0 1
/Q0 2
LVPECL
LVTTL
8 V
CC
7 D0
6 D1
5 GND
Q
0
, /Q
0
, Q
1
, /Q
1
D
0
, D
1
V
CC
GND
Q1 3
/Q1 4
(Available in 8-pin SOIC and 8-pin MSOP)
Rev.: A
Amendment: /1
1

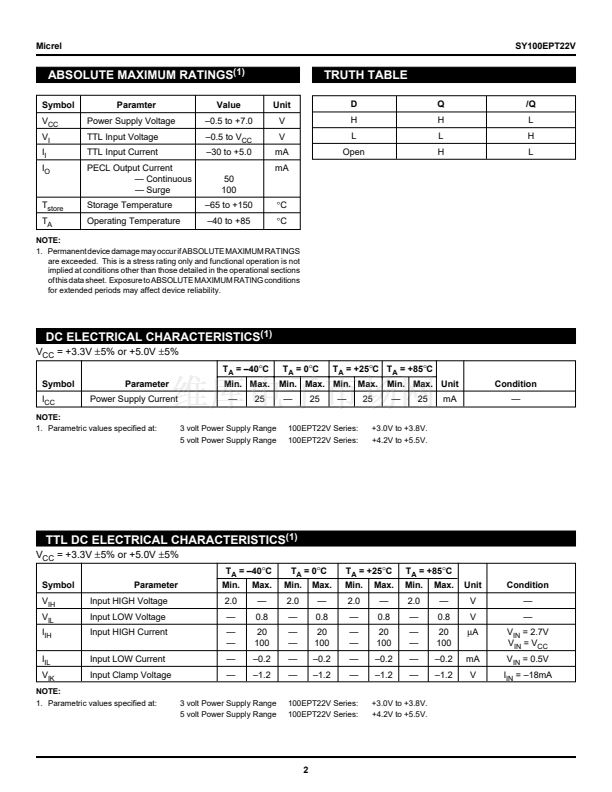

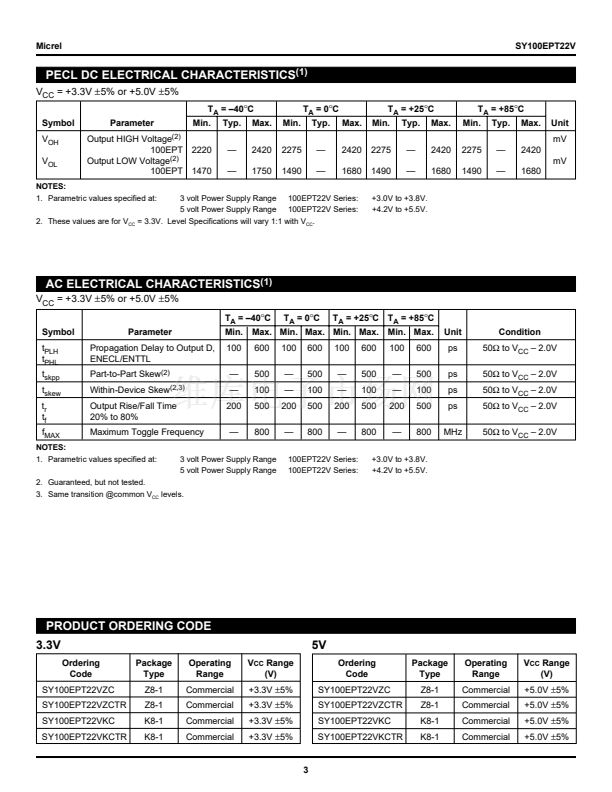

Issue Date: July 2000
