STTA806D/DI/G

TURBOSWITCH

鈩?/div>

ULTRA-FAST HIGH VOLTAGE DIODE

MAIN PRODUCTS CHARACTERISTICS

F(AV)

RRM

(typ)

(max)

600V

25ns

1.5V

FEATURES AND BENEFITS

SPECIFICTO鈥滷REEWHEEL MODE鈥?OPERATIONS:

FREEWHEEL OR BOOSTER DIODE

ULTRA-FAST AND SOFT RECOVERY

VERY LOW OVERALL POWER LOSSES IN

BOTH THE DIODE AND THE COMPANION

TRANSISTOR

HIGH FREQUENCY OPERATIONS

INSULATED PACKAGE : TO-220AC

Electrical insulation : 2500V

RMS

Capacitance < 7 pF

DESCRIPTION

The TURBOSWITCH is a very high performance

series of ultra-fast high voltage power diodes from

600V to 1200V.

TURBOSWITCH family, drastically cuts losses in

both the diode and the associated switching IGBT

or MOSFET in all 鈥漟reewheel mode鈥?operations

and is particularly suitable and efficient in motor

ABSOLUTE RATINGS

(limiting values)

Symbol

RRM

RSM

F(RMS)

FRM

FSM

stg

Parameter

Repetitive peak reverse voltage

Non repetitive peak reverse voltage

RMS forward current

Repetitive peak forward current

Surge non repetitive forward current

TO-220AC

STTA806D

Insulated

TO-220AC

STTA806DI

D PAK

STTA806G

control freewheelapplicationsand in booster diode

applications in power factor control circuitries.

Packaged either in TO-220AC, insulated

TO-220AC or in D

PAK, these 600V devices are

particularly intended for use on 240V domestic

mains.

Value

600

TO-220AC/ D

PAK

TO-220ACins.

tp=5ms F=5kHz square

tp=10 ms sinusoidal

600

110

150

-65 to 150

Unit

擄C

Maximum operating junction temperature

Storage temperature range

TM : TURBOSWITCH is a trademark of STMicroelectronics

November 1999 - Ed: 3C

1/9

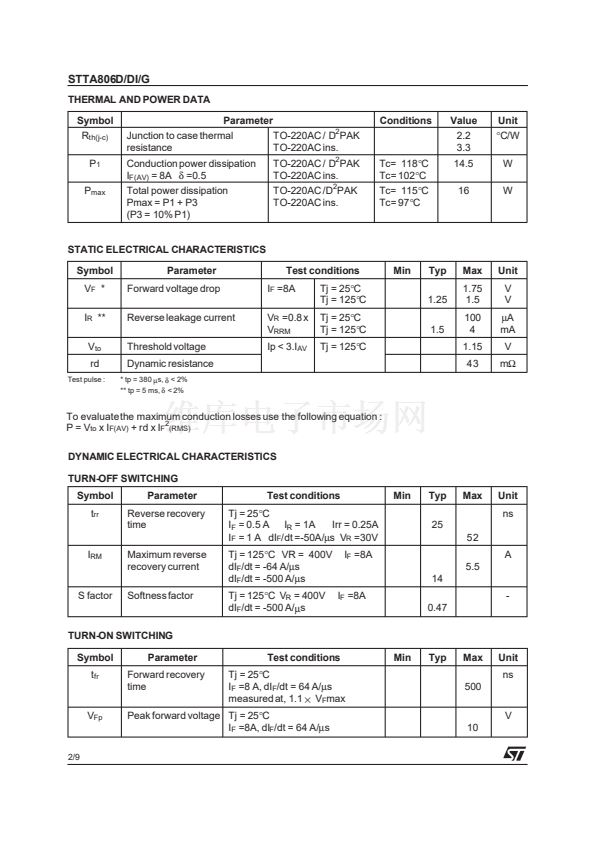

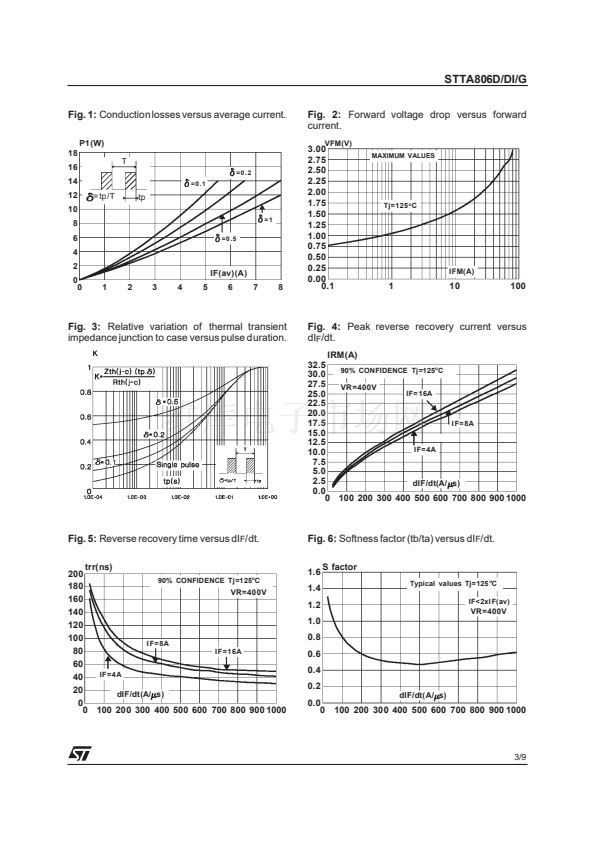

標準包裝
1,000
類別
分離式半導體產品
家庭
單二極管/整流器
系列
TURBOSWITCH™
二極管類型
標準
電壓 - (Vr)（最大）
600V
電流 - 平均整流 (Io)
8A
電壓 - 在 If 時為正向 (Vf)（最大）
1.75V @ 8A
速度
快速恢復 = 200mA（Io）
反向恢復時間
52ns
電流 - 在 Vr 時反向漏電
100µA @ 600V
電容@ Vr, F
-
安裝類型
表面貼裝
封裝/外殼
TO-263-3，D²Pak（2 引線+接片），TO-263AB
供應商設備封裝
D2PAK
包裝
管件
