STM7E1AR Datasheet

  • STM7E1AR

  • 7 E 1 CHANNELS SWITCH ARRAY

  • 193.68KB

  • 10頁

  • STMICROELECTRONICS   STMICROELECTRONICS

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

STM7E1A
7 E 1 CHANNELS SWITCH ARRAY
s
s
s
s

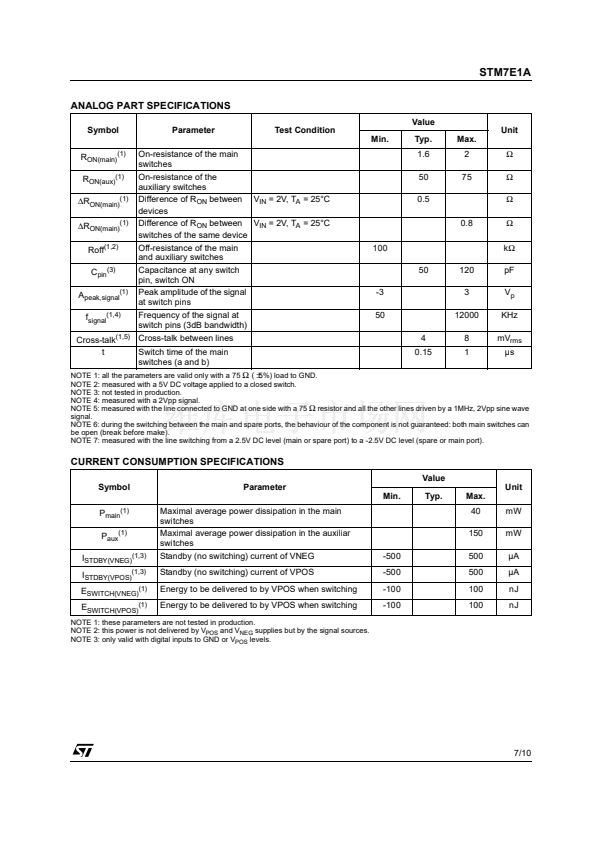

MAIN SWITCHES MAX. R
ON
LESS THAN 2
鈩?/div>
PROVIDES 7 AUXILIARY SWITCHES WITH
R
ON
< 75
鈩?/div>
6V
PP
AMPLITUDE OF ANALOG INPUT
SIGNAL
DIGITAL INPUTS ARE TTL LEVELS
COMPATIBLE
DESCRIPTION

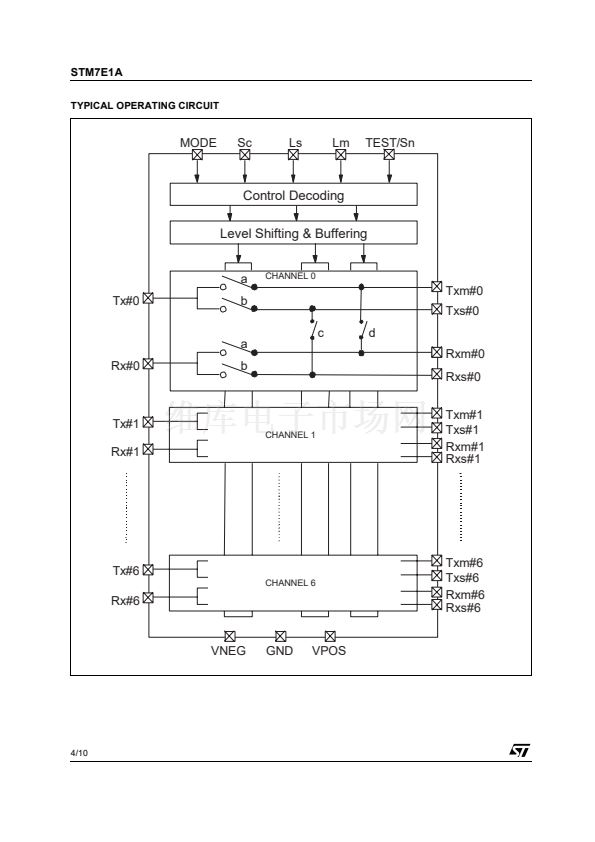

The STM7E1 consists in 7 identical ISDN E1
channels, each channel corresponding to 4 main
low-resistant switches (a and b) and 2 auxiliary
switches (c and d). The switches positions in all
the channels are identical and controlled by a
unique control resource driven by the digital inputs
Lm, Ls and Sc.
In each channel, the TX and RX lines can be
switched between a Main port or a Spare-port by
the main switches: if both "a" switches are closed
and both "b" switches are open, the Main port is
connected to the line, while if both "a" switches
are open and both "b' switches are closed, the
spare port is connected to the line.
The 2 auxiliary switches enable to close a local
loop between the TX and RX access of a port: if
"c" is closed, the Spare port RX and TX access is
connected between each other to form a local
loop, while if "d" is closed, the Main port RX and
TX access is connected between each other to
form a local loop.
ORDERING CODES
Type
STM7E1A
STM7E1AR
Temperature
Range
-40 to 85 擄C
-40 to 85 擄C
Package
TQFP64
The Spare port is only used for test purpose on the
system board while the Main port is the
communication
channel.
Consequently,
a
switching from the Main port to the Spare port
occurs very rarely (<10 times a day).
The power supplies of the chip need to be de
coupled properly. This means that at least one
external capacitor C1 must be connected in
between GND and VPOS, one external capacitor
C2 between GND and VNEG, and one external
capacitor C3 between each pair of VNEG and
VPOS.
Comments
160 parts per Tray
1000 parts per reel
TQFP64 (Tray)
TQFP64 (Tape & Reel)
December 2002

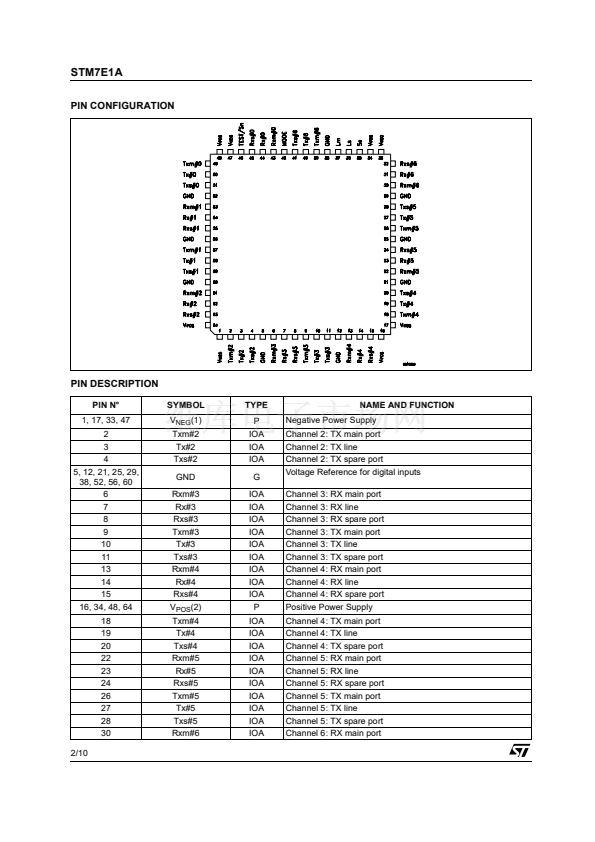

1/10

STM7E1AR 產品屬性

  • 1

  • 集成電路 (IC)

  • 接口 - 模擬開關，多路復用器，多路分解器

  • -

  • 開關

  • 7 X 2:4

  • 2 歐姆

  • 單電源

  • 3.3V

  • -

  • -40°C ~ 85°C

  • 表面貼裝

  • 64-LQFP

  • 64-TQFP（10x10）

  • Digi-Reel®

  • 497-5971-6
