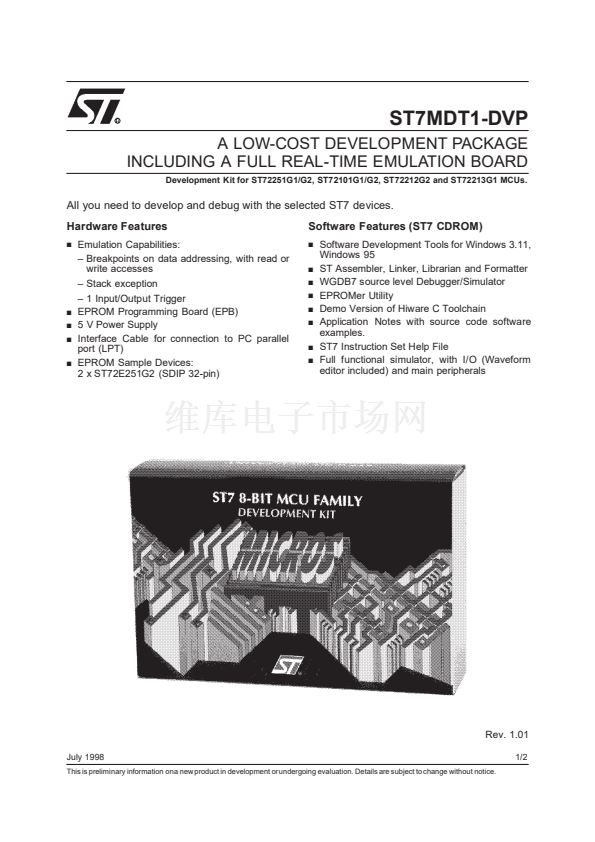

ST7MDT1-DVP
A LOW-COST DEVELOPMENT PACKAGE
INCLUDING A FULL REAL-TIME EMULATION BOARD
Development Kit for ST72251G1/G2, ST72101G1/G2, ST72212G2 and ST72213G1 MCUs.
All you need to develop and debug with the selected ST7 devices.
Hardware Features
s
Software Features (ST7 CDROM)
s
s
s
s
s
Emulation Capabilities:
鈥?Breakpoints on data addressing, with read or
write accesses
鈥?Stack exception
鈥?1 Input/Output Trigger
EPROM Programming Board (EPB)
5 V Power Supply
Interface Cable for connection to PC parallel
port (LPT)
EPROM Sample Devices:
2 x ST72E251G2 (SDIP 32-pin)
s
s
s
s
s
s
s
Software Development Tools for Windows 3.11,
Windows 95
ST Assembler, Linker, Librarian and Formatter
WGDB7 source level Debugger/Simulator
EPROMer Utility
Demo Version of Hiware C Toolchain
Application Notes with source code software
examples.
ST7 Instruction Set Help File
Full functional simulator, with I/O (Waveform
editor included) and main peripherals
Rev. 1.01
July 1998
This is preliminary information ona new product in development orundergoing evaluation. Details are subject to change without notice.
