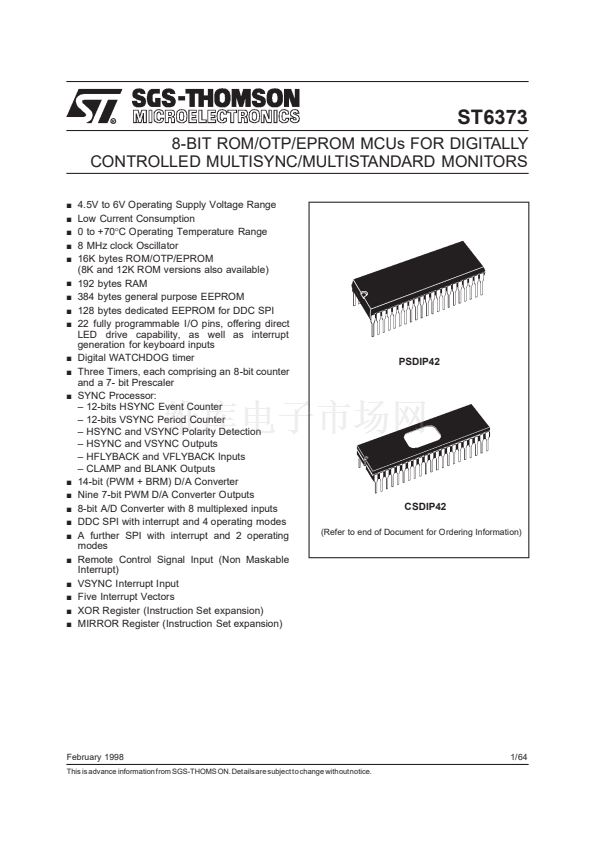

R

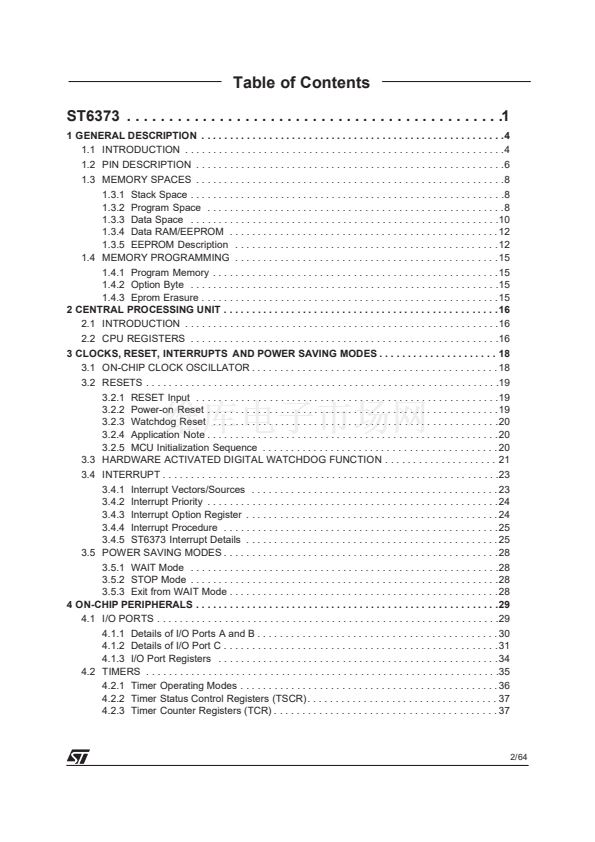

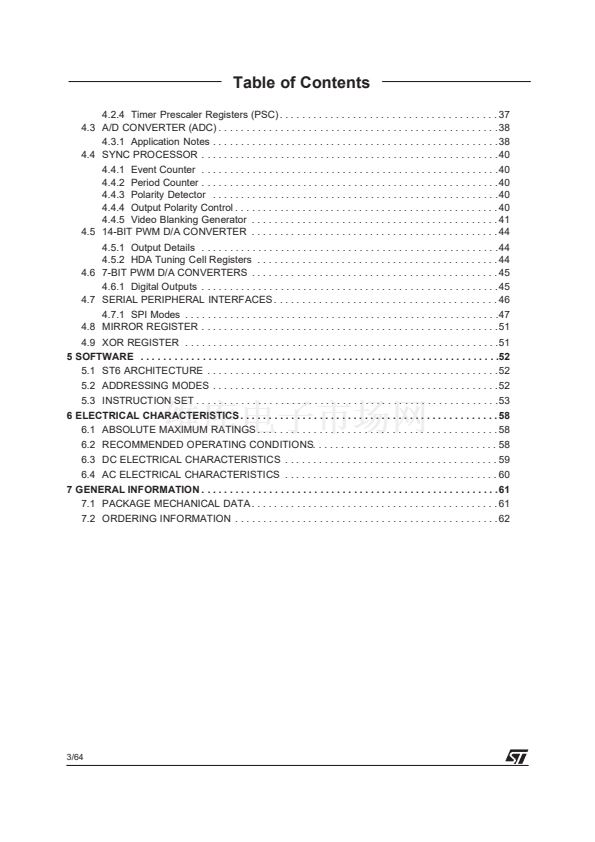

ST6373

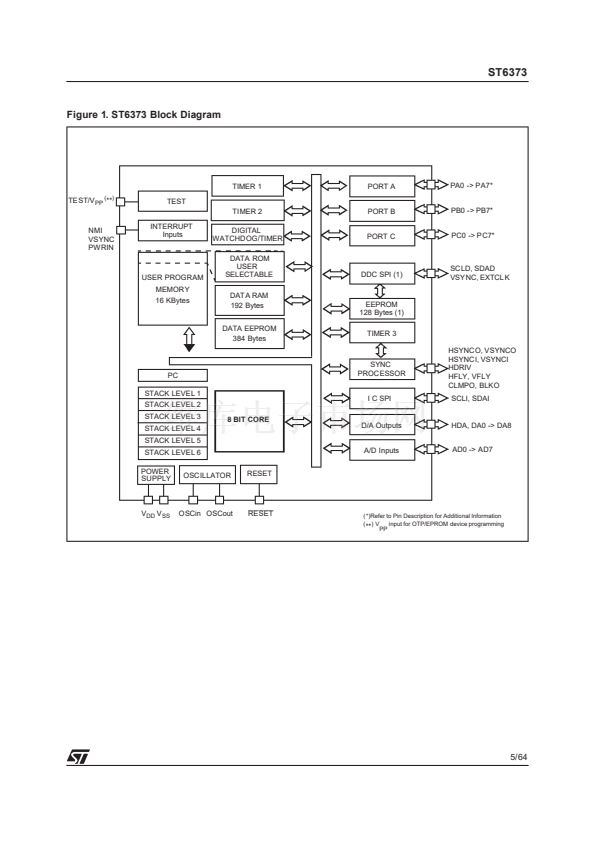

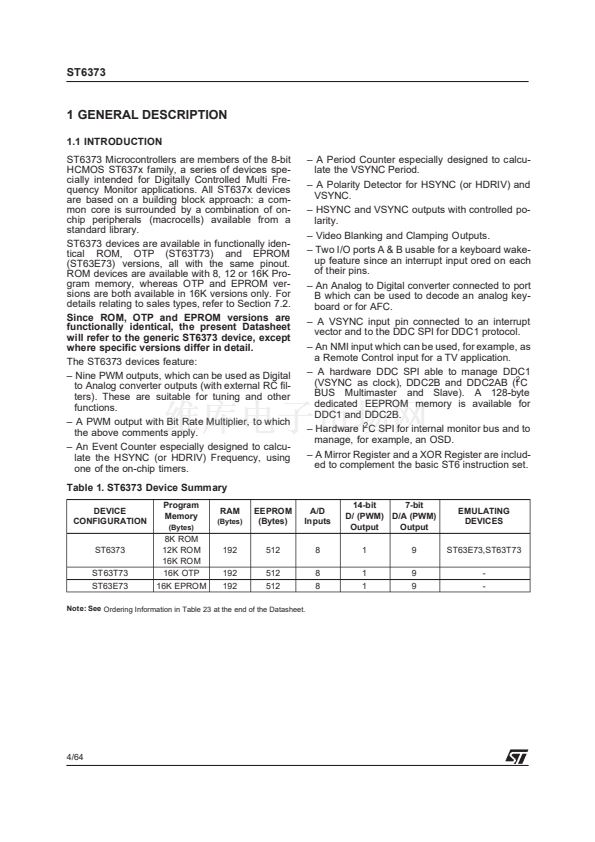

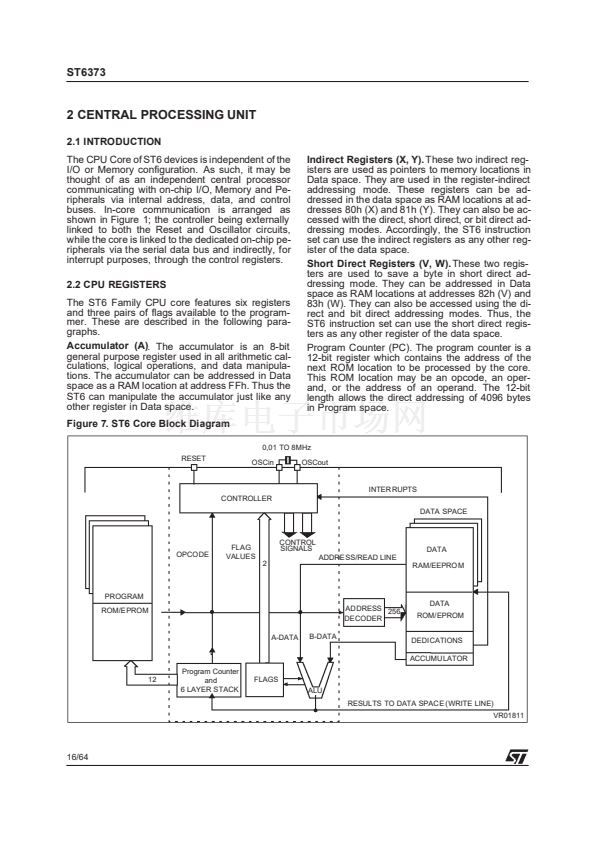

8-BIT ROM/OTP/EPROM MCUs FOR DIGITALLY

CONTROLLED MULTISYNC/MULTISTANDARD MONITORS

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

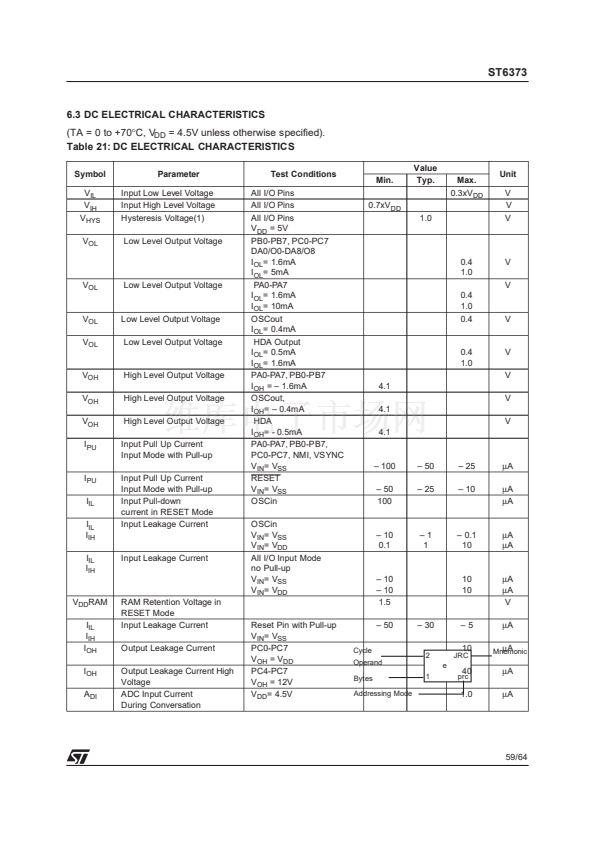

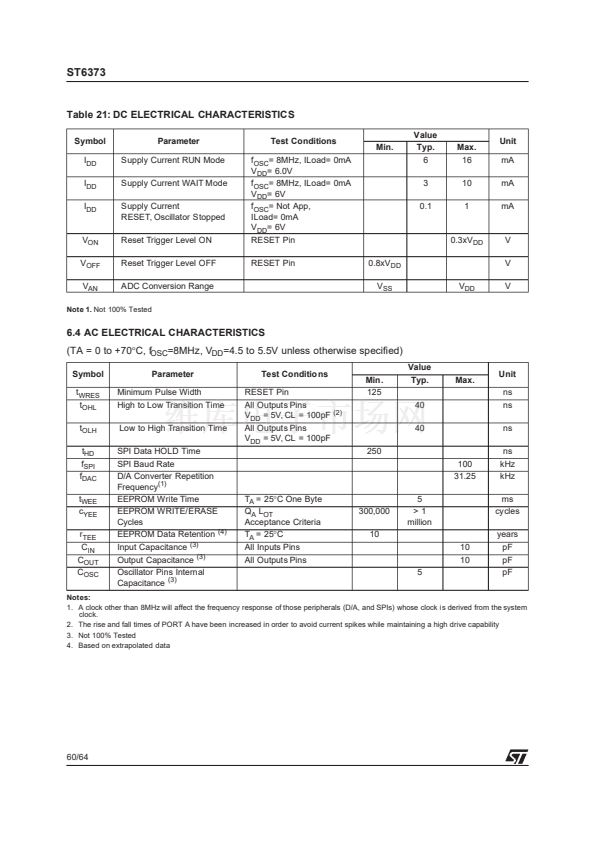

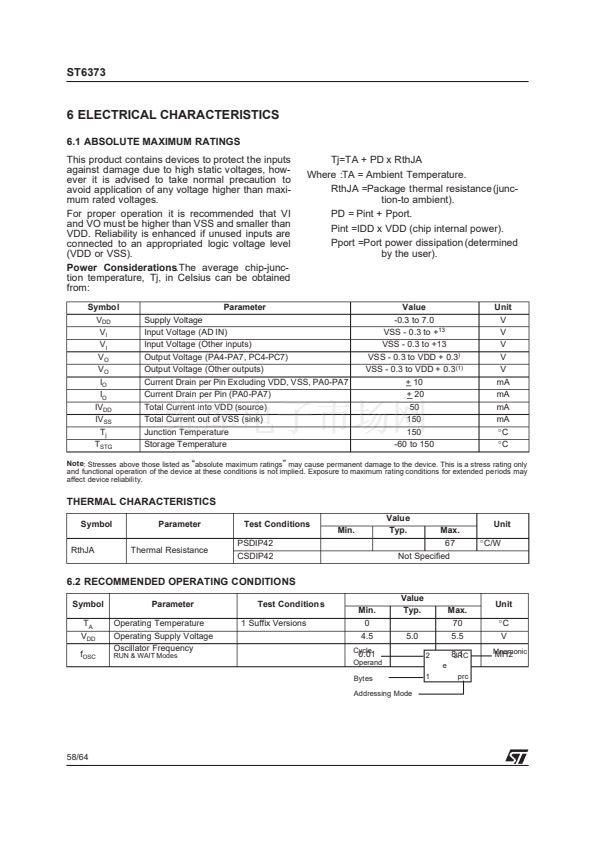

4.5V to 6V Operating Supply Voltage Range

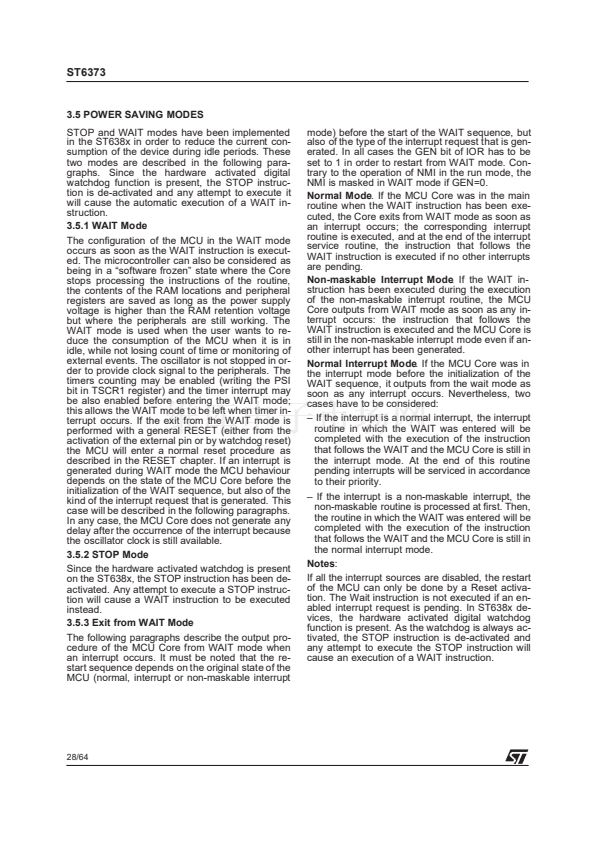

Low Current Consumption

0 to +70擄C Operating Temperature Range

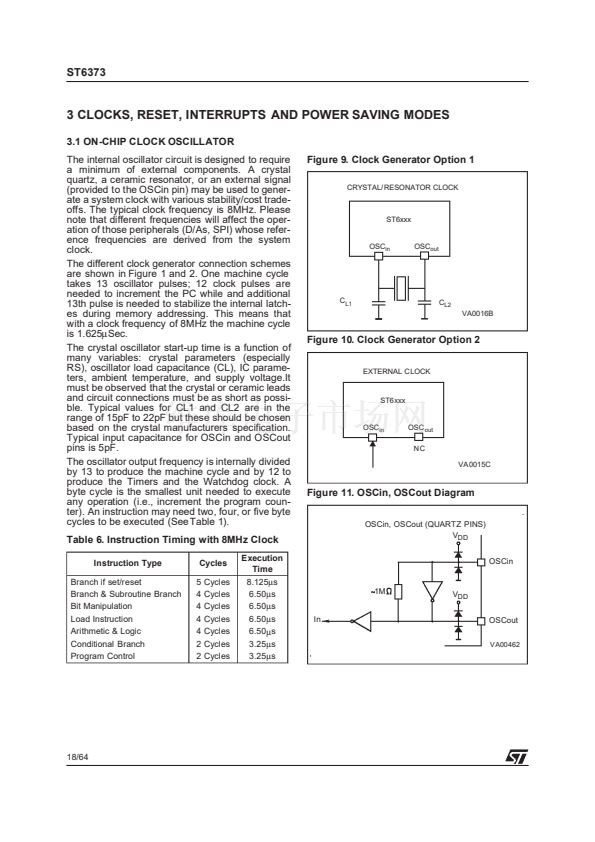

8 MHz clock Oscillator

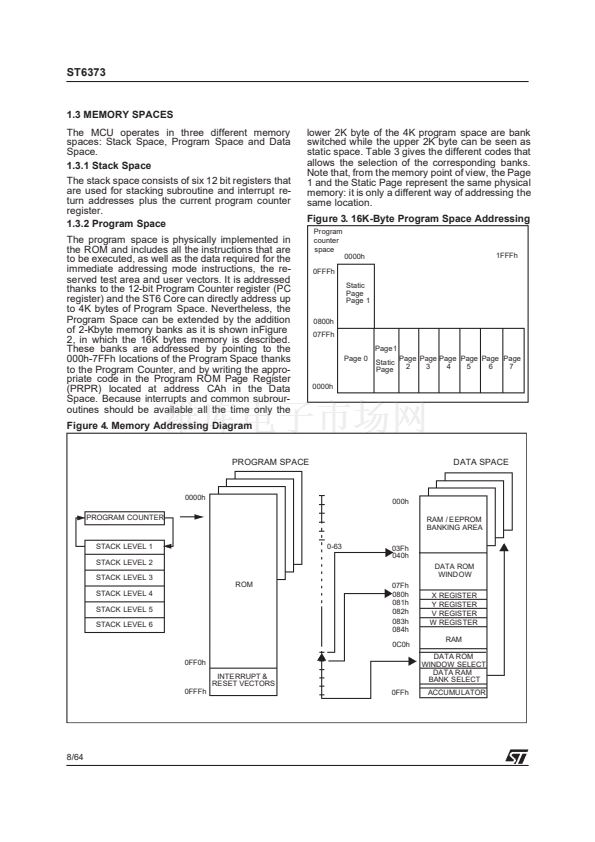

16K bytes ROM/OTP/EPROM

(8K and 12K ROM versions also available)

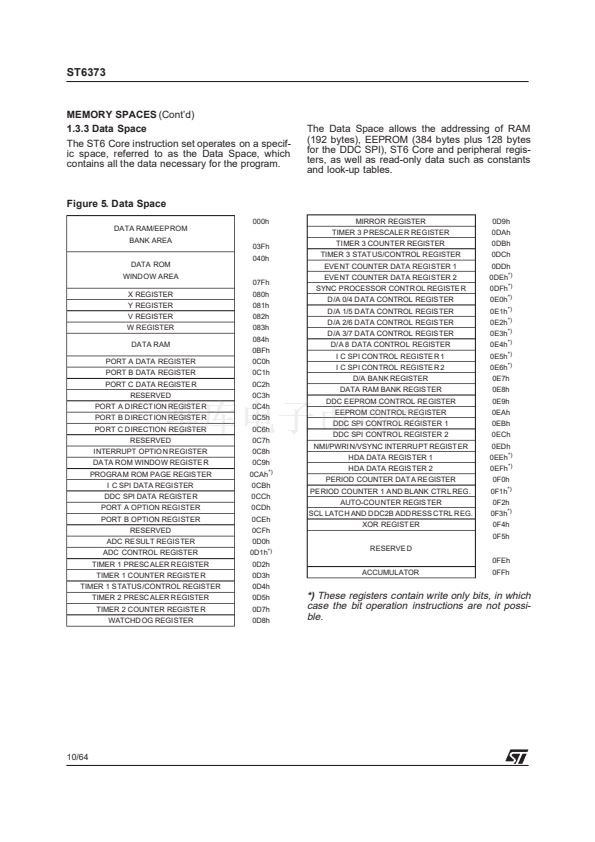

192 bytes RAM

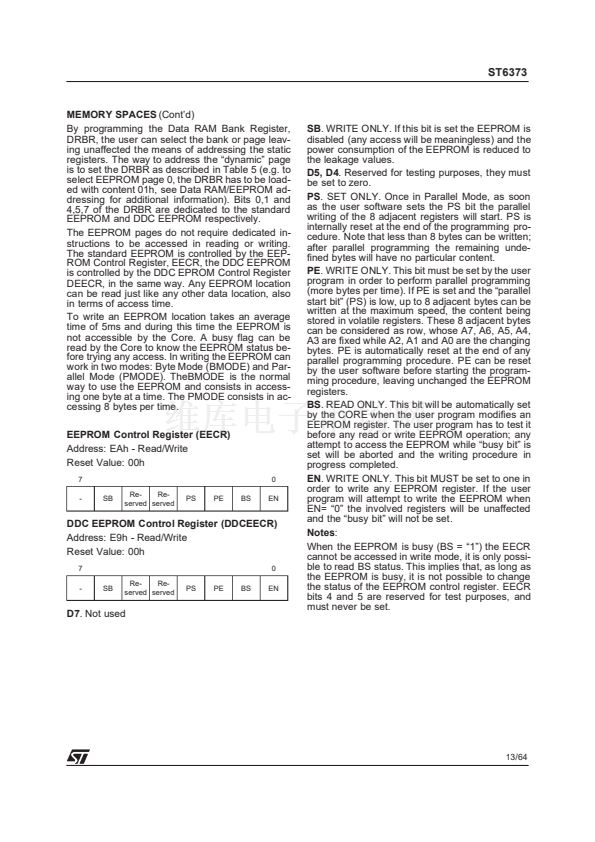

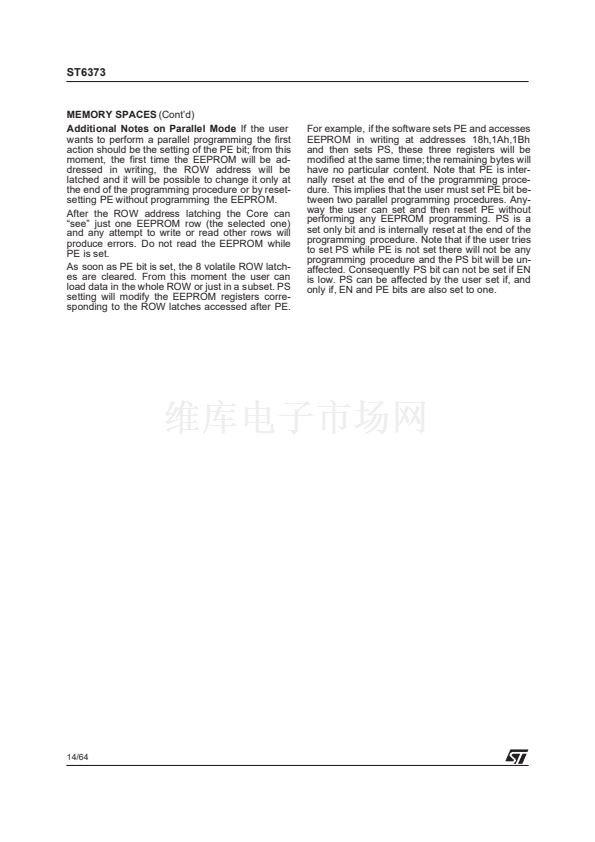

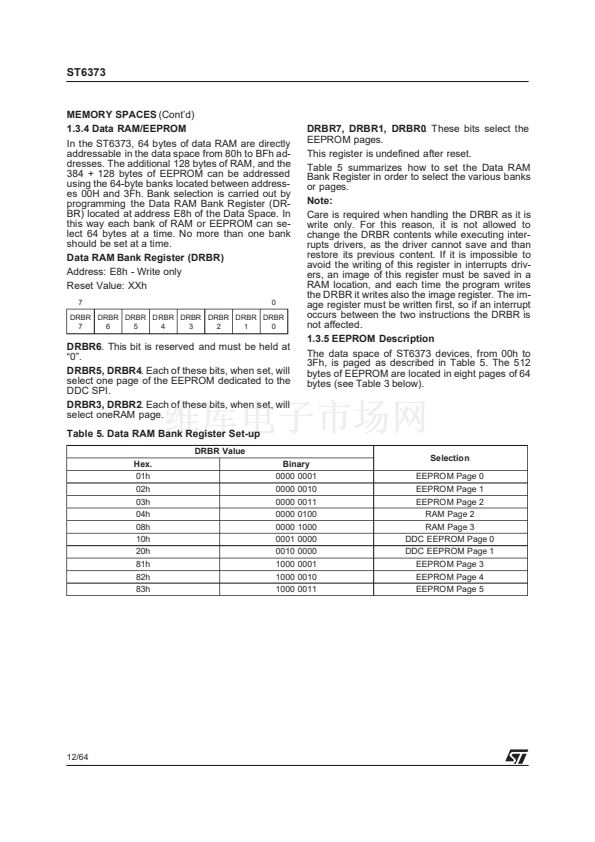

384 bytes general purpose EEPROM

128 bytes dedicated EEPROM for DDC SPI

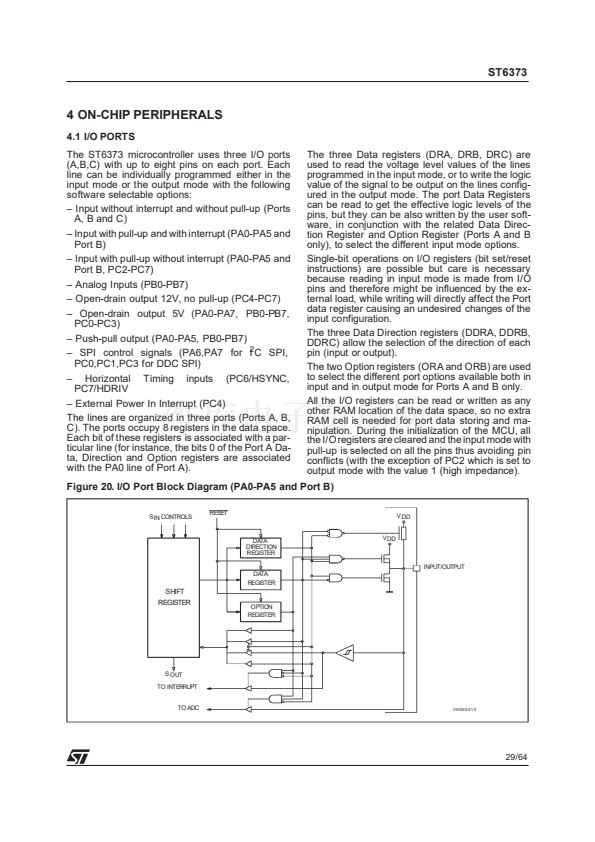

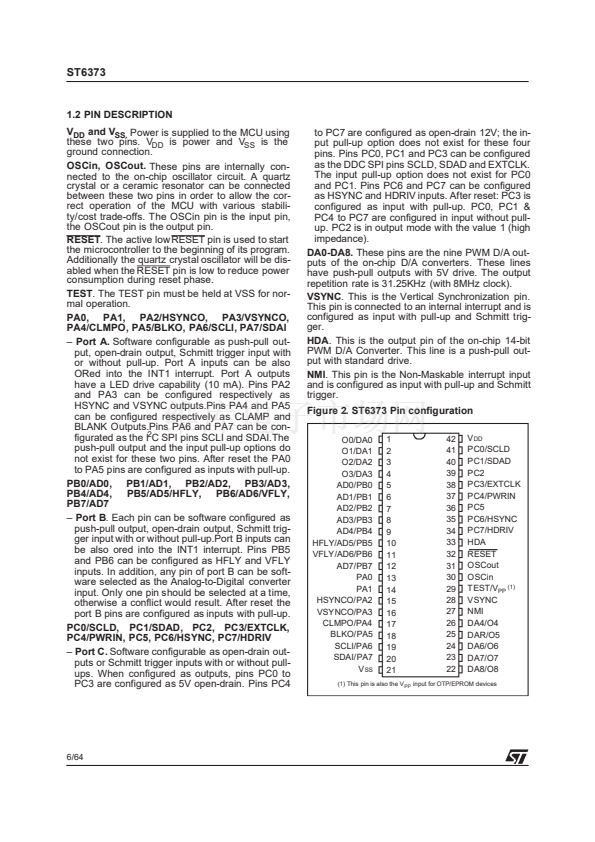

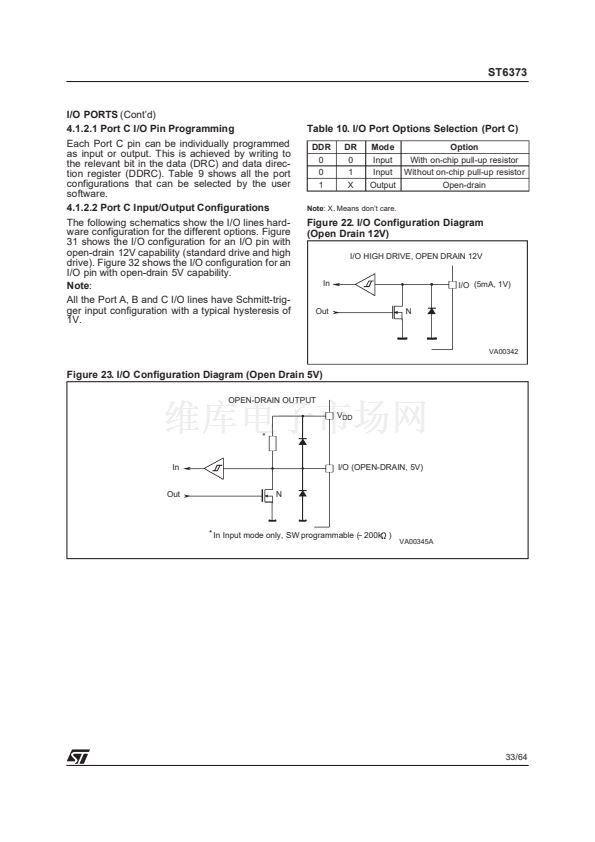

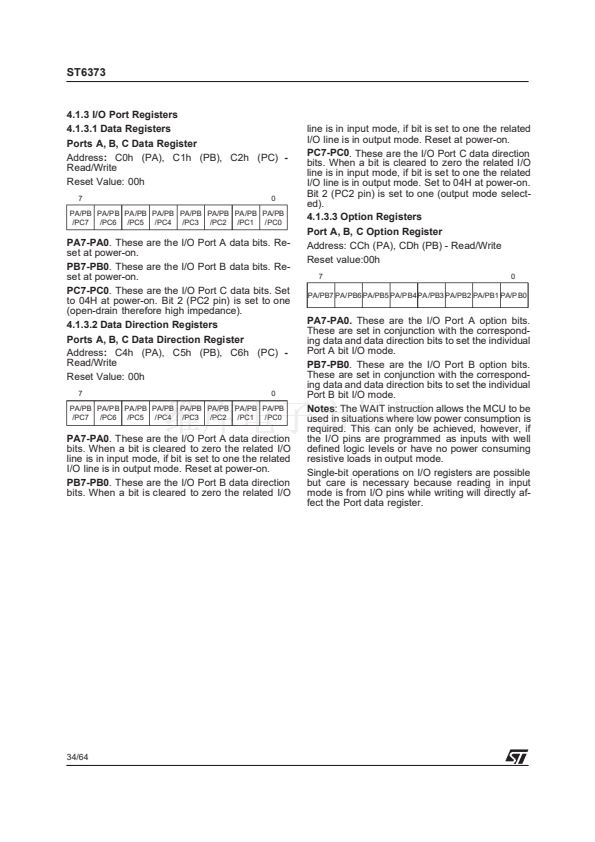

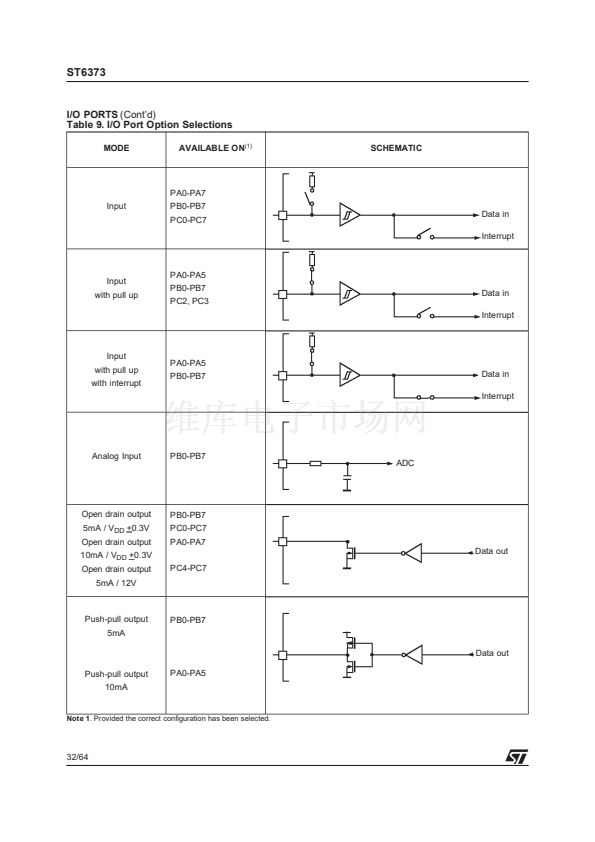

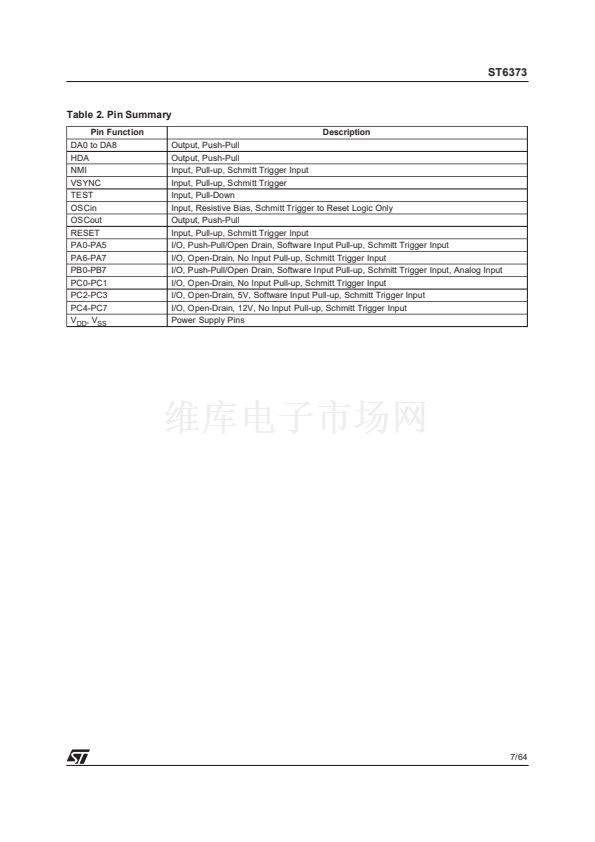

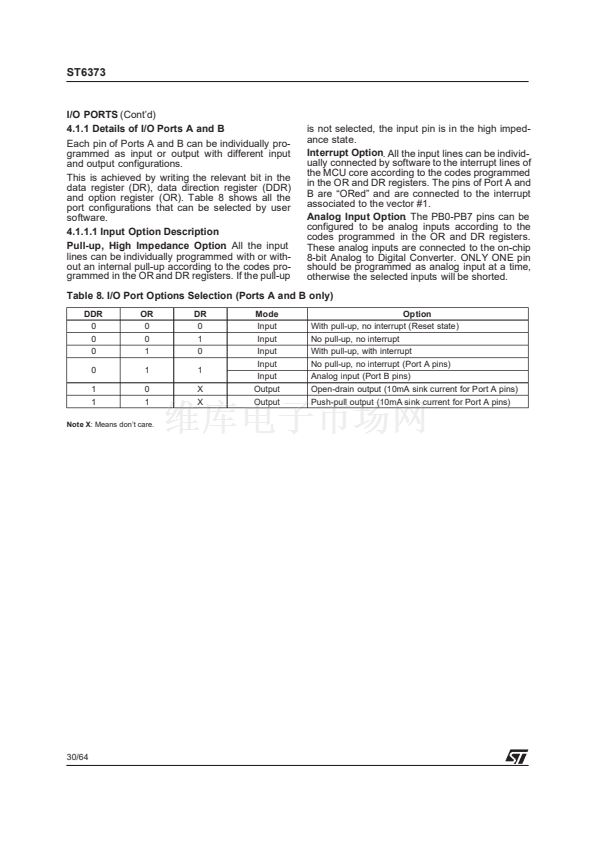

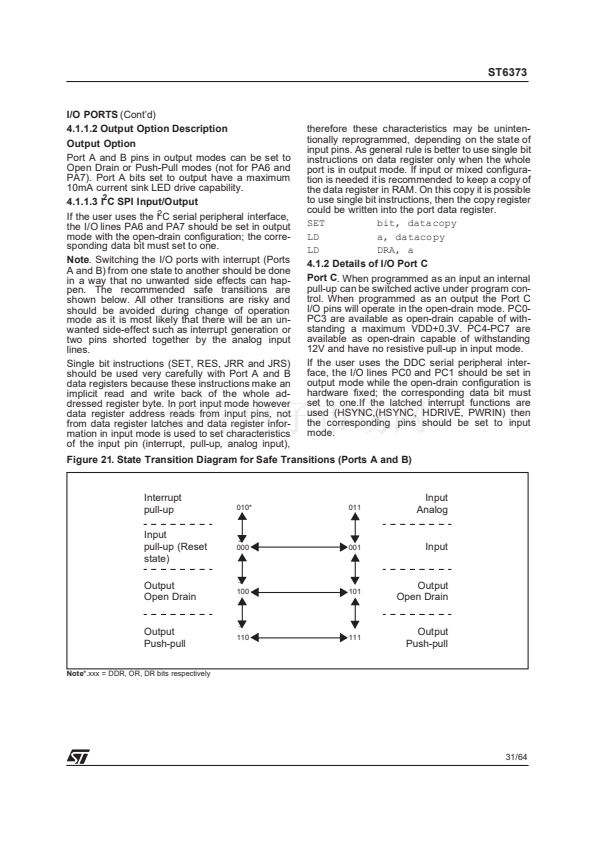

22 fully programmable I/O pins, offering direct

LED drive capability, as well as interrupt

generation for keyboard inputs

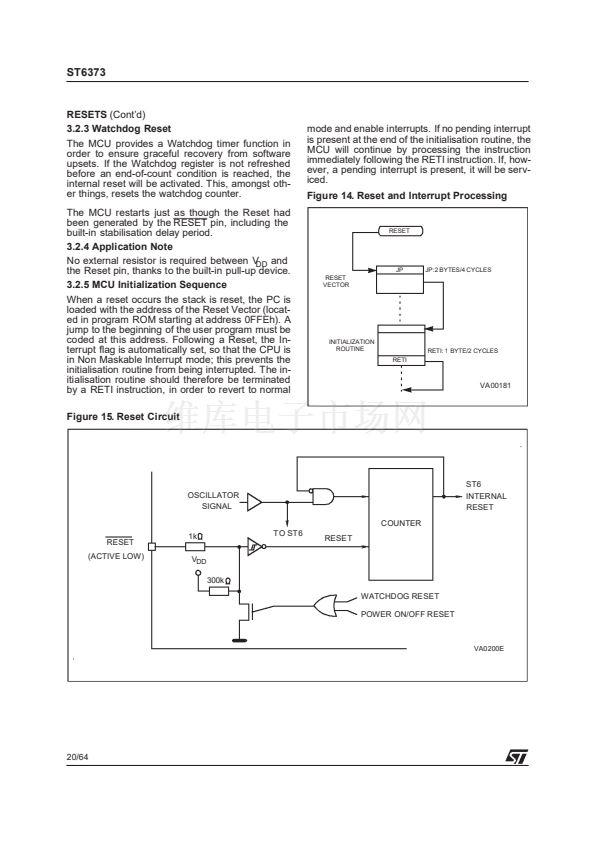

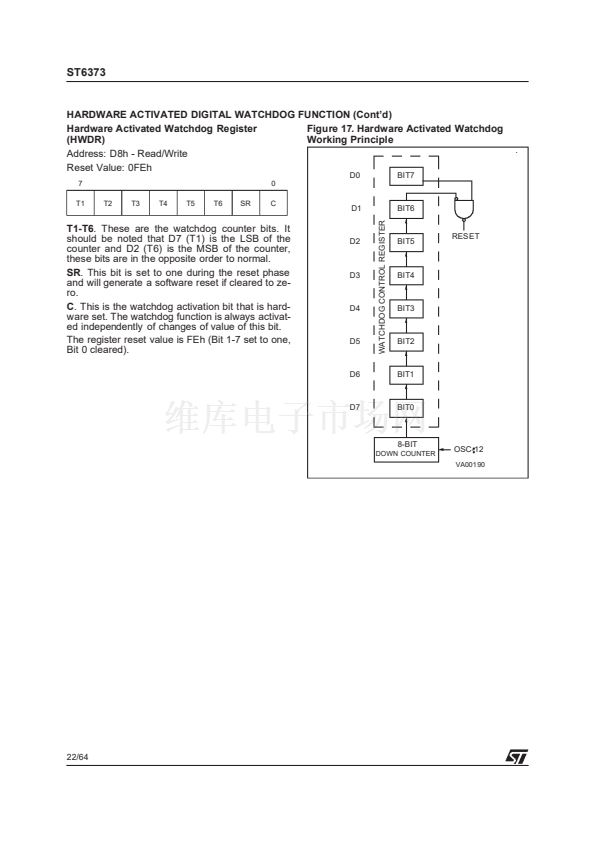

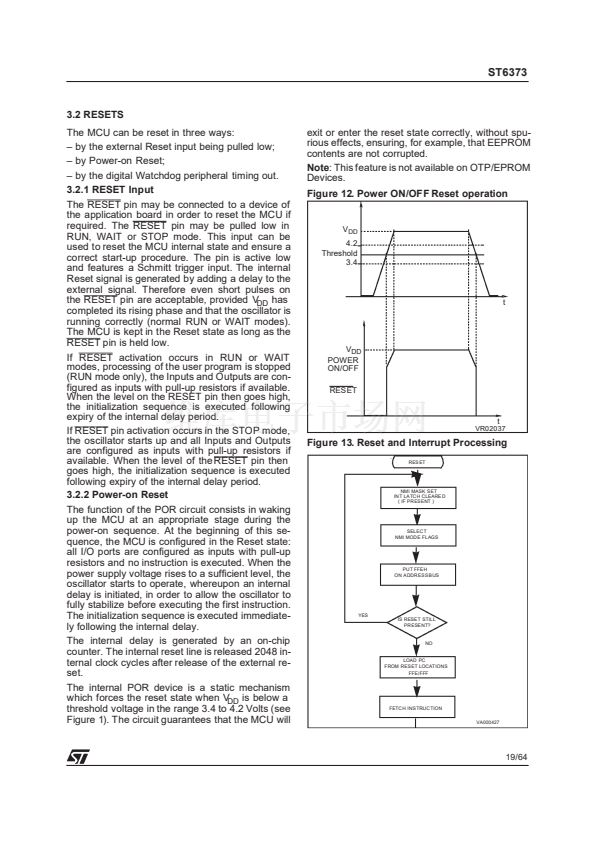

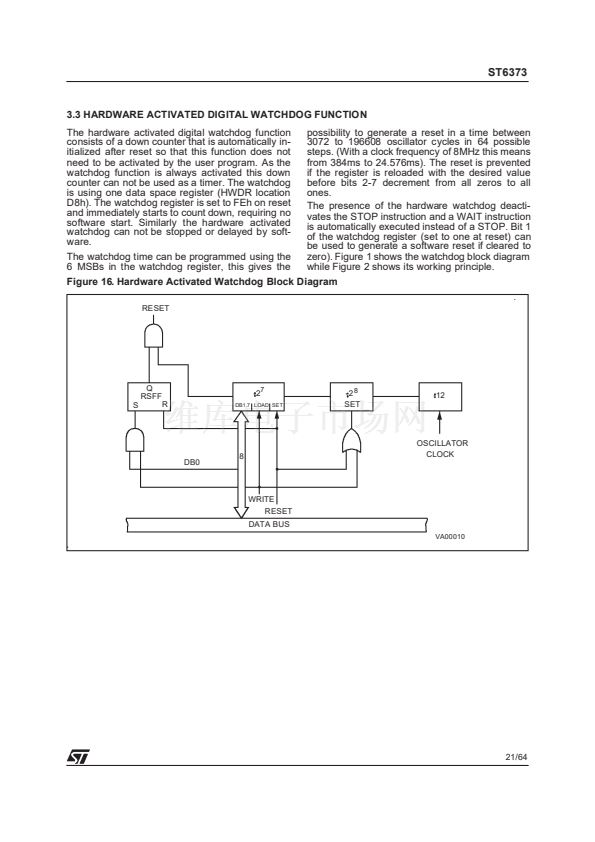

Digital WATCHDOG timer

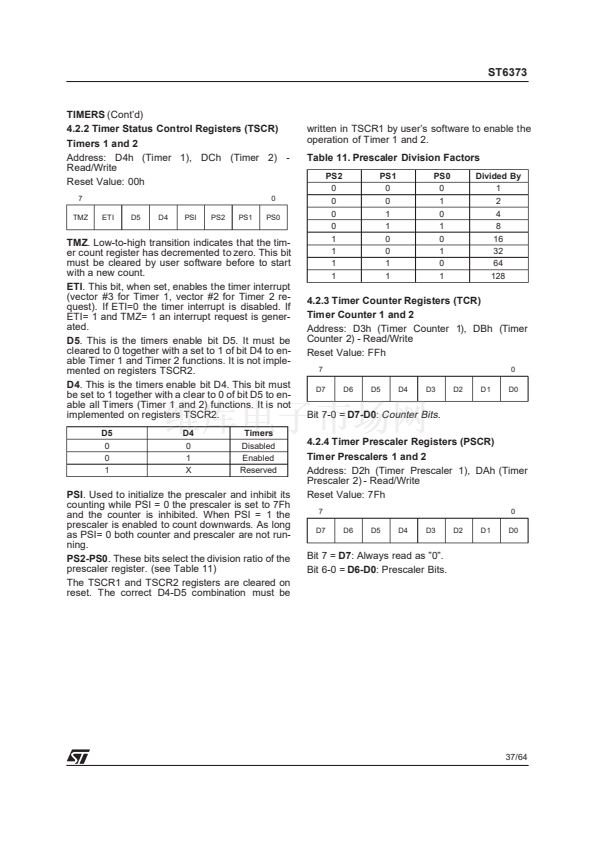

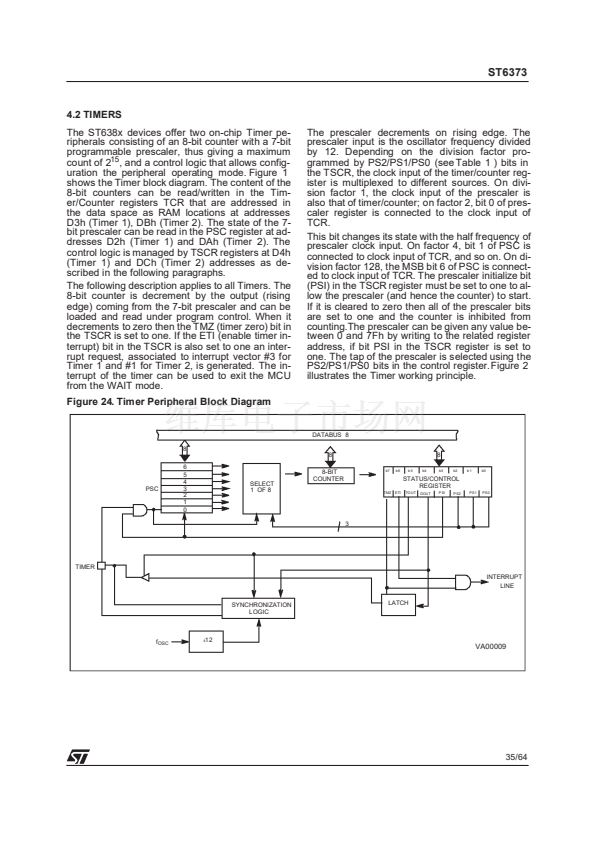

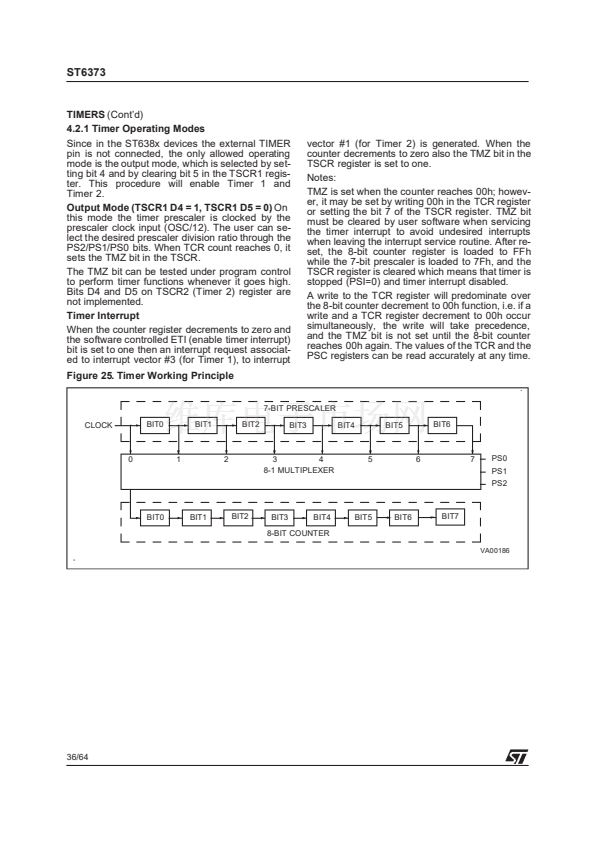

Three Timers, each comprising an 8-bit counter

and a 7- bit Prescaler

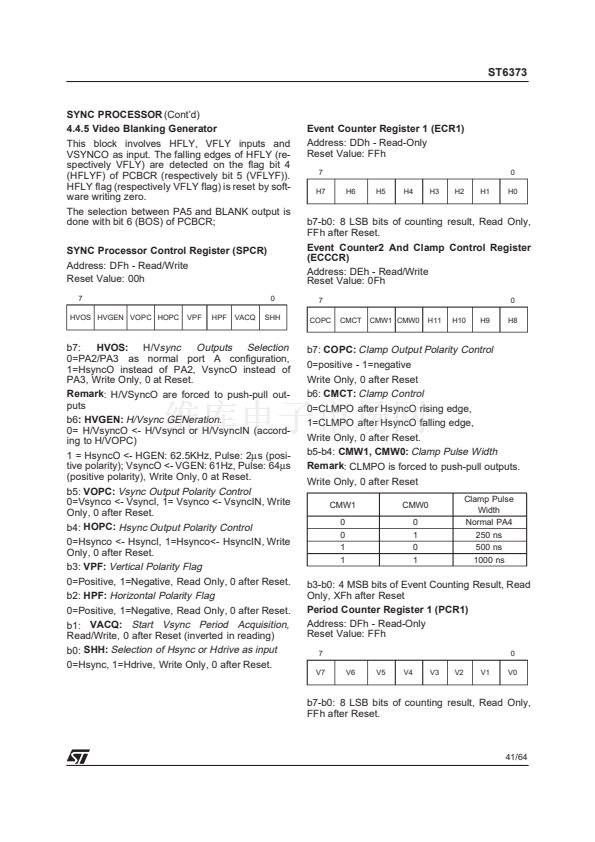

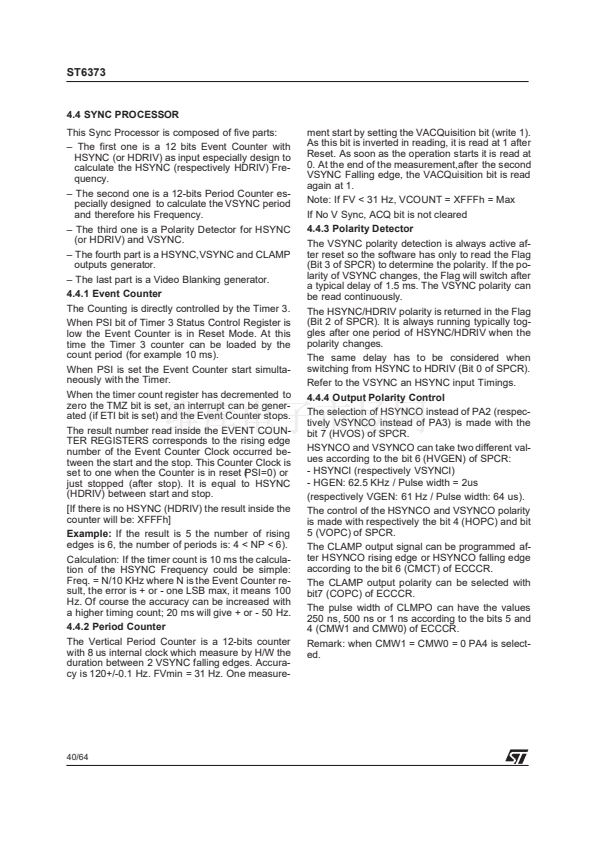

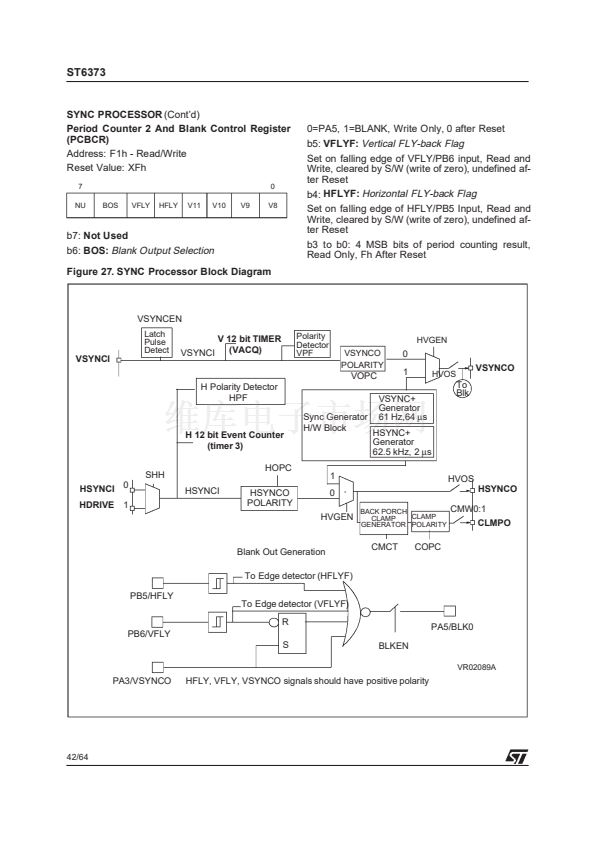

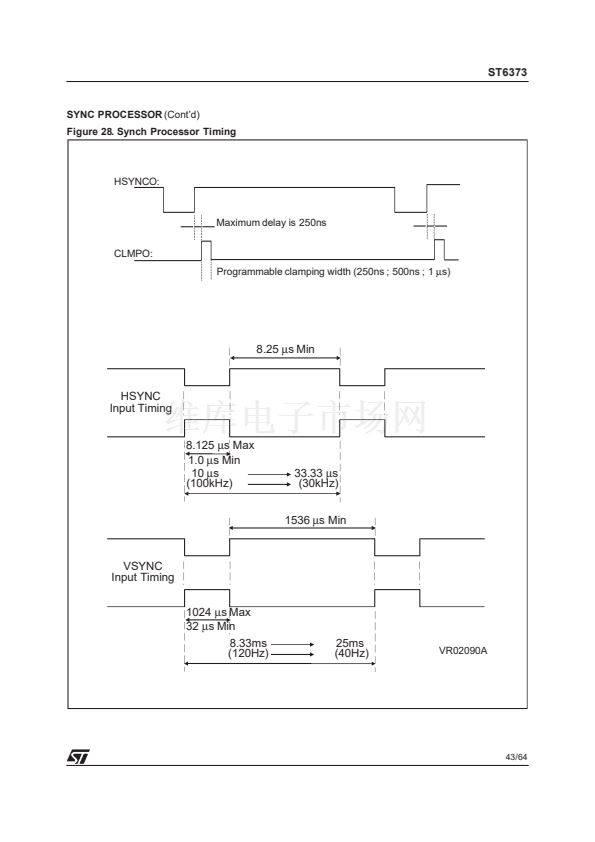

SYNC Processor:

鈥?12-bits HSYNC Event Counter

鈥?12-bits VSYNC Period Counter

鈥?HSYNC and VSYNC Polarity Detection

鈥?HSYNC and VSYNC Outputs

鈥?HFLYBACK and VFLYBACK Inputs

鈥?CLAMP and BLANK Outputs

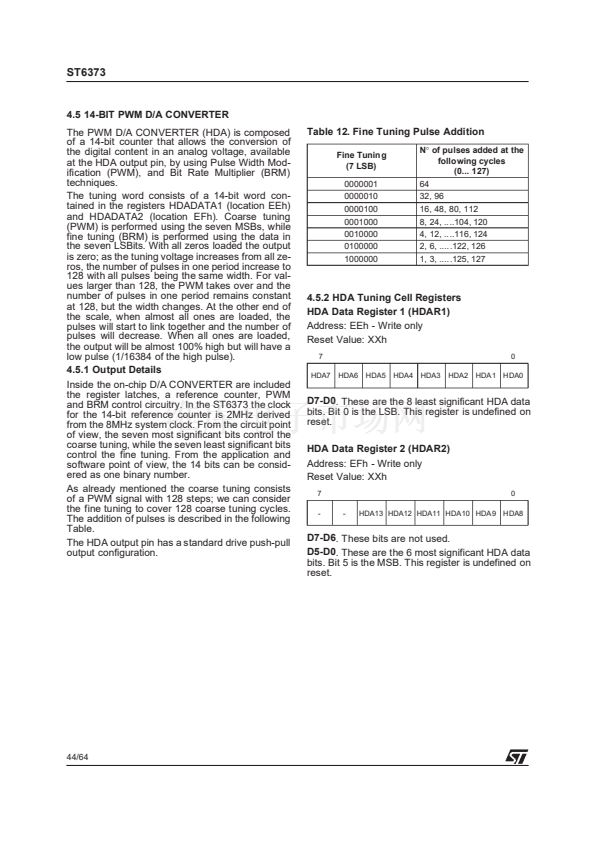

14-bit (PWM + BRM) D/A Converter

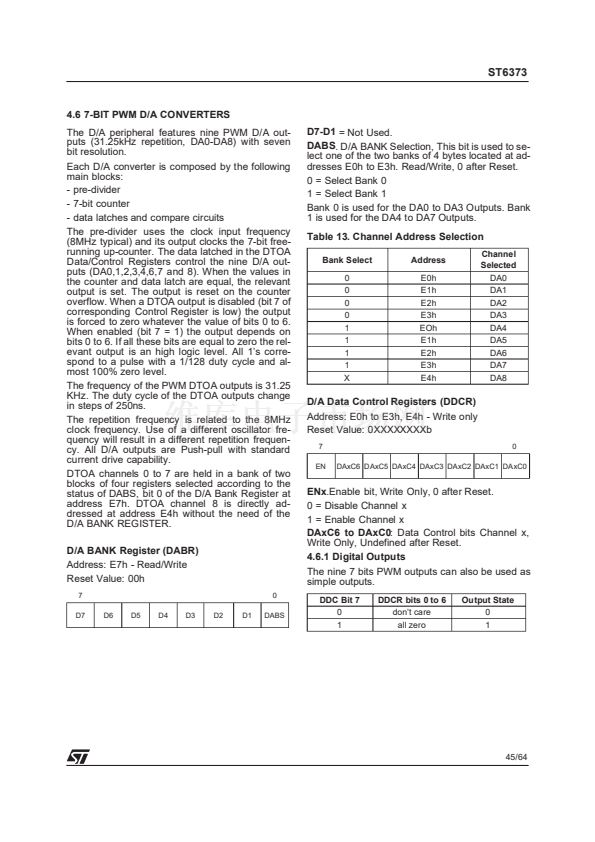

Nine 7-bit PWM D/A Converter Outputs

8-bit A/D Converter with 8 multiplexed inputs

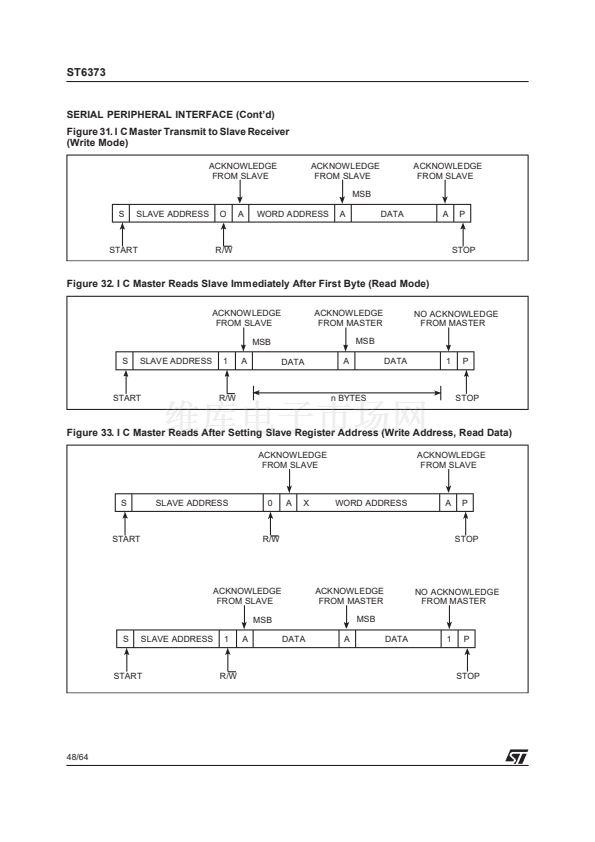

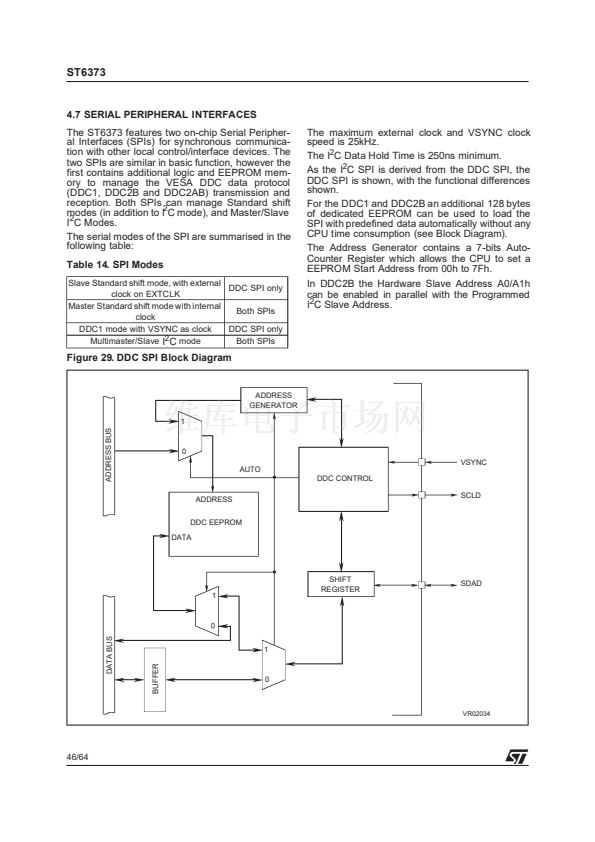

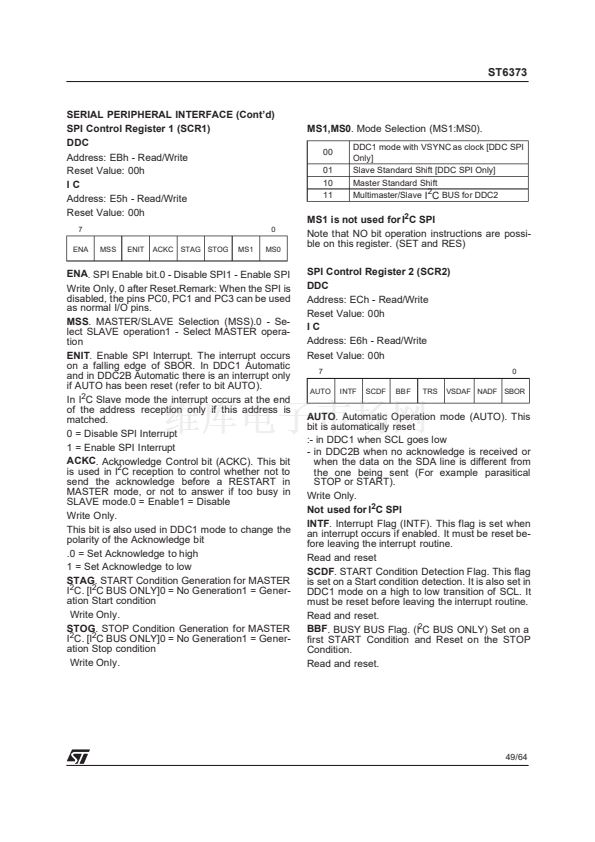

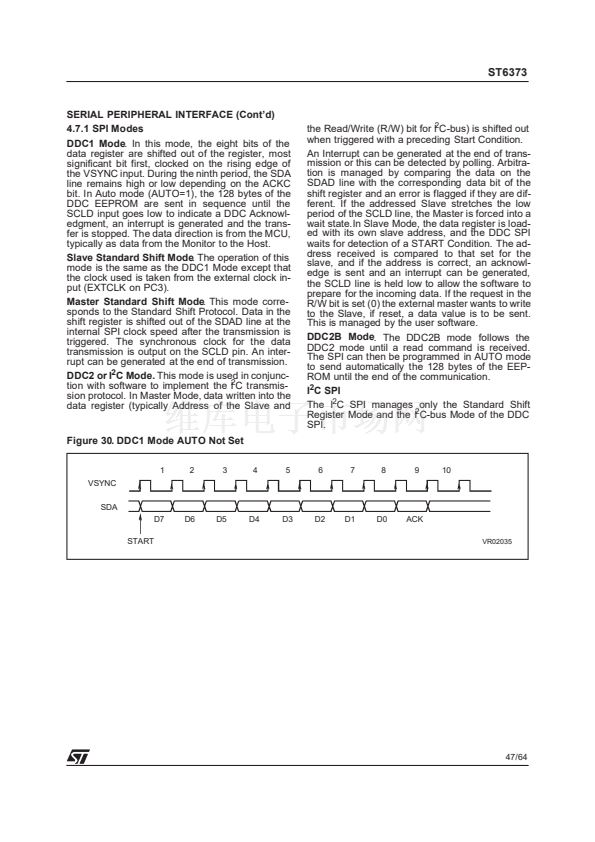

DDC SPI with interrupt and 4 operating modes

A further SPI with interrupt and 2 operating

modes

Remote Control Signal Input (Non Maskable

Interrupt)

VSYNC Interrupt Input

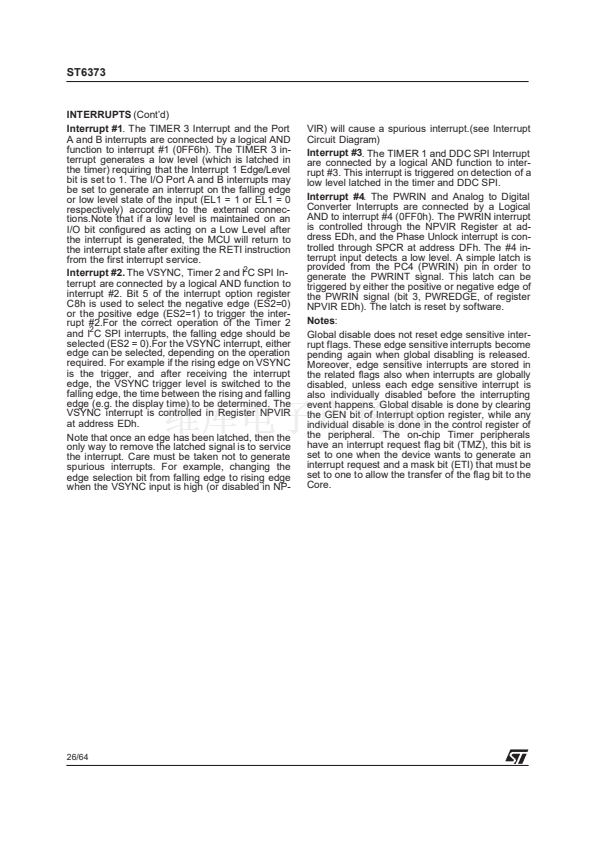

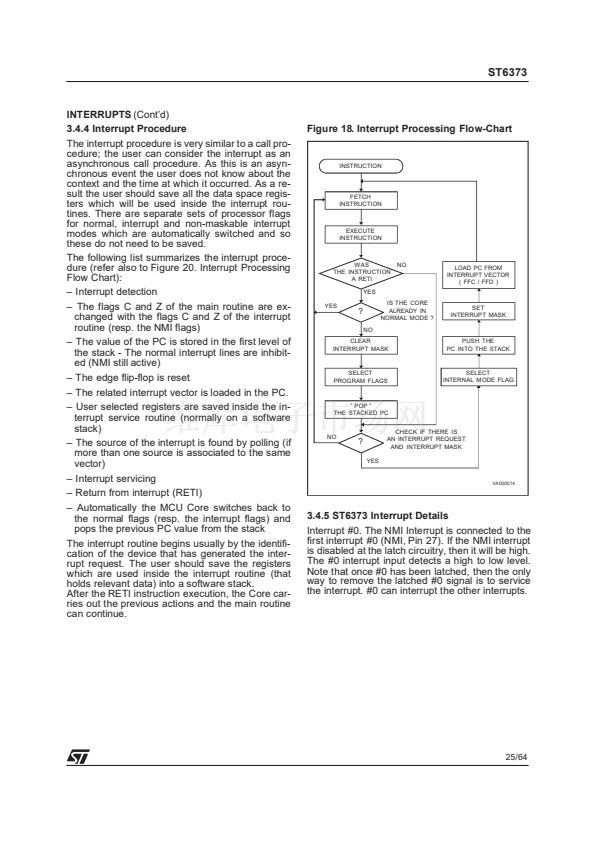

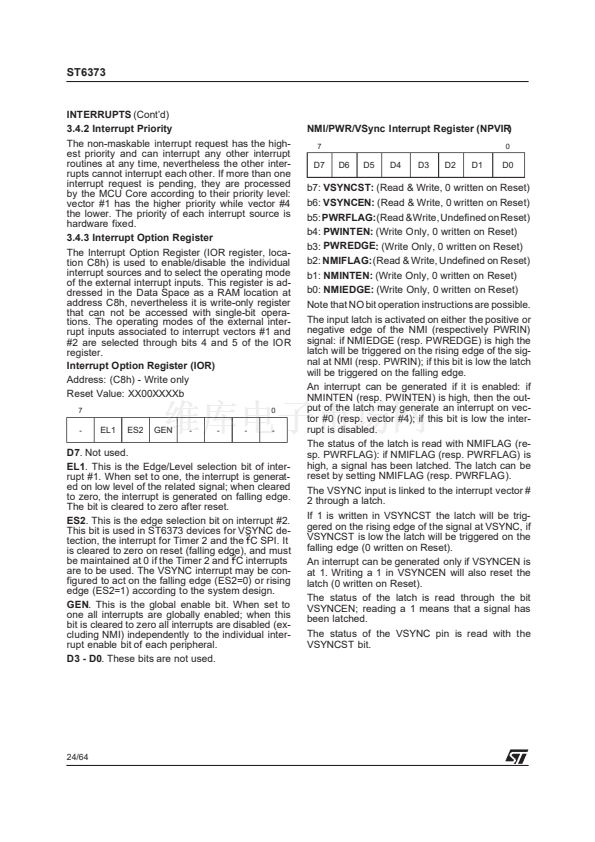

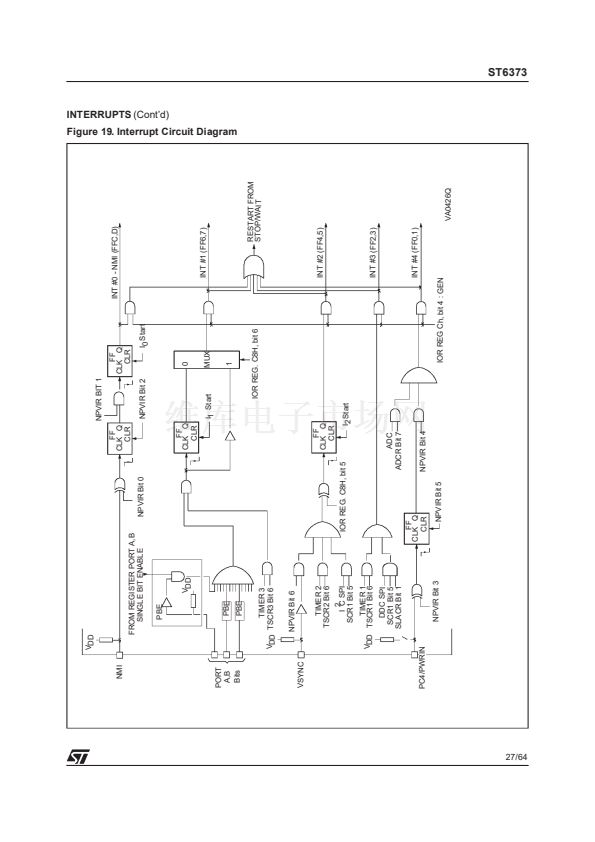

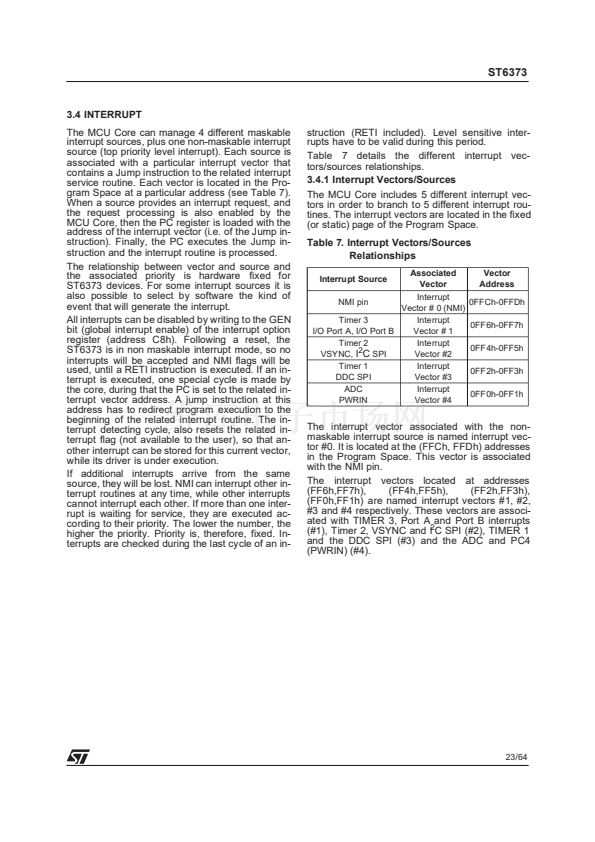

Five Interrupt Vectors

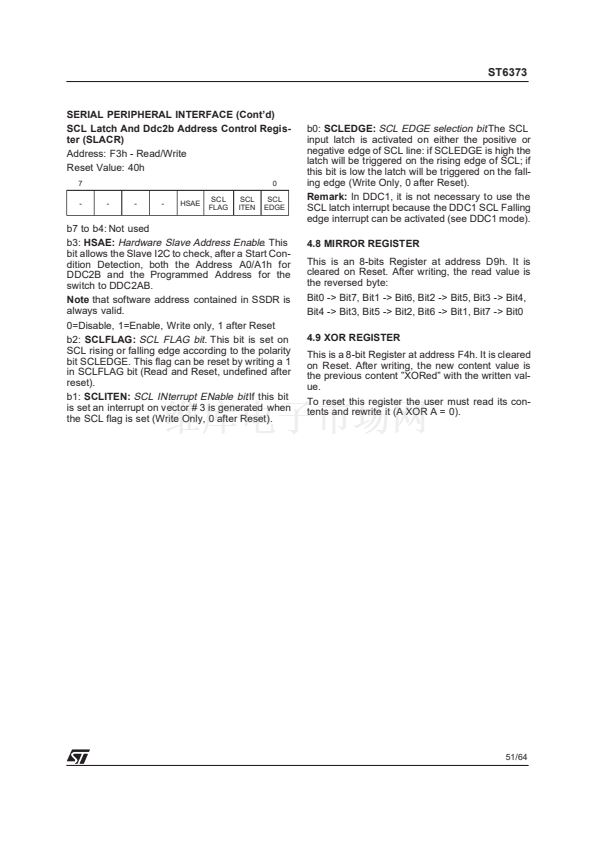

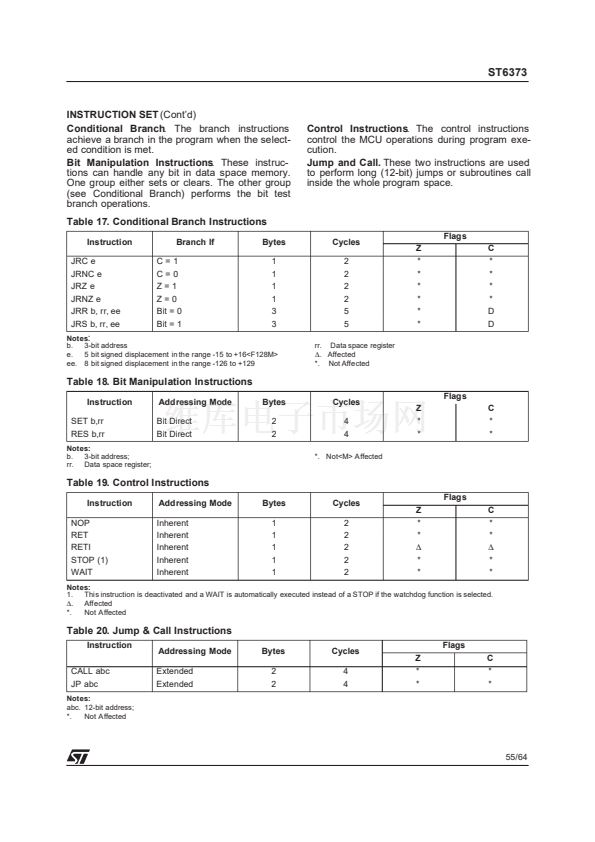

XOR Register (Instruction Set expansion)

MIRROR Register (Instruction Set expansion)

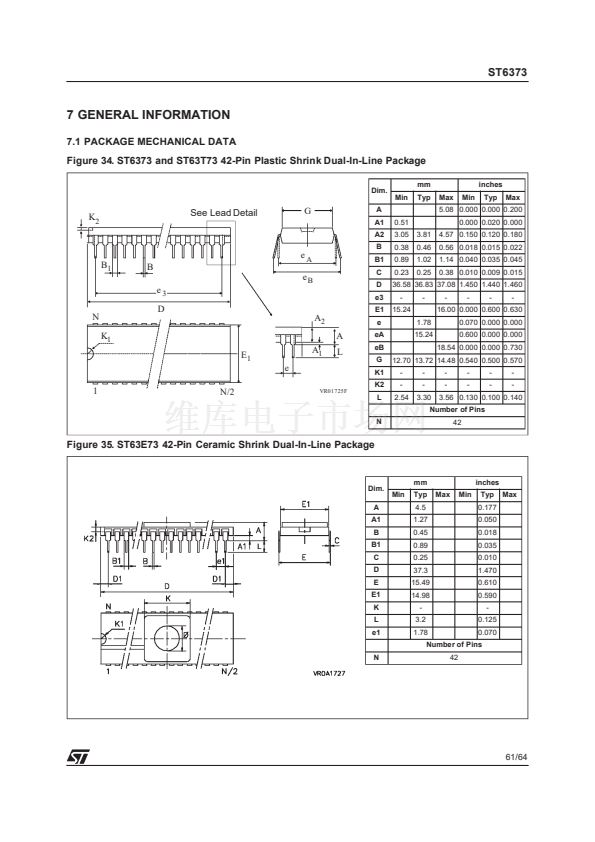

PSDIP42

CSDIP42

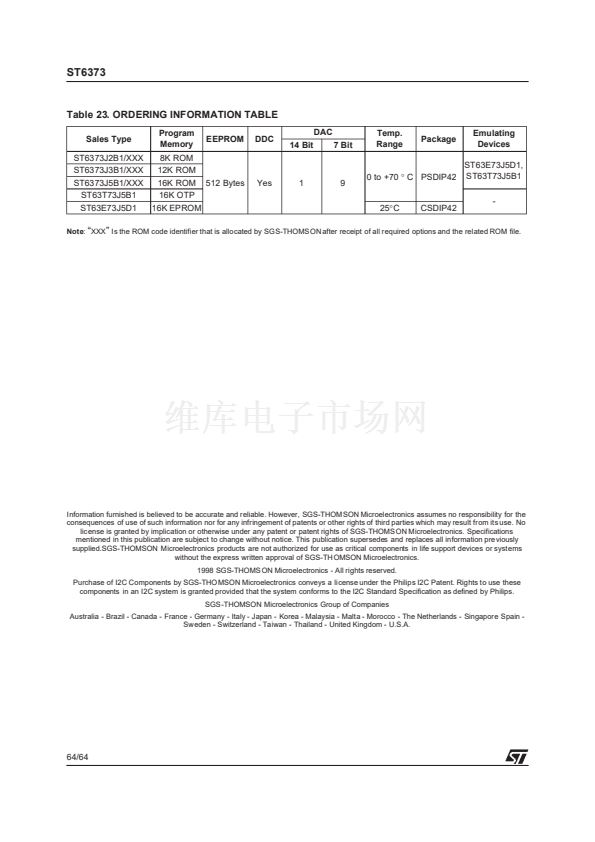

(Refer to end of Document for Ordering Information)

February 1998

This is advance information from SGS-THOMS ON. Details are subject to change withoutnotice.

1/64
