ST62T32B

ST62E32B

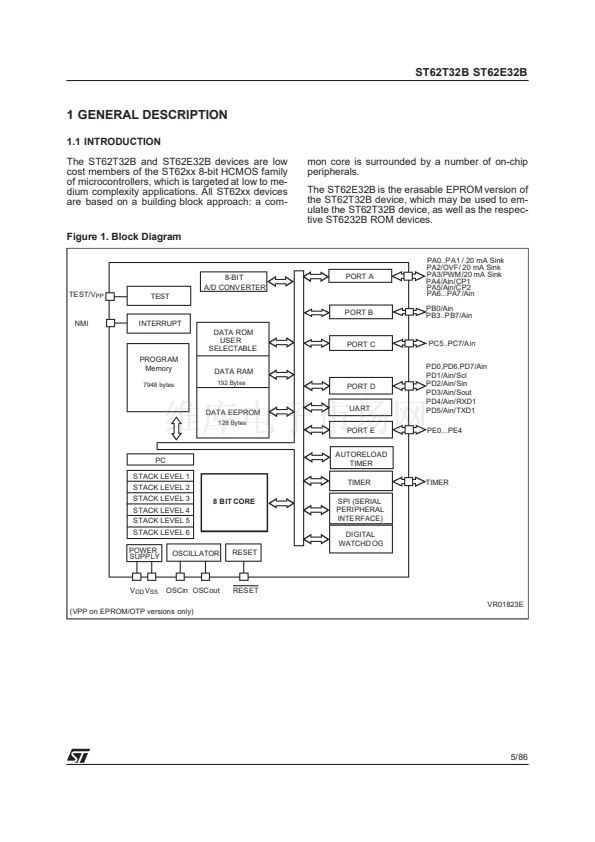

8-BIT OTP/EPROM MCUs WITH A/D CONVERTER,

16-BIT AUTO-RELOAD TIMER, EEPROM, SPI AND UART

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

s

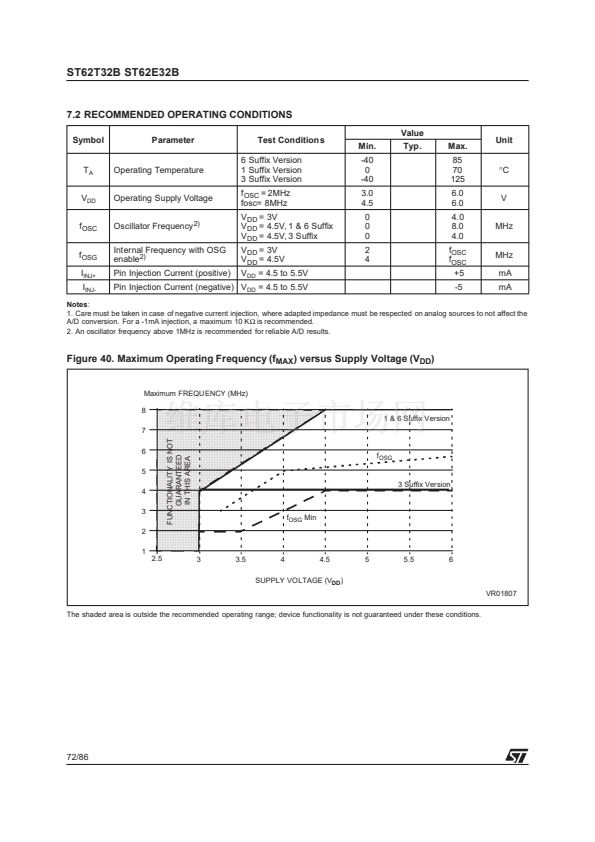

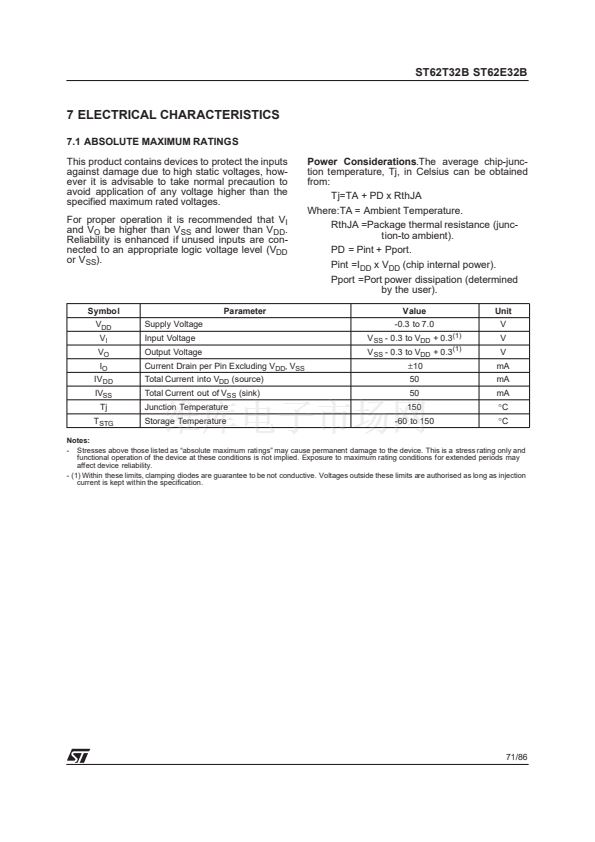

3.0 to 6.0V Supply Operating Range

8 MHz Maximum Clock Frequency

-40 to +125擄C Operating Temperature Range

Run, Wait and Stop Modes

5 Interrupt Vectors

Look-up Table capability in Program Memory

Data Storage in Program Memory:

User selectable size

Data RAM: 192 bytes

Data EEPROM: 128 bytes

User Programmable Options

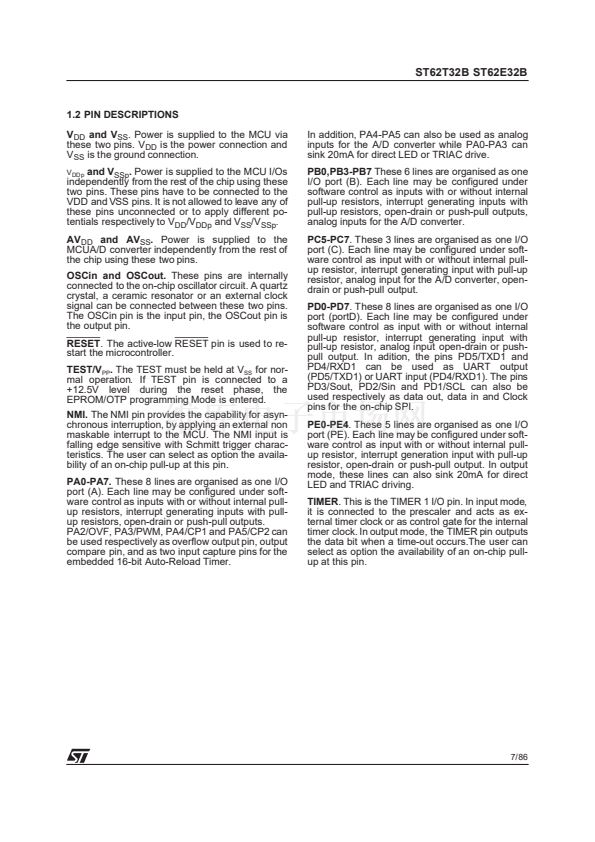

30 I/O pins, fully programmable as:

鈥?Input with pull-up resistor

鈥?Input without pull-up resistor

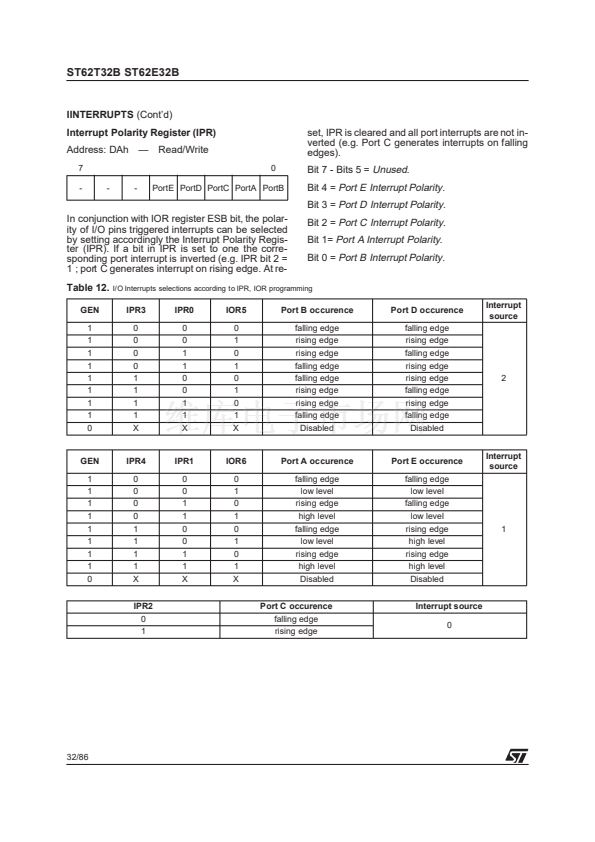

鈥?Input with interrupt generation

鈥?Open-drain or push-pull output

鈥?Analog Input

9 I/O lines can sink up to 20mA to drive LEDs or

TRIACs directly

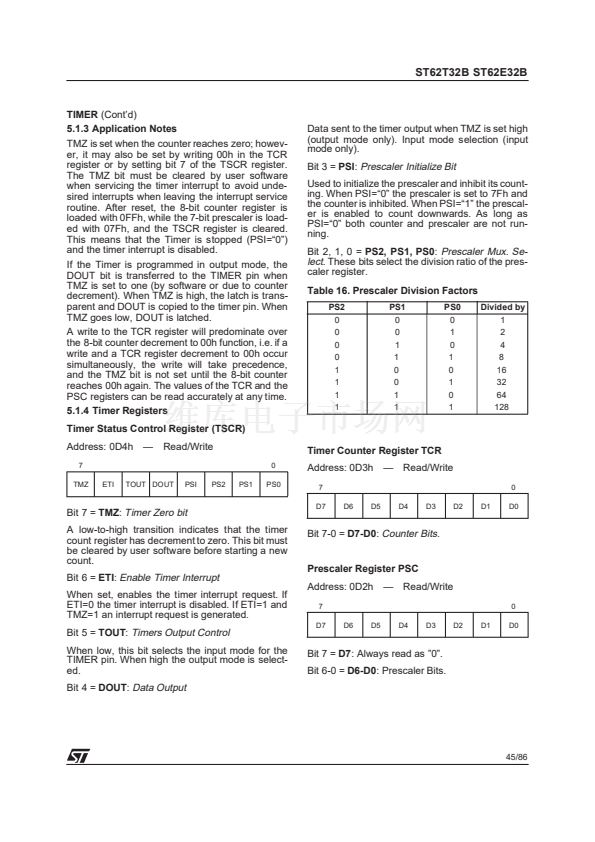

8-bit Timer/Counter with 7-bit programmable

prescaler

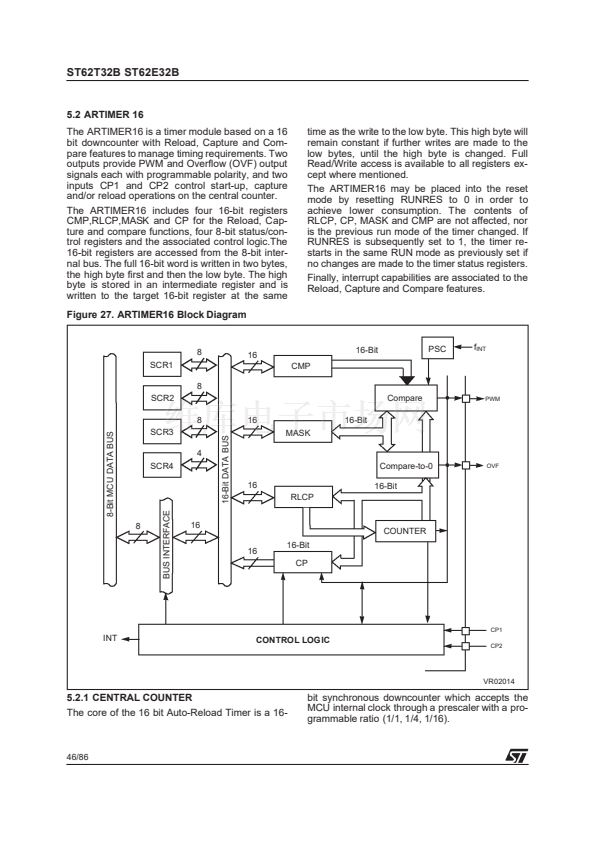

16-bit

Auto-reload

Timer

with

7-bit

programmable prescaler (AR Timer)

Digital Watchdog

8-bit A/D Converter with 21 analog inputs

8-bit Synchronous Peripheral Interface (SPI)

8-bit Asynchronous Peripheral Interface

(UART)

On-chip Clock oscillator can be driven by Quartz

Crystal or Ceramic resonator

Oscillator Safe Guard

One external Non-Maskable Interrupt

ST623x-EMU2 Emulation and Development

System (connects to an MS-DOS PC via a

parallel port).

PSDIP42

PQFP52

CDIP42W

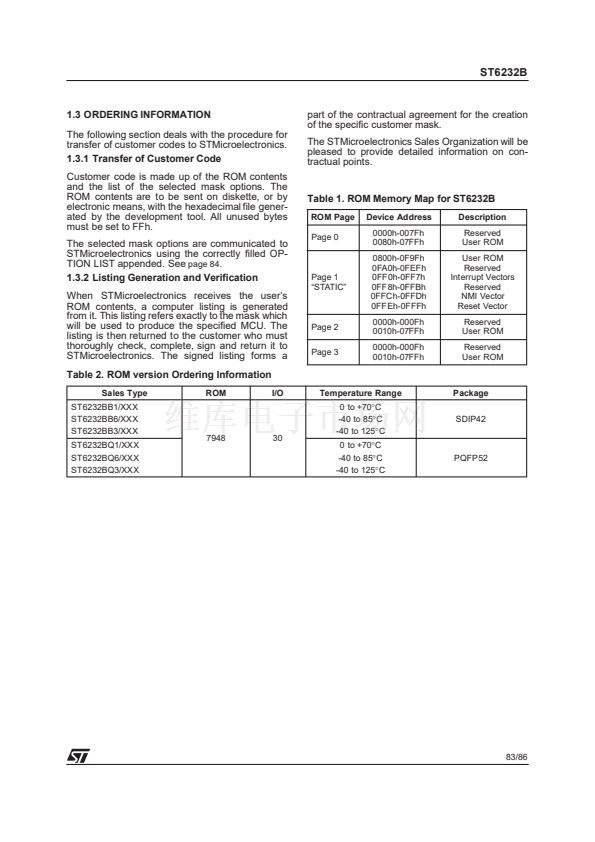

(See end of Datasheet for Ordering Information)

DEVICE SUMMARY

DEVICE

ST62T32B

ST62E32B

OTP

(Bytes)

7948

EPROM

(Bytes)

-

7948

EEPROM

(Bytes)

128

128

I/O Pins

30

30

Rev. 2.6

July 2001

1/86
