ST49C107ACF14-04 Datasheet

  • ST49C107ACF14-04

  • Preprogrammed CPU Mother Board Frequency Generator

  • 69.62KB

  • 8頁

  • EXAR   EXAR

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

Preliminary
FEATURES
D
Provides Reference Clock And Synthesized Clock
D
5 to 32 MHz Input Reference Frequency
D
Pin-to-Pin Compatible to Avasem AV9107
D
Programmable Analog Phase Locked Loop
ST49C107A-04
June 1997-3
Preprogrammed CPU Mother Board
Frequency Generator
...the analog plus company
TM
D

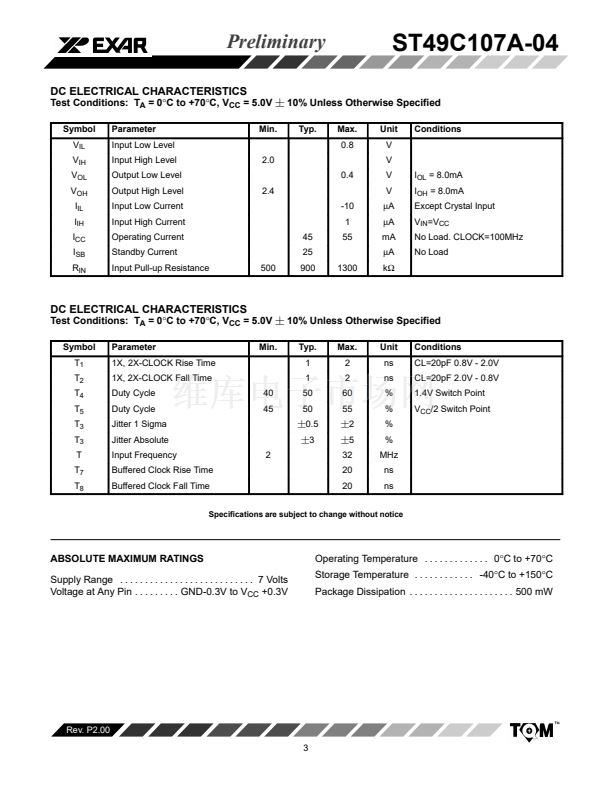

Low Power Single 5V CMOS Technology
D
Up to 16 Frequencies Stored Internally
D
8/14 pin DIP or SOIC Package
GENERAL DESCRIPTION
The ST49C107A-04 is a mask programmable monolithic
analog CMOS device designed to generate two
simultaneous clocks. The output frequency can vary from
2 to 130MHz, with up to 16 single selectable
preprogrammed frequencies stored in internal ROM.
The ST49C107A-04 is designed to replace existing CPU
mother board clocks generated from individual oscillators
ORDERING INFORMATION
Part No.
ST49C107ACF14-04
Package

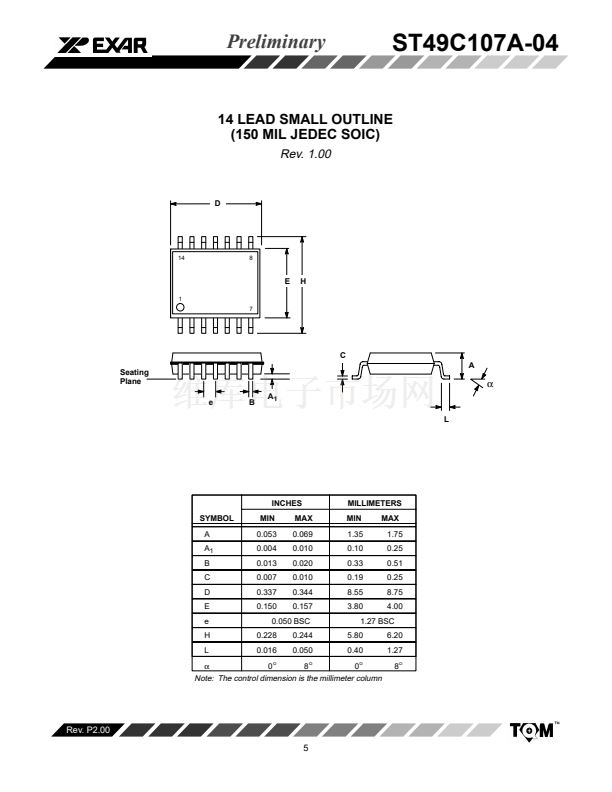

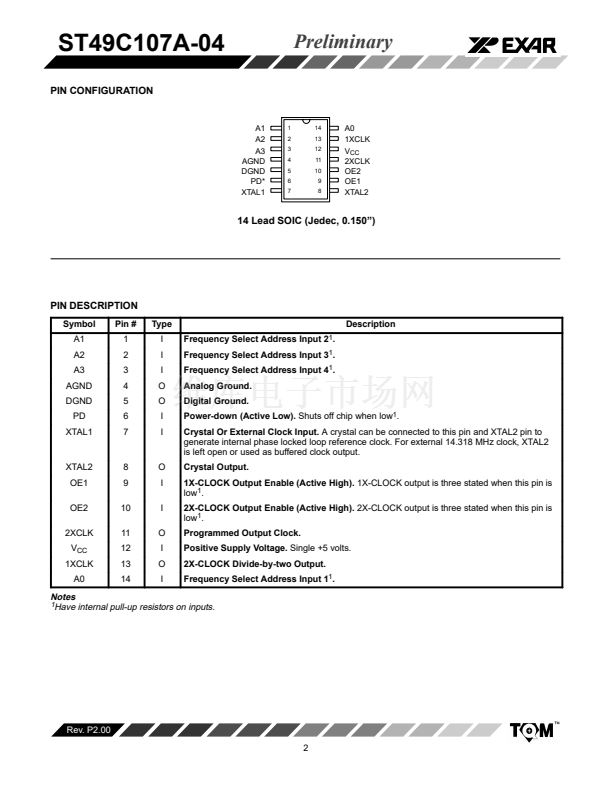

14 Lead 150 Mil JEDEC SOIC
Operating
Temperature Range
0擄C to 70擄C
in order to reduce board space and number of oscillators.
To provide high speed and low jitter clock, the parts utilize
a high speed analog CMOS phase locked loop using
14.318 MHz system clock as the reference clock (note
that reference clock can be changed to generate optional
frequencies from a standard programmed device). The

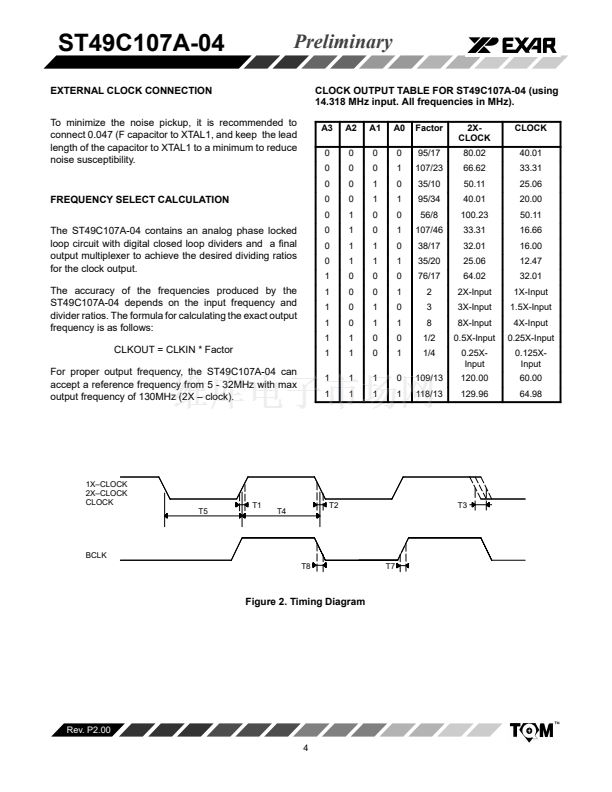

programmed clock outputs are selectable via four
address lines.
BLOCK DIAGRAM
XTAL
XTAL
OE1 OE2
Oscillator
Circuit
Output
Buffer
1X-CLOCK
2X-CLOCK
Programmable
Counter
B
Phase
Detector
Charge
Pump
Loop
Filter
Voltage
Controlled
Oscillator
Programmable
Counter
C
Programmable
Counter
A
Voltage
Reference
Circuit
Rom Table
Select
Logic
B=5....128
A=5....128
C = 1, 2, 4
A0-A3
Figure 1. Block Diagram
Rev. P2.00
E1996
EXAR Corporation, 48720 Kato Road, Fremont, CA 94538
z
(510) 668-7000
z
FAX (510) 668-7017
1
