SST65P542R-8-C-SG Datasheet

  • SST65P542R-8-C-SG

  • Remote Controller MCU

  • 40頁

  • SST   SST

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

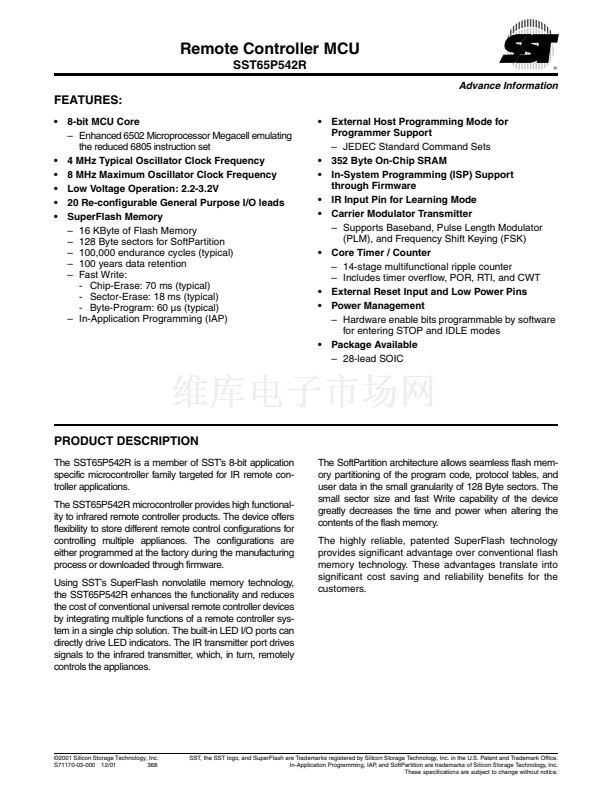

Remote Controller MCU
SST65P542R
SST65P542RMicrocontroller
Advance Information
FEATURES:
鈥?8-bit MCU Core
鈥?Enhanced 6502 Microprocessor Megacell emulating
the reduced 6805 instruction set
鈥?4 MHz Typical Oscillator Clock Frequency
鈥?8 MHz Maximum Oscillator Clock Frequency
鈥?Low Voltage Operation: 2.2-3.2V
鈥?20 Re-configurable General Purpose I/O leads
鈥?SuperFlash Memory
鈥?16 KByte of Flash Memory
鈥?128 Byte sectors for SoftPartition
鈥?100,000 endurance cycles (typical)
鈥?100 years data retention
鈥?Fast Write:

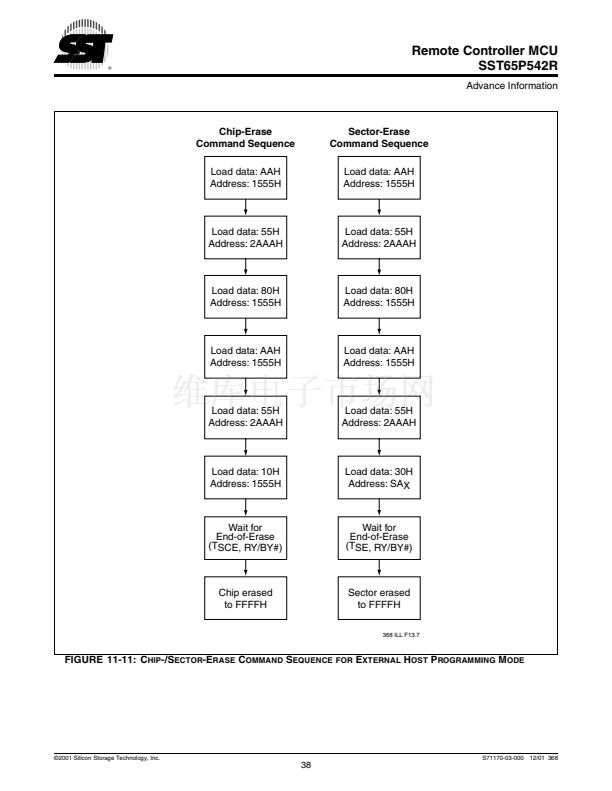

- Chip-Erase: 70 ms (typical)
- Sector-Erase: 18 ms (typical)

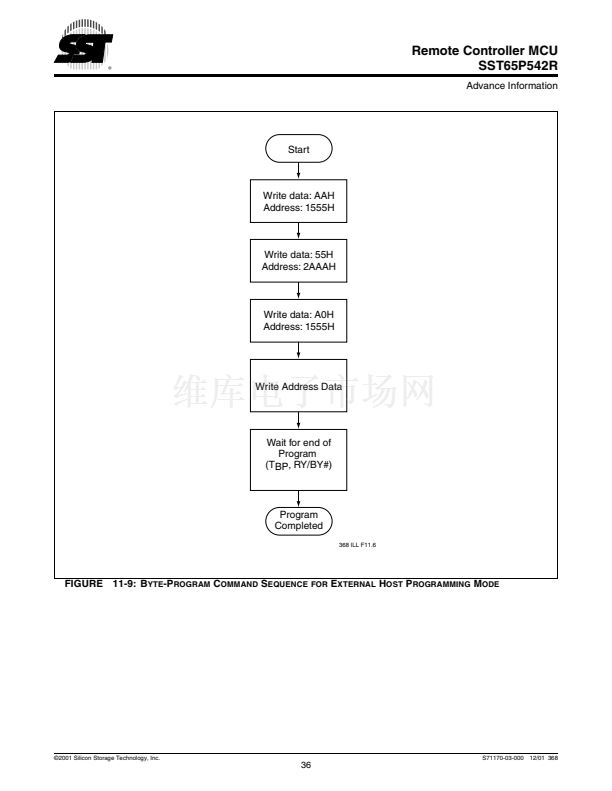

- Byte-Program: 60 碌s (typical)

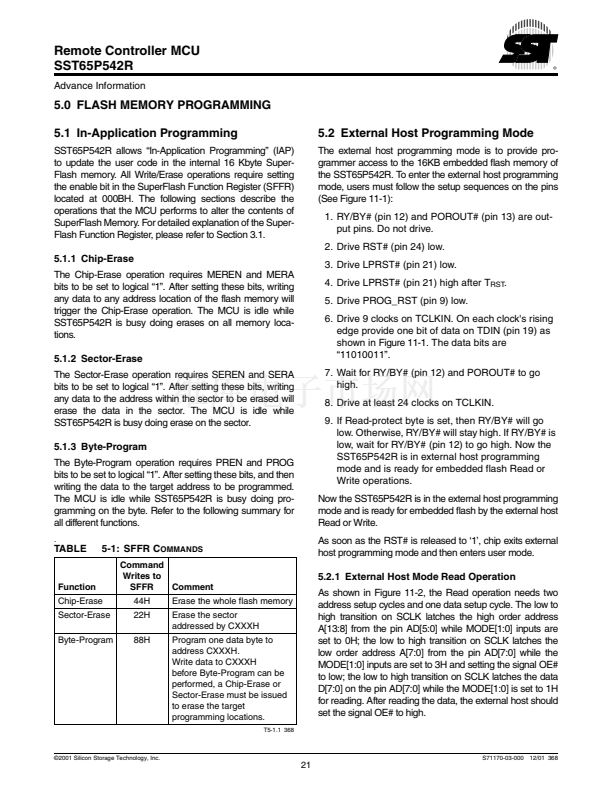

鈥?In-Application Programming (IAP)

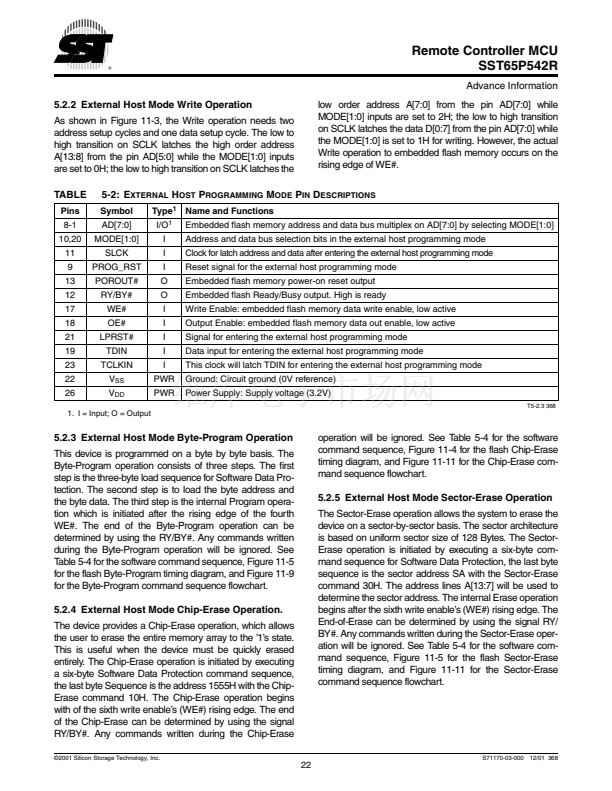

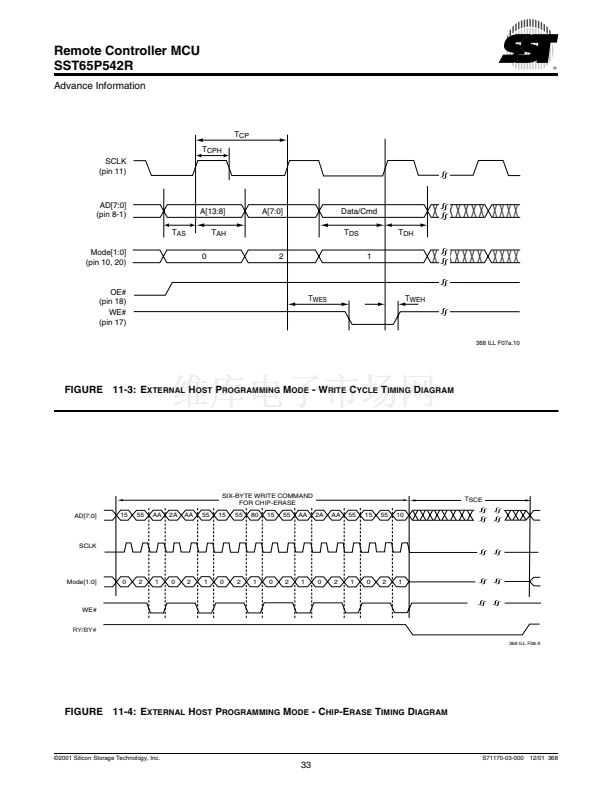

鈥?External Host Programming Mode for
Programmer Support
鈥?JEDEC Standard Command Sets

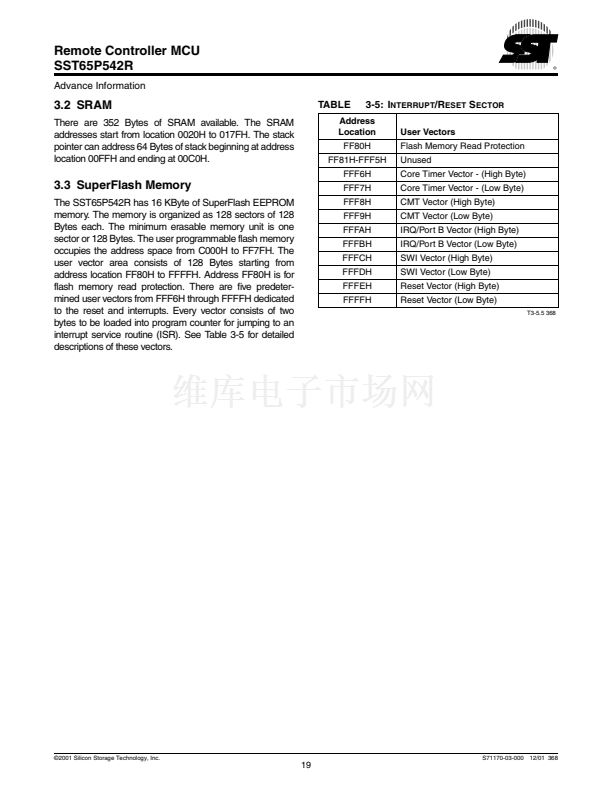

鈥?352 Byte On-Chip SRAM
鈥?In-System Programming (ISP) Support
through Firmware

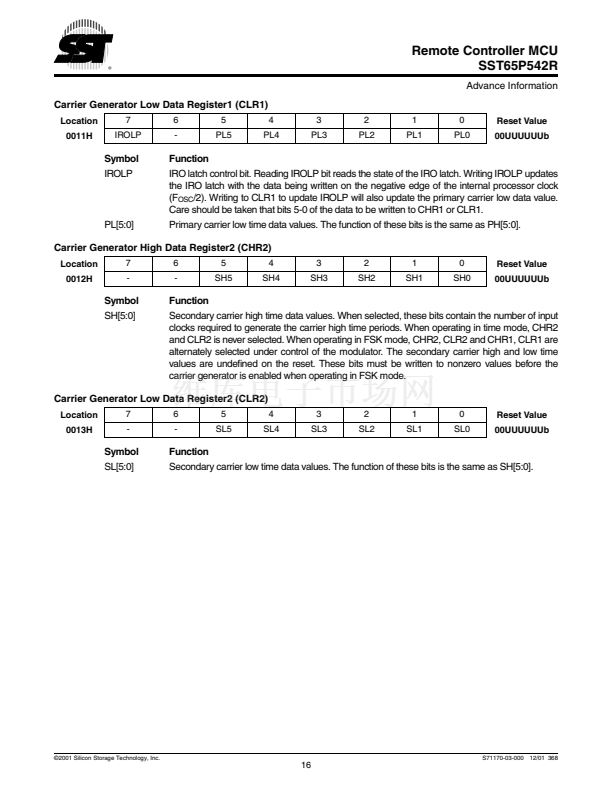

鈥?IR Input Pin for Learning Mode

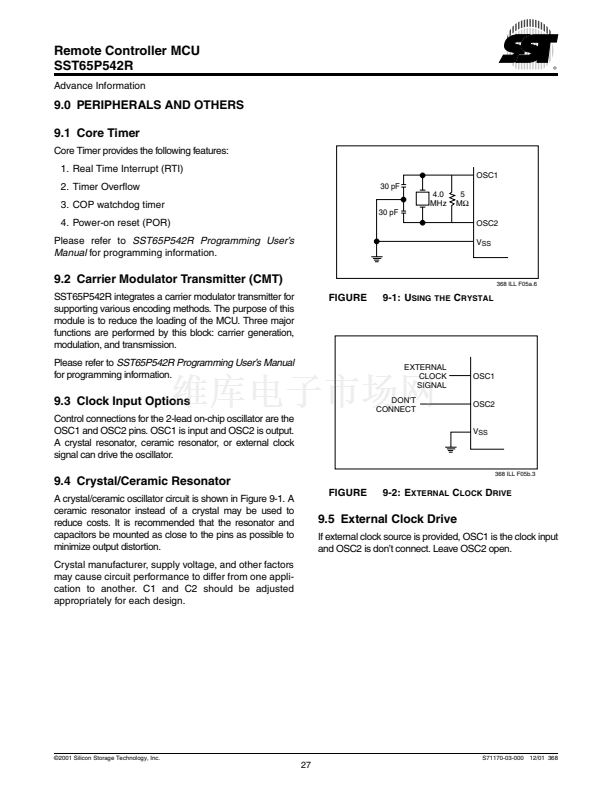

鈥?Carrier Modulator Transmitter
鈥?Supports Baseband, Pulse Length Modulator
(PLM), and Frequency Shift Keying (FSK)

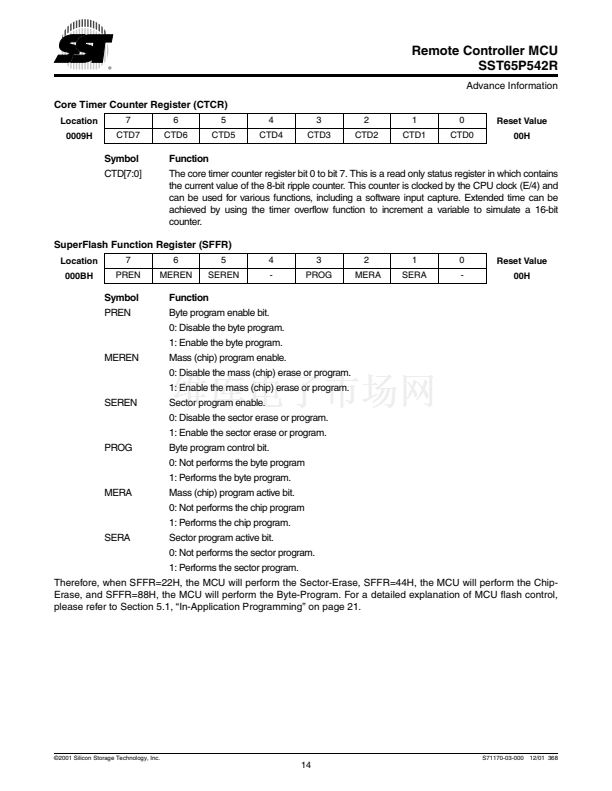

鈥?Core Timer / Counter
鈥?14-stage multifunctional ripple counter
鈥?Includes timer overflow, POR, RTI, and CWT
鈥?External Reset Input and Low Power Pins

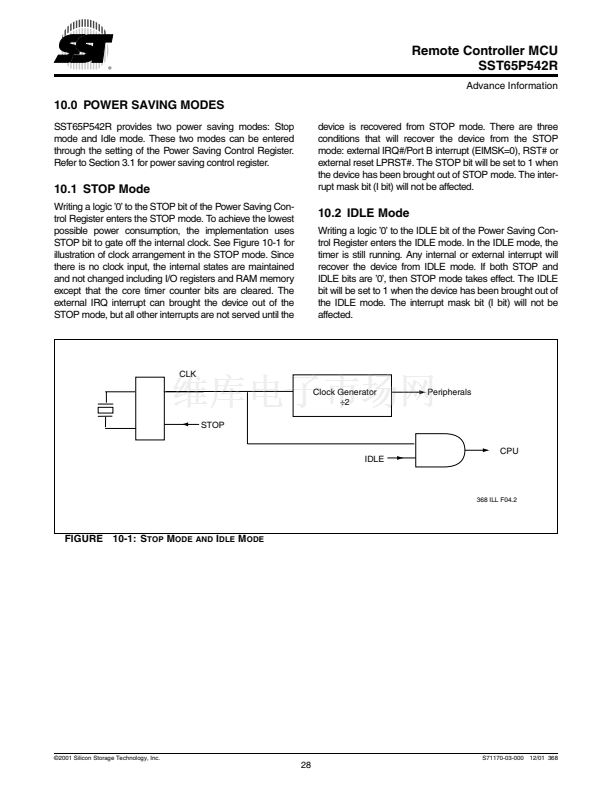

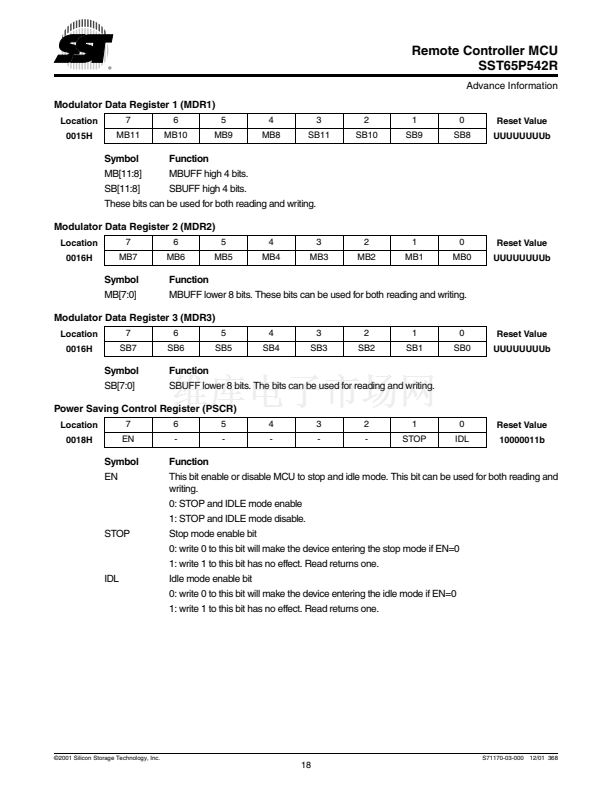

鈥?Power Management
鈥?Hardware enable bits programmable by software
for entering STOP and IDLE modes
鈥?Package Available

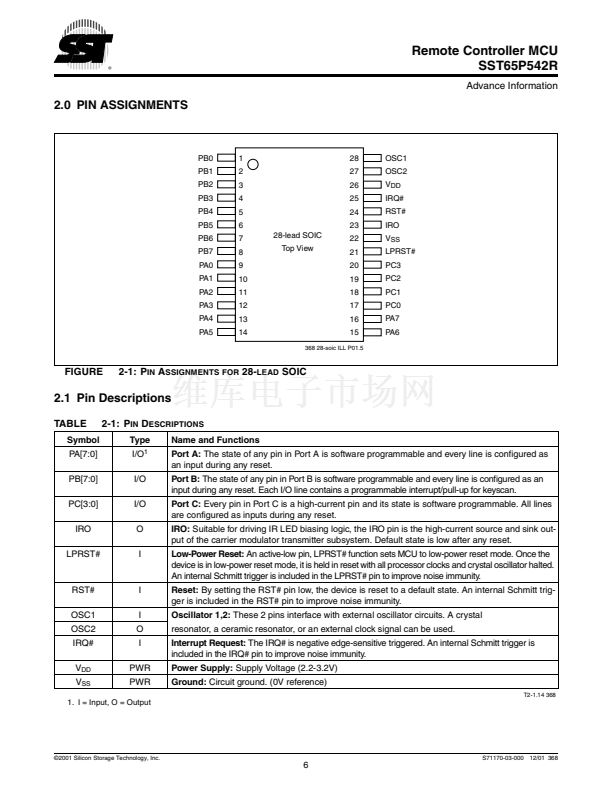

鈥?28-lead SOIC
PRODUCT DESCRIPTION
The SST65P542R is a member of SST鈥檚 8-bit application
specific microcontroller family targeted for IR remote con-
troller applications.
The SST65P542R microcontroller provides high functional-
ity to infrared remote controller products. The device offers
flexibility to store different remote control configurations for
controlling multiple appliances. The configurations are
either programmed at the factory during the manufacturing
process or downloaded through firmware.
Using SST鈥檚 SuperFlash nonvolatile memory technology,
the SST65P542R enhances the functionality and reduces
the cost of conventional universal remote controller devices
by integrating multiple functions of a remote controller sys-
tem in a single chip solution. The built-in LED I/O ports can
directly drive LED indicators. The IR transmitter port drives
signals to the infrared transmitter, which, in turn, remotely
controls the appliances.
The SoftPartition architecture allows seamless flash mem-
ory partitioning of the program code, protocol tables, and
user data in the small granularity of 128 Byte sectors. The
small sector size and fast Write capability of the device
greatly decreases the time and power when altering the
contents of the flash memory.
The highly reliable, patented SuperFlash technology
provides significant advantage over conventional flash
memory technology. These advantages translate into
significant cost saving and reliability benefits for the
customers.
漏2001 Silicon Storage Technology, Inc.
S71170-03-000 12/01
368
1
SST, the SST logo, and SuperFlash are Trademarks registered by Silicon Storage Technology, Inc. in the U.S. Patent and Trademark Office.
In-Application Programming, IAP, and SoftPartition are trademarks of Silicon Storage Technology, Inc.
These specifications are subject to change without notice.
