SPX432L Datasheet

  • SPX432L

  • Ultra 1.24V Precision Adjustable Shunt Regulator

  • 168.26KB

  • 9頁

  • SIPEX

掃碼查看芯片數據手冊

上傳產品規格書

PDF預覽

SPX432L
Ultra 1.24V Precision Adjustable
Shunt Regulator
FEATURES
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
Low Voltage Operation ......................................... 1.24V
Trimmed Bandgap to
..............................................1%
Wide Operating Current
................
100碌A(chǔ) to 100mA
碌
Extended Temperature Range
...............0擄
C to 105擄C
擄
擄
Adjustable Output Voltage...........................V
REF
to 18V
Low Temperature Coefficient ....................... 50 ppm/擄C
Offered in TO-92, SOIC, SOT-89, SOT-23-3
APPLICATIONS
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
鈥?/div>
3.0V to 3.3V Switching Power Supplies
Adjustable Supplies
Error Amplifiers
Single Supply Amplifier
Monitors / VCR / TV
Personal Computers

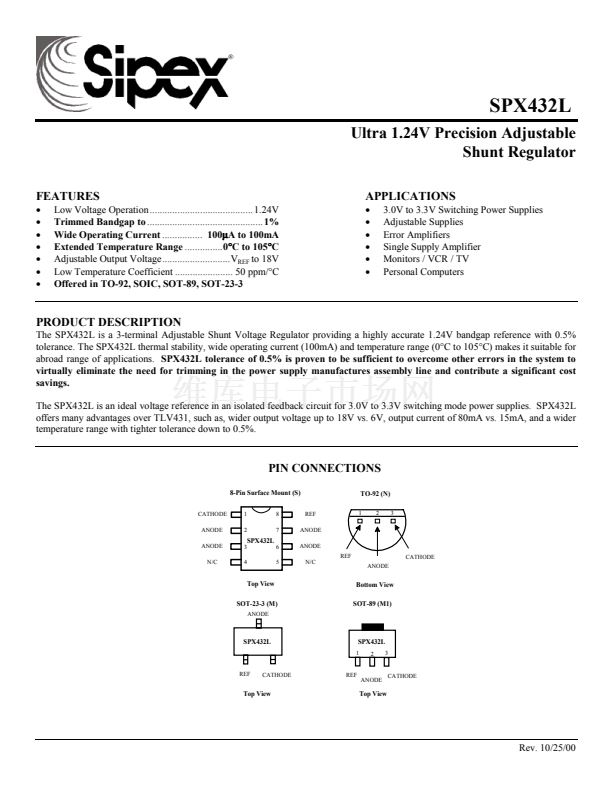

PRODUCT DESCRIPTION
The SPX432L is a 3-terminal Adjustable Shunt Voltage Regulator providing a highly accurate 1.24V bandgap reference with 0.5%
tolerance. The SPX432L thermal stability, wide operating current (100mA) and temperature range (0擄C to 105擄C) makes it suitable for
abroad range of applications.
SPX432L tolerance of 0.5% is proven to be sufficient to overcome other errors in the system to
virtually eliminate the need for trimming in the power supply manufactures assembly line and contribute a significant cost
savings.
The SPX432L is an ideal voltage reference in an isolated feedback circuit for 3.0V to 3.3V switching mode power supplies. SPX432L
offers many advantages over TLV431, such as, wider output voltage up to 18V vs. 6V, output current of 80mA vs. 15mA, and a wider
temperature range with tighter tolerance down to 0.5%.
PIN CONNECTIONS
8-Pin Surface Mount (S)
CATHODE
ANODE
ANODE
N/C
1
2
3
4
8
7
6
5
REF
ANODE
ANODE
N/C
REF
ANODE
CATHODE
TO-92 (N)
1
2
3
SPX432L
Top View
SOT-23-3 (M)
ANODE
Bottom View
SOT-89 (M1)
SPX432L
SPX432L
1
2
3
REF
CATHODE
REF
ANODE
CATHODE
Top View
Top View
Rev. 10/25/00
